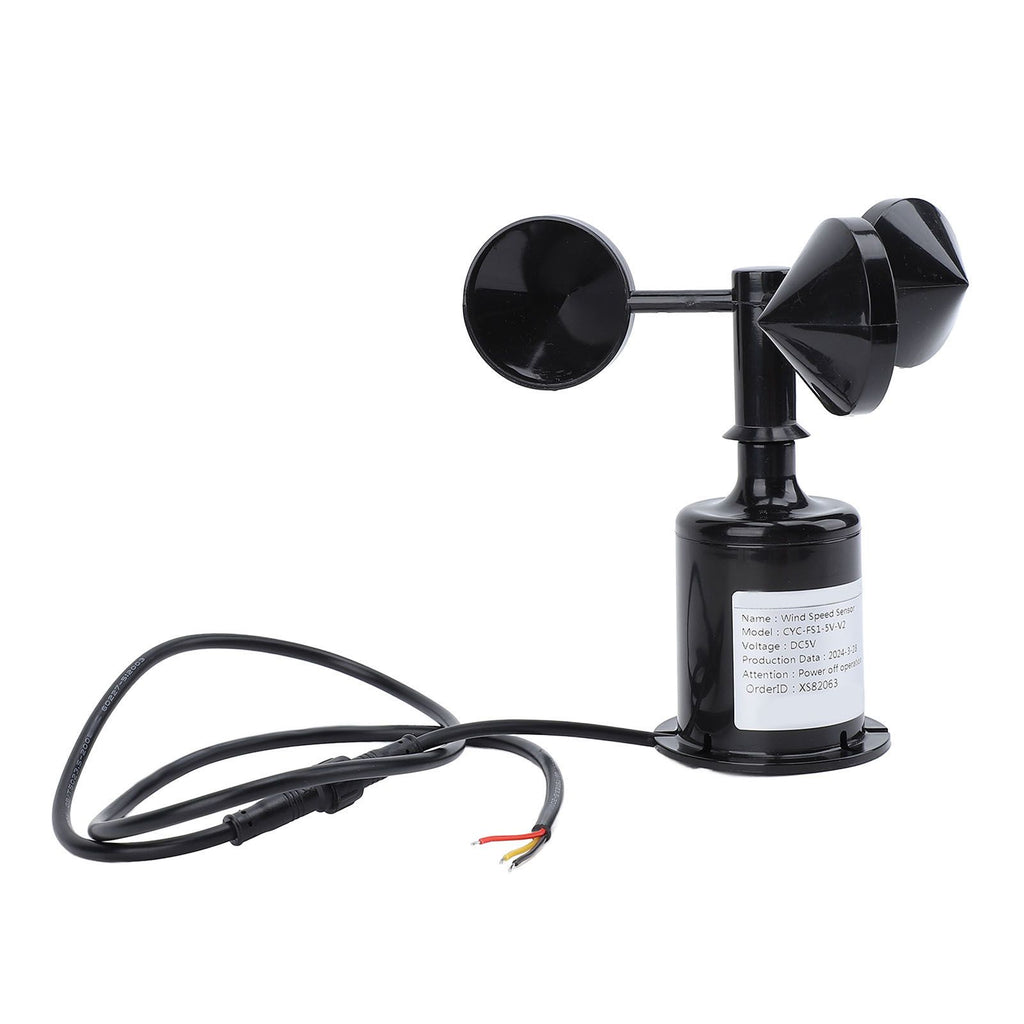

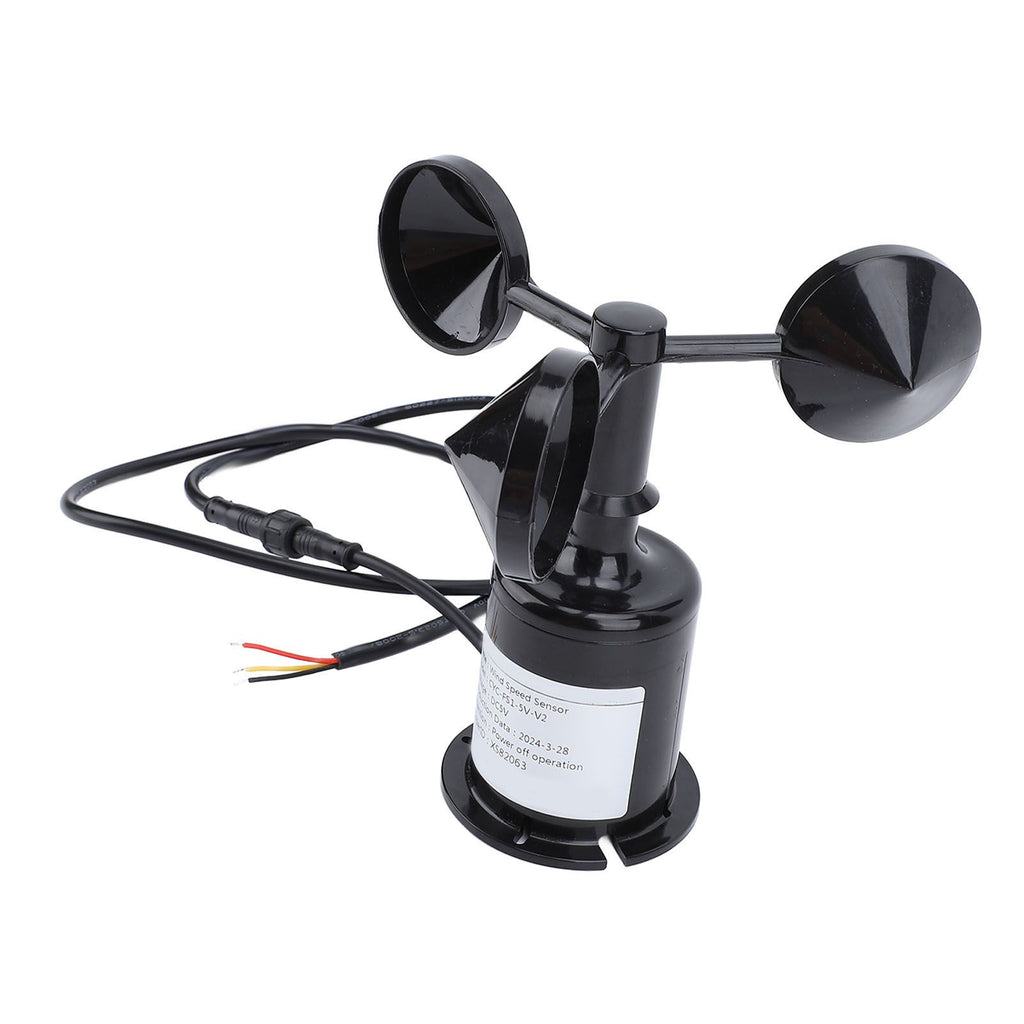

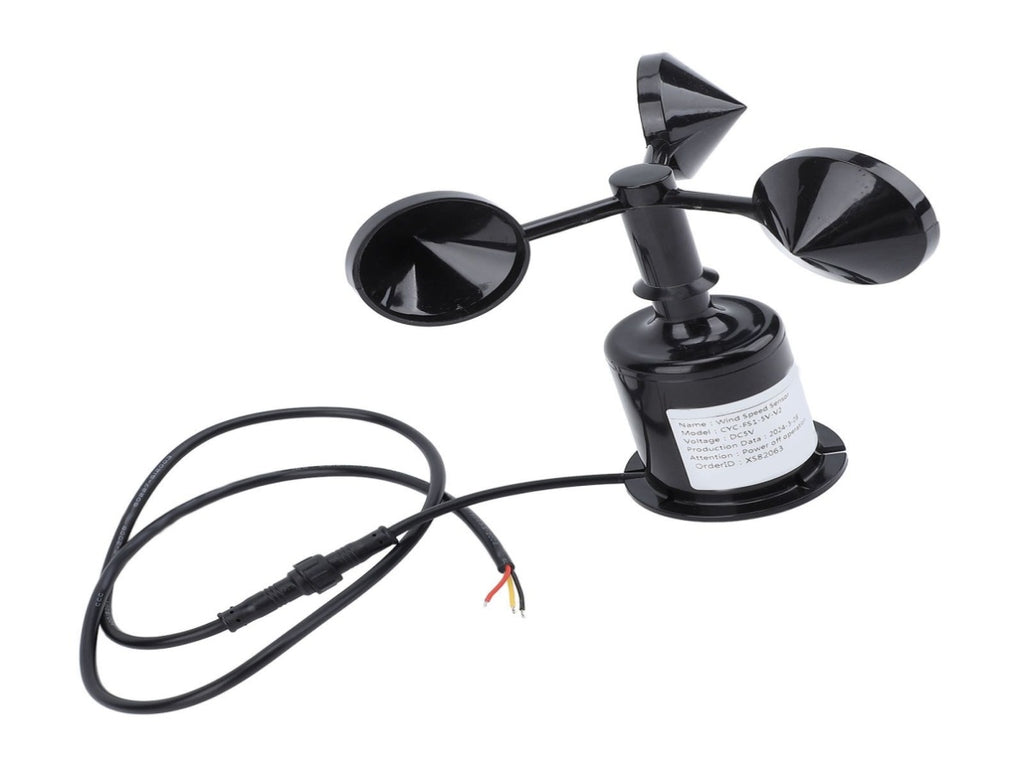

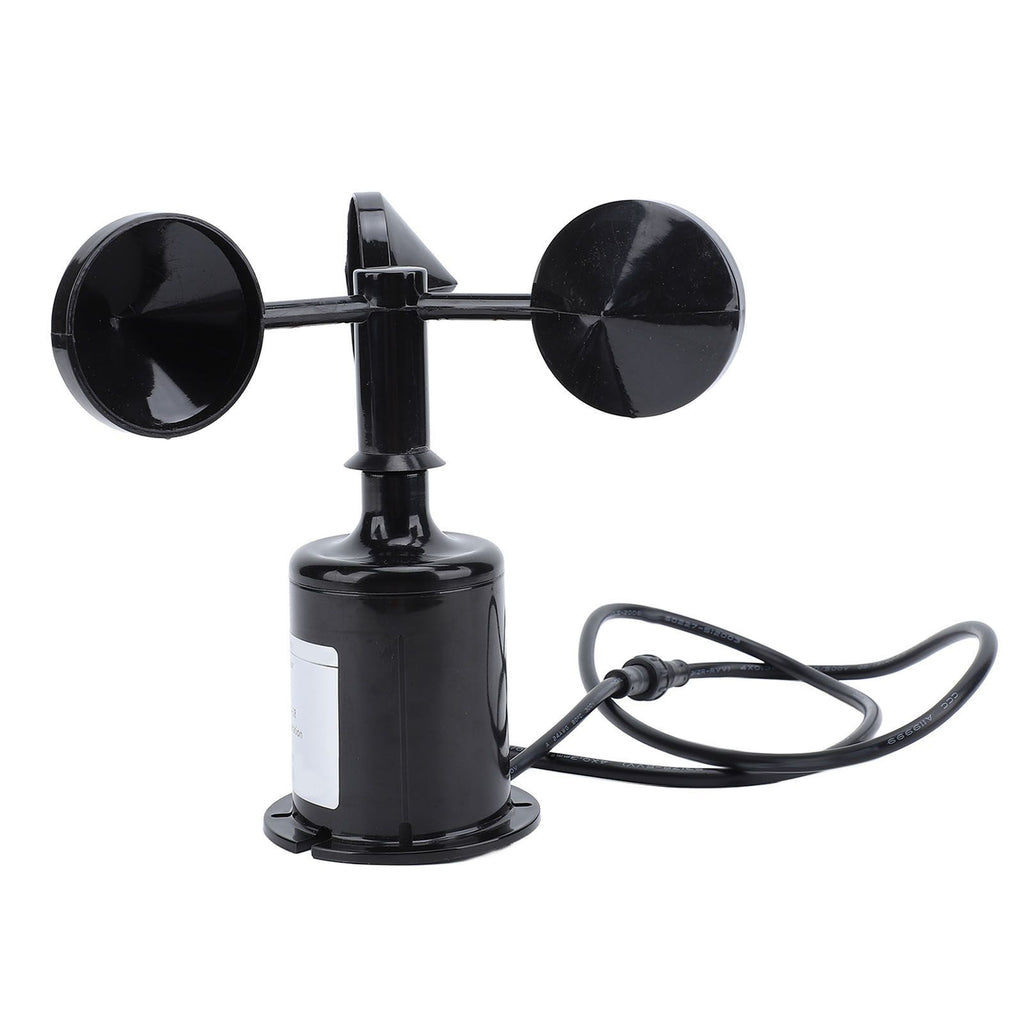

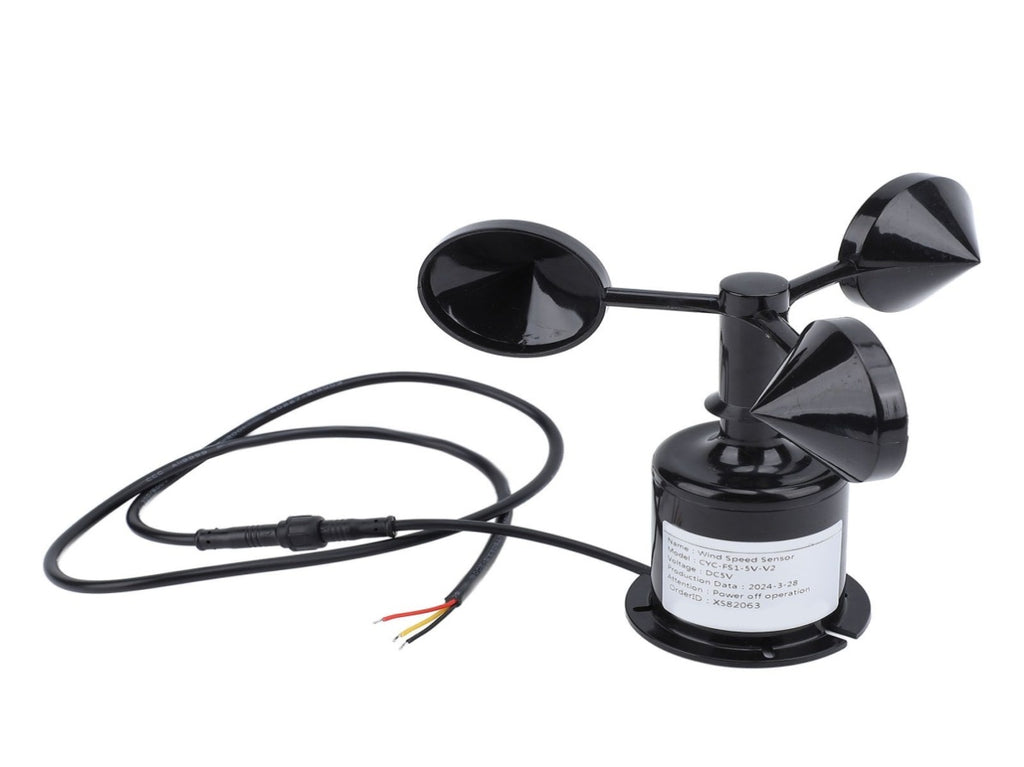

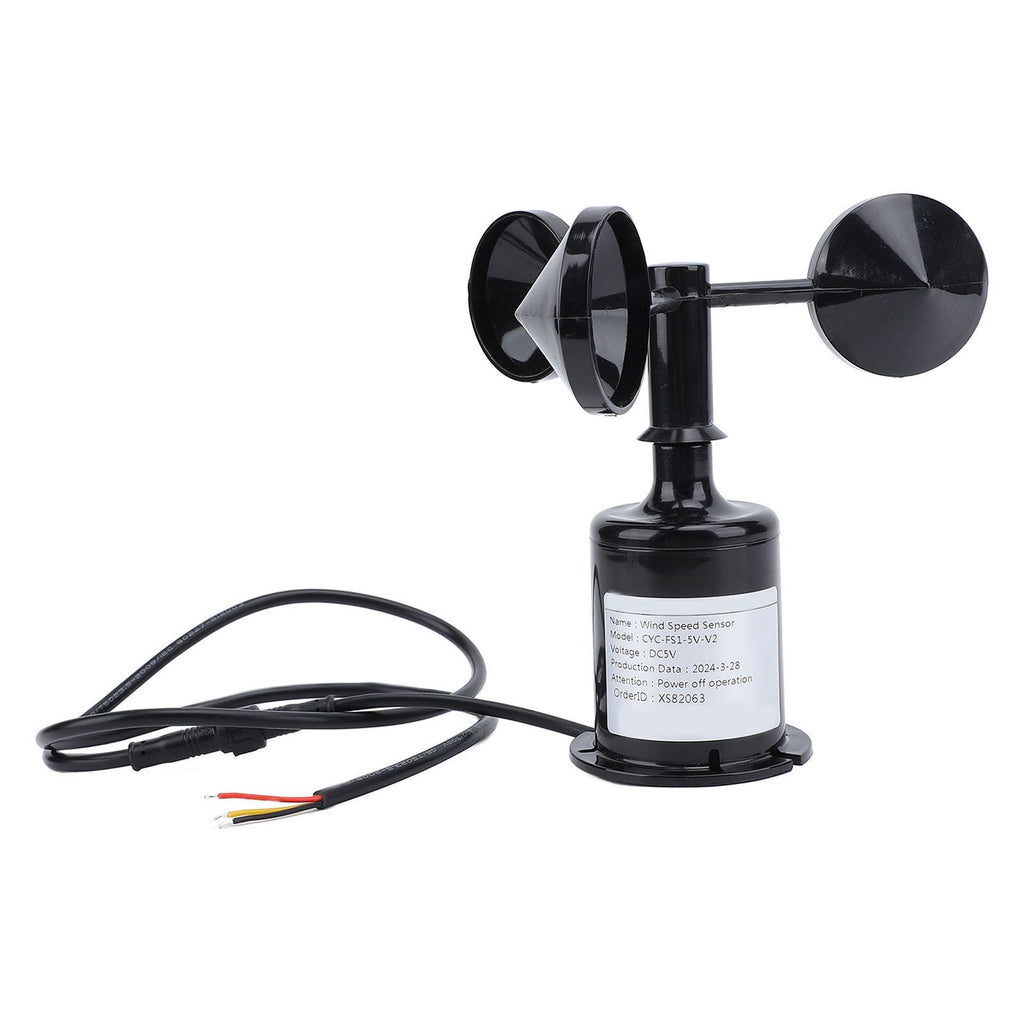

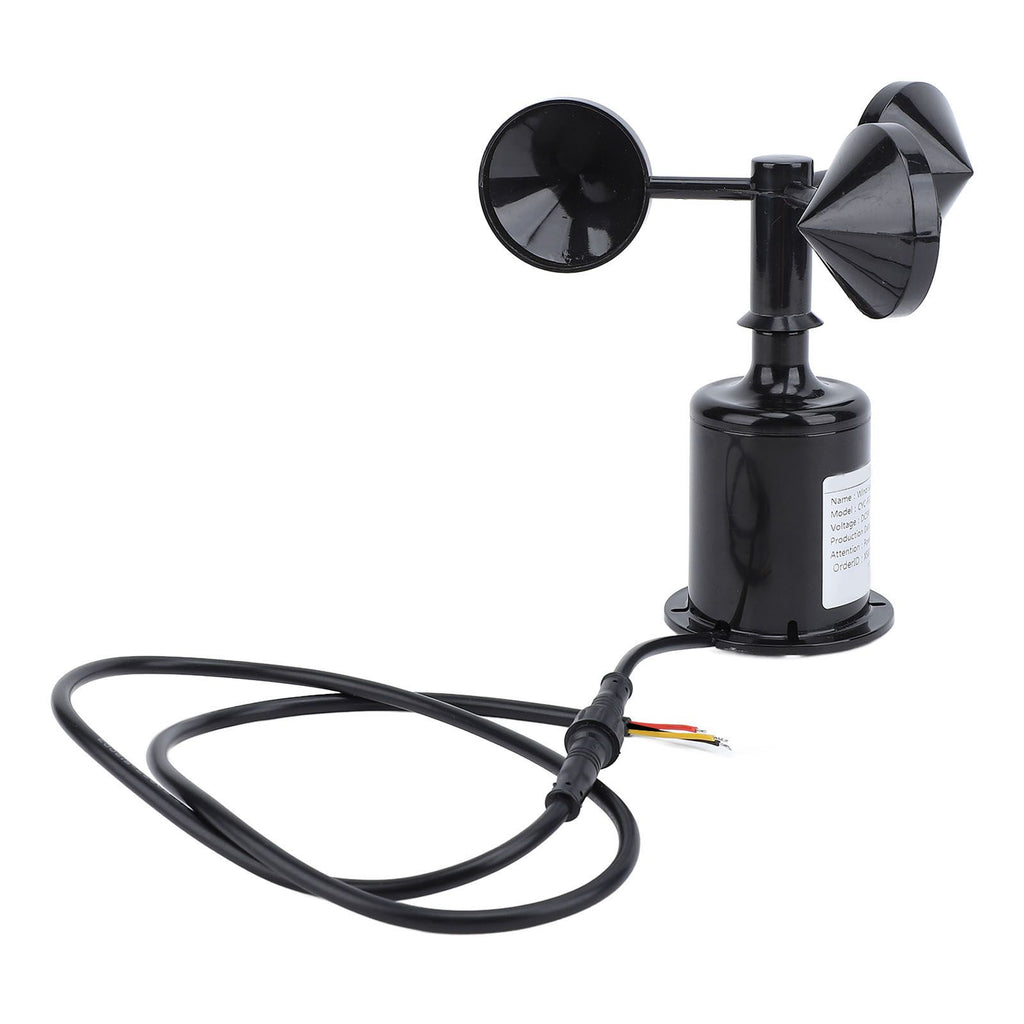

Wind Speed Anemometer High Accuracy 5V Wind Speed Monitoring Sensor Measuring Detector with 2.62ft V1294-YM0901-3111240080511

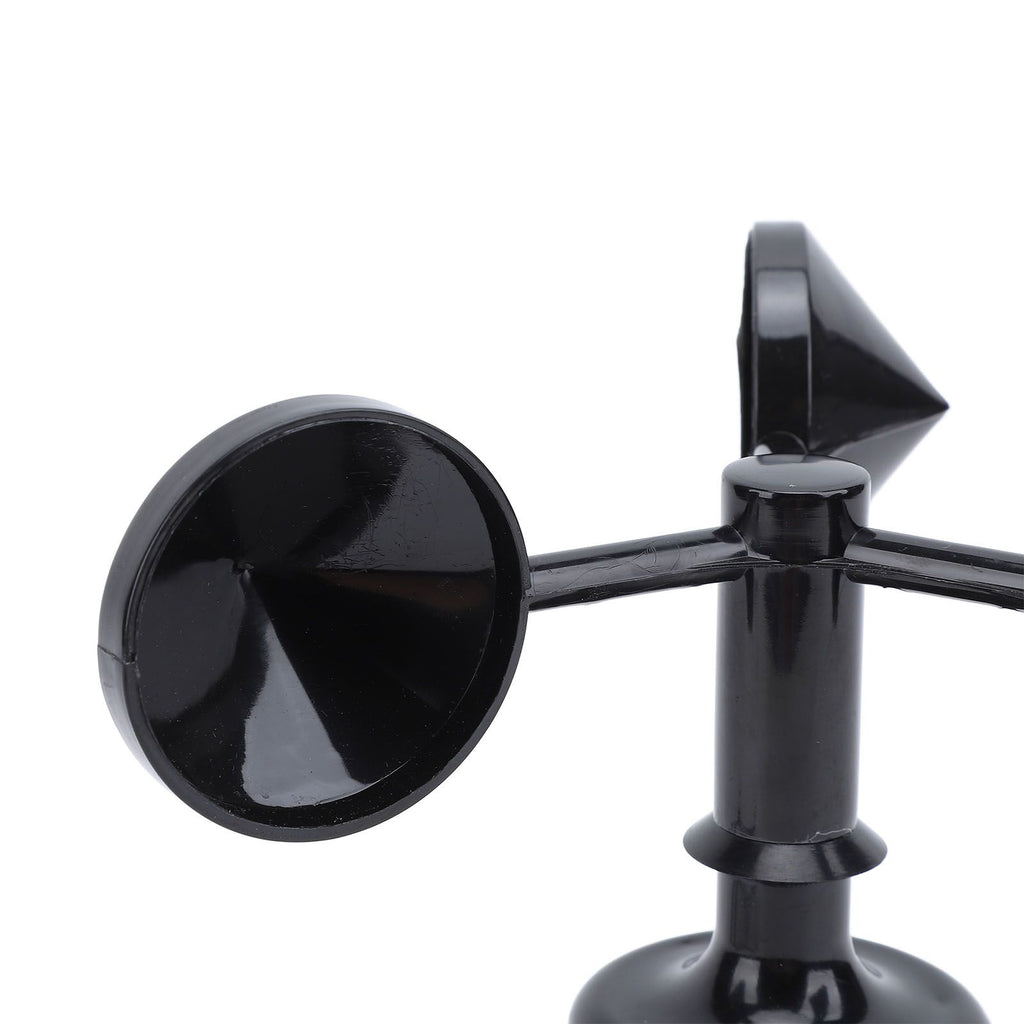

1、Interference Resistant: Equipped with strong resistance against lightning and interference, this wind speed detector is compact, lightweight and easy to carry and assemble. 2、2.62ft Extension Cable: The anemometer comes with a 2.62ft extension cable that is durable, waterproof and is fitted with a sealed O ring design at the connection point to ensure long lasting performance. 3、Versatile Wiring Options: The wind speed anemometer is compatible with both bottom and side wiring options for ease of use and adaptability. 4、Wide Application: Widely used in greenhouses, environmental protection, meteorological stations, ships, docks, aquaculture, advertising barriers, meteorology, marine, environment, airports, ports and more. 5、Premium Material: The wind cups are made from ABS material, offering high strength and requiring minimal wind speeds to engage, corrosion and erosion resistant.
Specification
Item Type: Wind Speed Anemometer
Material: ABS
Size: Approx. 158x180x70mm/6.22x7.09x2.76in
Power Supply Voltage: DC5V
Signal Output: 0-2.5V
Measurement Range: Wind Speed 0-45m/s
Connection Extension Cable Length: Approx. 0.8m/31.50in
Accuracy: ±(0.5+0.02V)m/s
Resolution: 0.1m/s
Start up Wind Speed: ≤0.8m/s
Maximum Power Consumption: 0.48W
Load Capacity: DC12V power supply, current output impedance ≤350Ω, DC24V power supply, current output impedance ≤900Ω, voltage output impedance ≥1KΩ
Operating Environment: Temperature -35°C to 60°C, humidity ≤100%RH without condensation
Protection Level: IP64 waterproof
Application:
Greenhouse, Environmental Protection, Meteorological Station, Ship, Pier, Farming, Advertising Gate, Meteorology, Marine, Environmental, Airport, Port, Laboratory, Agriculture and Traffic wind speed measurement environments
Calculation Formula:
0-2.5V:F=V/2.5*A+B
F: Wind speed value, m/s;
V: Sensor output voltage, V;
A: Sensor range width (upper range minus lower limit);
B: The lowest value of the sensor range (the lower limit of the range);

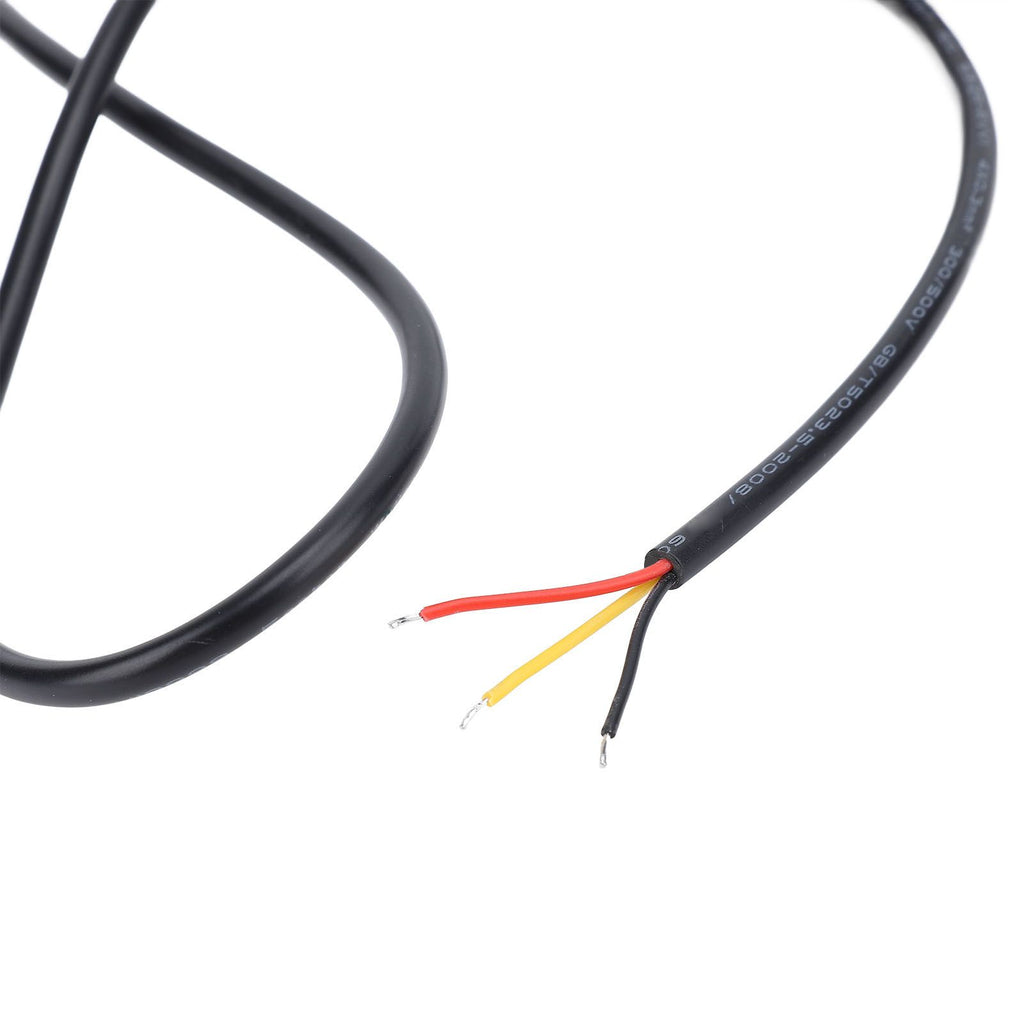

Wiring Method (wire color output signal):
Red-Positive, Black-Negative, Yellow-Signal
Diameter: Approx. 63mm/2.48in
Mounting Hole Diameter: Approx. 3.2mm/0.13in
Mounting Depth: Approx. 15mm/0.59in (recommend reserving 25mm for wiring, wire first, then install fixed sensor)
Troubleshooting:
1. The wind blade does not rotate smoothly, the delay is large. Due to foreign objects or jamming in the bearing after long term use. Please return the sensor to the company for processing;
2. The display value is incorrect. It may be caused by wiring problems or communication interface failures that prevent correct data retrieval. Please check if the wiring is correct and secure, if the interface is occupied, and if the interface settings are correct.
Package List
1 x Wind Speed Anemometer
Note
1. Please check whether the packaging is in good condition, and check whether the product model is consistent with the selection;
2. Do not live wiring, and the power can only be turned on after the wiring is completed and checked;
3. The length of the sensor line will affect the output signal of the product, do not change the product at will when using, if there is a need to change, please contact the manufacturer;
4. The sensor is a precision device, please do not disassemble or touch the surface of the sensor with sharp objects or corrosive liquids when using it, so as not to damage the product;
5. Please keep the verification certificate and certificate, and return it with the product during maintenance.
6. Do not plug and unplug with electricity connected;
