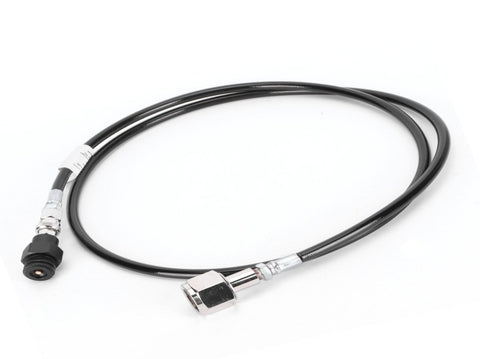

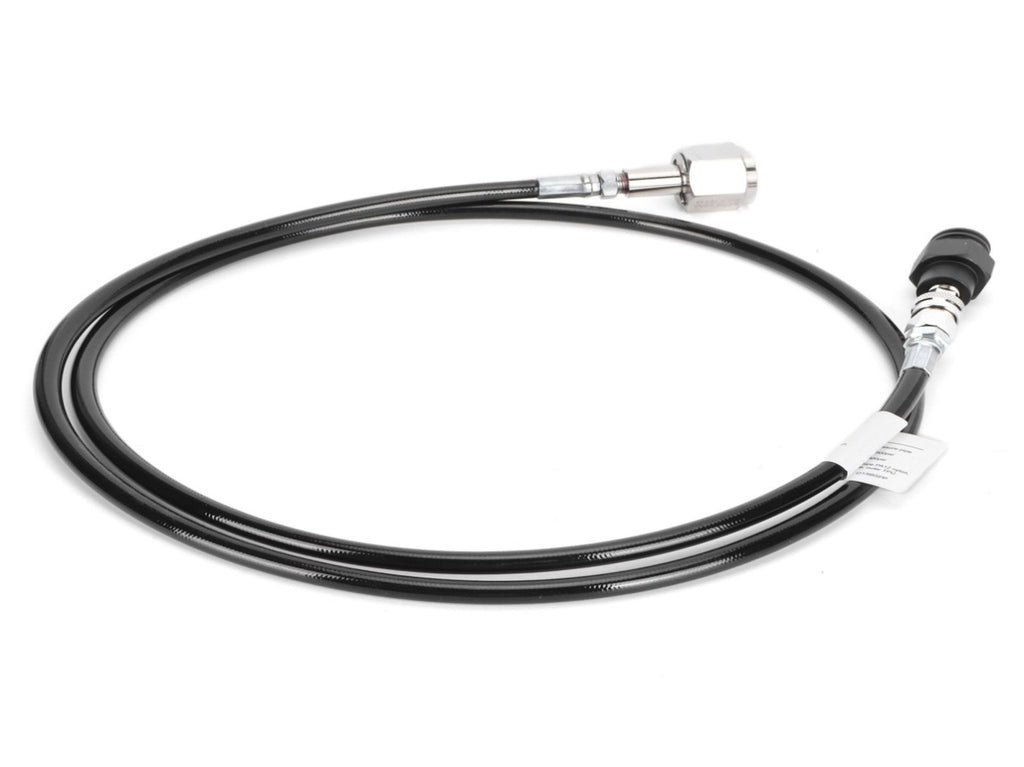

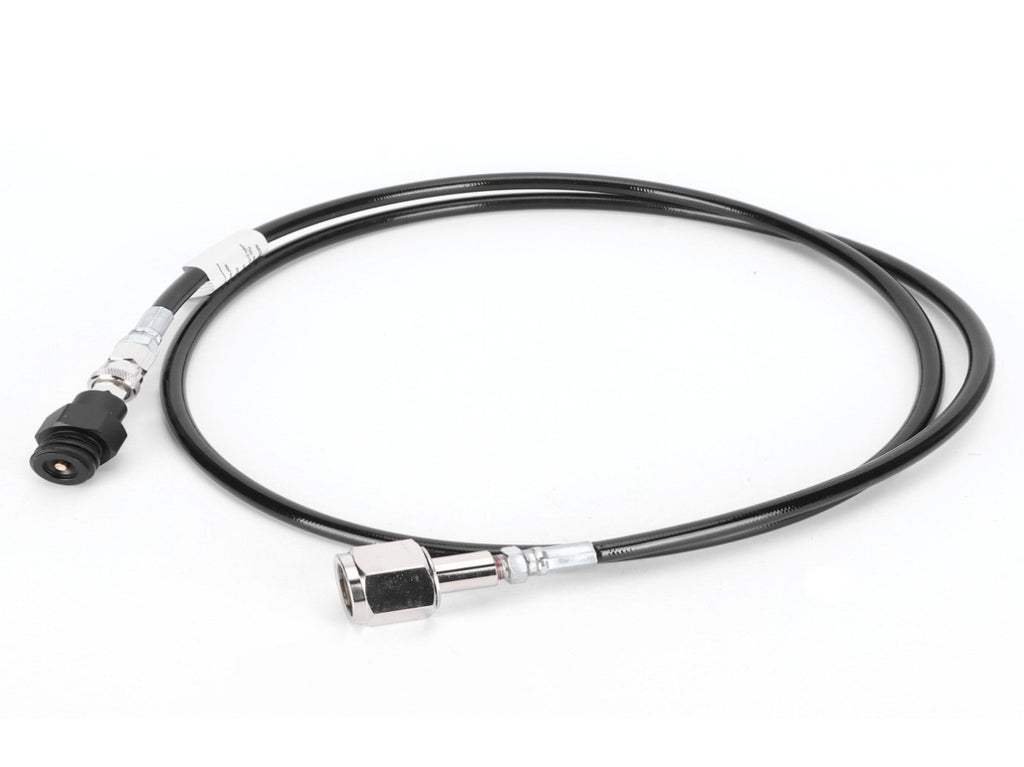

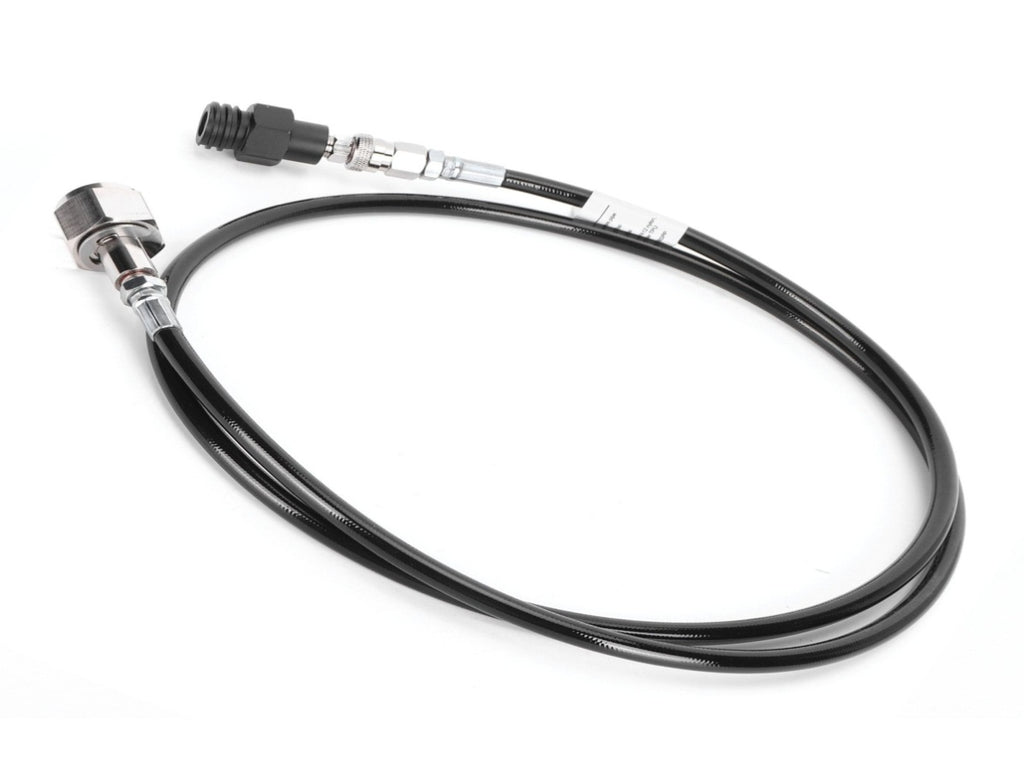

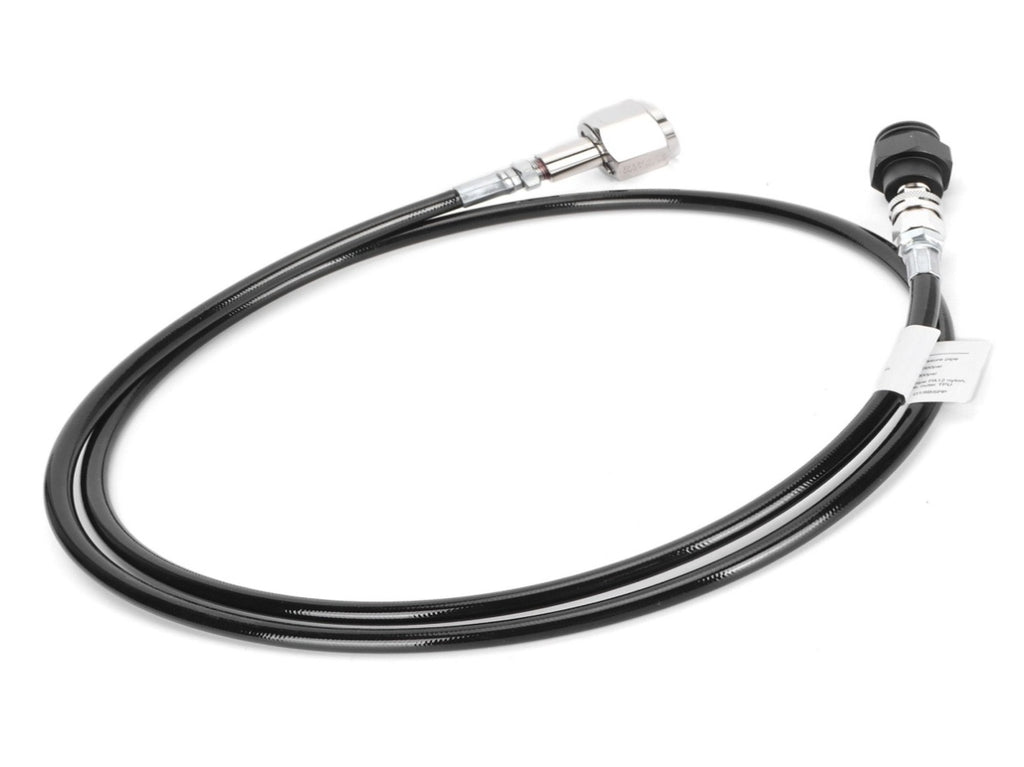

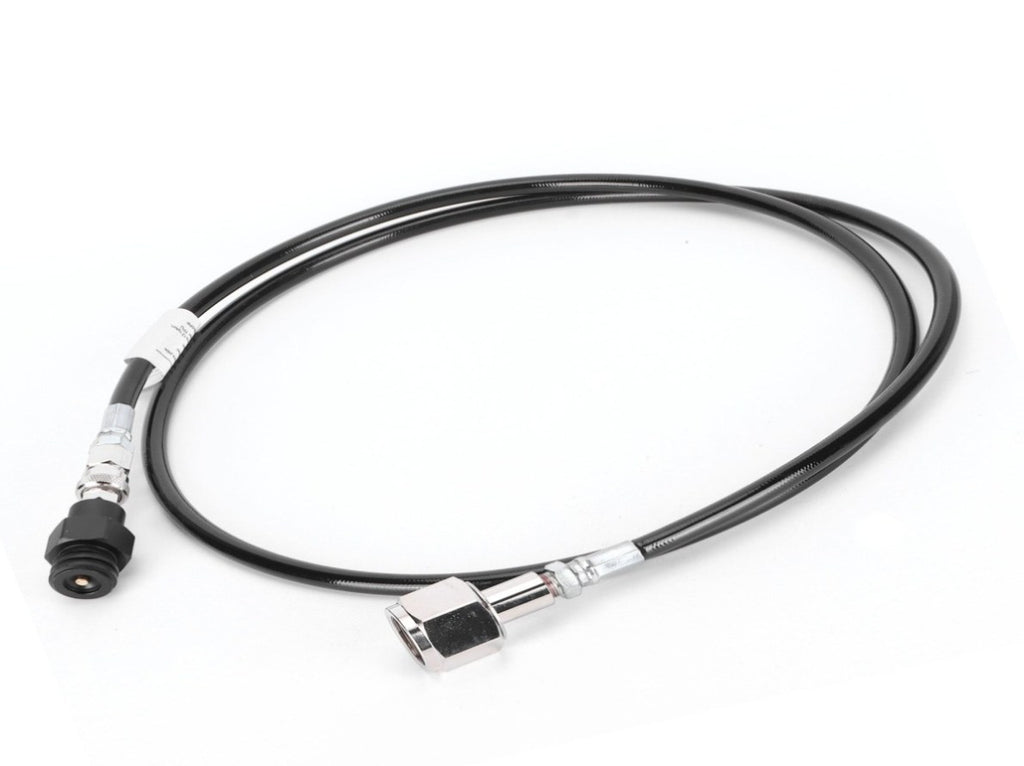

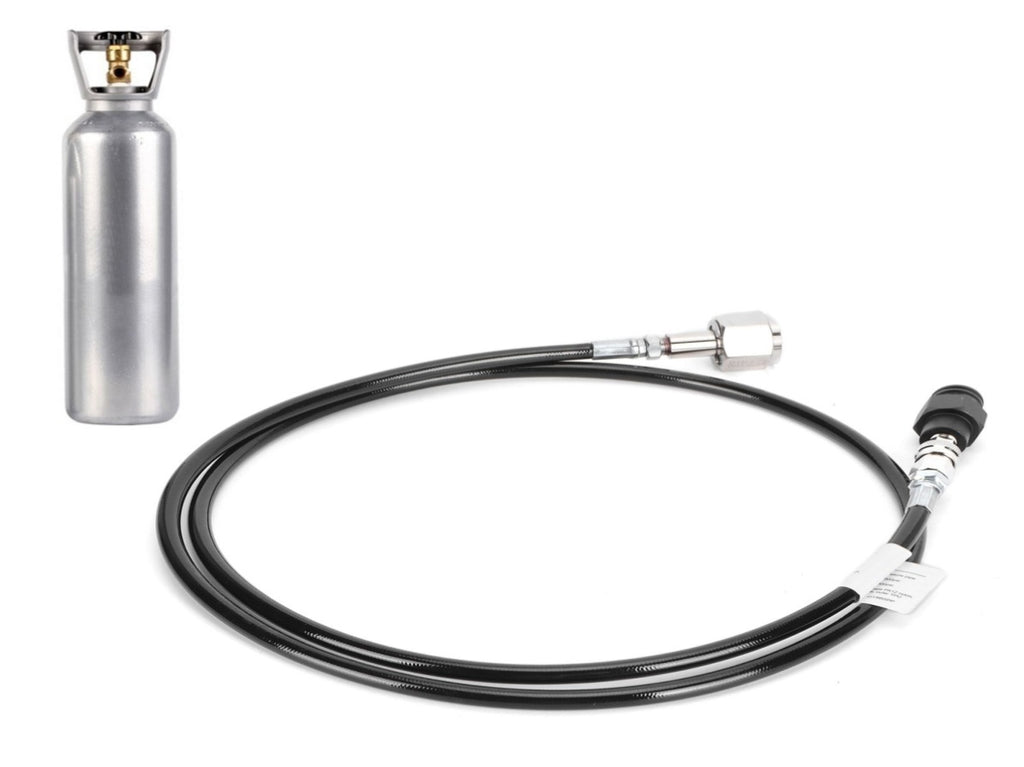

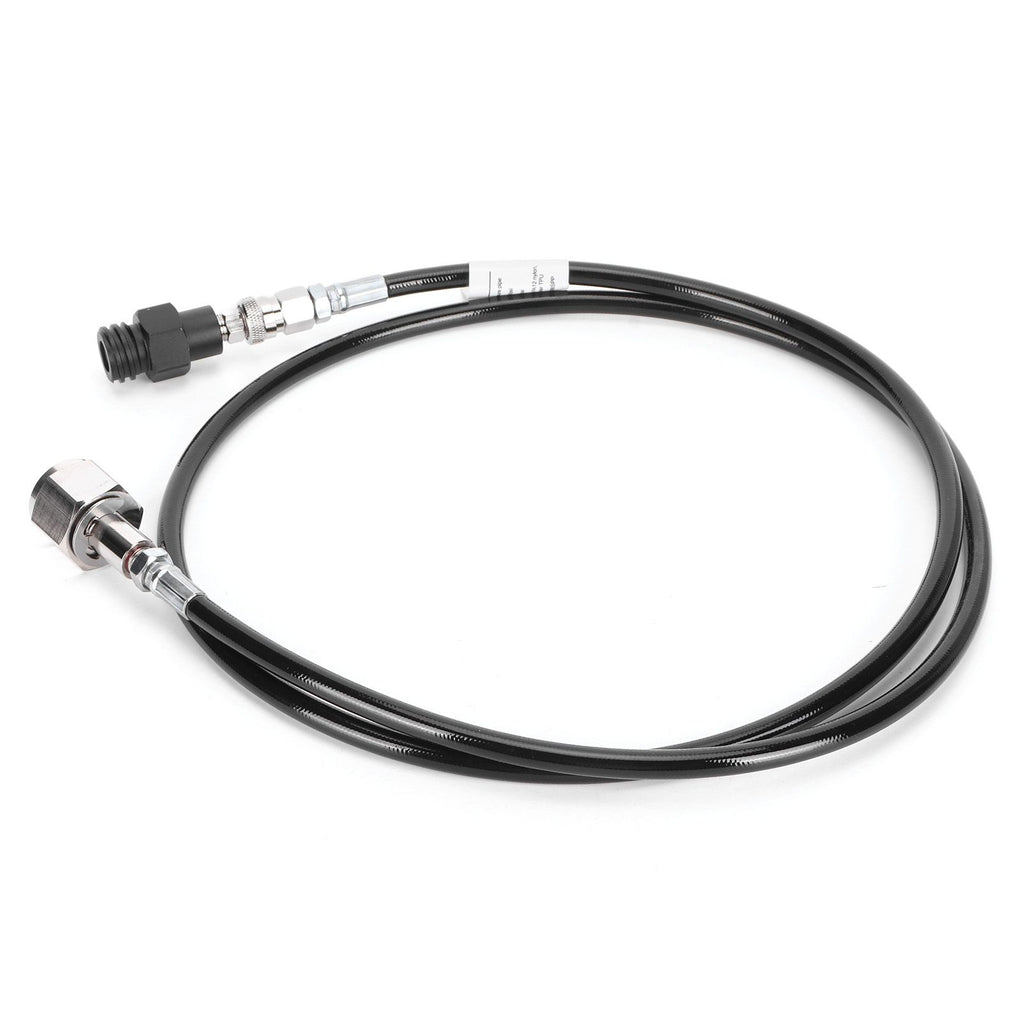

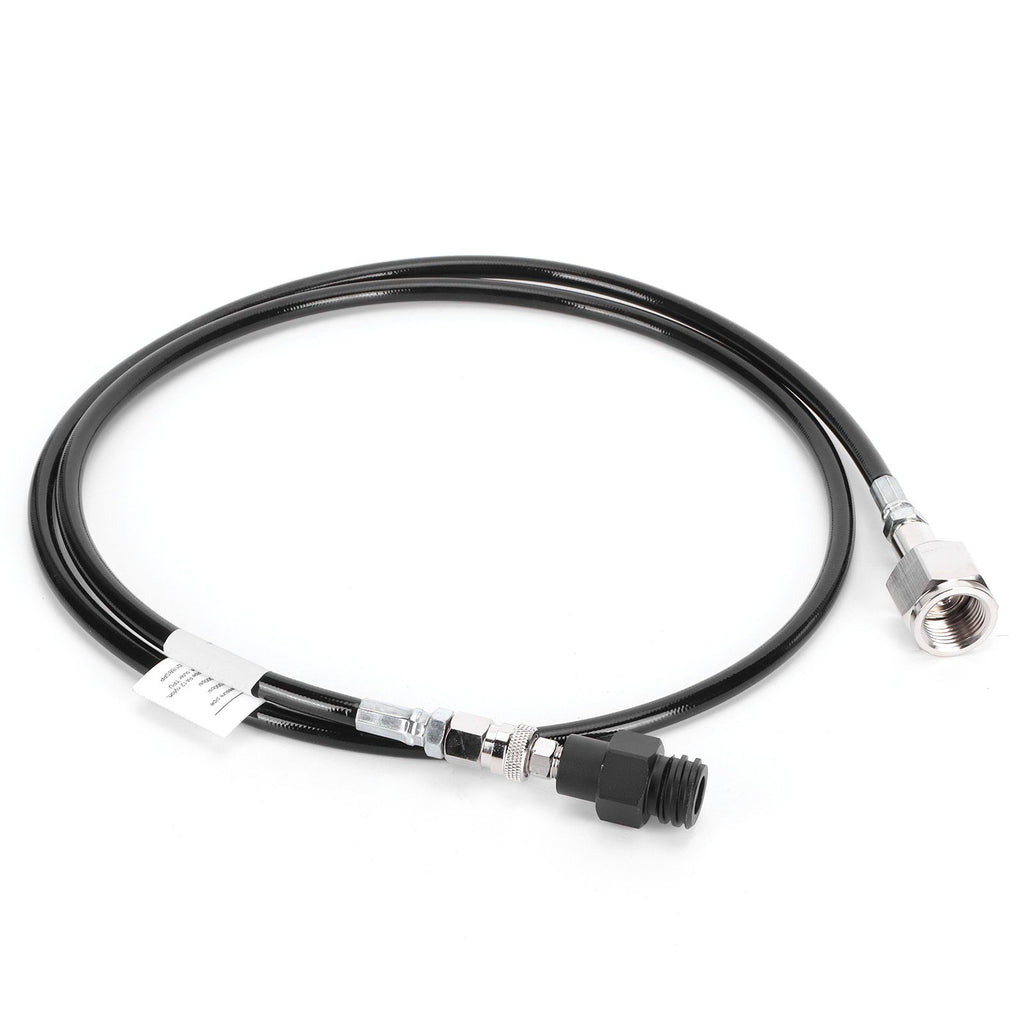

W21.8-14 1.5m Soda Hose Black CO2 Gas Cylinder Refilling Adapter Soda Maker Accessory V1294-YM0901-3113210020311

1、Stainless steel + aluminum alloy material, corrosion‑resistant, long service life. 2、W21.8‑14 // TR21‑4 thread connection, no air leakage when connected with the cylinder. 3、Easy to connect and use, excellent sealing performance, tight connection. 4、Can be used to replenish a small carbon dioxide tank from a larger carbon dioxide tank. 5、Soda accessories, excellent performance, simple installation method, strong practicability.
Specification
Item Type: Soda Hose
Material: Stainless Steel + Aluminum Alloy
Color: Black
Weight: Approx. 320g / 11.3oz
Length: Approx. 1.5m / 4.9ft
Test Pressure: 17000psi
Working Pressure: 6000psi
Interface Diameter: Approx. 21.8mm / 0.86in
Thread Interface: W21.8-14 // TR21-4
Applicable Countries: South Korea, Japan, Britain, Germany, France, Poland, Norway, Switzerland, Russia, Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore (some countries are also called DIN477 /JIS m22-14)
Refilling adapter can be used to replenish a small carbon dioxide tank from a larger carbon dioxide tank. The refill adapter is W21.8-14. Make sure that the thread type of the carbon dioxide tank is the same.

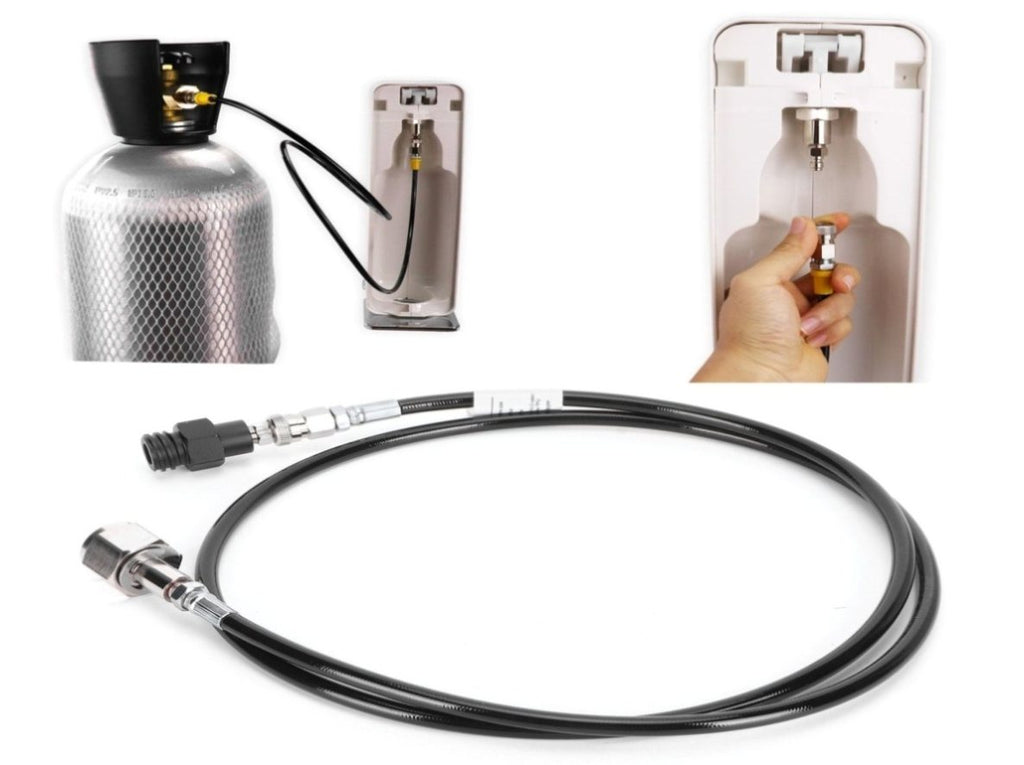

How to Use:
1. Screw the pin valve into the soda machine
2. Screw the nut onto the carbon dioxide cylinder and tighten it with a wrench
3. Connect the quick connector
4. Open the valve of the large gas bottle
5. After completion, you can use soda machine
If you want to unscrew items from the machine:
1. Close the large gas cylinder valve
2. Press the button of the soda machine to discharge remaining carbon dioxide (if you do not disconnect the connector according to this guide, the o-ring of the quick connector will blow off)
3. Disconnect the quick connector
4. Unscrew the pin valve on the soda machine and unscrew the nut on the CO2 cylinder

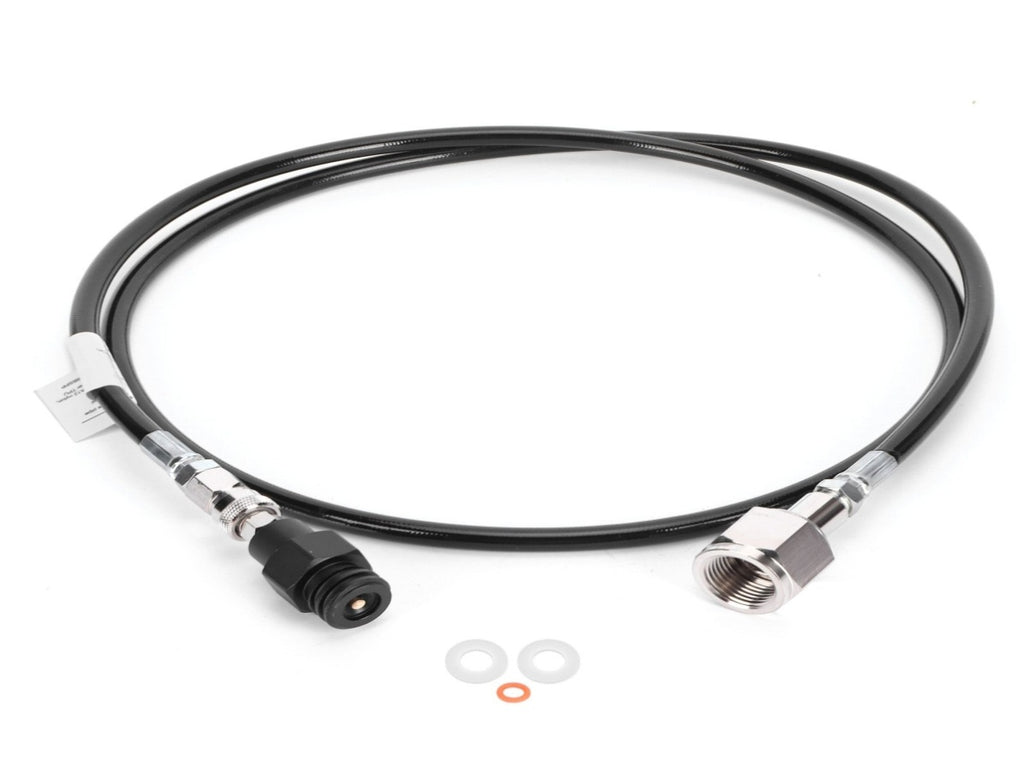

Package List
1 x Soda Hose
1 x Manual
2 x Spacer
1 x Gasket
Note
1. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
3. This item is only applicable to gaseous carbon dioxide, not liquid carbon dioxide. It cannot use a siphon for carbon dioxide tanks.
4. Please do not disconnect the quick disconnect under pressure. The quick disconnect O‑ring will be blown off. It is recommended to discharge the remaining pressure on the soda machine.
