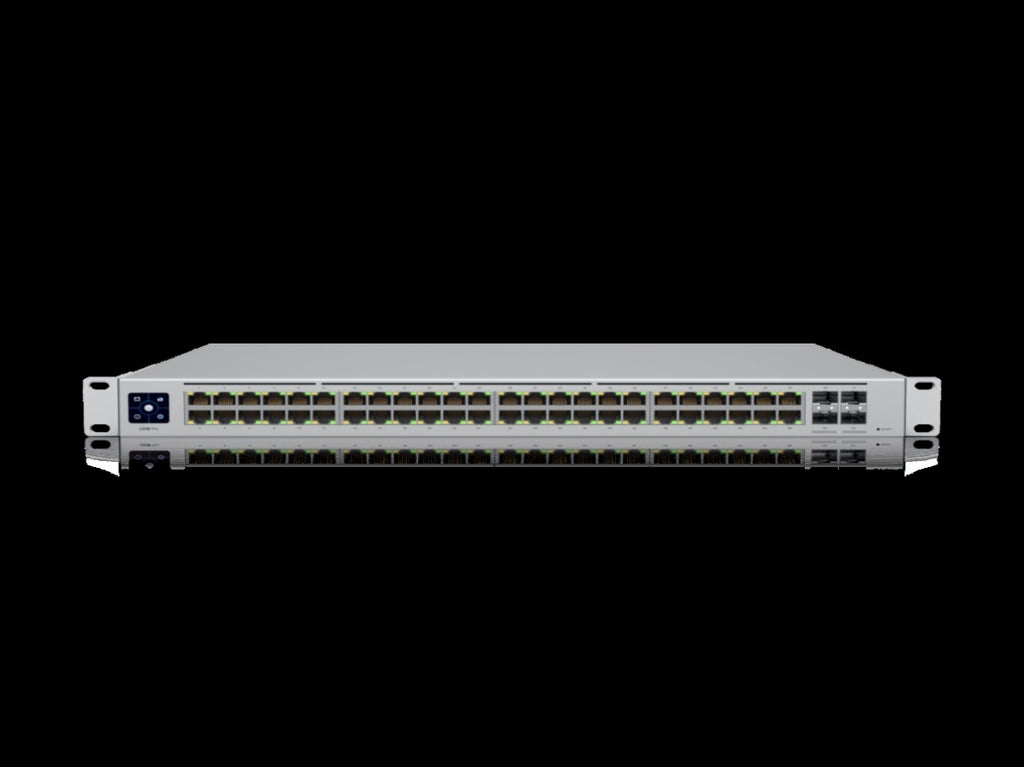

Ubiquiti USW-Pro-48 UniFi 48 Port Pro Gigabit Managed Layer 2 Switch, Layer 3 Features, UB.USW.PRO.48N
The Ubiquiti UniFi Switch Pro 48 (USW-PRO-48) is a powerful, fully managed Layer 3 switch designed for robust network expansion. It offers 48 Gigabit Ethernet RJ45 ports for extensive device connectivity and 4 10G SFP+ ports for high-capacity uplinks, enabling superior data throughput. This switch integrates a rich set of Layer 2 capabilities with advanced Layer 3 features, including inter-VLAN routing, static routing, and DHCP server functionality. Engineered with innovative near-silent cooling and support for UniFi SmartPower RPS for power redundancy, the USW-PRO-48 is an ideal aggregation and access layer switch for any UniFi environment, providing enterprise-grade performance and reliability.
FEATURES
- 48 Gigabit RJ45 ports
- 4 10G SFP+ ports
- Layer 2 and Layer 3 features
- UniFi SmartPower RPS DC input
- Near-silent cooling
- 1.3" Touchscreen display
- Managed by UniFi Network Controller
SPECIFICATIONS
- Networking Interfaces: (48) 10/100/1000 RJ45 Ports, (4) 1/10G SFP+ Ethernet Ports
- Management Interface: Ethernet In-Band
- Total Non-Blocking Throughput: 88Gbps
- Switching Capacity: 176Gbps
- Forwarding Rate: 130.944Mpps
- Power Method: Universal Input, USP RPS DC Input
- Power Supply: AC/DC, Internal, 60W
- Voltage Range: 100 to 240VAC
- Max. Power Consumption: 60W (excluding PoE output, as this model has no PoE)
- ESD/EMP Protection: Air: ±16kV, Contact: ±12kV
- Operating Temperature: -5 to 45°C
- Operating Humidity: 10 - 90% Noncondensing
- Dimensions: 442.4 x 285.4 x 43.7mm
- Weight: 4.09kg (with brackets)
WARRANTY
1-Year Limited Warranty
