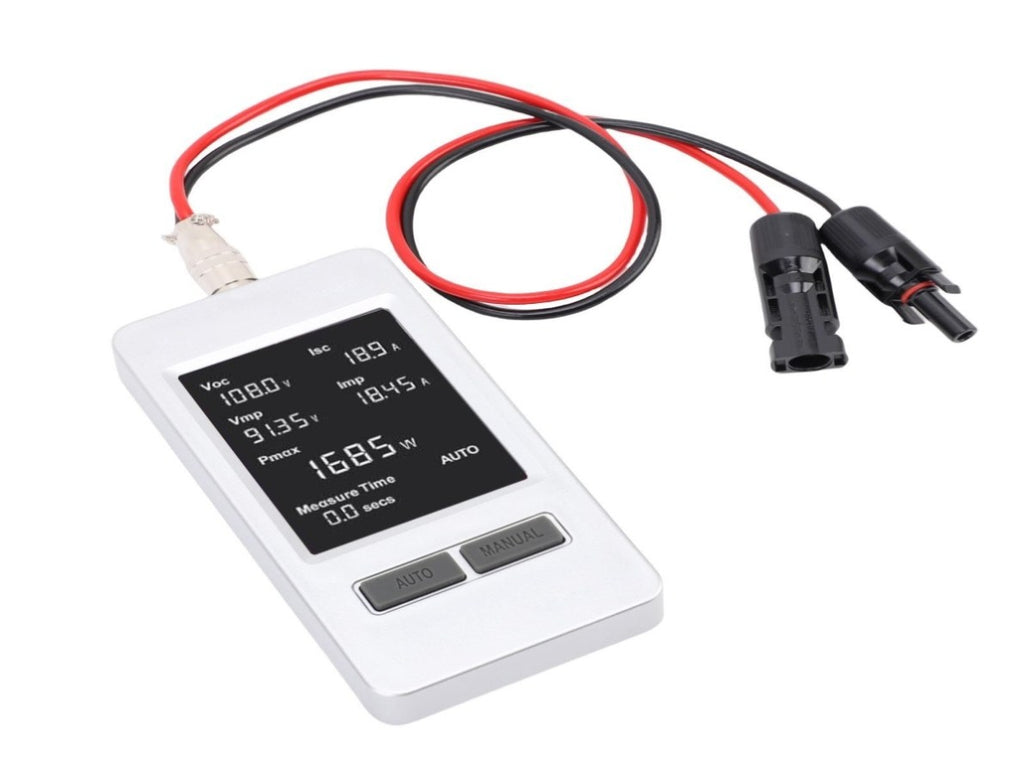

Solar Panel Tester 5-800W 20-120V 0-35A Auto Manual MPPT Photovoltaic Panel Multimeter V1294-YM0901-3114250056111

1、Automatic Measurement: This solar panel multimeter supports automatic testing, which will automatically test and refresh the digital display based on the current power value. 2、Over Temperature Guard: When this solar panel multimeter achieves 60°C, it will display Over Temperature. Please wait for cooling before use. 3、Over Voltage Guard: When the input voltage exceeds 120V, the multimeter will display Over Voltage. Please use within the range of 20-120V. 4、Over Current Guard: When the input current exceeds 60A, the multimeter will display Over Current. Please use within the current of 60A. 5、Reverse Connection Guard: When the positive and negative poles of the multimeter are connected reversely, the multimeter will not display. Please check the input polarity promptly. 6、HD Backlit Display: This solar panel tester features a high definition LCD display with backlit, allowing you to read values clearly even under the sun.
Specification
Item Type: Solar Panel Tester
Material: ABS
Size: Approx. 148x75x21mm / 5.83x2.95x0.83in
Power: 5-800W
Current: 0-35A
Power Supply: Solar panel powered
Application: Professional use, solar panel

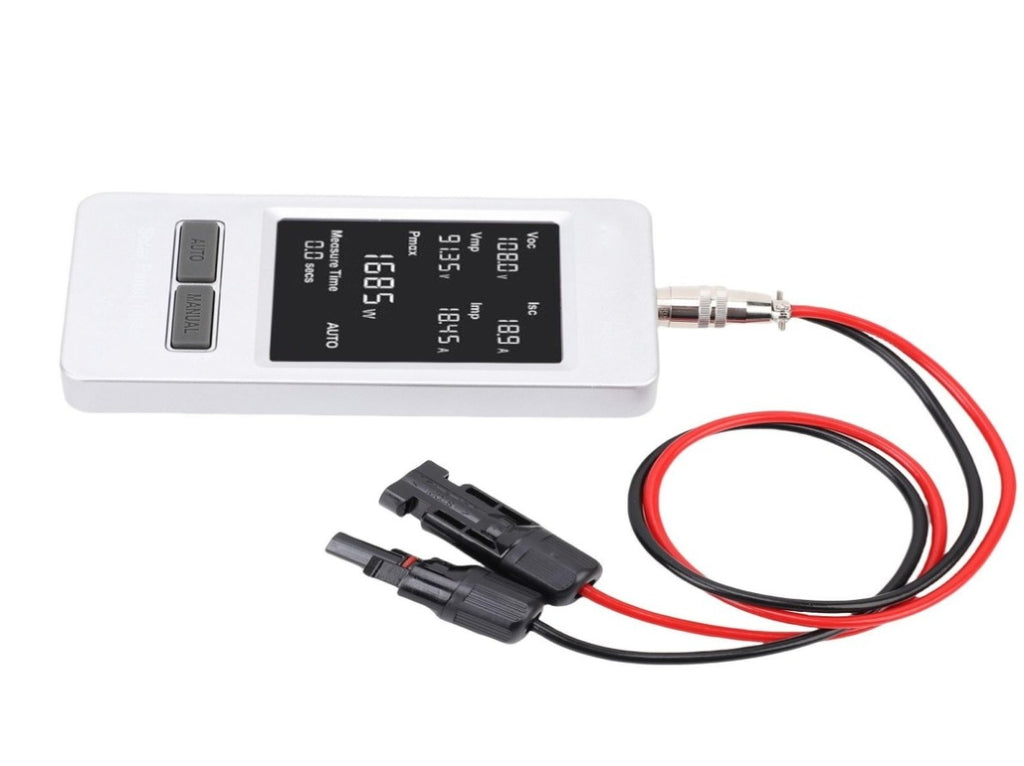

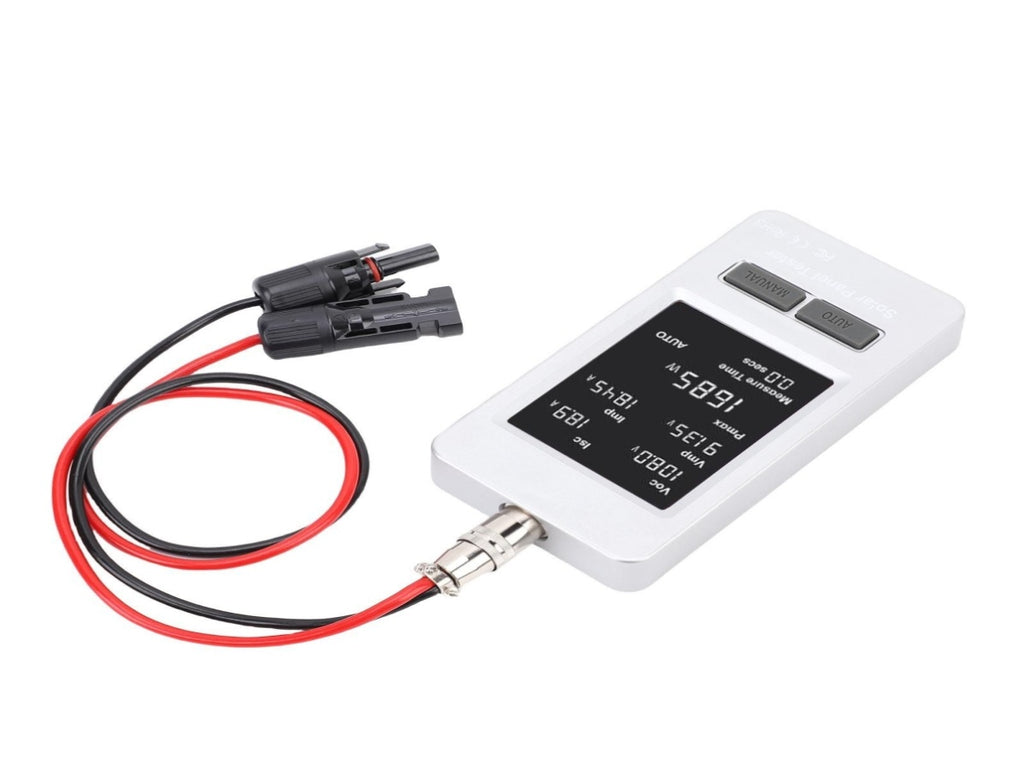

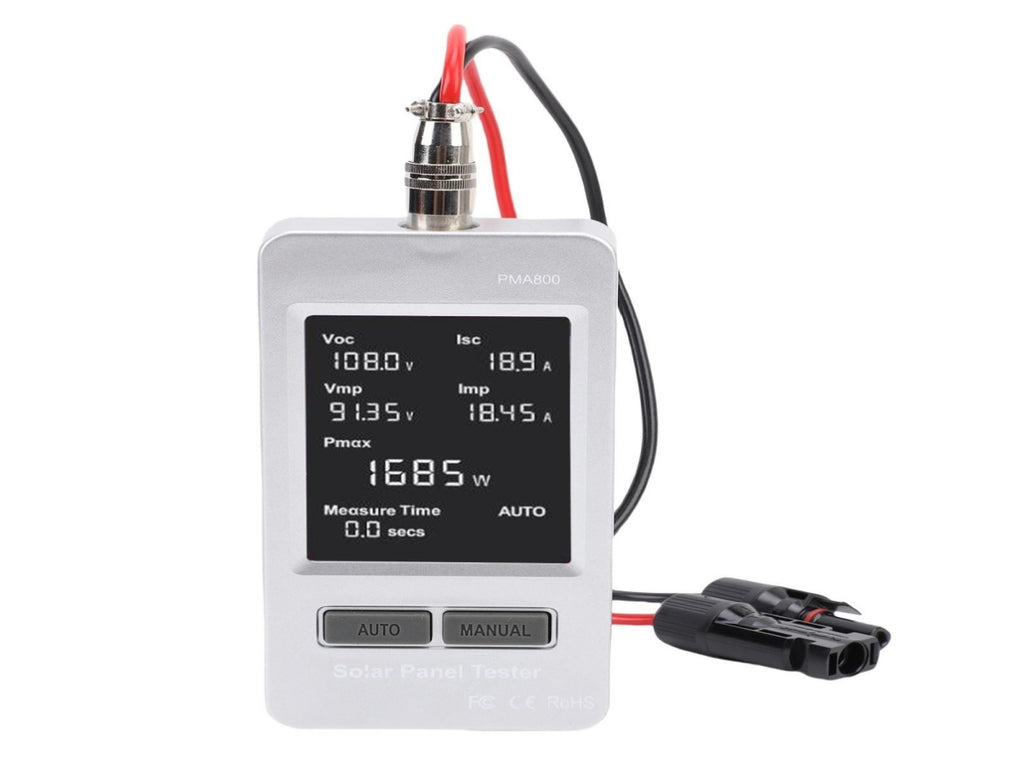

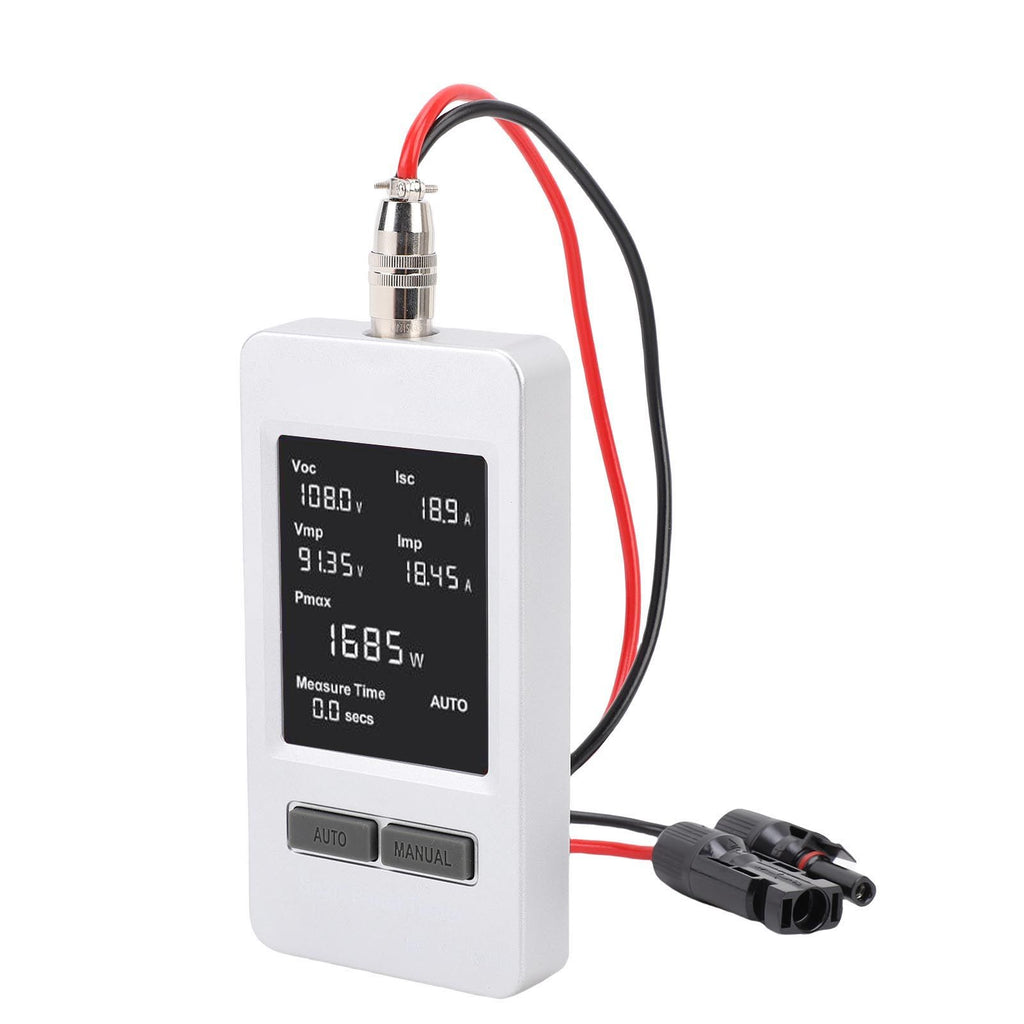

Digital Display Functions:
Pmax: Maximum power point power
Vmp: Maximum power point voltage
Imp: Maximum power point current
Voc: Open circuit voltage
Isc: Short circuit current
Target Audience: Photovoltaic panel manufacturers, photovoltaic panel operators, photovoltaic panel installers, photovoltaic panel users, photovoltaic enthusiasts, etc.
Features:

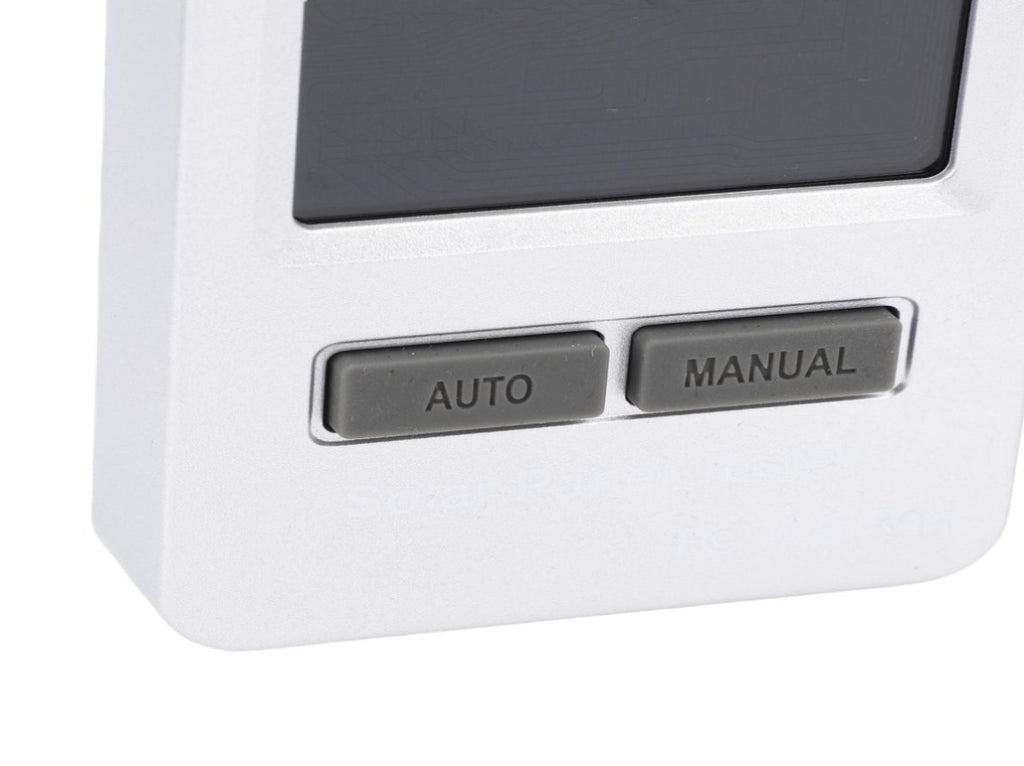

1. Switchable auto/manual testing mode
2. Over temperature, over voltage, over current guard
3. Solar panel reverse connection guard
4. Over rated power guard
5. No extra power supply needed
Function: Test the maximum power point and open circuit voltage of solar panels
Automatic MPPT Detection: Press the AUTO MPPT test button, the meter automatically adjusts the test interval time and refreshes the digital display.
Example: When the power of the solar panel is 100W, it refreshes every 5 seconds; when the power of the solar panel is 350W, it refreshes every 15 seconds. When the power of the solar panel is 700W, it refreshes every 30 seconds.
Manual MPPT Detection: Press the manual test button, the meter starts a maximum power point scan and refreshes the display.
Open Circuit Voltage Detection: The LCD screen displays the real time voltage of solar panels.
Weight: Approx. 404.00g / 14.25oz

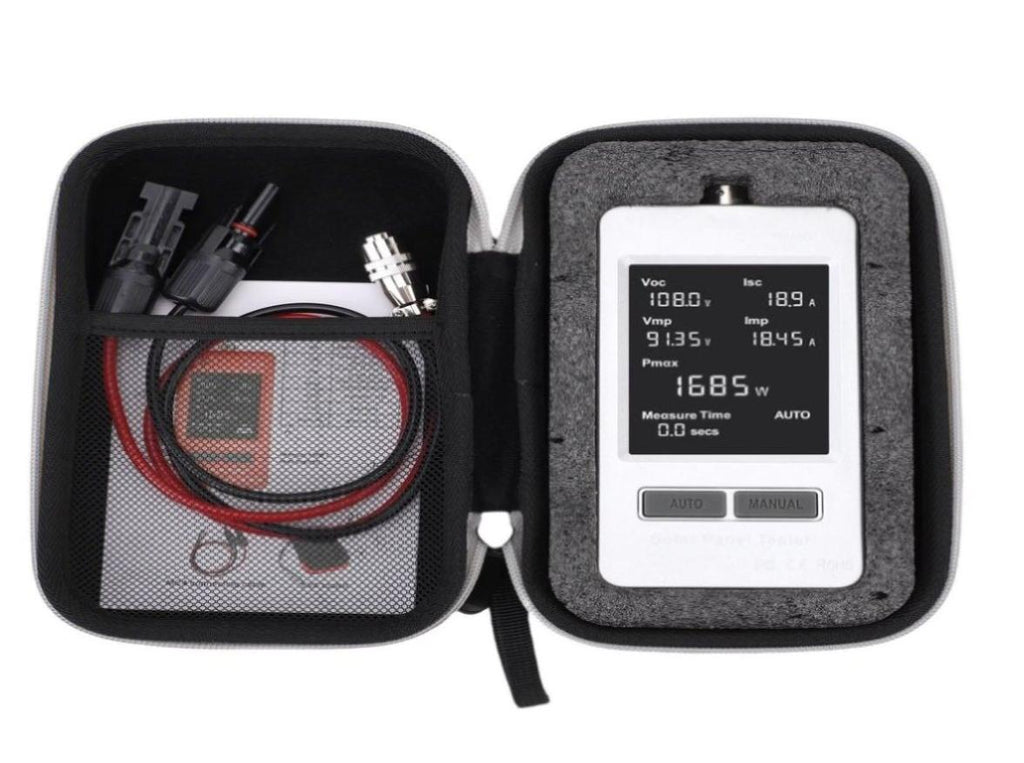

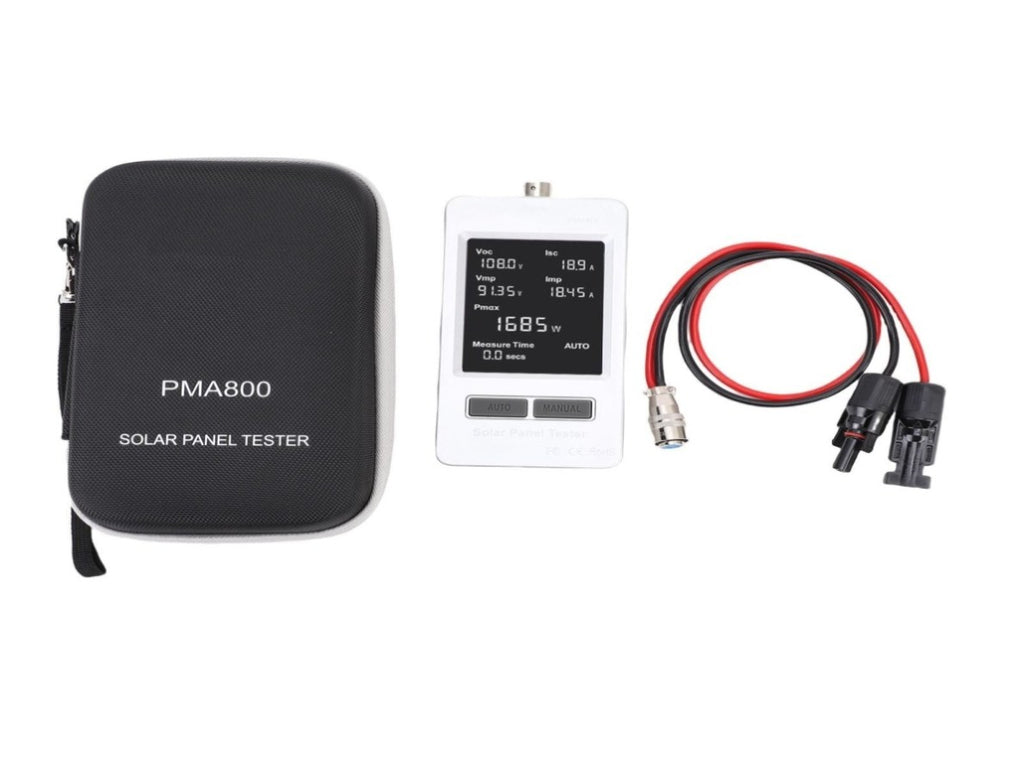

Package List
1 x Carrying Bag
1 x Solar Panel Tester

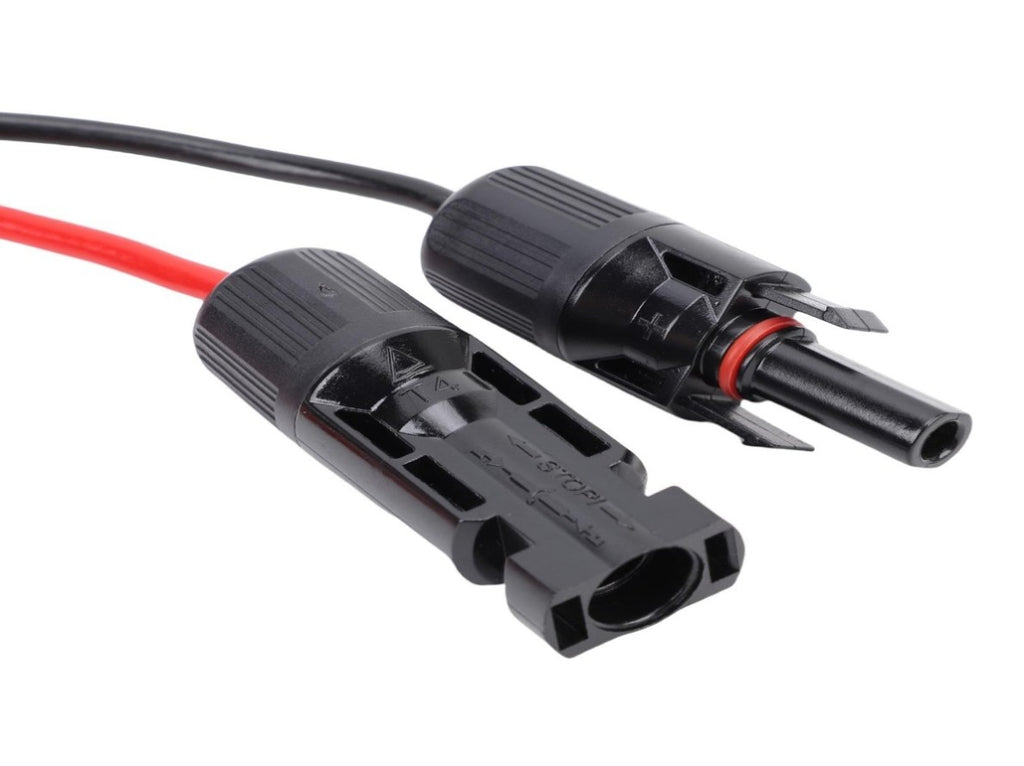

1 x Connecting Cable
1 x Instruction Manual
