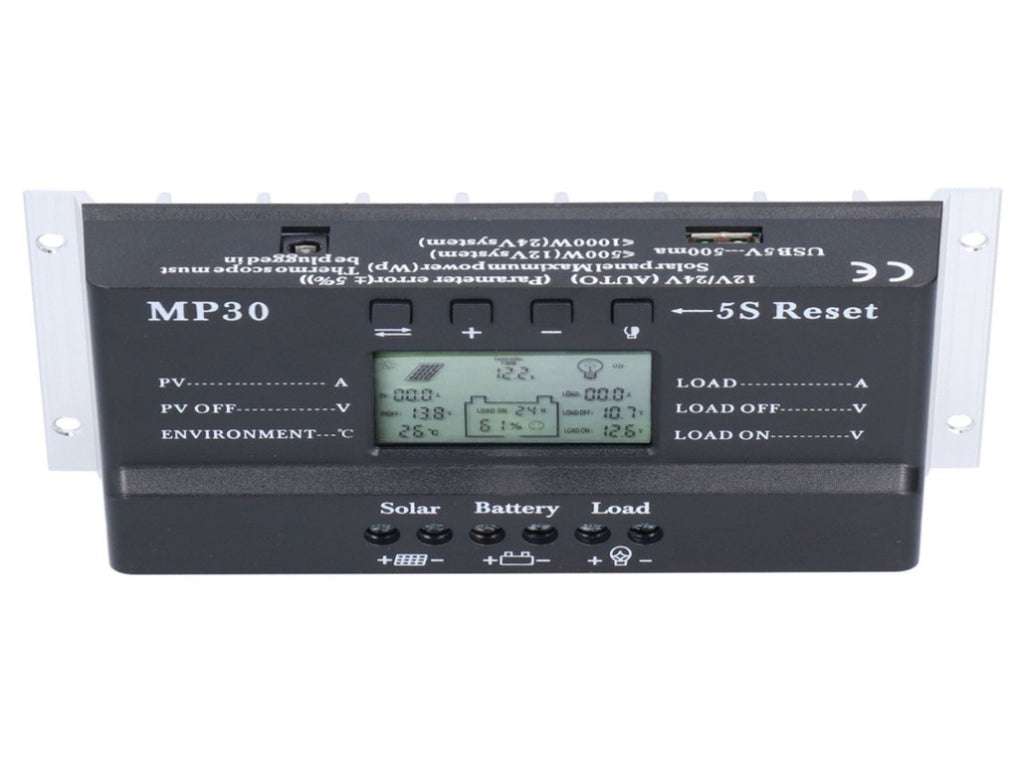

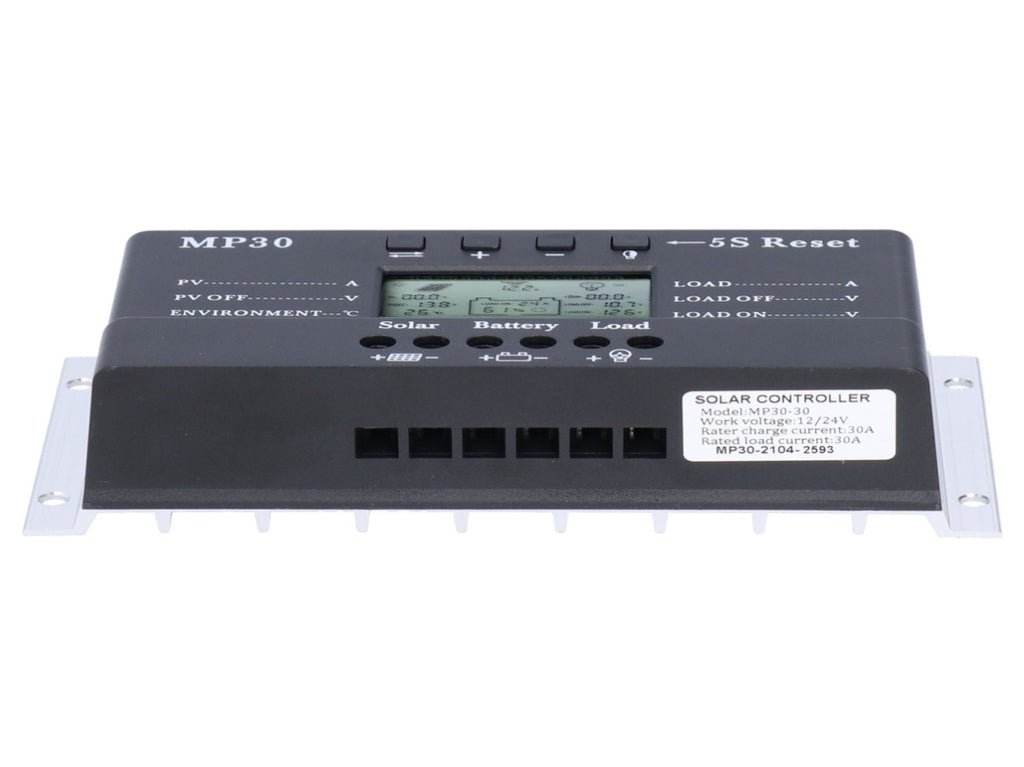

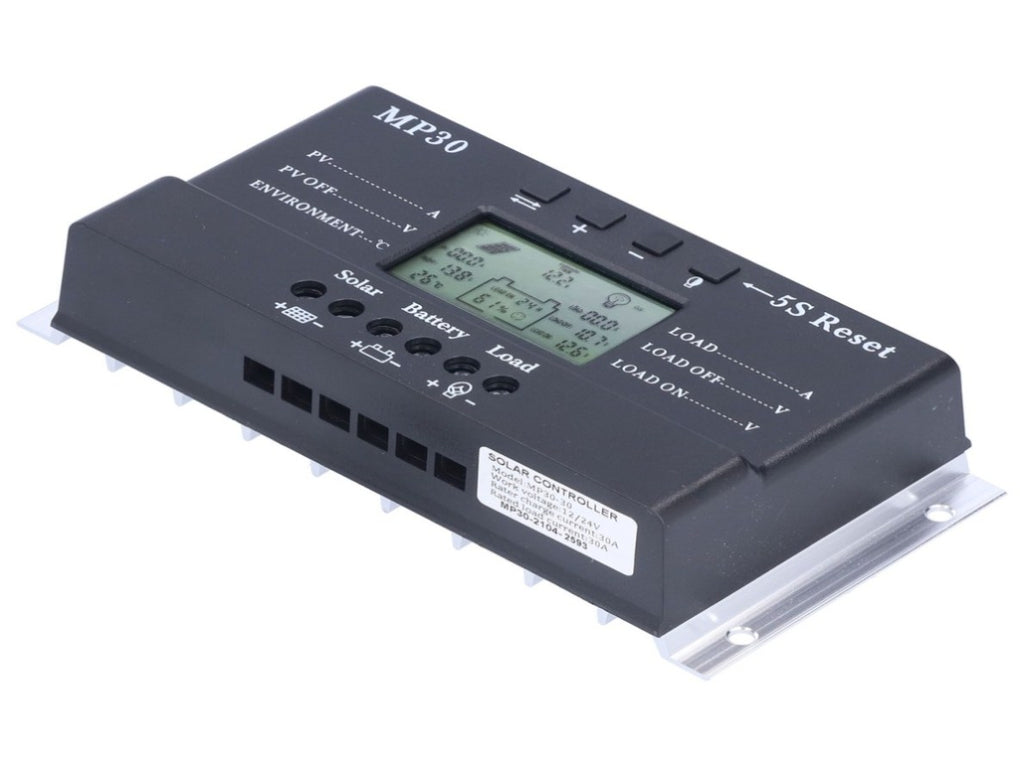

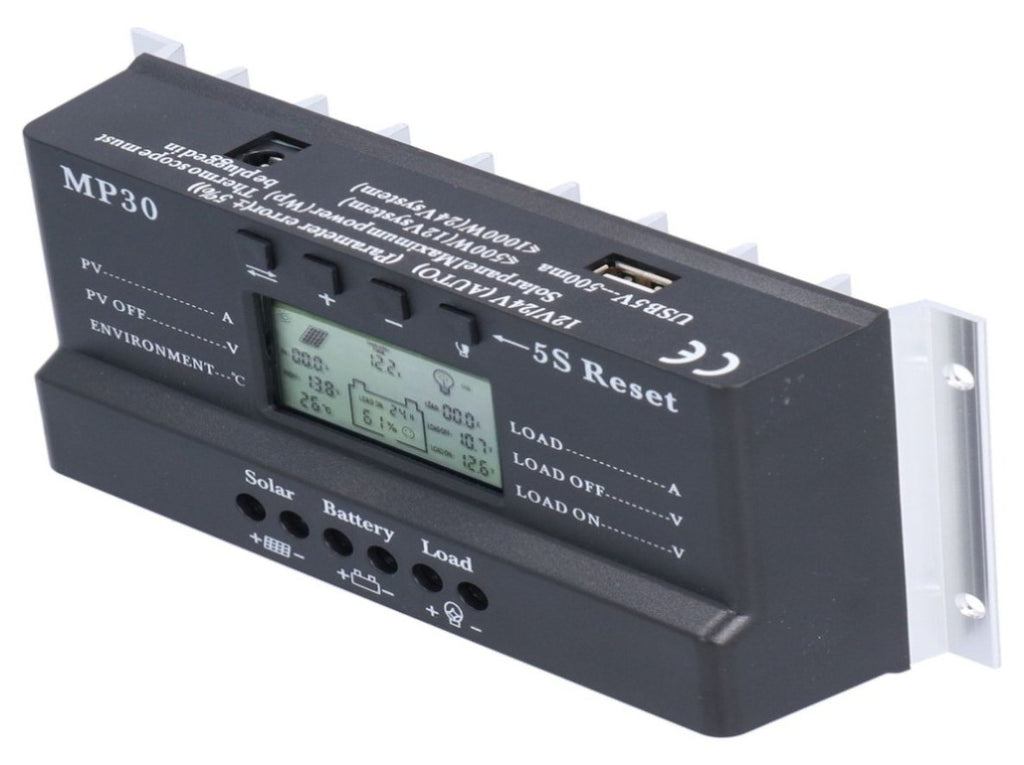

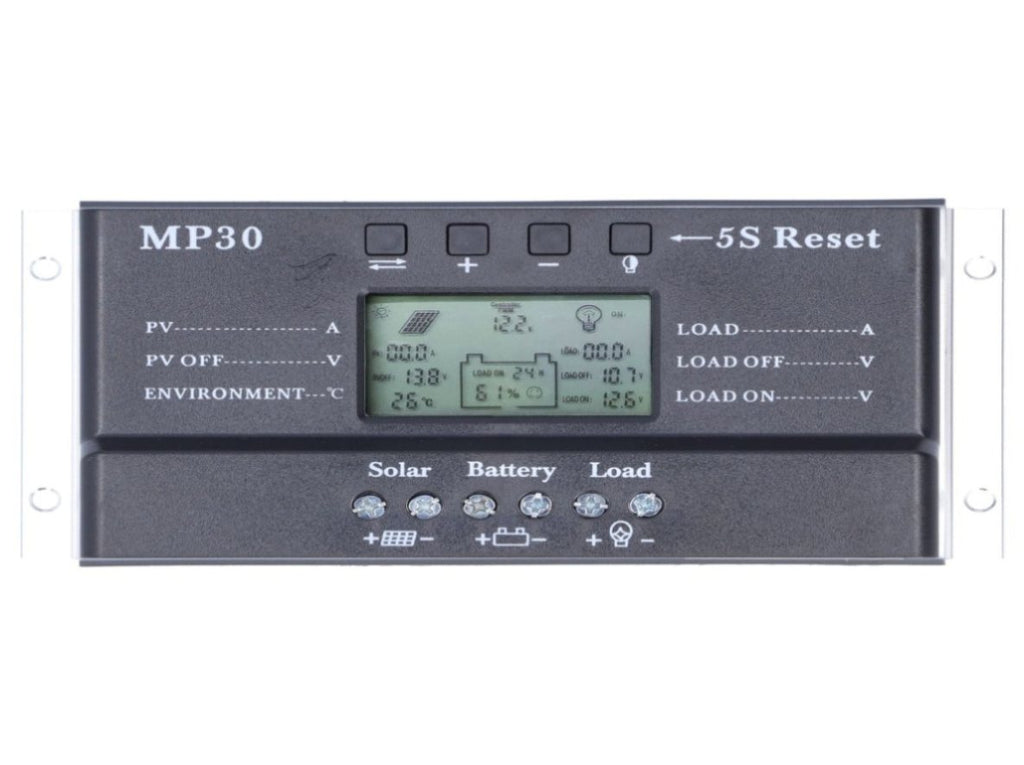

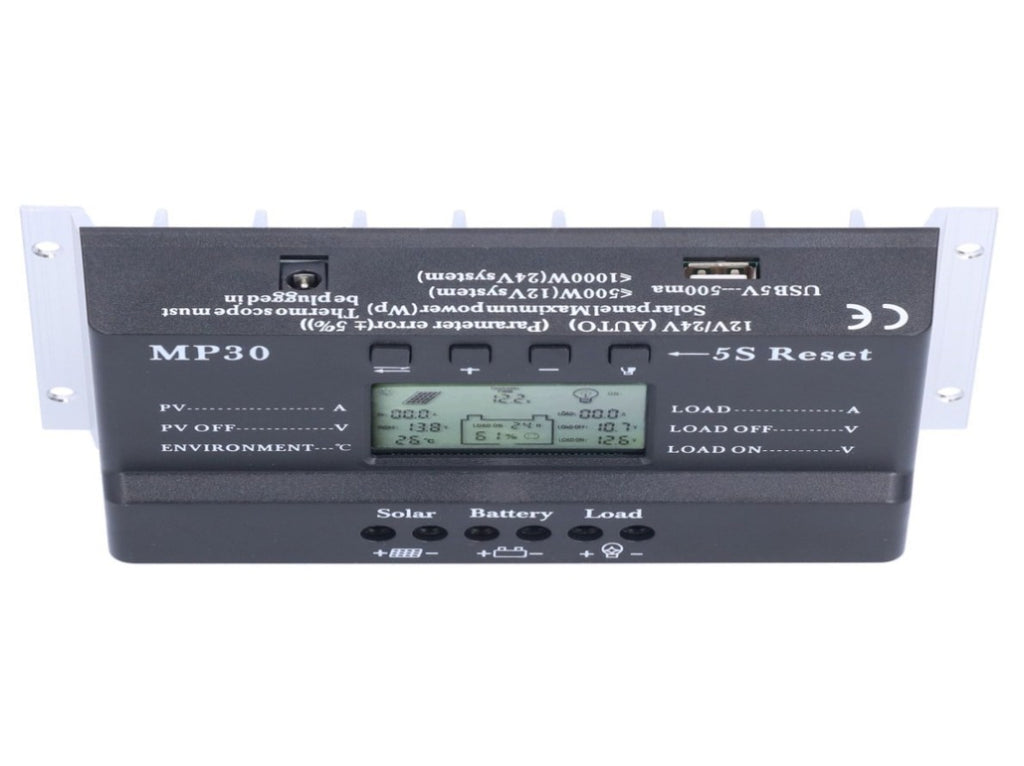

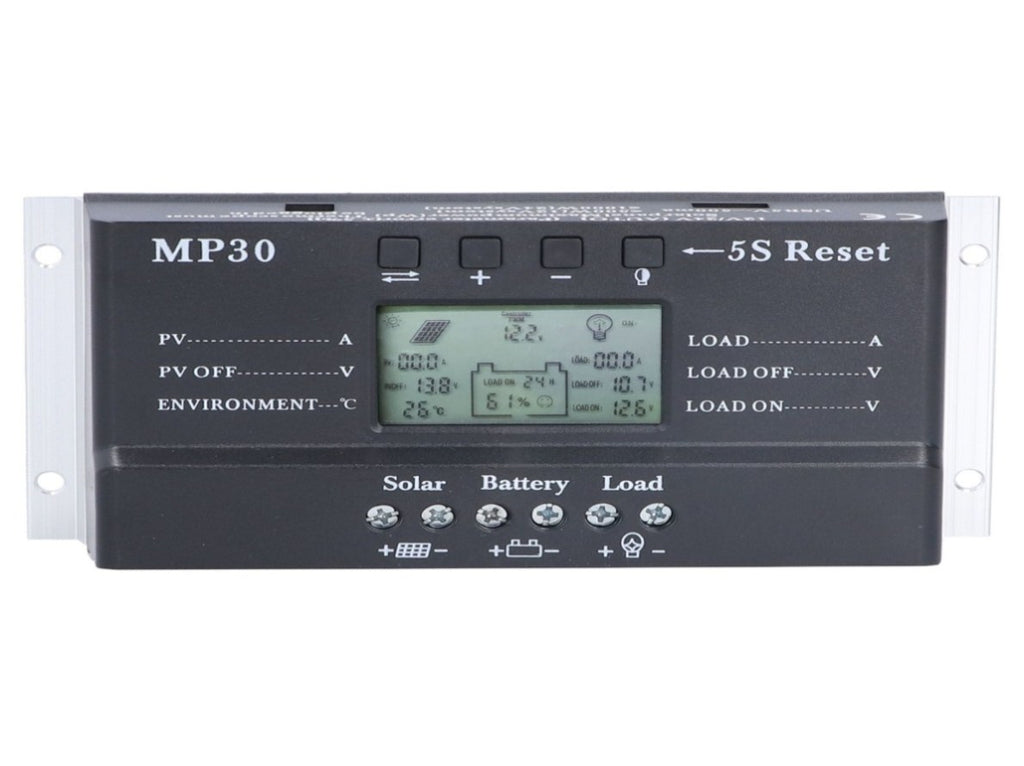

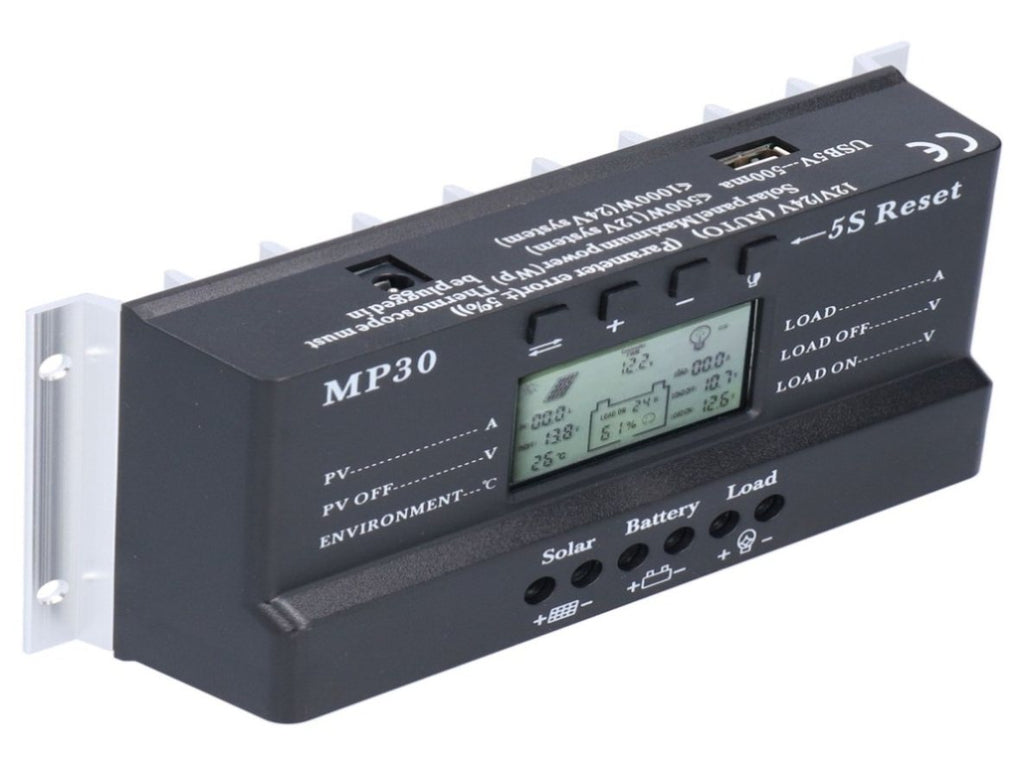

Solar Charge Controller 30A 12/24V LCD Display Backlight Circuit Protection USB Port MPPT PWM V1294-YM0901-3113210203611

1、LCD display backlight function, support reading in dark places, simple button operation, easy to use. 2、LCD display shows battery power, voltage, current and charge and discharge status, daily power statistics, adjustable charge and discharge control parameters. 3、Solar charge controller has load overcurrent/short circuit protection, battery overdischarge/overvoltage/low voltage protection, solar panel/battery reverse connection protection and battery reverse discharge protection. 4、Powerful 30A charge controller supports 12/24V battery system, automatic identification and switching, and 3 level power harvesting technology to maximize energy acquisition. 5、Solar controller, with current and battery percentage display, with temperature control head, USB interface, supports a variety of battery types, and a variety of battery voltages.
Specification
Item Type: Solar Charge Controller
Material: Aluminum Alloy
Battery Voltage Fluctuation: 13.8V (12 System)/27.6V (24 System)
Battery (Low Voltage) Protection: 10.6V (12 System)/21.2V (24 System)
Battery (Undervoltage) Recovery Voltage: 12.6V (12 System)/25.2V (24 System)
Charging Mode: MPPT, PWM MODE
Working Temperature: -10°C-60°C
Storage Temperature: -30°C-70°C
Humidity Requirements: ≤90% Without Condensation
Temperature Compensation:-4mV /Cell /°C
Temperature Probe (Inbuilt Component): NTC 100K Thermistor
Maximum Open Circuit Voltage of Solar Panels: 18v-24V (12 System) 36V-48V (24 System)
Maximum Open Circuit Voltage of Solar Panels (V): ≤48V
Weight: Approx. 439g / 15.5oz

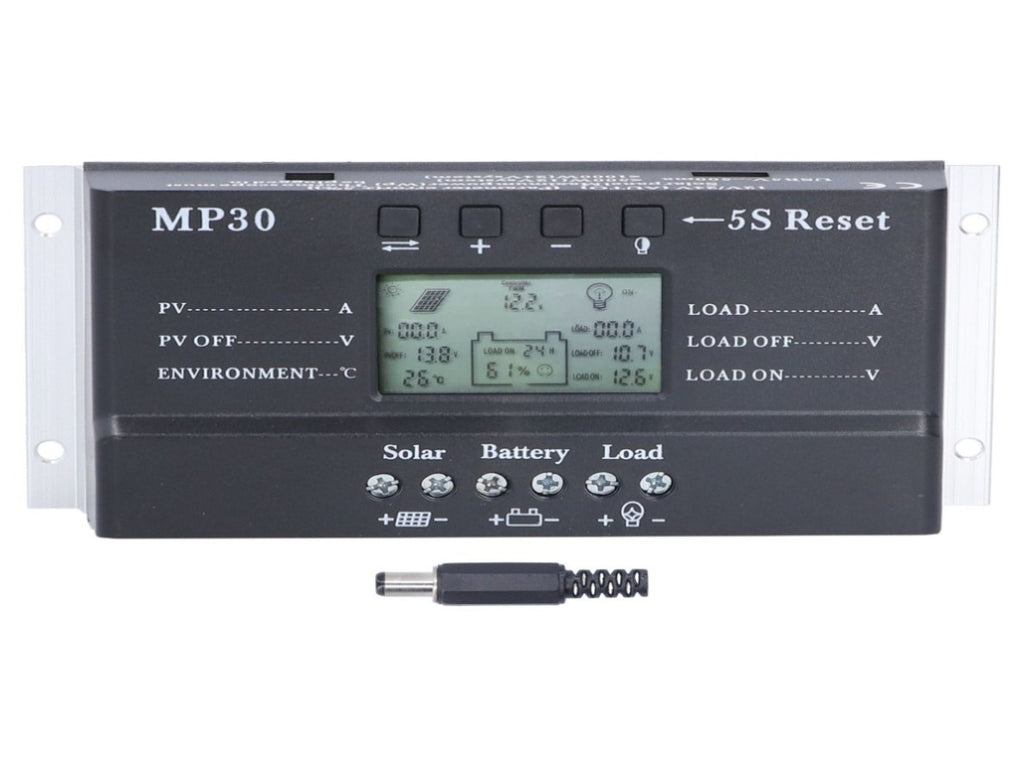

Package List
1 x Controller
1 x Connector
1 x User Manual
Note
In order to prevent accidents, non professionals are not allowed to engage in loading and unloading operations.
