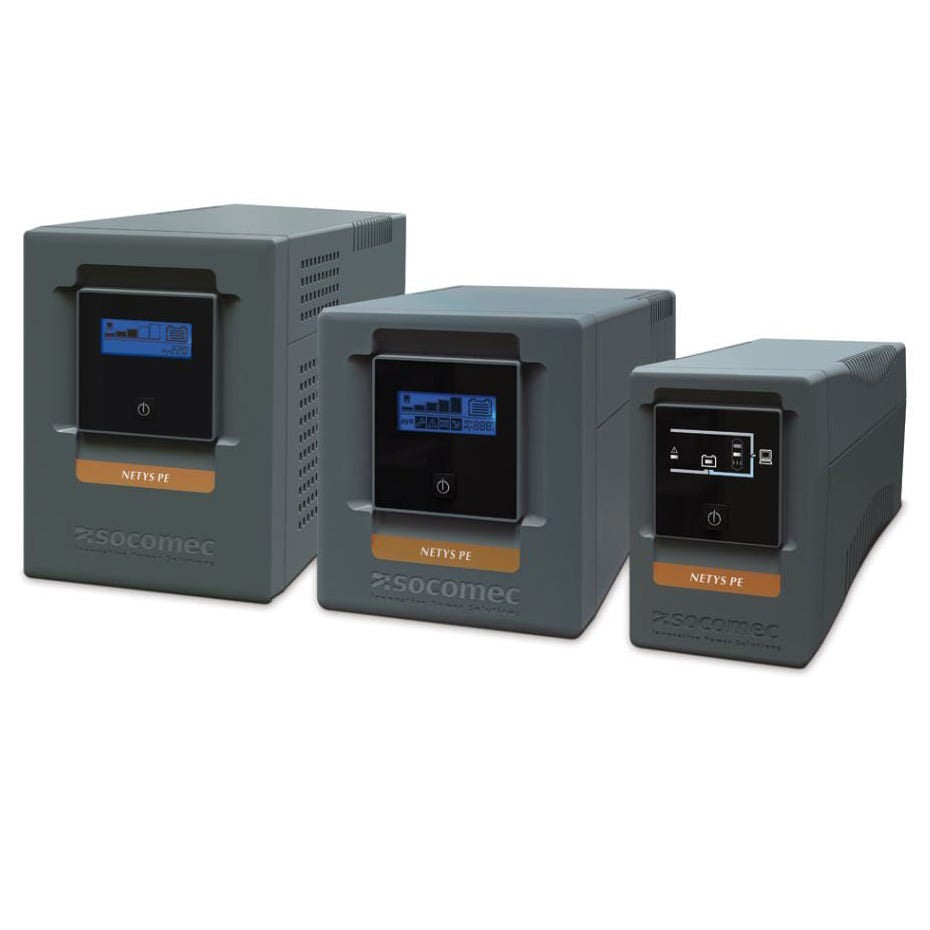

The NeTYS PE 2000VA is line Interactive and the ideal way to protect IT applications at home, the office, or in retail environments. Perfect for CAD and graphics workstations, multimedia peripherals, LCD screens, monitors and Point of Sale systems. This unit provides 60 minutes of back-up time, see the Technical Data sheet below for details on the differences between each model.
FEATURES
Cost-effective way to protect SOHO or POS applications.
Easy to use control panel with graphical LCD/LED monitor.
Protect from network power cuts and voltage fluctuations.
Integrated AVR to stabilise output voltage, avoid drops when switching to battery.
Simple connection: IEC 320 sockets for IT peripherals.
Integrated NTP protection for LAN/ADSL connection against the risk of data line overvoltage.
SPECIFICATIONS
Quasi Sinewave
2000VA
Tower only
USB comm's port and cable
Local View free software
Data line protection ports
4 x 3 pin Aust output sockets
Includes 3 pin Australian input cord.
CONNECTIONS
1. Output sockets 2. USB port 3. Mains input cable 4. Circuit breaker 5. NTP data line suppressor 6. Fan
CONTROL PANEL
1. Alarm 2. Operation with battery 3. Normal operation 4. On / Off 5. Load present 6. Load level (5 steps) 7. General Alarm 8. Battery fault / Replace the battery 9. Overload 10. Battery capacity 11. Normal mode / Battery mode (flashing) 12. Automatic Voltage / Regulation active
