The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process.
80 PLUS® Platinum certified
Micro Tolerance Load Regulation (0.5 %)
Cable-free Connection Design
Premium Hybrid Fan Control - Fanless until 40 % load
Multi-GPU setup
Gold plated connectors
12 years warranty
Specifications
Technical Specifications
80PLUS®
Platinum
Cybenetics Efficiency Level
TBA
Cybenetics Noise Level
TBA
Form Factor
Intel ATX 12 V
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information
Fan Size
135 mm
Fan Control
Premium Hybrid Fan Control
Fan Bearing
Fluid Dynamic Bearing
Life Expectancy
50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information
Modularity
Fully Modular
Cable type
Flat black cables
Electrical Features
Operating Temperature
0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan
150,000 hours
AC Input
Full Range
Protection
OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty
12 Years
Power Output
AC Input
Voltage: 100 V - 240 V
Current: 9 - 4.5 A
Frequency: 50 Hz - 60 Hz
DC Output
Rail
+3.3 V
+5 V
+12 V
-12 V
+5 VSB
Maximum Power
20 A
20 A
54 A
0.3 A
3 A
100 W
648 W
3.6 W
15 W
Total continuous power
650 W

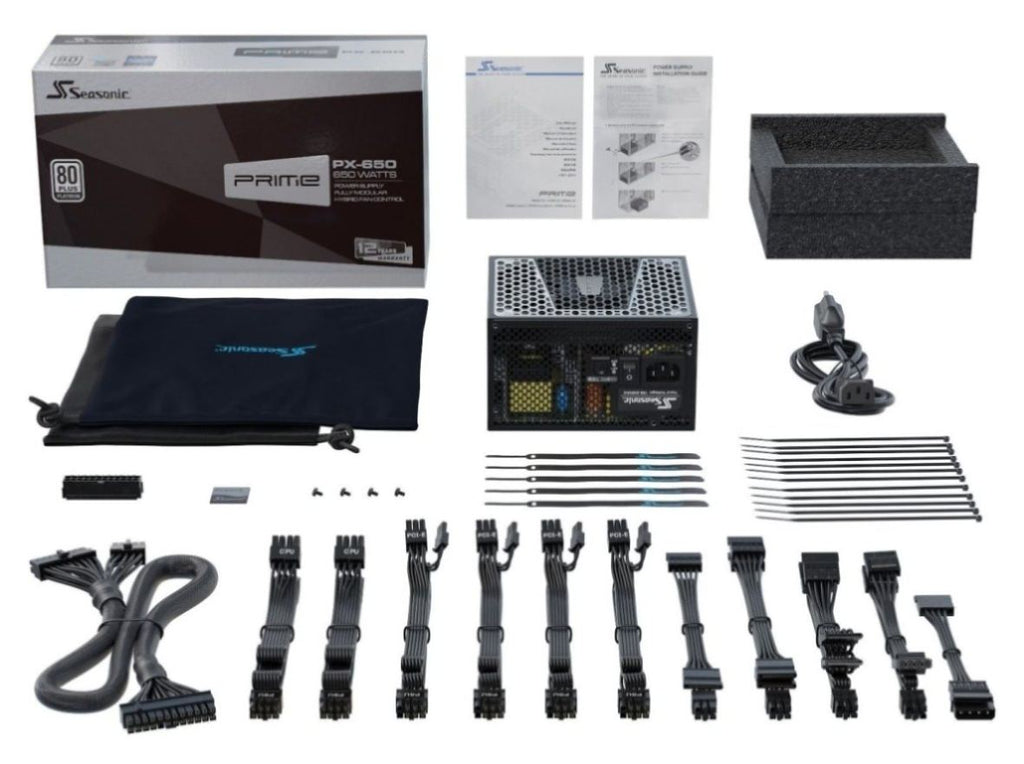

Cables
Cable type
Connector(s) per cable
Total Length (mm)
Number(s) of cable(s) included
MB (24/20 pins)
1
610
1
CPU (8/4 pins)
1
650
2
PCIe (8/6 pins)
2
750
0
PCIe (8/6 pins)
1
750
4
SATA
4
810
2
SATA
4
860
1
SATA
4
760
0
SATA
2
700
0
SATA
2
570
0
SATA
2
470
0
SATA
2
450
1
Molex
3
690
1
Molex
2
470
0
Molex to SATA 3.3 Adapter
2
300
1
Molex to FDD Adapter
1
101
0
Specifications are subject to change without prior notice.
