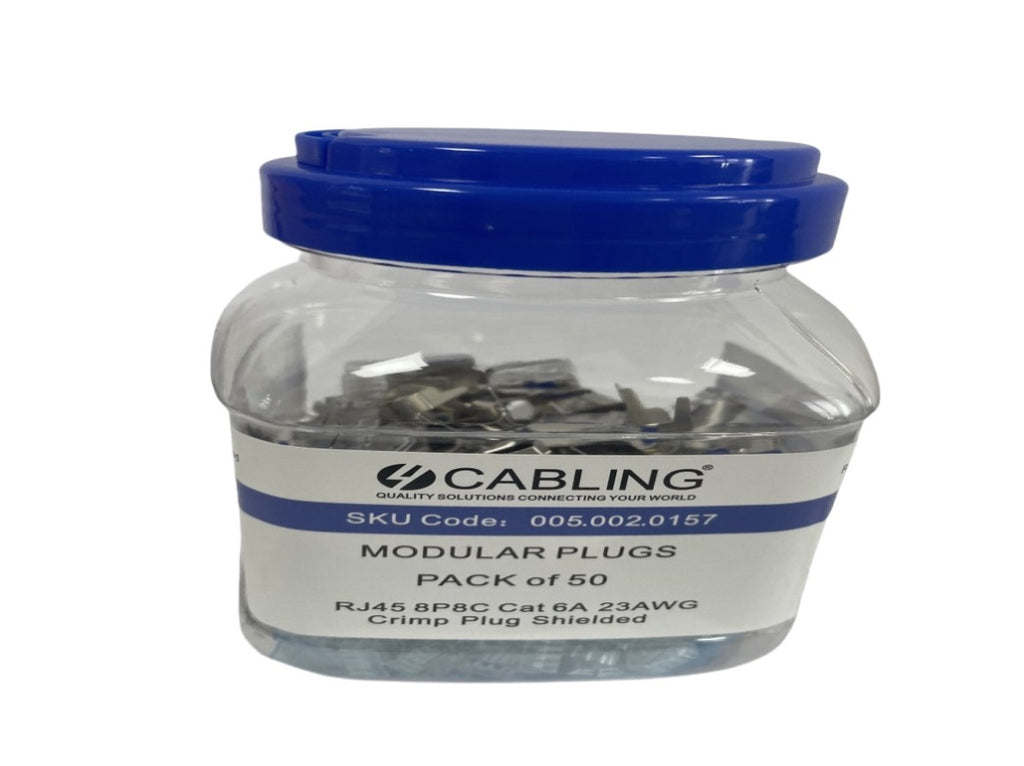

RJ45 8P8C Cat 6A 23AWG 1.5mm Crimp Plug Shielded PACK of 50 005.002.0157
Achieve reliable, high-speed 10-Gigabit Ethernet connections with this 50-pack of shielded Cat 6A RJ45 plugs. Their pass-through design simplifies wire alignment and termination, reducing errors and saving time on the job. These plugs are an excellent choice for terminating larger diameter Cat 6A or Cat 7 cables.
Built for demanding environments, each plug features a robust, fully shielded copper nickel alloy shell. This shielding provides superior protection against electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring stable signal integrity for your high-speed network. The housing is made from durable, transparent Polycarbonate rated to UL94V-0 or UL94V-2 standards.
These versatile connectors are compatible with both solid and stranded wire from 22AWG to 26AWG. They are specifically designed to accommodate larger insulated conductor diameters between 1.35mm and 1.45mm, making them ideal for bulky 23AWG Cat 6A cabling. The pass-through feature allows you to verify the correct T568A or T568B wiring order before crimping.
Engineered for long-term performance, the plugs feature high-grade copper alloy contact blades with gold plating options (from 3u" to 50u") for excellent conductivity and corrosion resistance. They are rated for a high durability of 1200 mating cycles and offer a minimum strain relief of 20 pounds, ensuring a secure and lasting connection.
FEATURES
- High-performance shielded RJ45 plugs for Cat 6A applications
- Pass-through design simplifies wire alignment and ensures correct termination
- Fully shielded copper nickel alloy housing protects against EMI/RFI
- Compatible with 22AWG-26AWG solid and stranded wire
- Supports large insulated conductor diameters from 1.35mm to 1.45mm
- Durable Polycarbonate transparent housing (UL94V-0/V-2 rated)
- High-reliability copper alloy contacts with gold plating
- Rated for 1200 mating cycles for long-term durability
- Pack of 50 for multiple projects or installations
SPECIFICATIONS
- Connector Type: RJ45 8P8C Modular Plug
- Performance: Cat 6A
- Shielding: Shielded (Copper Nickel Alloy Shell)
- Compatible Wire Gauge: 22AWG-26AWG
- Wire Type: Solid & Stranded
- Max. Insulated Conductor OD: 1.35mm-1.45mm
- Housing Material: Polycarbonate (UL94V-0 / UL94V-2)
- Contact Material: Copper Alloy
- Electrical Rating: 250V AC MAX. at 2A
- Dielectric Withstanding Voltage: 1000V AC (60 sec)
- Insulation Resistance: 500MΩ
- Contact Resistance: 20mΩ MAX
- Durability: 1200 mating cycles
- Strain Relief: 20 pound min.
- Operating Temperature: -40°C to 70°C
- Pack Size: 50 Plugs
WARRANTY
3-Year Limited Warranty
