Professional OBD2 Car Scanner Diagnostic Tool, Enhanced V520 Vehicle OBDII/EOBD Check Engine with V1192-AZ-W-2924

V520 Car Diagnostic Tool Check Engine OBD2 Car Scanner DC 9V-16V Fault Diagnosis Tester Car Diagnostic Detector for 12V Vehicles

Feature:

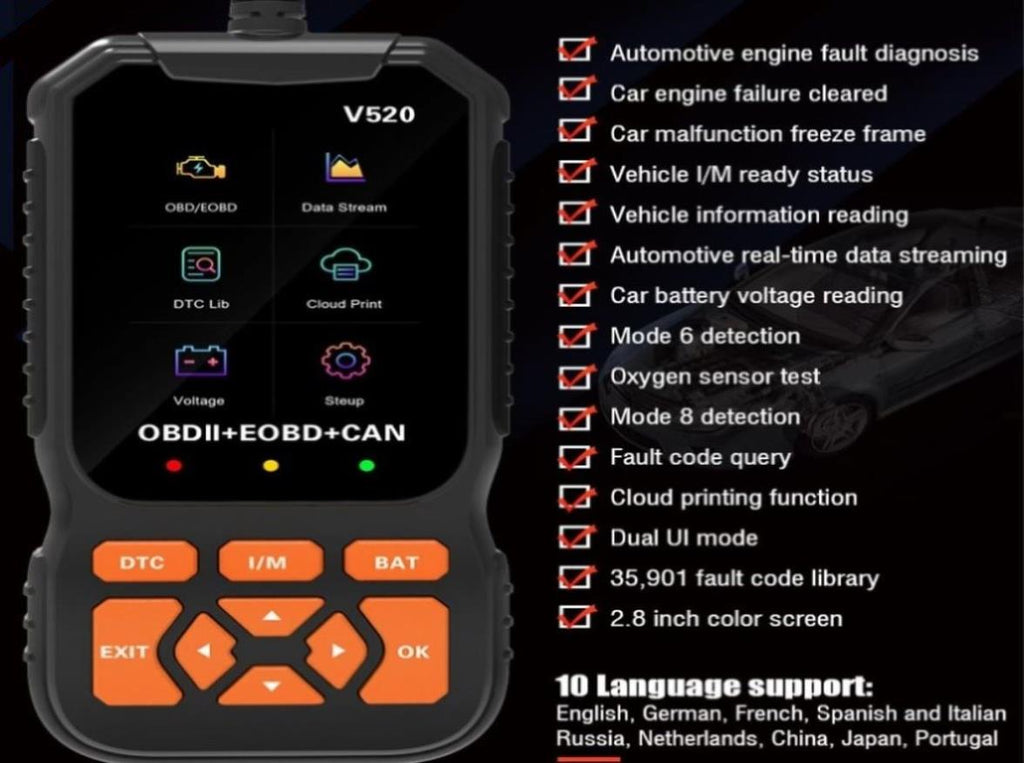

1. Comprehensive Car Diagnostic Functions: The V520 EOBD scanner is equipped with various functions including car engine fault diagnosis, clearing engine fault codes, freeze frame data, I/M readiness status, vehicle information retrieval, real-time data stream, car battery voltage reading, mode 6 testing, oxygen sensor testing, mode 8 testing, fault code lookup, and scan code printing function. With a database of 35,901 fault codes, it provides extensive diagnostic capabilities for your car.

2. Wide Protocol Support: The car diagnostic tool supports multiple protocols, including SAE J1850 PWM (41.6 Kbaud), SAE J1850 VPW (10.4 Kbaud), ISO 9141-2 (5 baud init, 10.4 Kbaud), ISO 14230-4 KWP (5 baud init, 10.4 Kbaud), ISO 14230-4 KWP (fast init, 10.4 Kbaud), ISO 15765-4 CAN (11bit ID, 500 Kbaud), ISO 15765-4 CAN (29bit ID, 500 Kbaud), ISO 15765-4 CAN (11bit ID, 2500 Kbaud), and ISO 15765-4 CAN (29bit ID, 250 Kbaud). This wide protocol compatibility ensures that the scanner can work with a wide range of vehicles.

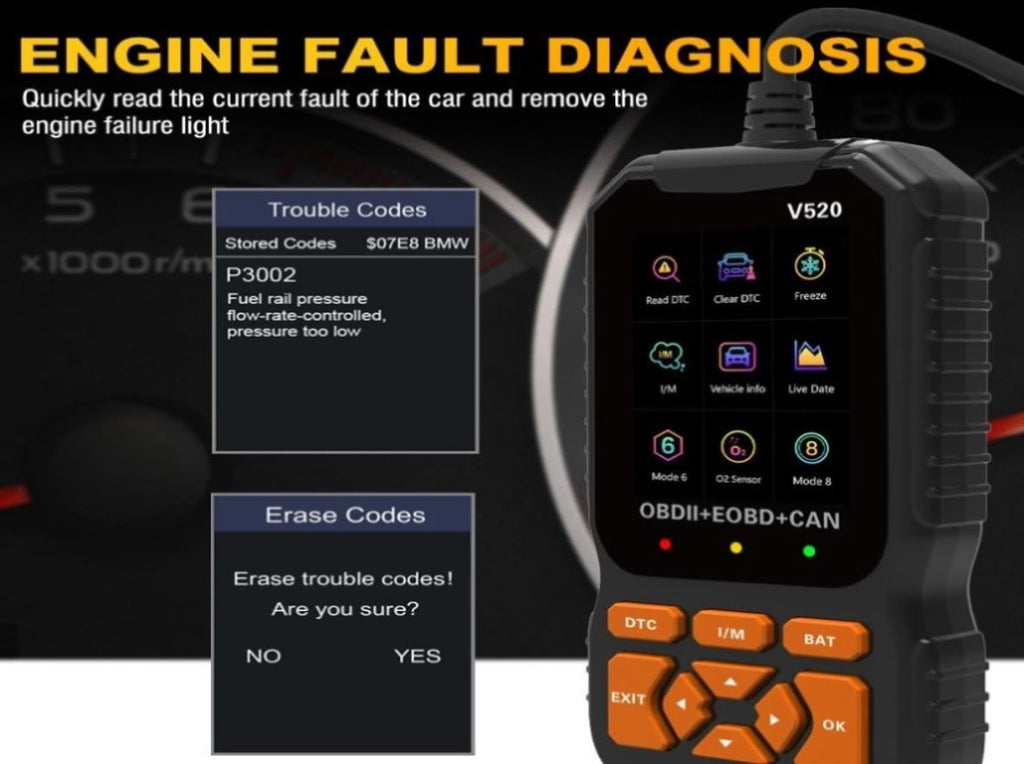

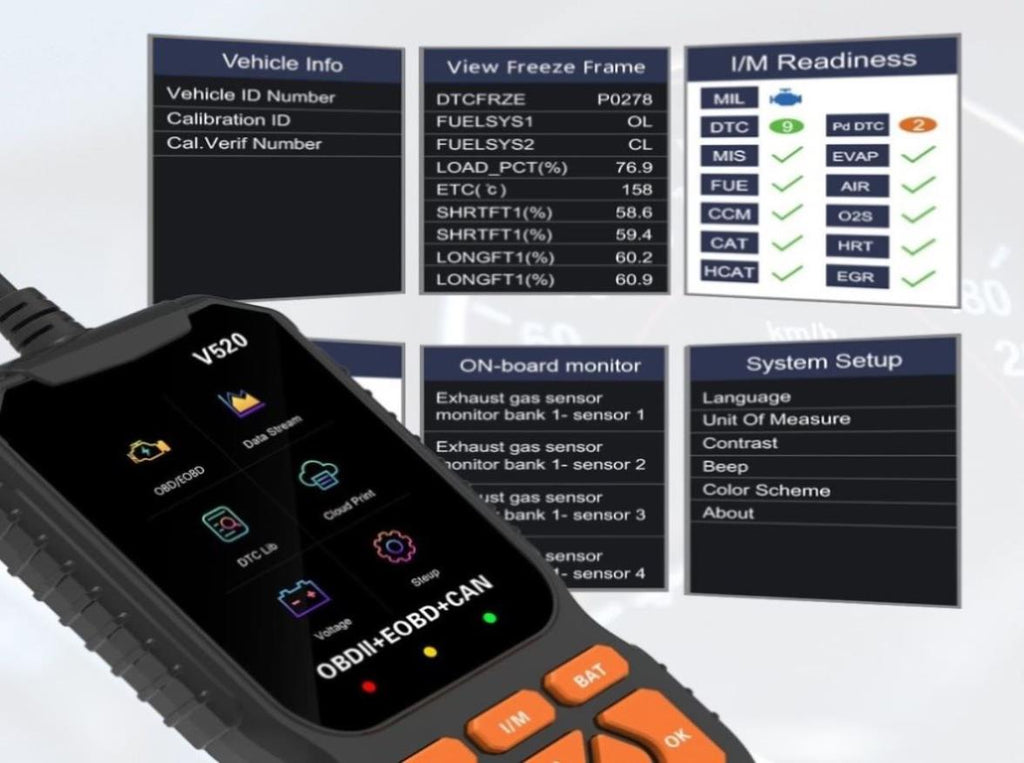

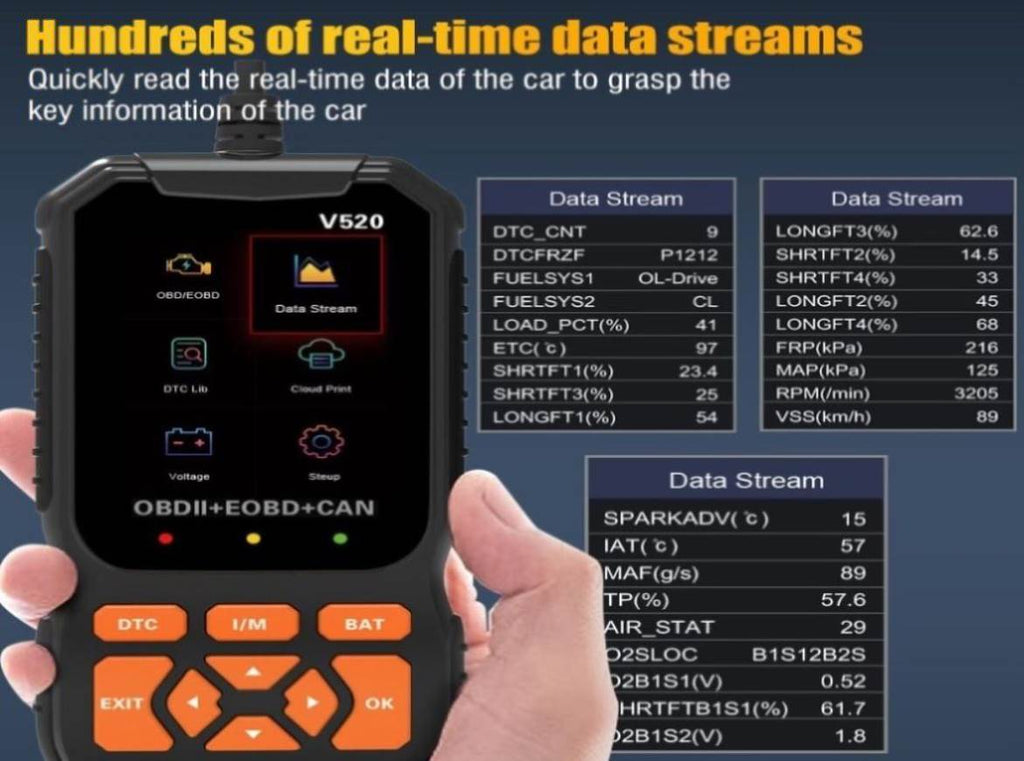

3. Supported Vehicle Data: The code reader can read error diagnostic codes and clear fault codes (resetting error codes and turning off MIL indicators). It can also display crucial vehicle data such as engine RPM, calculated load value, coolant temperature, fuel system status, vehicle speed, short-term fuel trim, long-term fuel trim, intake manifold pressure, ignition timing advance, intake air temperature, airflow rate, absolute throttle position, oxygen sensor voltage associated with short-term fuel status, fuel system status, fuel pressure, and fuel consumption monitoring. Note that the supported data items may vary depending on the specific year and model of the vehicle.

4. User-Friendly Interface: The OBD2 car scanner features a bright and colorful 2.8-inch display, providing a clear and intuitive interface for easy navigation and data interpretation. It allows users to quickly access and analyze diagnostic information without any technical expertise.

5. Reliable and Versatile Tool: With its extensive diagnostic functions, protocol support, and wide range of vehicle data readings, the fault diagnosis tester is a reliable and versatile tool suitable for professional mechanics and car enthusiasts. It helps identify and troubleshoot engine issues, ensuring optimal performance and saving time and money on unnecessary repairs.

Product Size: 171.00x85.00x28.00mm/6.73x3.35x1.1inch

Main Control Chip: APM32E103VET6,LQFP100

Operating Voltage: DC 9V~16V

Operating Current: 36mA~54mA

Standby current: 40mA

Operating Environment: -30~70°C

Storage Temperature: -30~70°C

Support 10 languages:

English, German, French, Spanish, Italian, Russian, Dutch, Chinese, Japanese, Portuguese

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
