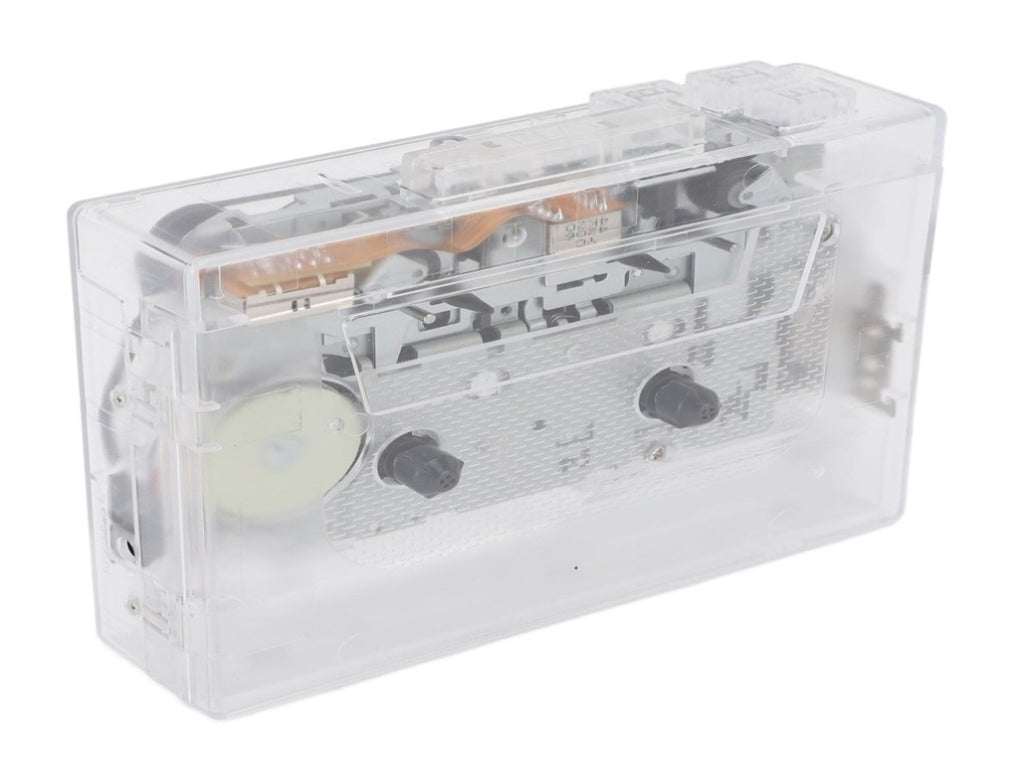

Portable Cassette Player Tape Recorder DC 5V USB Cassette to MP3 Digital Converter with FM Radio and V1294-YM0901-3113250015311

1、Comprehensive Sound Capabilities: This portable cassette player combines classic tape functions with modern digital technology, catering to diverse sound playback and recording needs, ensuring a complete sound experience. 2、Enhanced Tape Playback Features: Enjoy all your vintage tapes effortlessly with playback, fast forward, rewind, and auto reverse functions, allowing easy access to your favorite music or content from cassette tapes. 3、Features: Equipped with a USB port for direct MP3 playback, the cassette to digital converter offers versatile digital sound options, expanding your music source possibilities. 4、Integrated FM Radio Tuner: Boost your entertainment with the built in FM radio, receiving various broadcast channels, and a 3.5mm jack for listening through headphones, ideal for any situation. 5、Cassette to Digital Conversion: Preserve your valuable cassette content by converting it to 320KBPS stereo MP3 format. Store your recordings digitally, ensuring they last for years to come.
Specification
Item Type: Portable Cassette Player
Material: ABS
Weight: Approx. 274.00g / 9.67oz
Product Size: Approx. 118x90x30mm / 4.65x3.54x1.18in
Color: Transparent
Battery: AA batteries x2 (shipped without batteries)
Power Supply: DC5V
Power Source: Battery powered or power cord (power cord is recommended)
Output Current: <400mA
Rated Power: <2W
Sound Form: 2 channel stereo
Tape Speed: Standard 4.76 ± 5%
Data Protocol: USB2.0
Recording Rate: 128KBPS
Storage Format: MP3 (playback support WAV)
LED Indicator: LED white light blue light
Product Overview: This product is a tape player with USB recording function, with playback, fast forward, fast reverse, automatic flip function, support for tape transcription MP3 format stored in U disk, memory card, etc., no driver and one key recording, support for playback of the recorded MP3 files, with 3.5mm jack, support for external headphones (shipments do not wear a 3.5mm round headphones) or speakers (shipments do not wear speakers) for sound playback.
Function Introduction:
1. Play
2. Automatic flip (DIR)
3. Playback mode (loop mode)
4. Fast forward (F.F)
5. Stop (STOP)
6. Fast reverse (REW)
7. Volume control knob
8. USB port (USB disk)
9. Headphone jack
10. Record/Playback
11.LED indicator
12.Battery cover
13.Tape speed adjustment hole
14.DC5V input
LED Mode:
Power On: White light on for 2 seconds and then off;
Standby: When inserting the U disk, the white light will be on for 2 seconds and then turn off;
Record: Short press the back button (playback fast forward button), the white light blinks to start recording, then short press to pause the recording, the white light is always on.
Playback: Short press the second button (playback fast forward button), the blue light will turn on, the blue light will blink to start the playback, then short press to pause the playback, the blue light will be always on.
Feature Description:
Recording: Sound signal direct recording
Storage: Recording storage format MP3
Playback: Support MP3, WAV
Volume: Long press cycle adjustment
Song selection: Not support
Sound Quality Description:
This product is suitable for tape media playback, and support for tape transcription MP3 format, the product does not come with external speakers, to provide 3.5mm interface for external headphones or speakers, in order to ensure the quality of sound playback, use the
In order to ensure the quality of sound playback, the use of reference to the following:
1. When using this product for the first time, please play for more than 30 minutes without a tape.
2. Tape player due to the characteristics of the product structure, play without tape, or play the tape blank, there will be background noise, is a normal phenomenon.
3. Long term unused tape drive, should pay attention to the maintenance and internal dust, re use of waterless alcohol can be used to clean the heads and pulleys, such as alcohol evaporation can be clean.
4. When the tape player is not in use for a long time, it should be stored in a dry location.
5. Tape playback distortion, variations, you can use the tools on the back of the tape deck tape speed adjustment holes for debugging.
6. Please use premium tapes, poor quality tapes are easy to magnetize the magnetic, and playback sound noise is too much;
7. When using unopened tapes, please press the fast forward button to play the tape once or twice before playing;
8. When the tape is used for a long time, the sound quality will be distorted and changed, you can check whether the tape is loosened or whether the magnetic powder on the tape is falling off seriously;
9. When using AA dry cell battery, the tape speed will be slowed down when the battery power is insufficient, or the sound will be changed, or there will be noises, please replace the dry cell battery.
10. Please choose noise canceling headphones or noise-canceling speakers to enhance the sound quality.
Caution:
1. Don't use batteries with insufficient power, and don't reverse the polarity when using batteries.
2. Fast forward and backward operating, the machine does not have an automatic stop function, so after the tape is finished, you must immediately press the stop button to avoid damage to the motor, belt and motherboard components;
3. Long time not use should be taken out of the battery to avoid battery damage due to long time battery shrapnel, resulting in battery shrapnel oxidation;
4. This machine has a precise structure, do not place in too cold, too hot and humid environment, and do not disassemble or heavy fall.
Failure Analysis:
No sound, the tape does not move: 1. Check whether the input interface contacting is good, whether the power adapter is matched; 2. Check whether the battery is installed backwards. Solution: 1. Use 5V adapter, plug the USB connector; 2. Battery reinstalled.
The sound quality is not clear, poor or volume becomes small: check whether the magnetic is clean. Solution: Clean the magnetic with a cotton swab or cloth dipped in cleaner.
No sound, the tape does not move, power on the back of a bright indicator: 1. Check whether the machine keys stuck; 2. Check whether the operating is correct. Solution: 1. reset the keys, reboot; 2. refer to the operating instructions, try again.
No sound, the tape will move: 1. Check whether the speaker adjustment knob is open; 2. Check whether to press the non play button; 3. Check the external headphones or speakers. Solution: 1. Re rotate the volume knob; 2. Re press the play button; 3. Re plug the headphones or speakers.
Keys malfunction: Check if the button is stuck. Solution: Relax the keys and reset them.
Sound distortion: 1. Check if the tape is badly worn; 2. Check if the battery power is sufficient; 3. Check if the tape is too tight. Solution: 1. Do not use badly worn tape sound distortion; 2. Replace the new battery or use DC5V power supply; 3. Fast forward and backward the tape once.
Tape can not be loaded into the tape compartment: 1. tape compartment with foreign objects; 2. magnetic or reel is not reset; 3. spring dislocation caused by the tape compartment buckle misalignment can not open and close the normal; 4. tape anomalies or deformation damage. Solution: 1. Clean and exclude foreign objects in the tape compartment; 2. Determine whether the key and the wheel have been fully reset before loading the tape; 3. Open the tape compartment empty to check the spring buckle, repeatedly open and close several times; 4. Replace the normal tape.
How to Record a Tape to MP3 Format: Make sure the tape deck is powered on.
1. Insert the tape to be recorded into the tape deck.
2. Insert a USB flash drive into the USB port. When the white indicator light comes on and stays on, it means the recording standby state is entered. Press the button (play/fast forward key) once, the white indicator light starts flashing slowly, indicating the start of recording. At the same time, press the tape play button; when pausing the recording, press the button once again. When paused, the white indicator light stays on steadily, indicating the return to standby state.
3. To playback the recorded files, press the button (play/fast forward key) twice, the white indicator light to blue indicator light, and automatically play the recorded MP3 files, the blue indicator light flashes slowly, pause the playback and then short press the button, the blue indicator light to normal.
4. When playing back, pause the tape playback first to avoid crosstalk, long press (play fast forward button) button to cycle through the MP3 file volume.
5. When playback switch back to the recording state, short press the button two times, the blue light indicator to white light is always on.
Recording Tape Precautions:
1. Please choose a premium performance U disk for recording storage files, chip performance is poor or expansion of the U disk, recording will cause data loss.
2. In order to ensure the quality of recorded sound, when recording, please use the power cord to supply power to the tape deck to ensure stable voltage, while the tape volume knob volume adjusted to the maximum.
3. Support U disk system format FAT32, exFAT, does not support NTFS system format.
4. Please choose a well maintained tape for recording conversion, powdery, loose tapes are not recommended for recording.

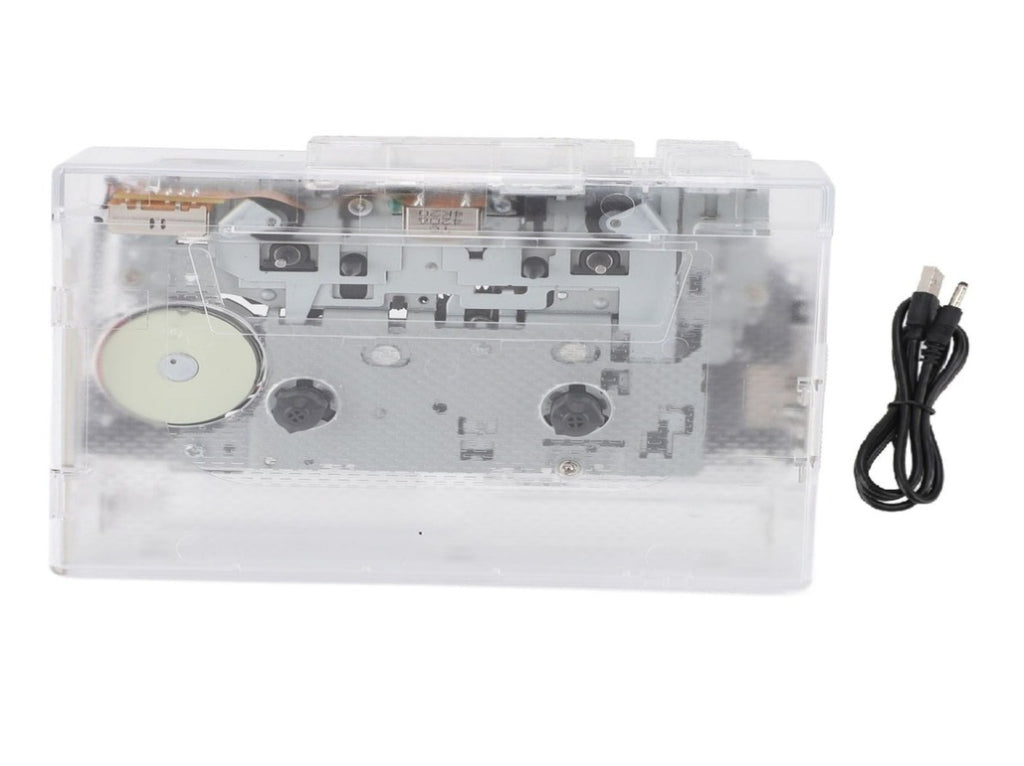

Package List
1 x Supply Cord
1 x Cassette Player
Note
1. This product supports power supply with 2 pieces of 1.5V AA batteries and power cord. When the battery power is low, the walking speed may slow down and the sound may change pitch. It is recommended to use the power cord for long term use.
2. The tape recorder is an analog sound device. During playback, there may be a certain amount of background noise due to tape quality or environmental interference. Please try to use genuine tapes.
3. When using the recording function, please use premium tapes and pay attention to the U disk format requirements, as this is crucial to the recording effect.
4. When recording with the tape recorder, please use the matching power cord for power supply.
5. Please use premium U disks or memory cards for recording to avoid losing the recorded song data.
6. This tape recorder is a portable cassette player without a 3.5mm headphone jack included. Customers need to use their own headphones. It does not come with a speaker, but can be connected to external speakers (speakers are not included in the package).
