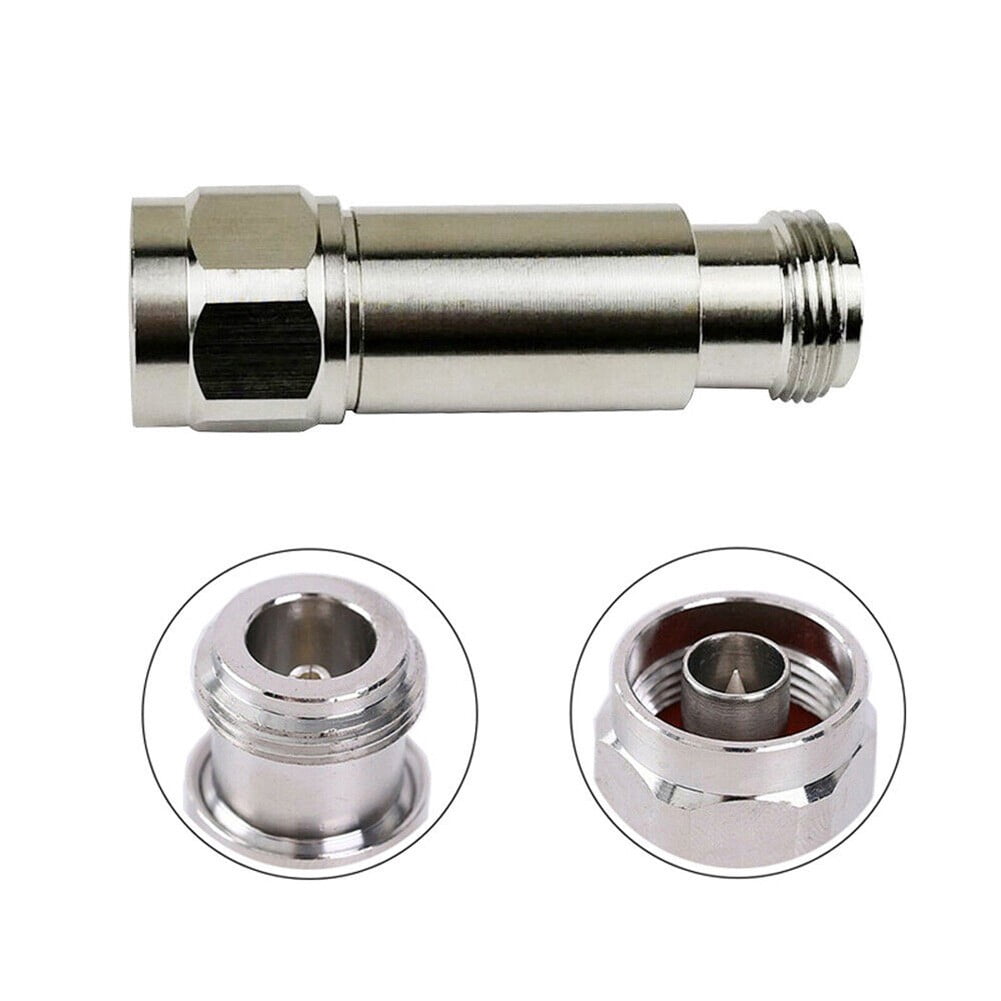

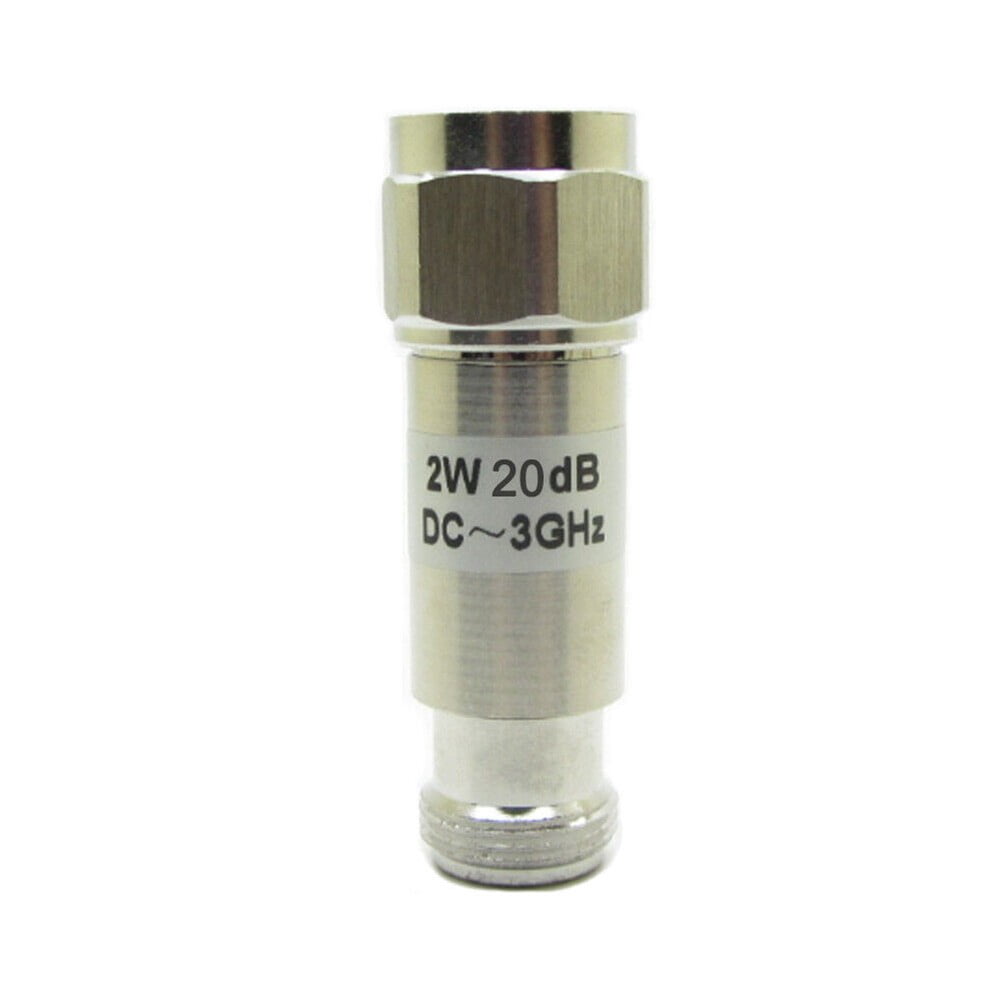

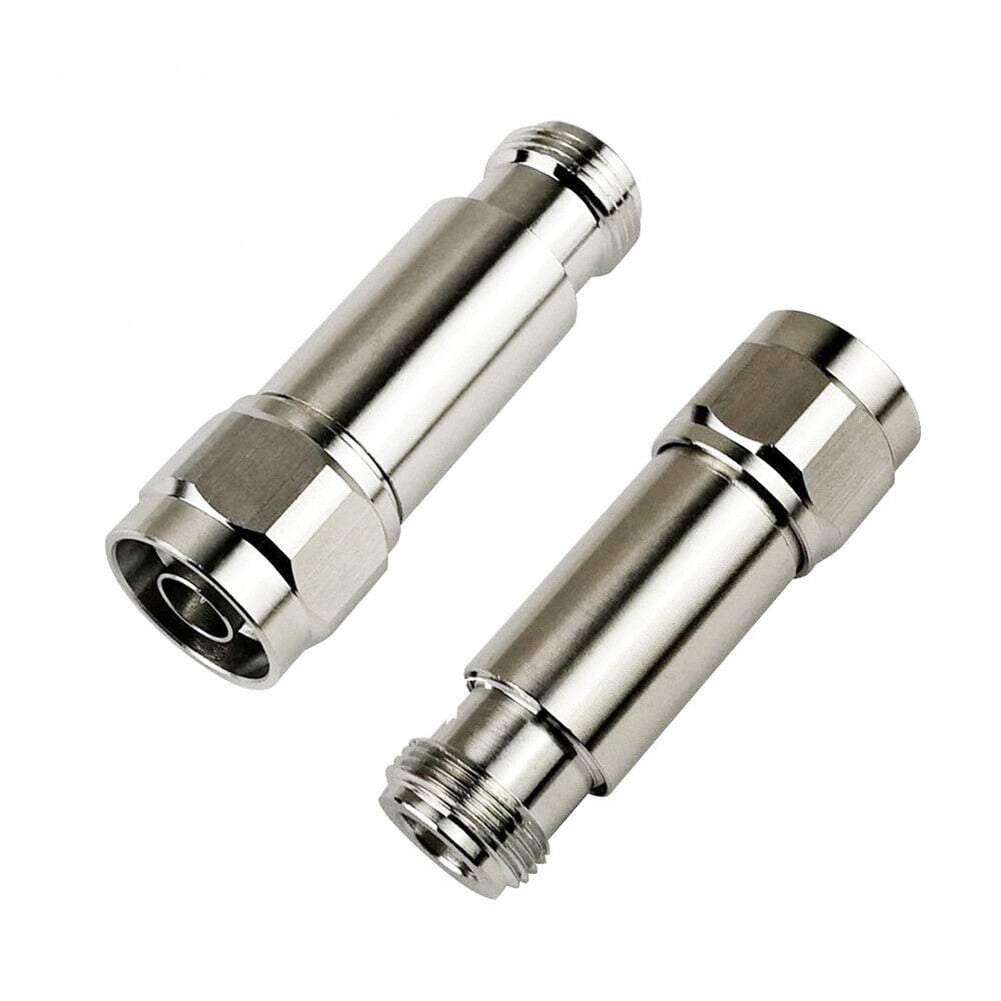

Mini Rf Coaxial Attenuator 2W 1Db-40Db N Type Male To Female Dc-3.0Ghz 50 Ohm Power Tools V1189-LWWAL-20260327-04216

Features:

* Brand new and high quality

* Made of high-quality materials, sturdy and practical

* Built and tested to strict quality control standards.

* Stable performance and high reliability.

* DC-3GHz2W N-JK male-to-female copper-plated three-element 1-50dB coaxial low-power fixed attenuator

Specification:

Name: Attenuator

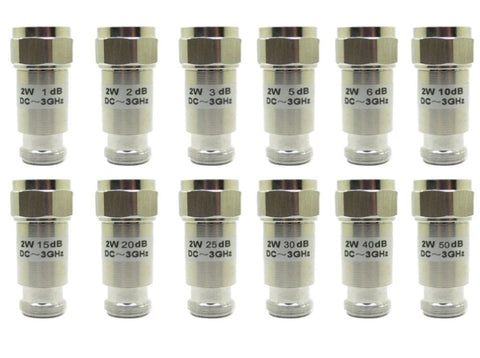

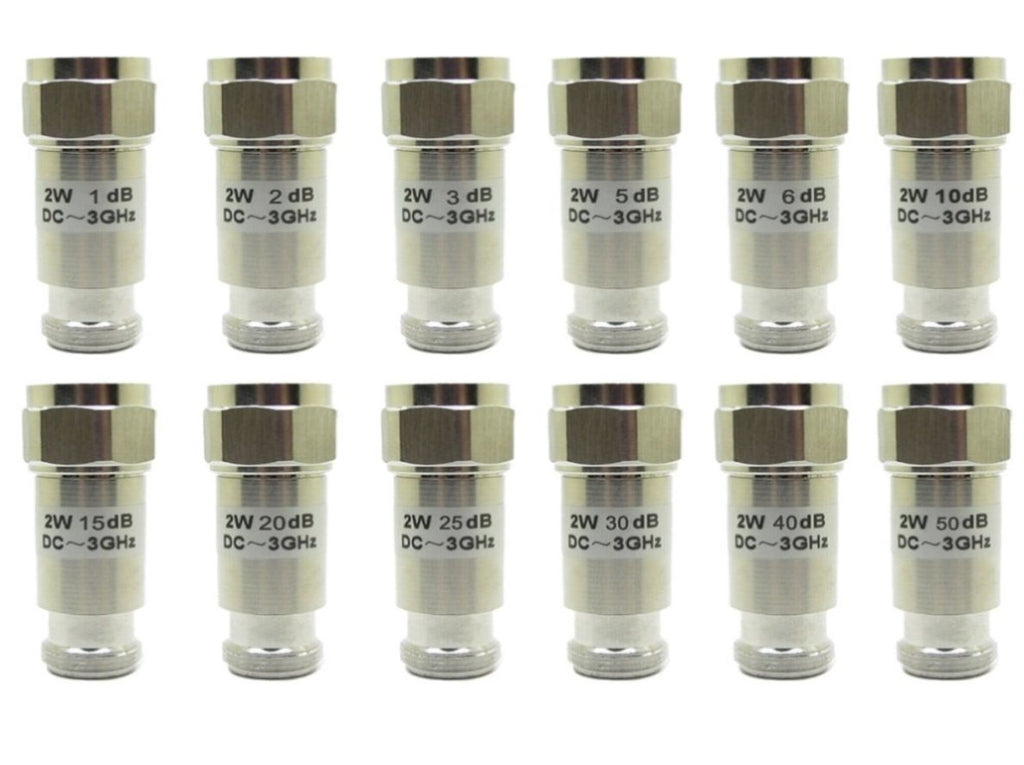

Model (optional): 1dB, 2dB, 3dB, 5dB, 6dB, 10dB, 15dB, 20dB, 25dB, 30dB, 40dB, 50dB

Color: silver

Material: copper plated ternary

Power: 2W

Frequency range: DC-3.0GHz (0-3GHz)

Standing wave ratio: less than 1.20

Impedance: 50 ohms

Connector: N type

Size: 58mm x 18.5mm

Operating temperature: -55 - +125 degrees Celsius

Tolerance: 1-10dB ±0.5dB, 15-30dB ±1dB

Direction: male to female

Male header (center pin): signal input

Female (center socket): signal output

Package Contents:

1 x attenuator

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.

• - This Mini RF Coaxial Attenuator is made of materials, its sturdiness and practicality. It is built and tested to strict control standards, guaranteeing reliable performance. • Wide Range of Options- The attenuator is available in various models, including 1dB, 2dB, 3dB, 5dB, 6dB, 10dB, 15dB, 20dB, 25dB, 30dB, 40dB, and 50dB, providing a wide range of options for different needs. • Excellent Performance- With a power rating of 2W and a frequency range of DC-0GHz (0-3GHz), this attenuator offers stable and reliable performance. It has a standing wave ratio of less than 1.20 and an impedance of 50 ohms, optimal signal transmission. • ERROR: #NAME • Easy Installation- This attenuator is designed in a male-to-female N type connector configuration, with the male header serving as the signal input and the female center socket as the signal output. Its compact size of 58mm x 5mm allows for easy installation in various setups.
