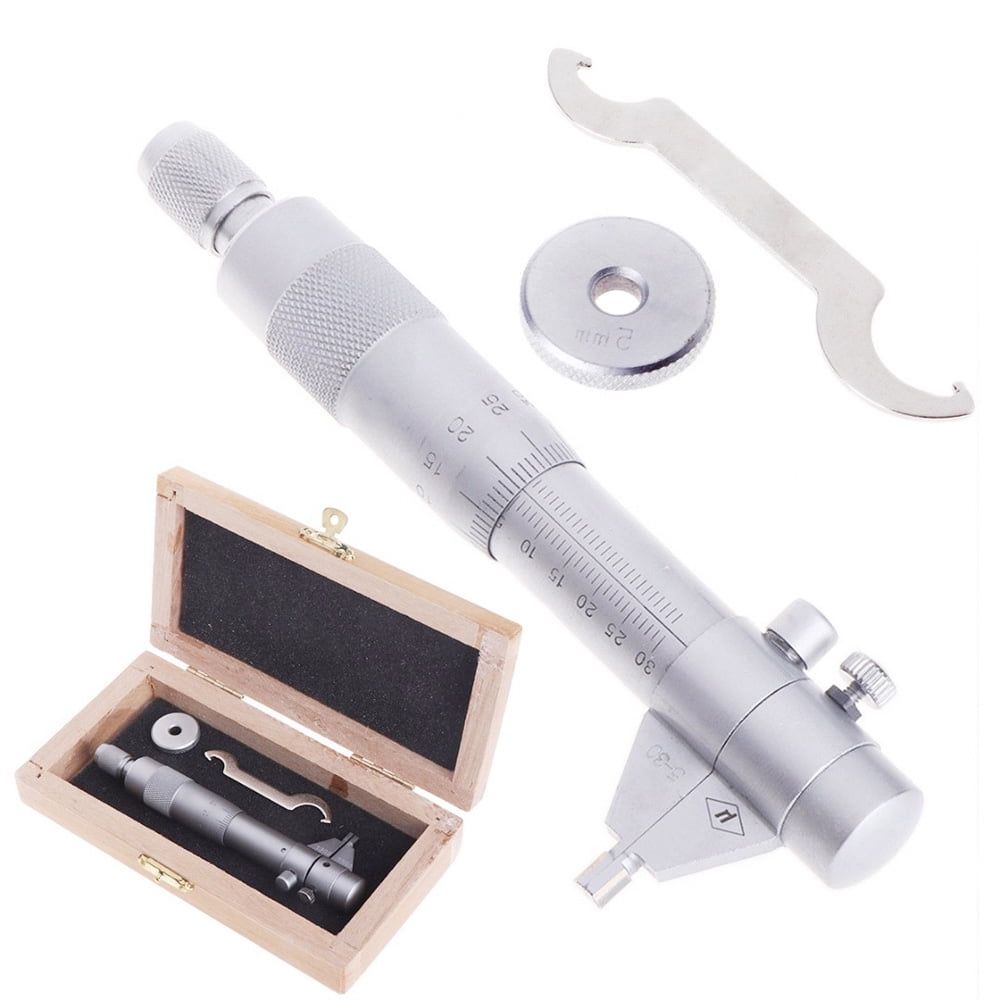

Inside micrometer Precision 0.01mm Measuring Range 5mm30mm Stainless Steel V1369-AZ3-W-21373

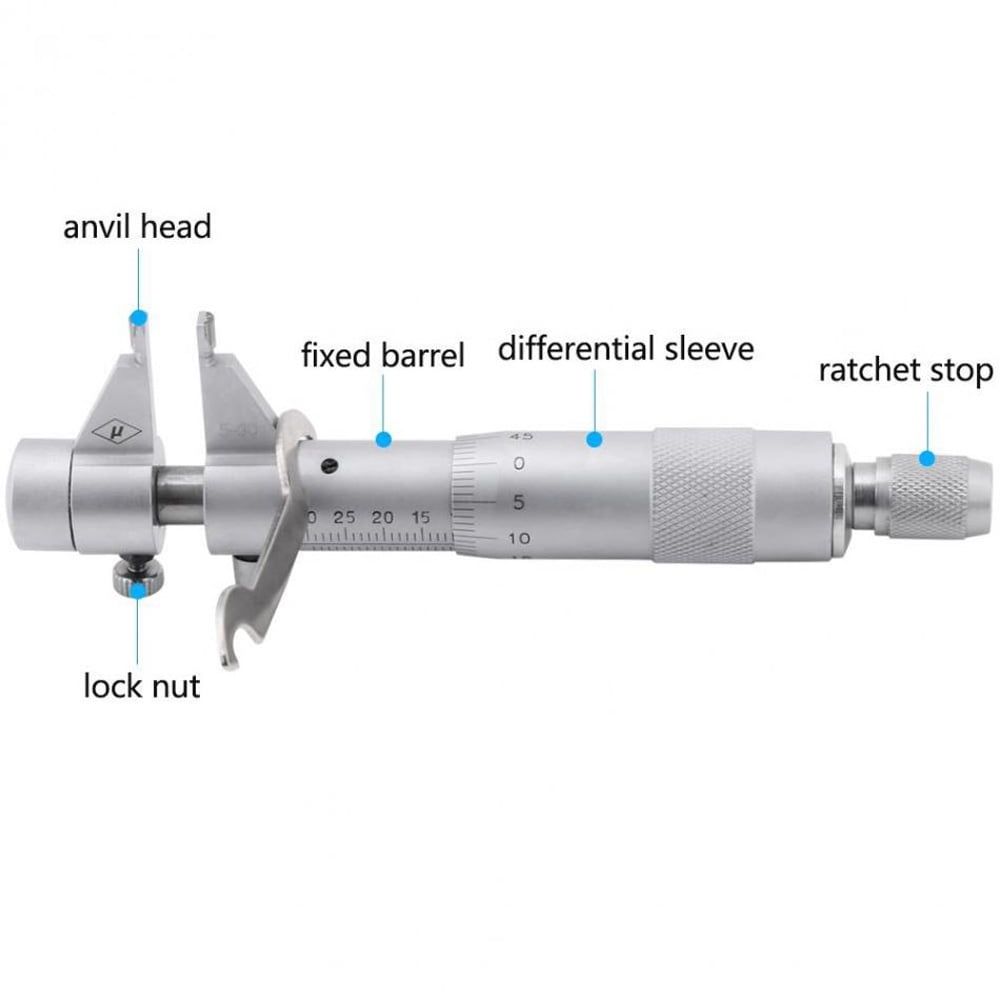

Features: High quality alloy measuring heads can be used for various internal size measurement, fine workmanship and no burr. Clear laser marking line for convenient reading. The main micrometer body is made of stainless steel with chrome plated surface, wear-resisting and durable. Designed with locking device, precise machinery structure make it more intuitive and convenient to read. Built-in ratchet stop device ensures accurate repetitive readings. Specifications: Type: Inside micrometer Measuring Range: 5mm~30mm Material: Stainless steel Precision: 0.01mm Weight: 300g(approx.)Zeroing: Clean the surface of measuring anvil heads with a soft cloth, then rotate measuring device to make two measuring surface contact. If two zero lines of differential sleeve and fixed barrel do not alignment, use the following two methods to adjust. Method I, if the error is less than 0.02mm (0.001"), use ratchet stop to lock screw tightly, then use wrench to pull fixed barrel till two zero lines alignment. Method II, if the error is greater than 0.02mm (0.001 "), Step1, use ratchet stop to lock screw tightly, then use wrench to loosen the ratchet stop and remove differential sleeve. Step2, re-align zero lines of fixed barrel and differential sleeve, then put ratchet stop back on. If necessary, adjust it again using method I. Note: There is no need to calibrate micrometer during common use. Micrometer only need calibration when it is severely worn. Package Content: 1 x Inside Micrometer 1 x Calibration Ring 1 x Wrench 1 x Wooden Box

️High quality alloy measuring heads can be used for various internal size measurement, fine workmanship and no burr. ️Clear laser marking line for convenient reading. ️Built-in ratchet stop device ensures accurate repetitive readings. ️The main micrometer body is made of stainless steel with chrome plated surface, wear-resisting and durable. ️Designed with locking device, precise machinery structure make it more intuitive and convenient to read.
