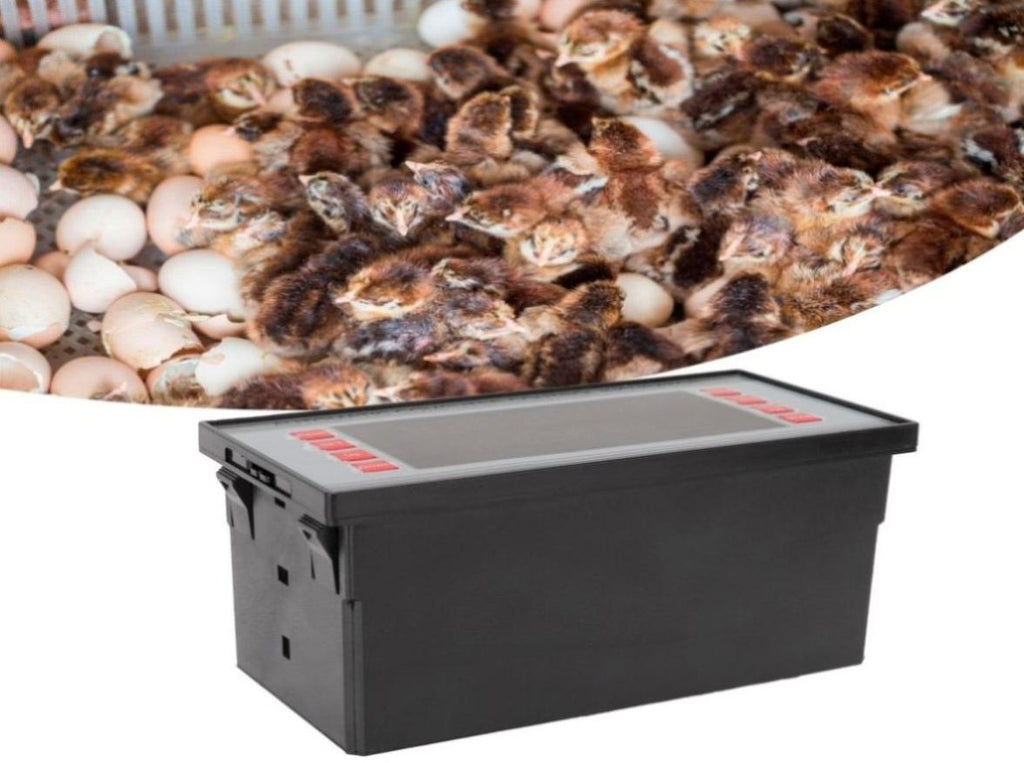

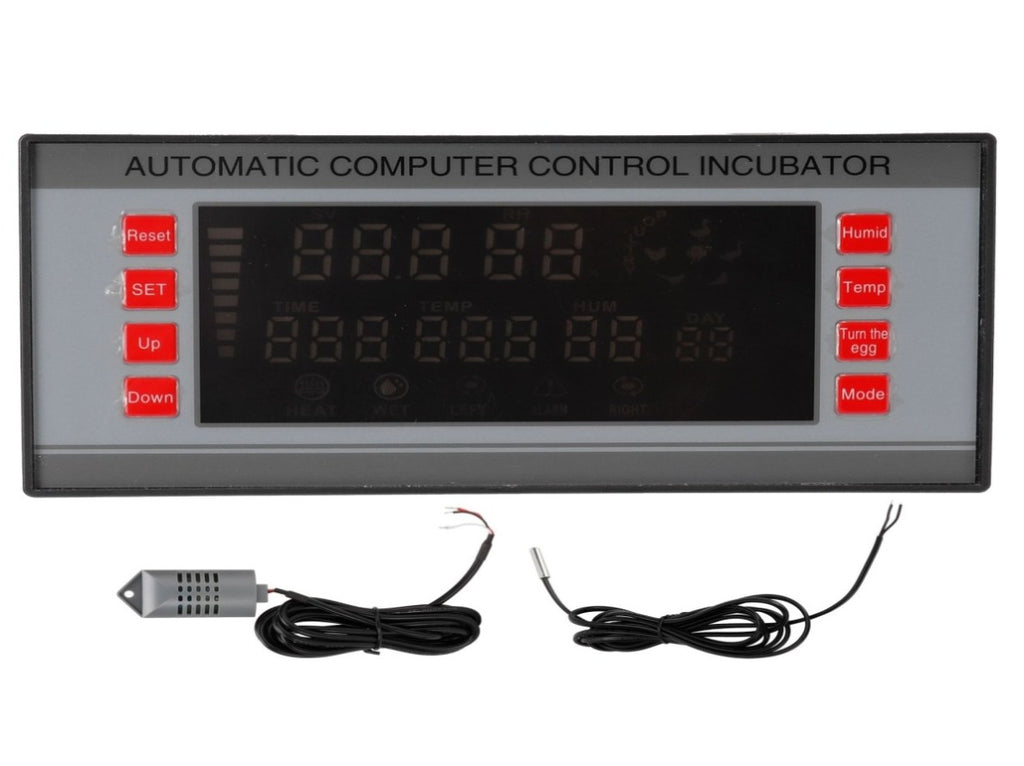

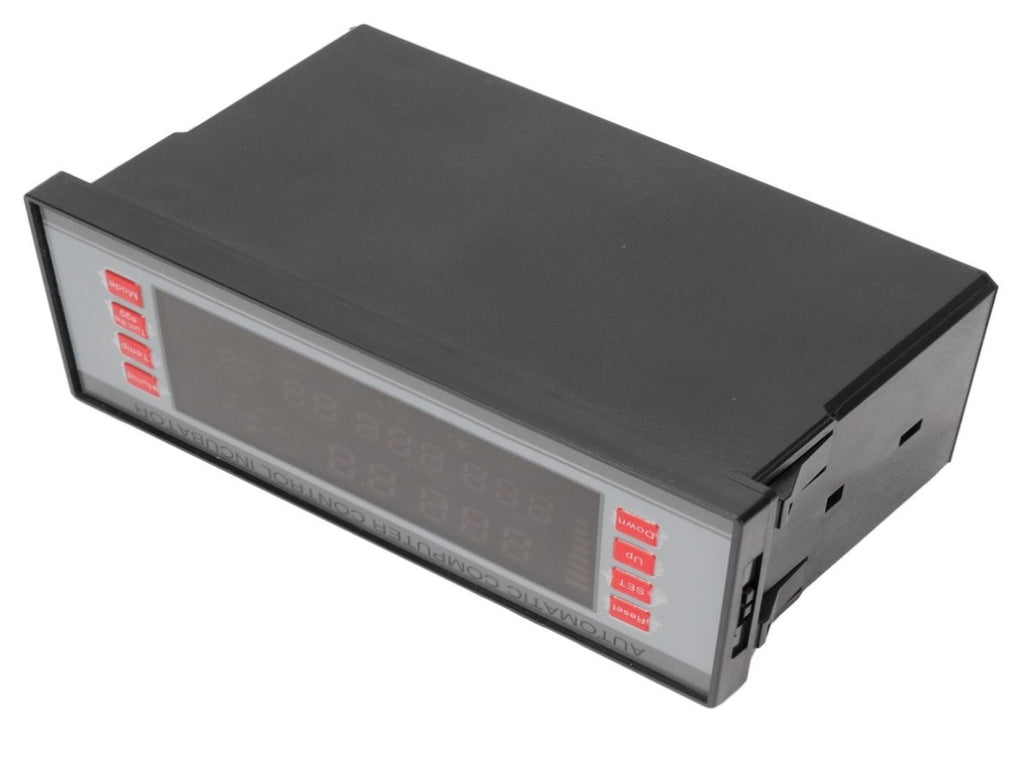

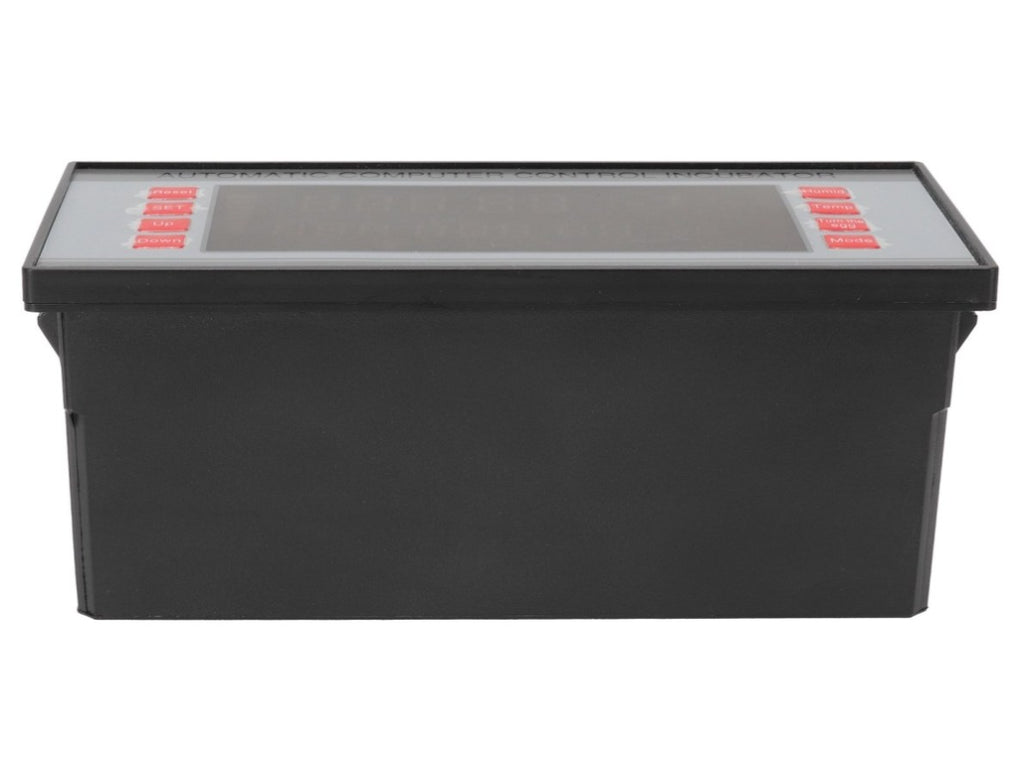

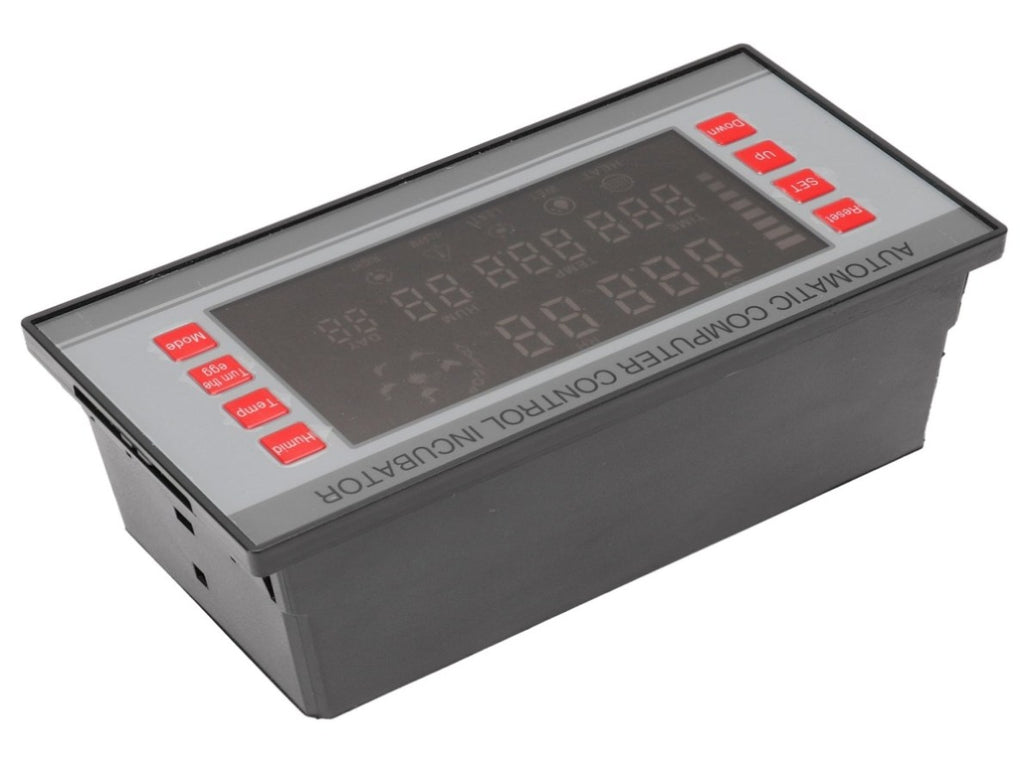

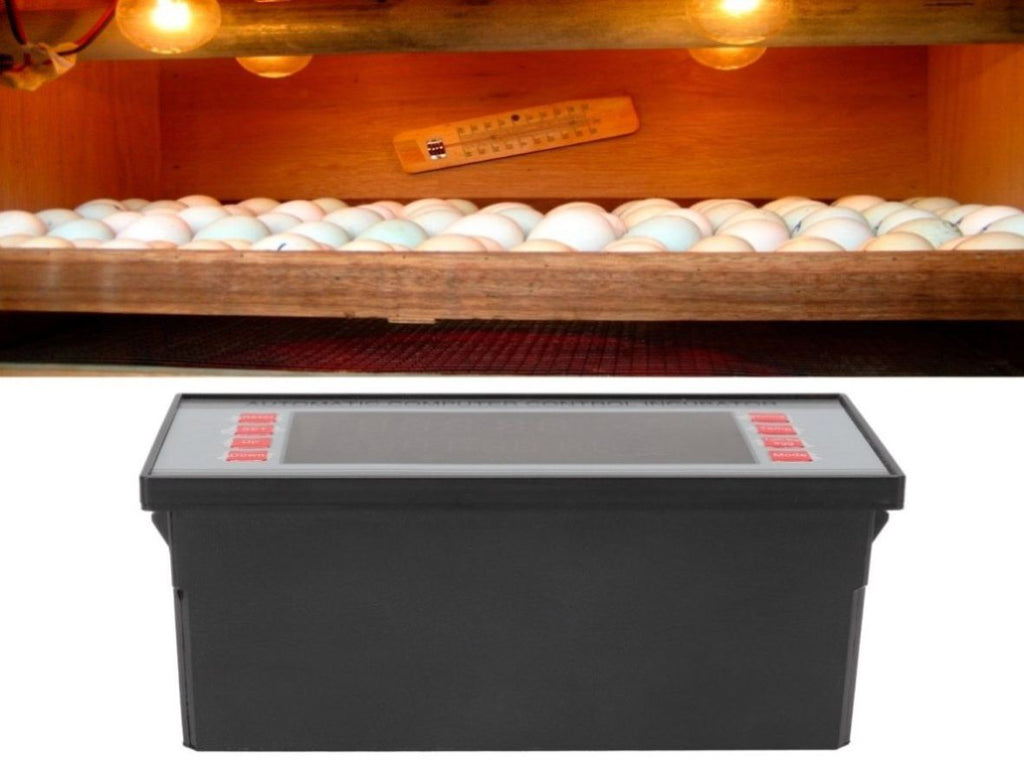

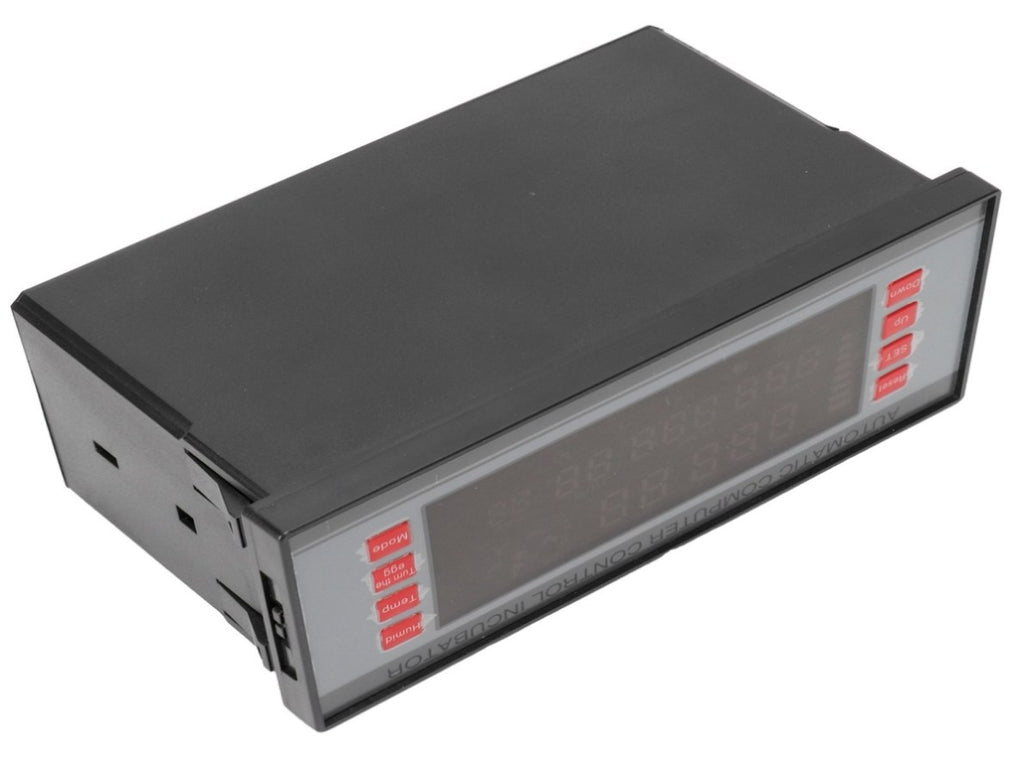

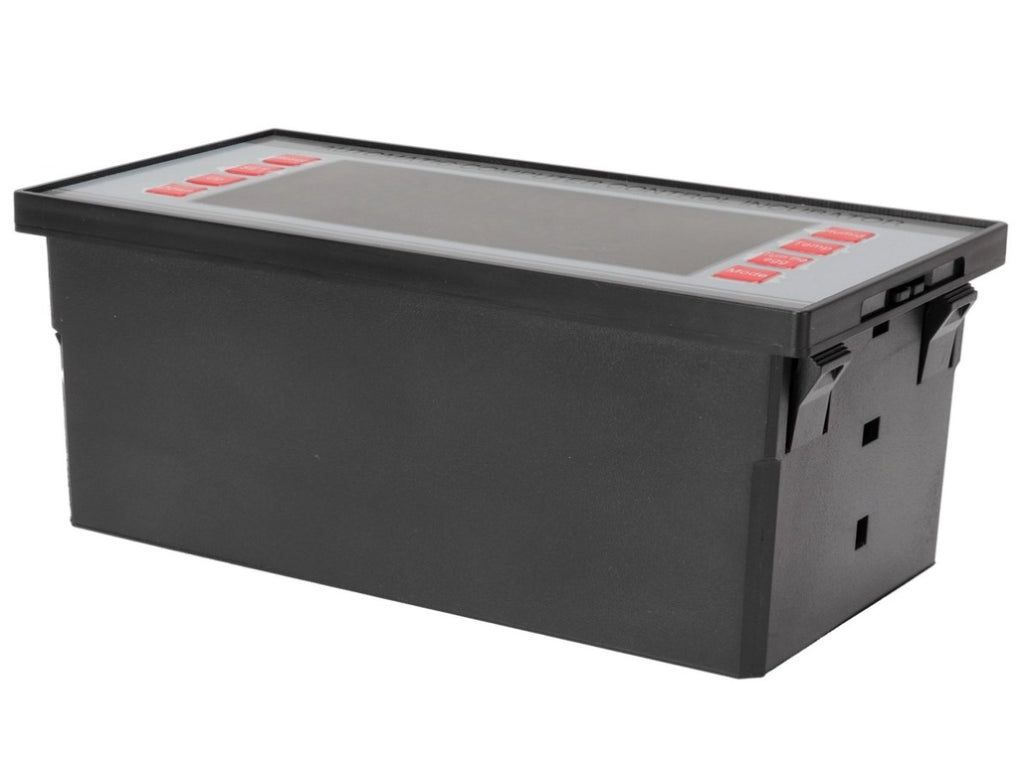

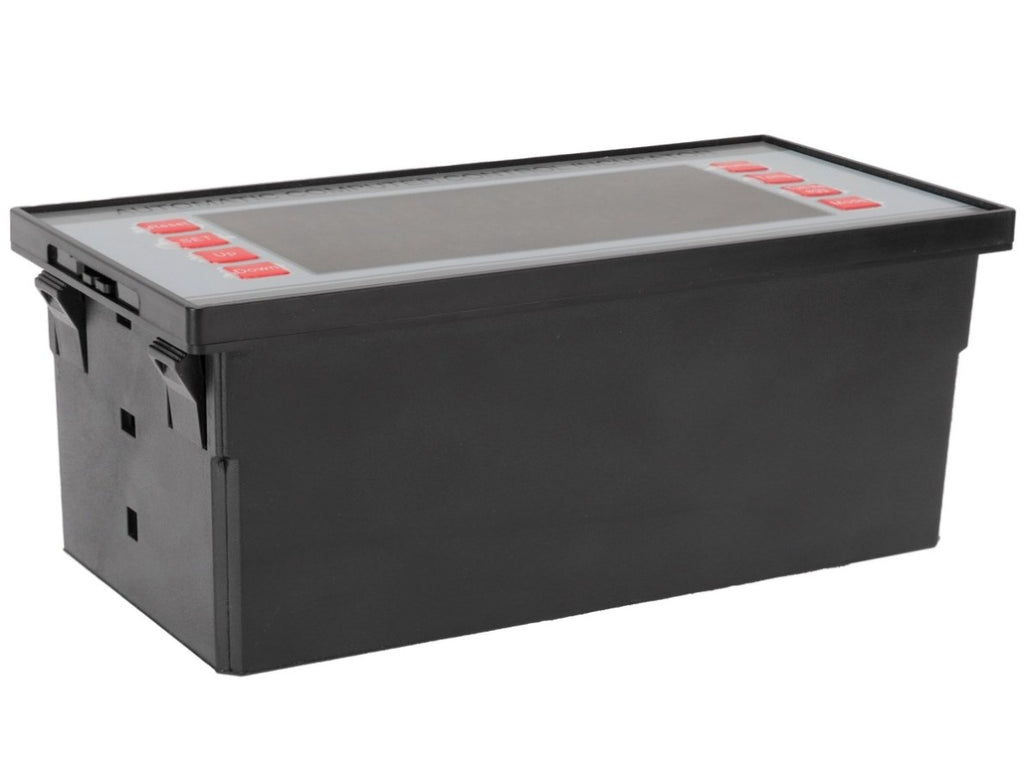

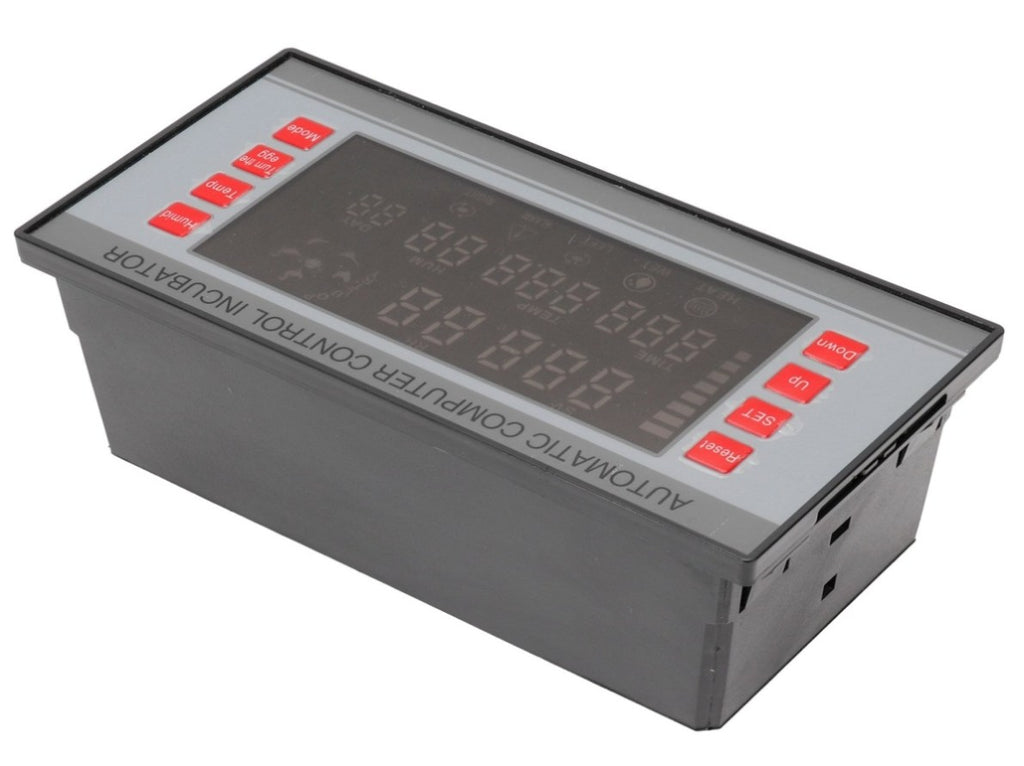

Incubator Temperature Humidity Controller Automatic Multifunction Incubator Controller 220V V1294-YM0901-3111210049111

1、Fully automatic egg turning is controlled by a microcomputer, turning left or right, which improves the efficiency of incubation and is easy to use. 2、High accuracy temperature and humidity controller to control the temperature and humidity of the incubator. 3、Large‑screen LCD display is convenient for reading and operation. The dedicated multi‑function window provides more precise control functions. 4、This machine has intelligent control of temperature and humidity, timing egg turning and various alarm indication functions, detection functions and fault prompt functions. 5、Multi‑function, also has a one‑key incubation setting function, truly automatic incubation, which truly realizes automatic incubation.
Specification
Item Type: Incubator Controller
Material: Plastic
Color: As shown in the picture
Temperature Measurement Range: 0~99°C
Temperature Measurement Accuracy: ±0.1°C
Humidity Measurement Range: 0~99%RH
Humidity Control Accuracy: ±3%RH
Number of Control Output Signal Channels: 7 (over temperature, temperature control, under temperature, left egg, right egg, humidity control, alarm)
Control Output Maximum Load Current: Temperature control, under temperature ≤ 8A/AC220V, over temperature, left egg, right egg, humidity control, alarm ≤ 1A/AC220V
Turning Eggs: Up to 999 times
Egg-Turning Cycle: 0-999 minutes adjustable(factory value is 90 minutes)
Egg Turning Time: 0~999 seconds adjustable (factory value 180 seconds)
Breathing Cycle: 0-999 minutes adjustable (factory value 120 minutes)
Ventilation Time: 0~999 seconds adjustable (factory value is 30 seconds)
Temperature and Humidity Measuring Line Length: About 2m/6.6ft
Weight: Approx.760g/26.8oz
Working Conditions:
Working Voltage: AC 160V~220V, 50Hz
Relative Humidity: Less than 85%RH
Environment Temperature: -10~60°C
This machine can be divided into two incubation methods: total batch egg placement (variable temperature) and partial batch egg placement (constant temperature).
Variable temperature incubation setting (ie whole batch spawning, laying of young)
After turning on the machine, wait for the temperature and humidity to display normally, and then enter the egg species selection (the machine is divided into six types: chicken, duck, goose, pigeons, pheasant, and customized constant temperature incubation). To do this, press and hold the "Mode" button and don't let go (let go after about 5 seconds). At this time, the indicator light of the chicken is on-entering the hatching mode. If you are incubating other eggs, press and hold the "Mode" button again and don't let go (about 5 seconds after the eggs hatch). They are divided into five categories: duck, goose, pigeons, pheasant, and customized constant temperature incubation. Taking into account the differences in local climates and the particularity of hatching eggs, experienced hatching technicians should try their best to use constant temperature mode during incubation to cultivate temperature and humidity,
The temperature, humidity and egg turning parameters set by the constant temperature incubation mode (batch laying) under "custom" conditions do not change with the incubation time.
1. Temperature setting
For example, the incubation temperature is between 37.7°C and 37.8°C. Press the "Temperature" button, the LED display temperature setting yellow window starts to flash; the temperature setting in the yellow window displays the three-digit original factory temperature setting. If you need to change, please press "increase" or "decrease" to adjust so that the digital display upper limit of the temperature range you want, 37.8°C. Press the "Temperature" button to save the temperature setting. If the temperature is not saved for a long time after adjusting the temperature, the system will automatically save it for you.
2. Humidity setting
For example, incubation requires humidity between 55-60%RH. Press the "Humidity" button. The yellow window of humidity setting on the LED display starts to flash. The yellow window of the humidity setting di shows two digits for the original factory humidity setting value. If you need to change, please press the "increase" or "decrease" button to adjust so that the upper limit of the humidifier is displayed digitally. You need a Y value range of 60%RH. Press the "Humidity" button to save the humidity setting. If the humidity is not stored for a long time after adjusting the humidity, the system will automatically save it for you.
3. Interval parameter settings
Under normal working conditions, press the "Set" button once, and the system will enter the interval parameter setting (the interval parameter has been set before the system leaves the factory, and non-professionals cannot operate it). The display shows different parameters in each mode. Press the Add/Subtract button to adjust the required parameters, and then click the SET button to switch to the SWITCH parameter codes.
Package List
1 x Incubator Controller
1 x Instruction Manual
1 x Temperature Sensor
1 x Humidity Sensor
