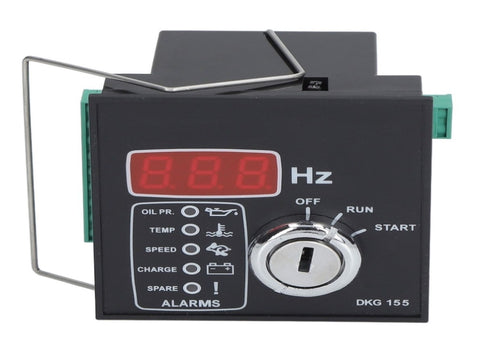

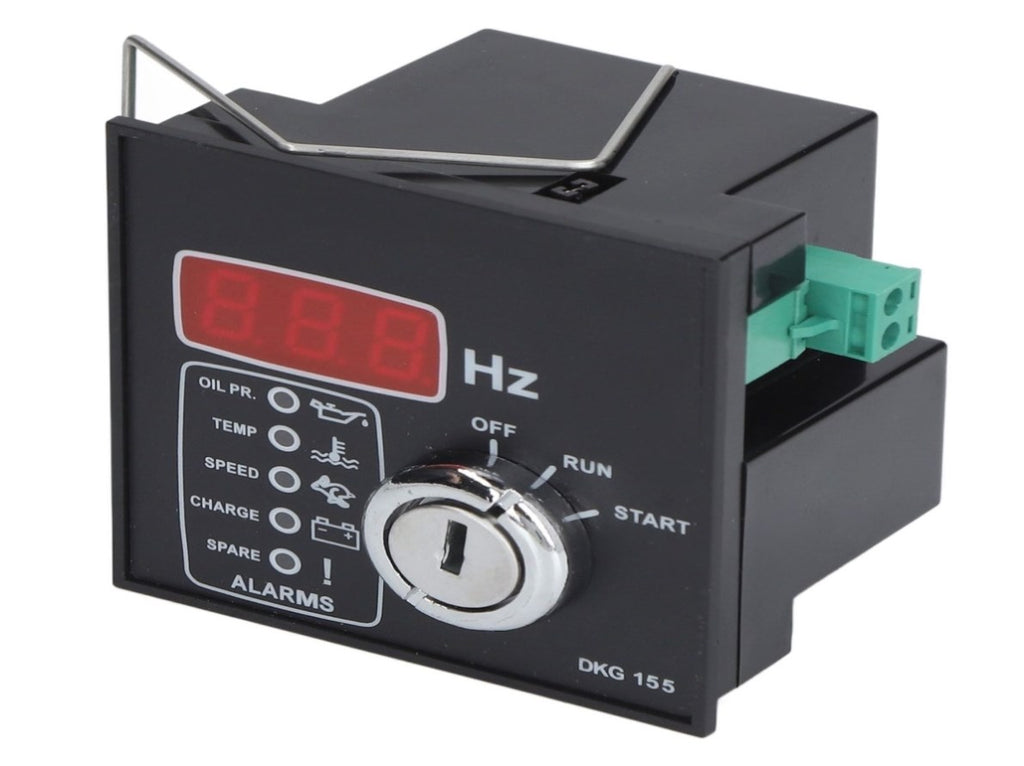

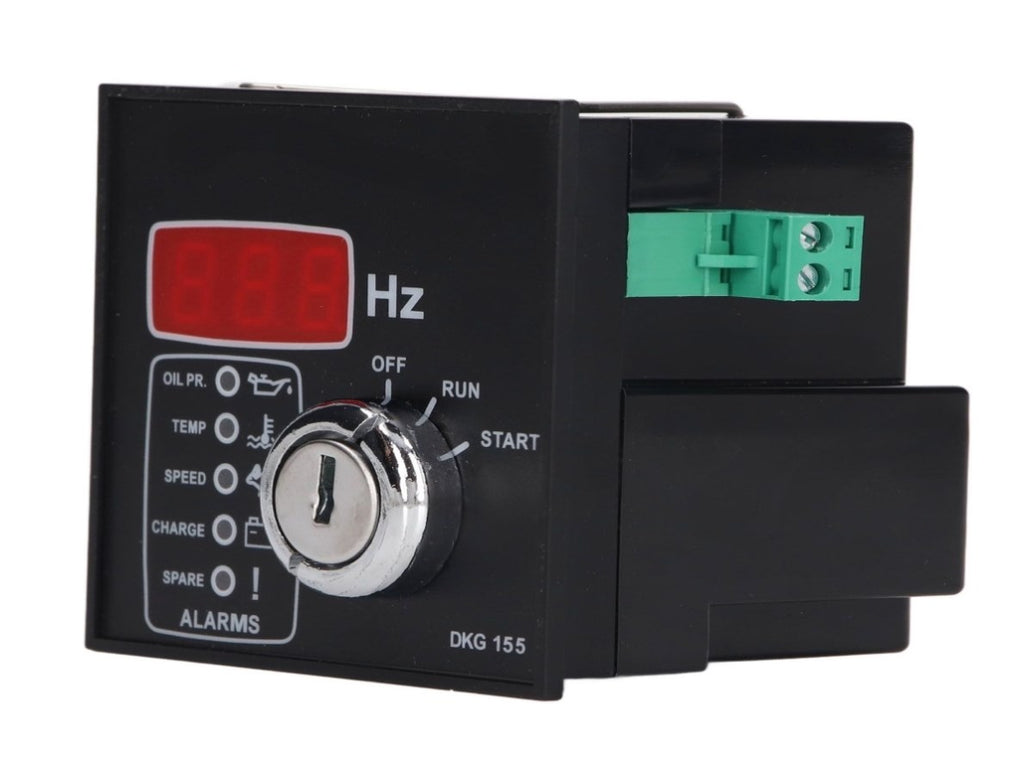

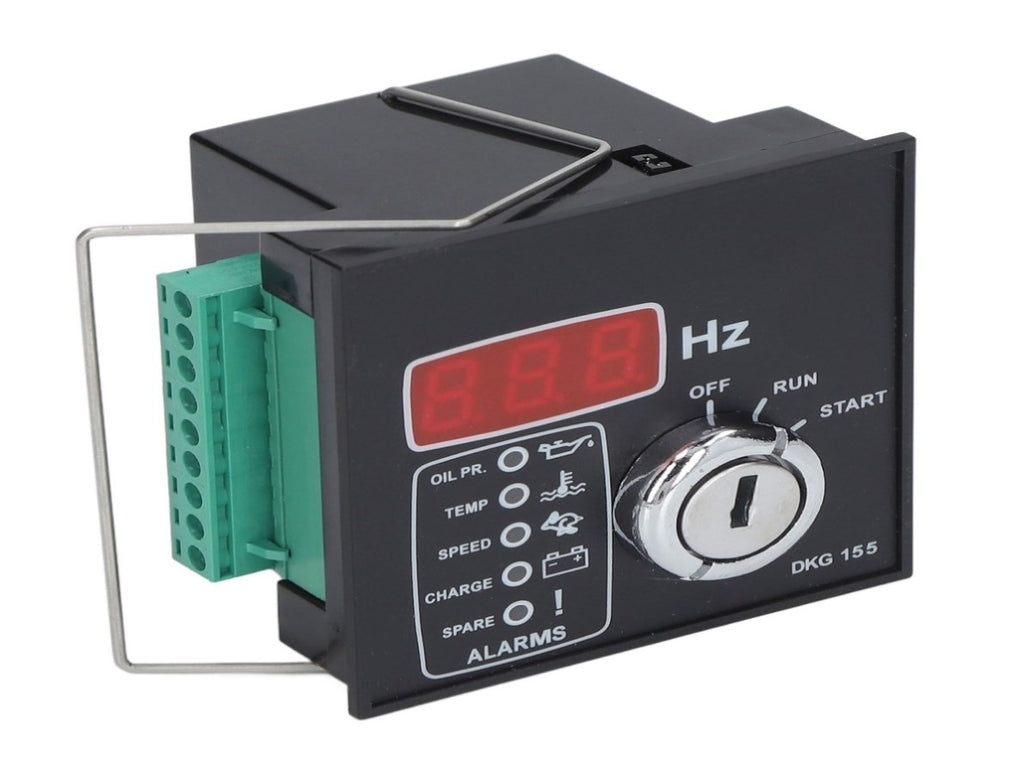

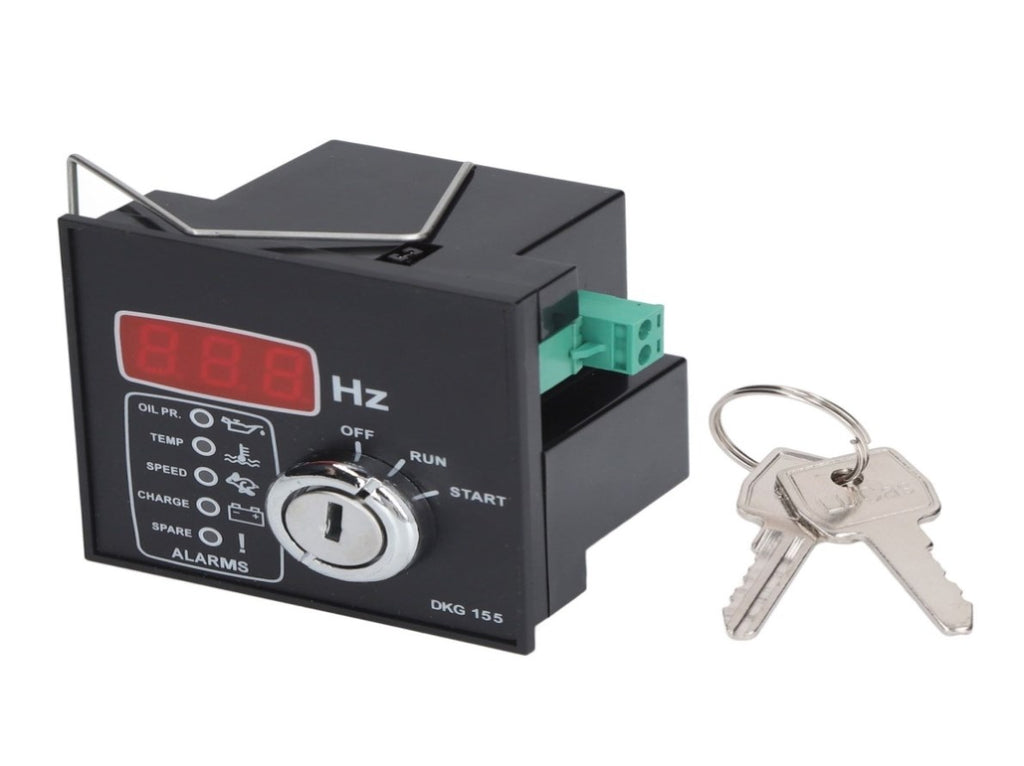

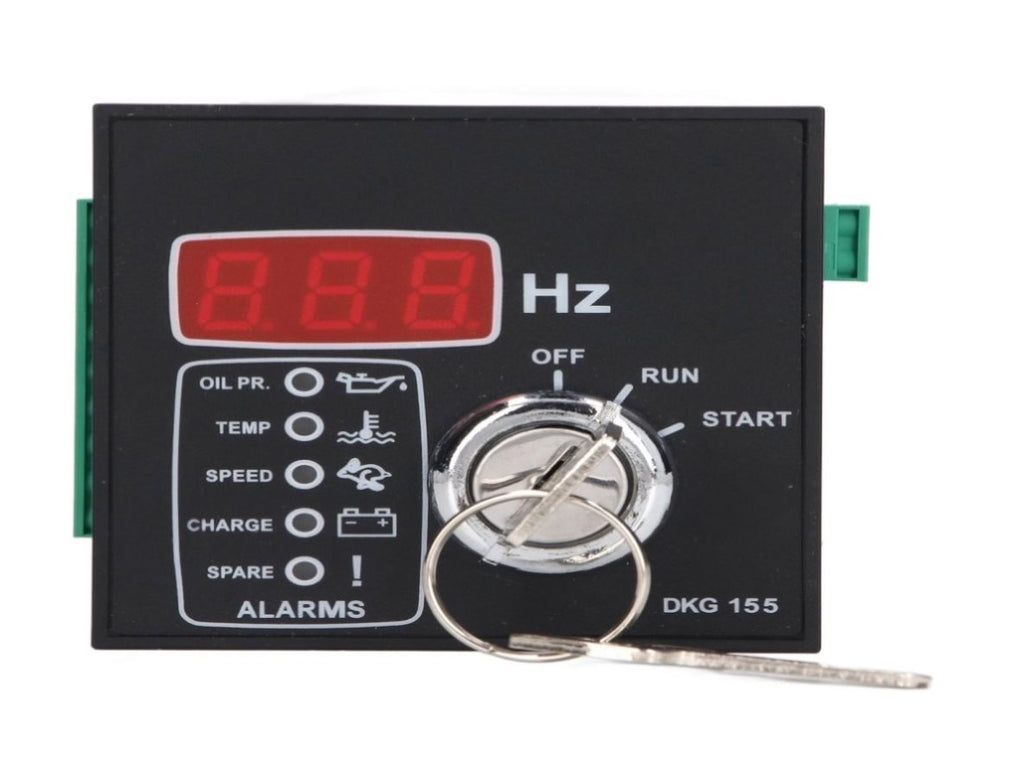

Generator Controller Electronic Generator Controller Module Control Module Replacement for Diesel V1294-YM3111220279811-0421

1、Automatic Control: Electronic generator controller is designed to automatically start and stop generators with a low cost controller.

2、Scope of Application: The electronic generator controller module is suitable for Class 1 to 3 gasoline and diesel generator sets.

3、Multifunctional: Generator automatic control module with generator protection, integrated alarms and warnings, etc.

4、Basic Parameters: DC power range: 9‑33V DC; AC generator voltage: 15‑300V AC, AC generator frequency: 50‑60 Hz.

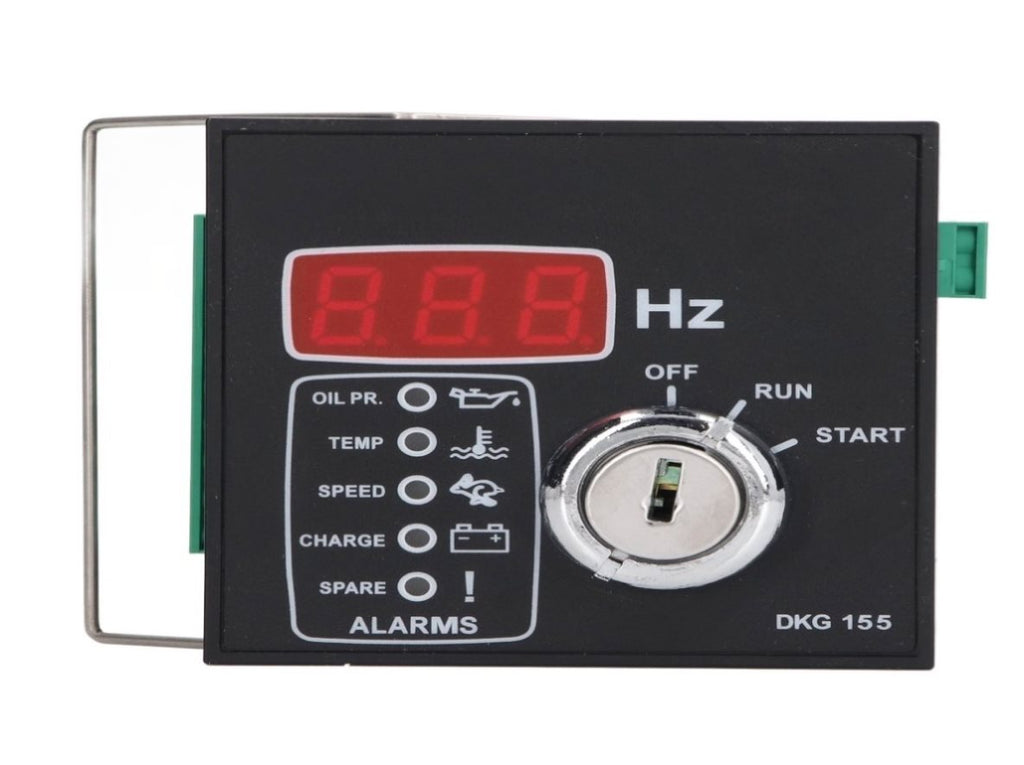

5、Easy to Install: Designed for front panel mounting. Universal use in marine, power, communications and where generators are required.

Item Type: Electronic Generator Controller

Material: ABS

Size: Approx. 8 x 7.3 x 5.7cm/3.1 x 2.9 x 2.2in

Panel Size: Approx. 68 x 68mm/2.68 x 2.68in

Alternator Voltage: 15-300V AC

Alternator Frequency: 50-60Hz

Frequency: Nominal Frequency +14% (Overshoot +24%)

Low Speed: 30Hz

DC Power Range: 9-33V DC

Current Consumption: 150mA Maximum (Relay Output On)

Charge Failure Threshold: 6V-DC

Charge Excitation Current: Connected to Fuel Output Via 220 Ohm Resistor

Operating Temperature: -20°C (-4℉) to 70°C (158℉)

Storage Temperature: -30°C (-22℉) to 80°C (176℉)

Maximum Humidity: 95% Non Condensing

Use: Universal in Ships, Electricity, Communications,, Where Generators Are Needed

Gross Weight: Approx. 242g/8.5oz

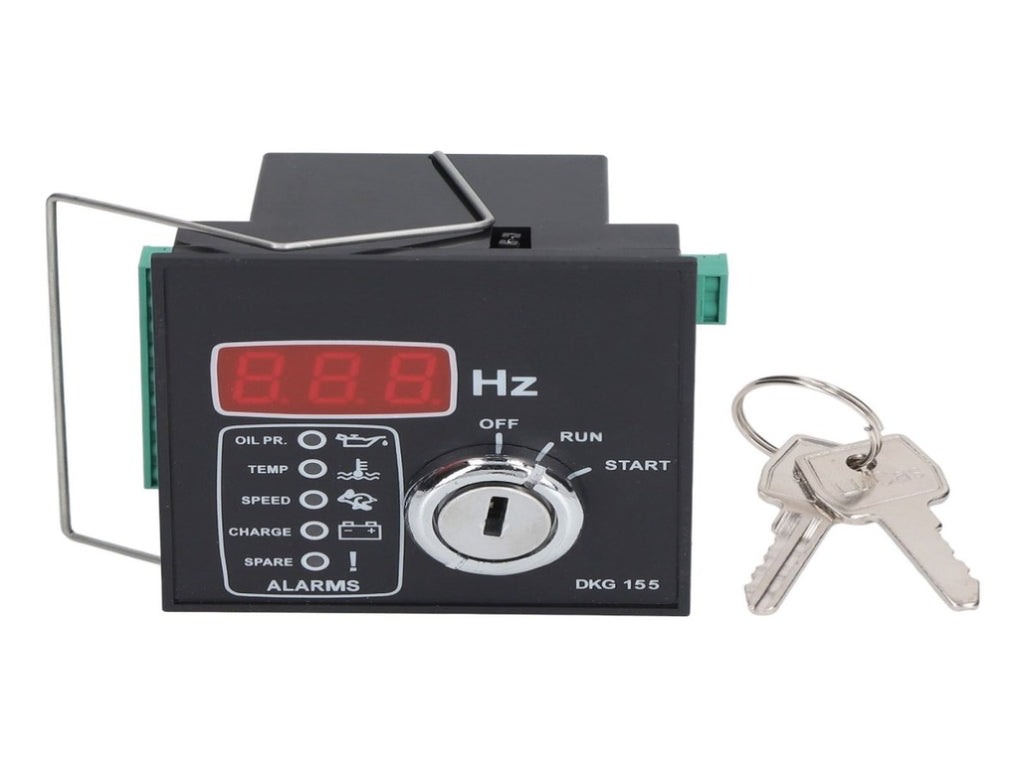

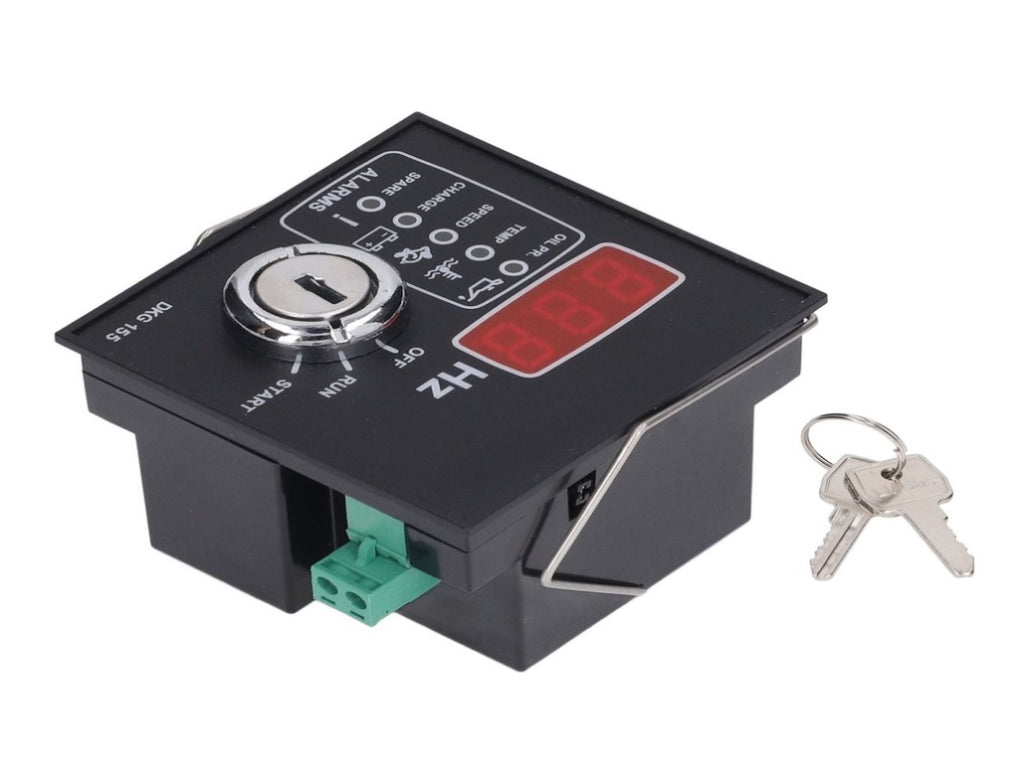

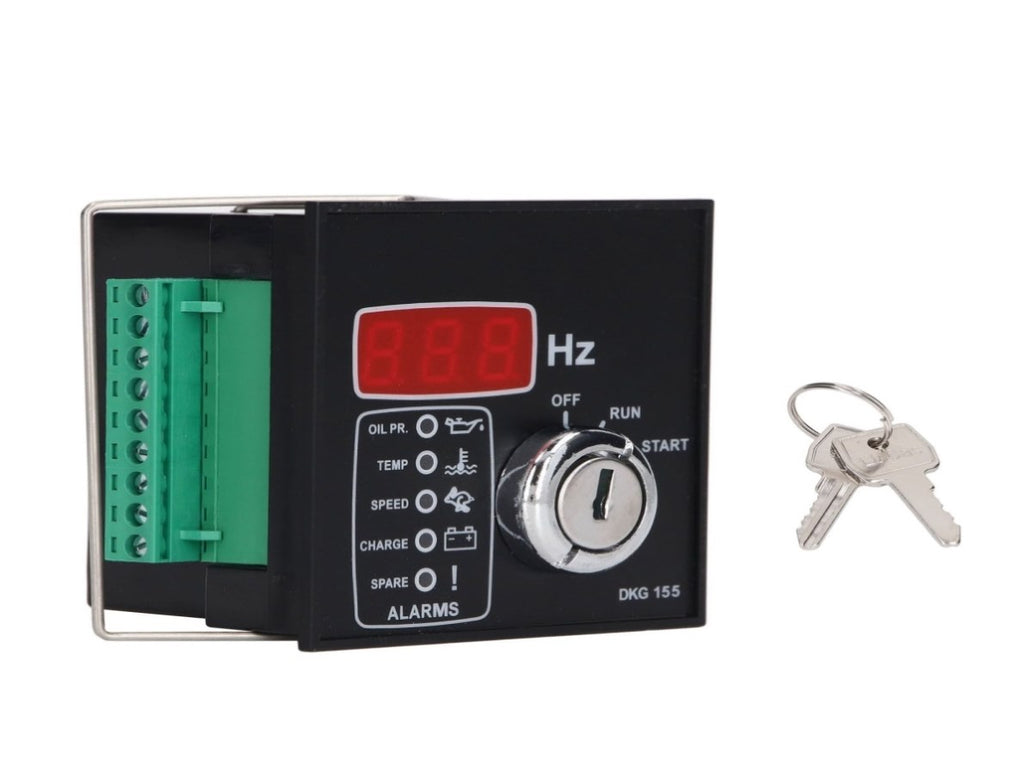

1 x Electronic Generator Controller

2 x Keys

1 x Manual
