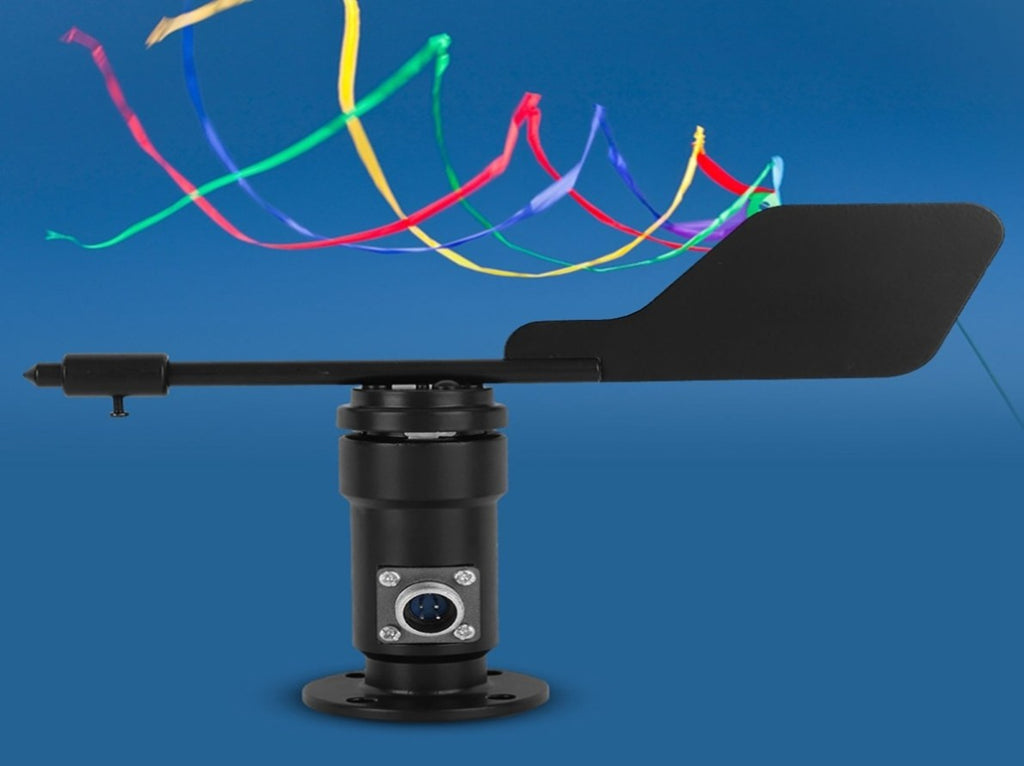

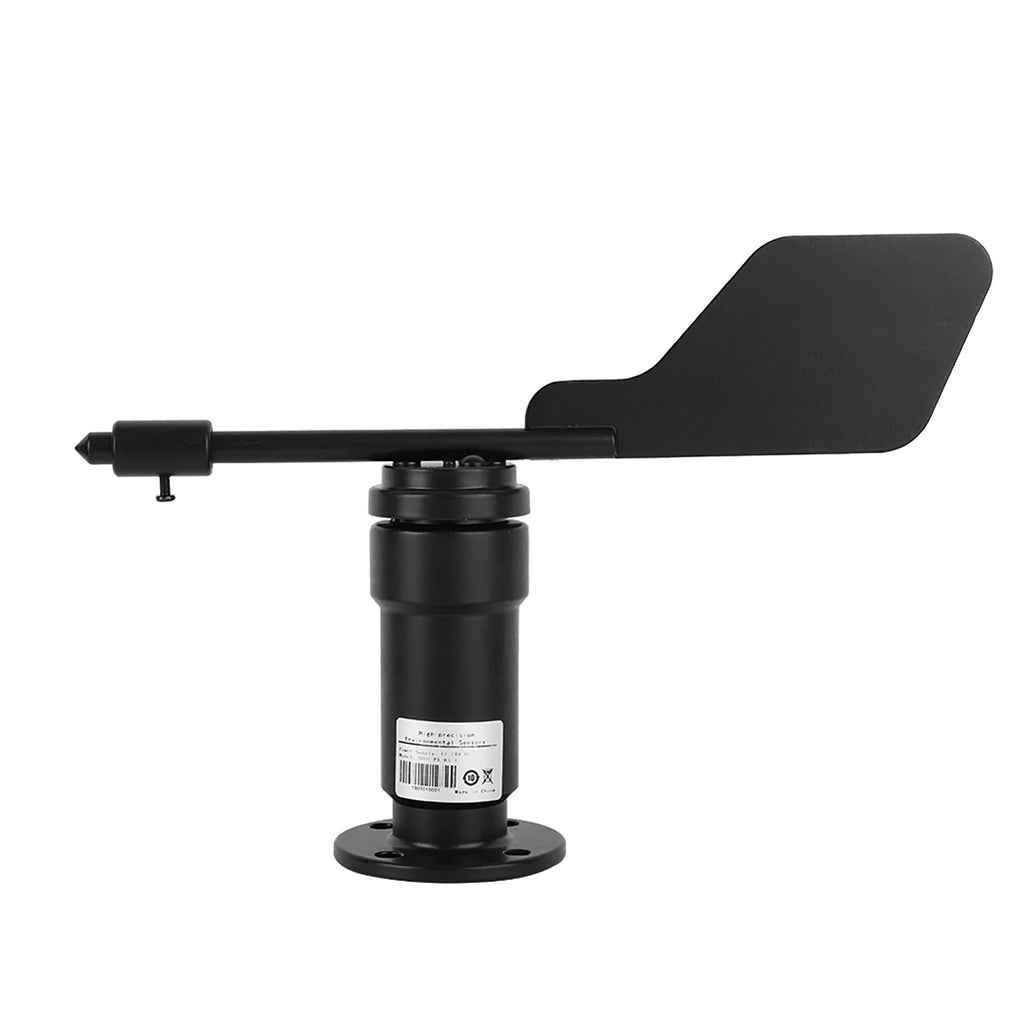

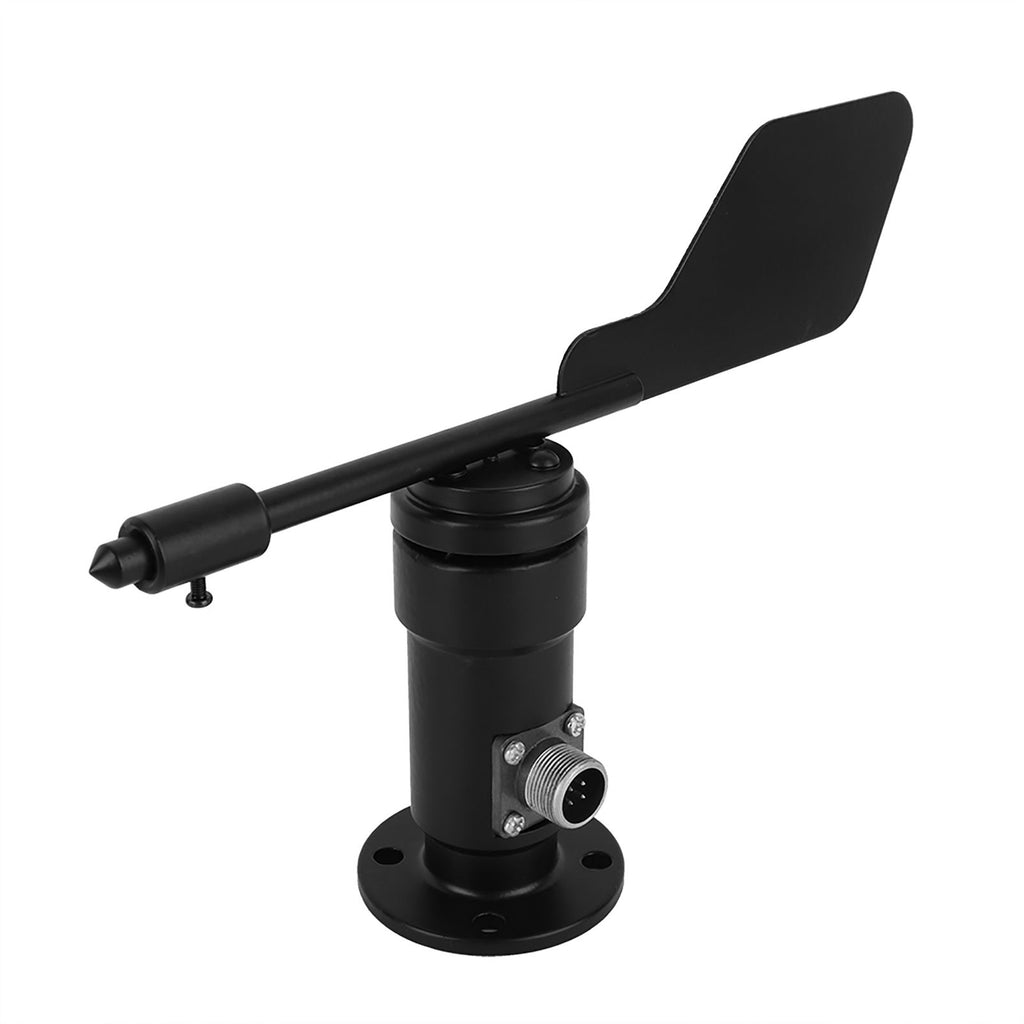

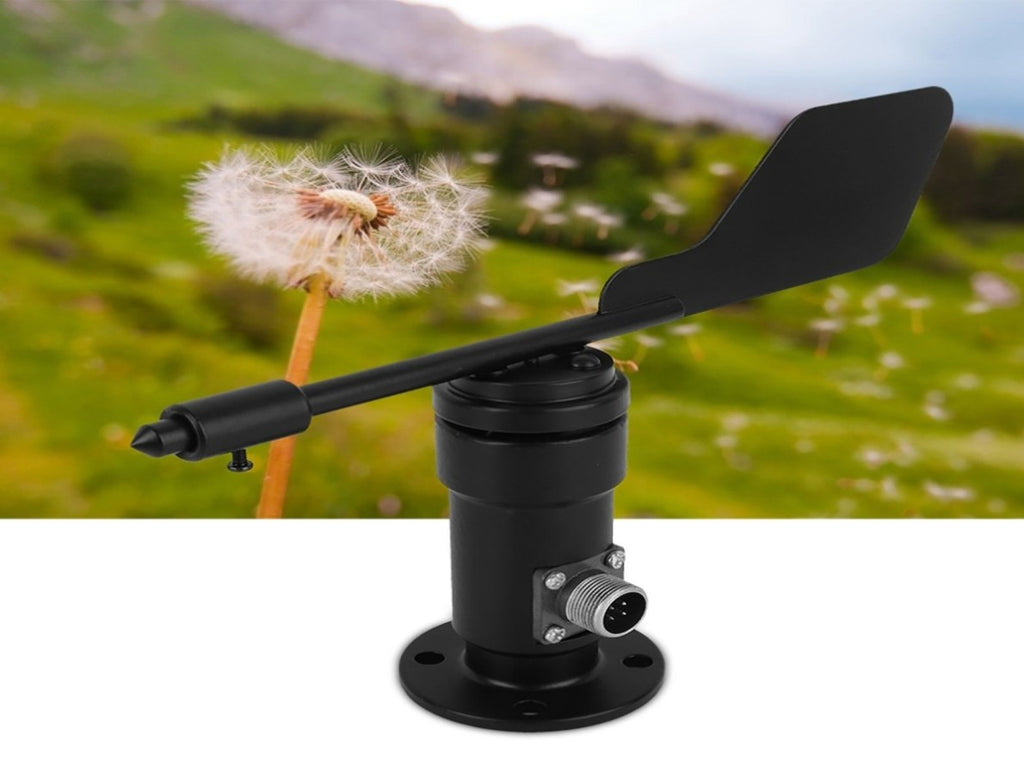

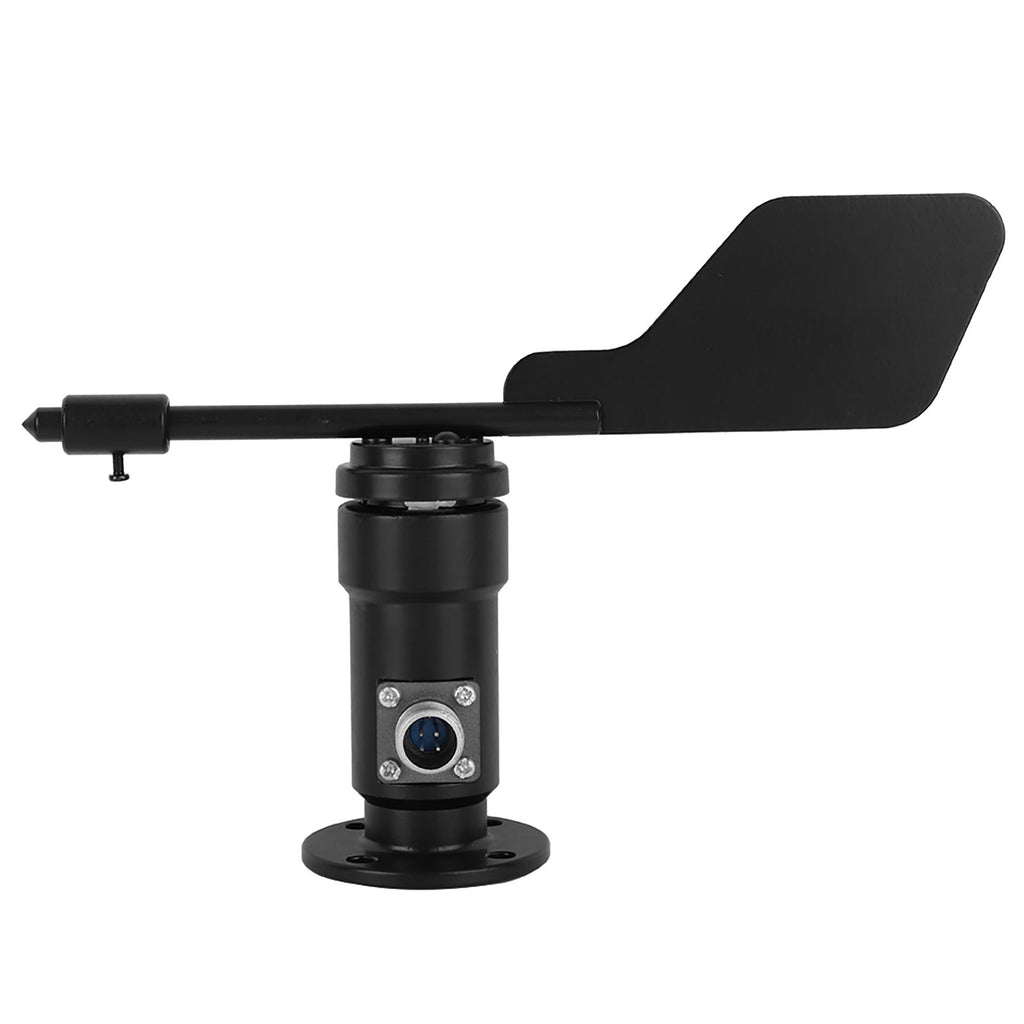

Garden Signal Output Aluminum Alloy Wind Direction Sensor Wind Vane V1294-YM0901-JY20639

1、Adopt Aluminum Alloy material. 2、For wind speed direction sensing. 3、Monitoring Tools for garden. 4、With RS485 interface. 5、Excellent quality and durability.
Specification
Features:
1. Adopt Aluminum Alloy material.

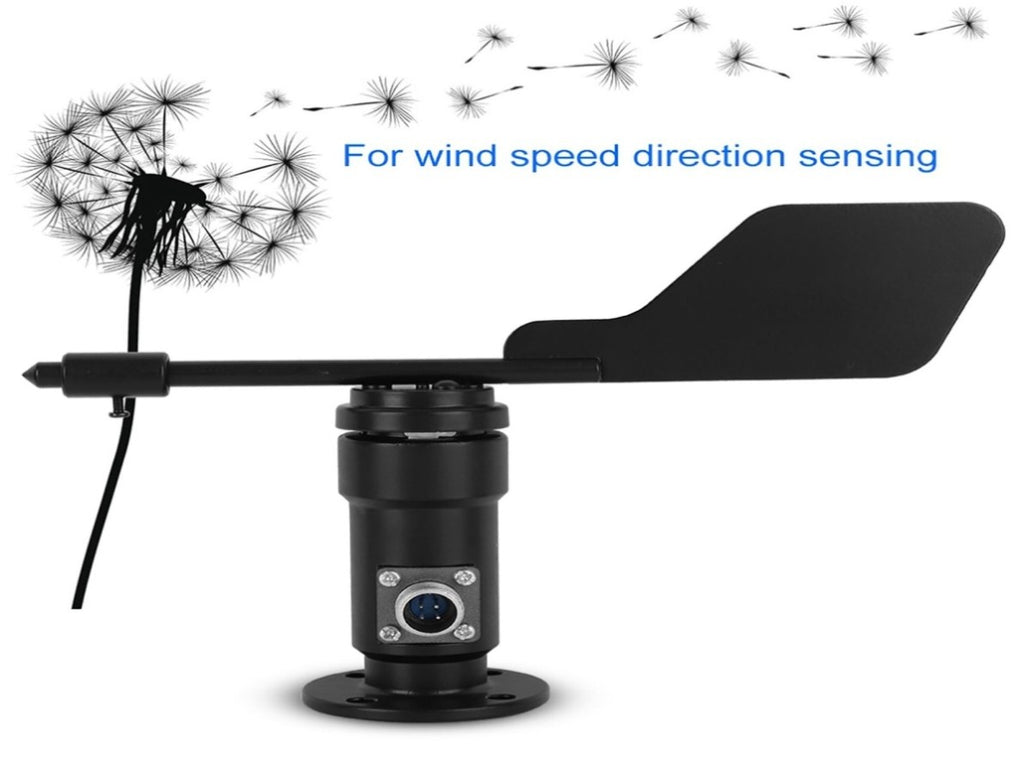

2. For wind speed direction sensing.
3. Monitoring Tools for garden.
4. With RS485 interface.
5. Excellent quality and durability.
Specifications:
Material: aluminum alloy
For: Wind direction sensor / weather station
Product Type: Six elements of meteorology
Interface type: RS485
Communication Method: RS485 to usb module connected to the computer
Measuring range: 0 ~ 360 °
Accuracy: ±3°
Starting wind speed: ≤0.5m/s
Power supply mode: DC
Output form: current 4~20ma voltage 0~5V 0~10V RS485

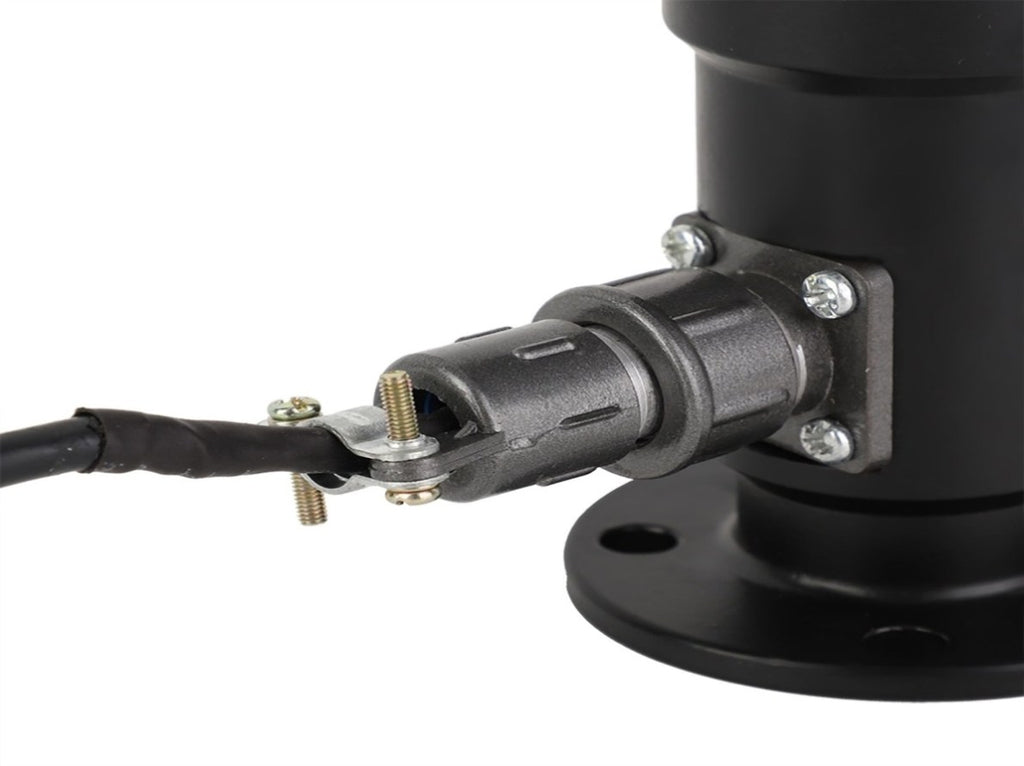

Instrument line length: standard: 2.5 meters
Load capacity: current type output impedance ≤250Ω Voltage type output impedance ≥1KΩ
Working environment: temperature -40 ° C ~ 50 ° C humidity ≤ 100% RH
Protection level: IP45
Cable grade: temperature grade: 80 ° C
Rated voltage: 300V
Product power consumption: 5.5mW
Wind direction measurement range; 16 orientation
Wind direction measurement accuracy: 1 position
Response time: less than 5 seconds
Baud rate: 9600
Communication port: RS485
Power supply: 12V-24V DC
Power consumption: <1W
Operating temperature: -30-80 ° C
Operating humidity environment: 0-100% RH (15-95% RH)

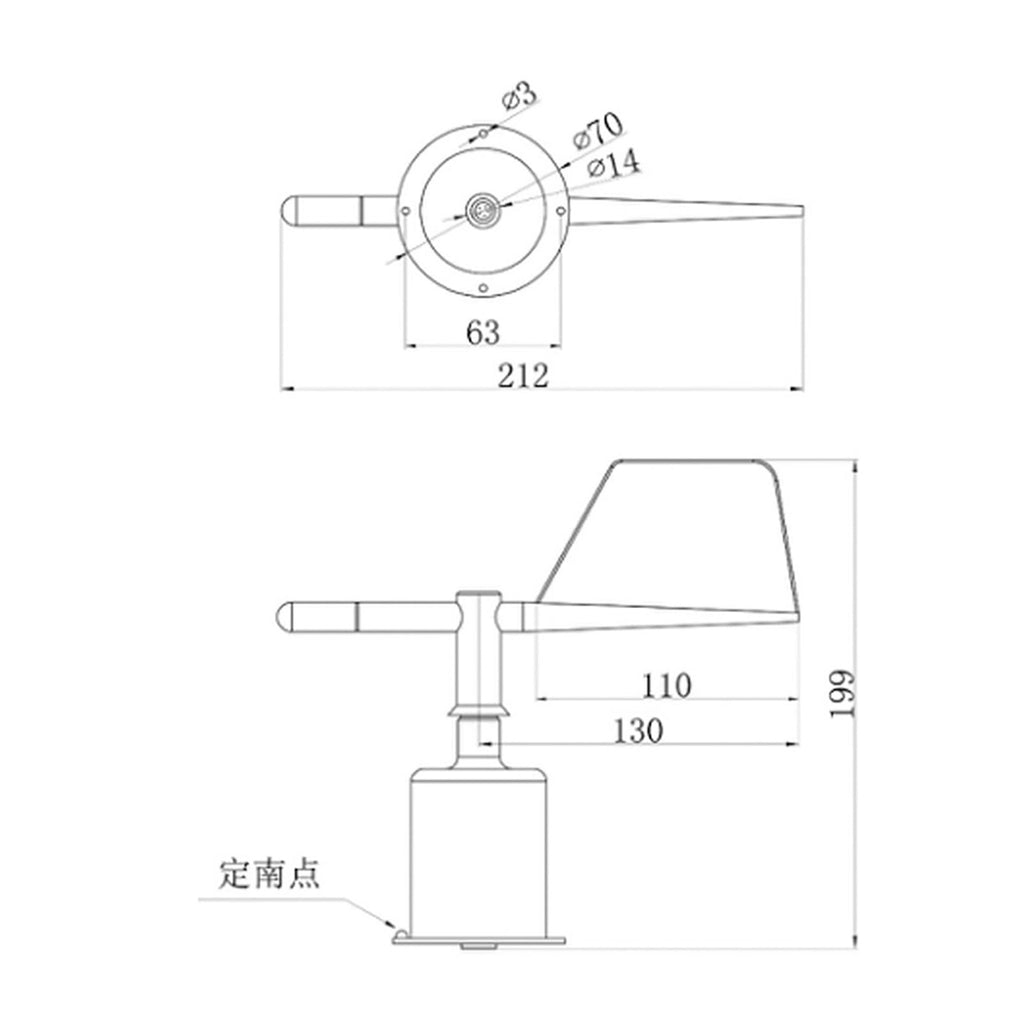

Size: Approx. 16*23cm/6.3*9.06in

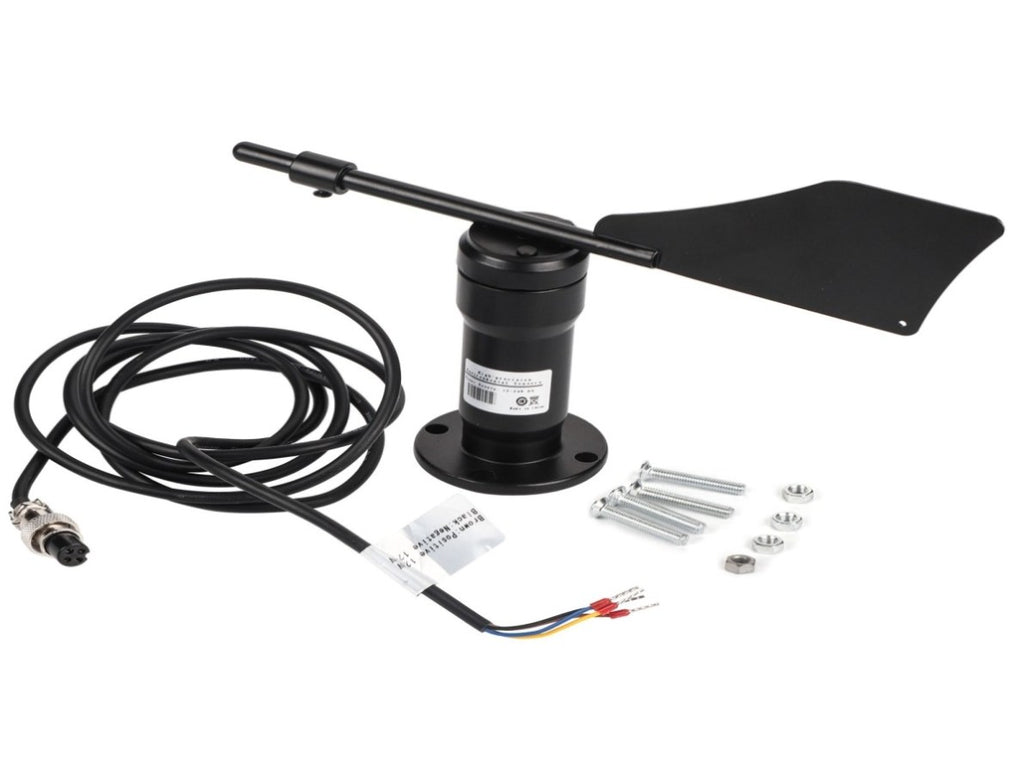

Package List:
1 x Sensor

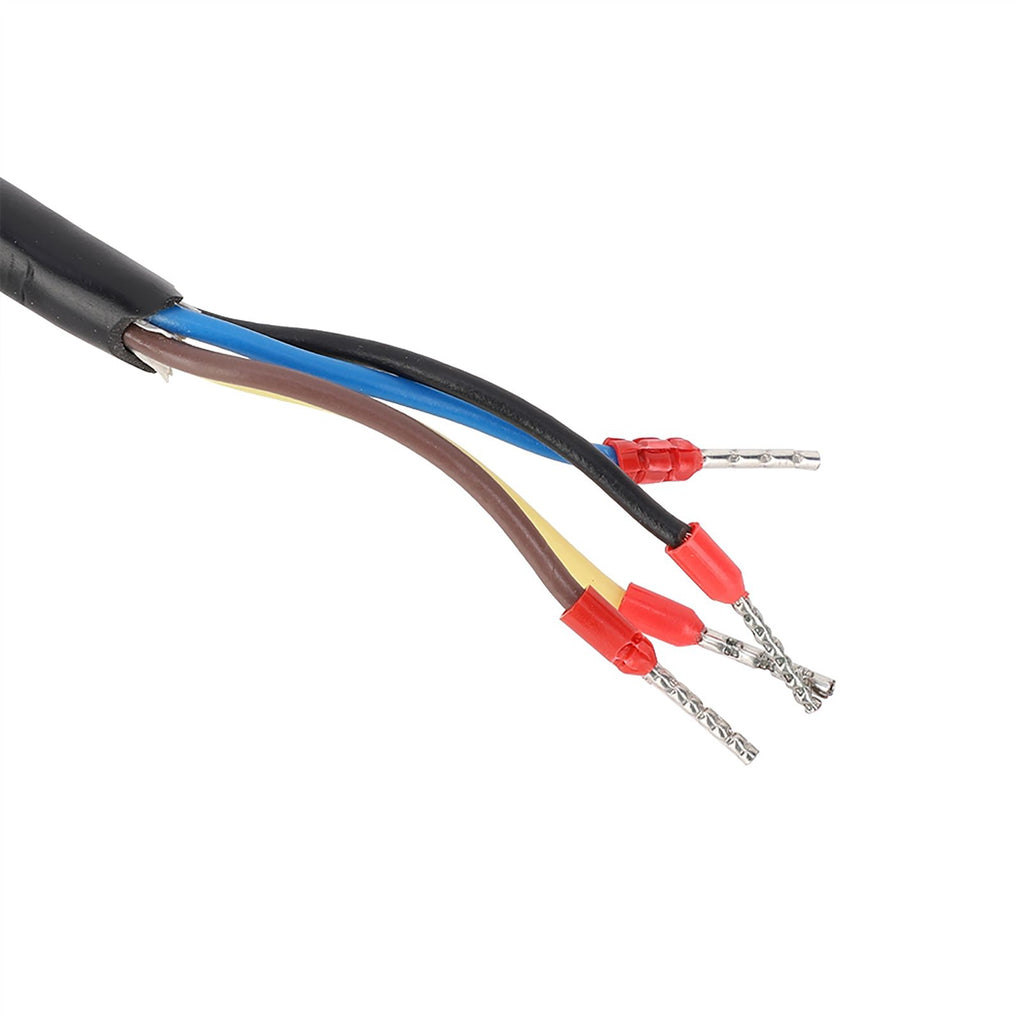

1 x Cable
1 x User Manual
1 x Screw Bag
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
