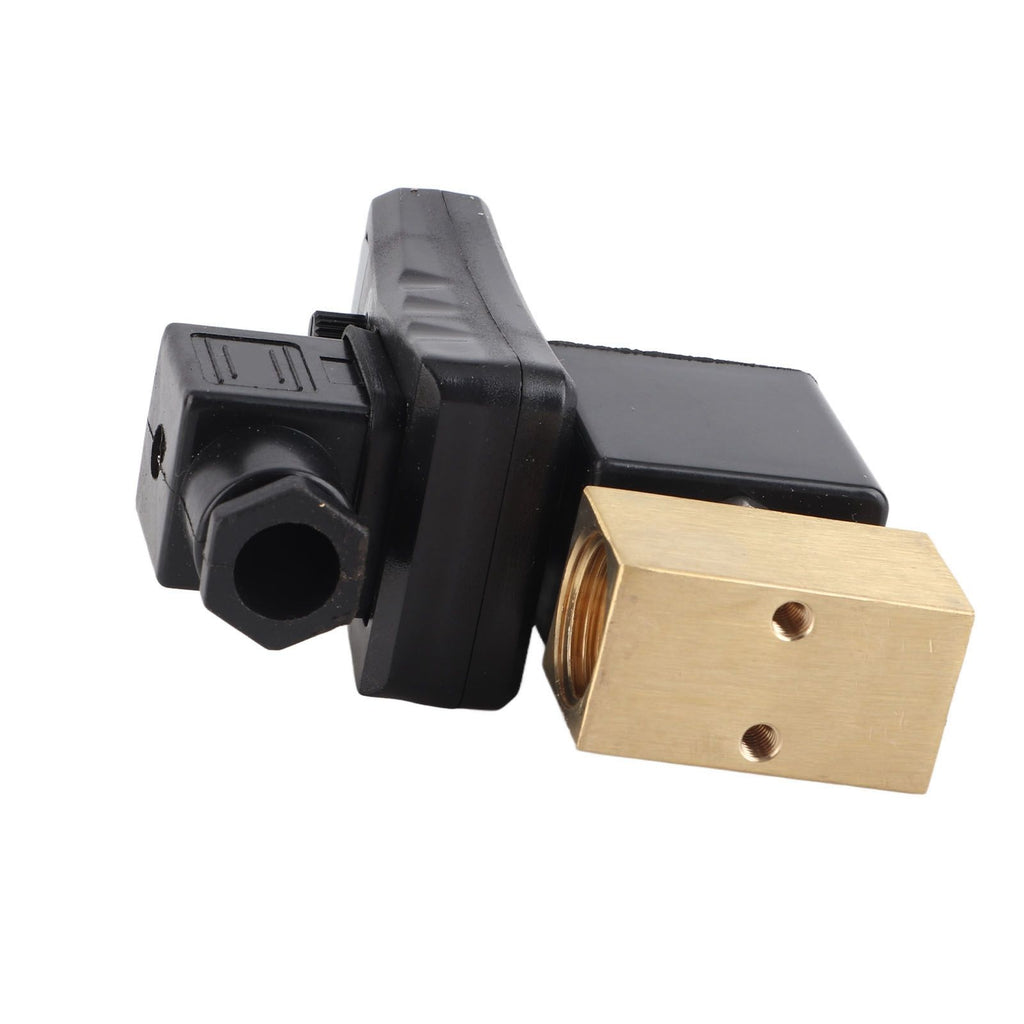

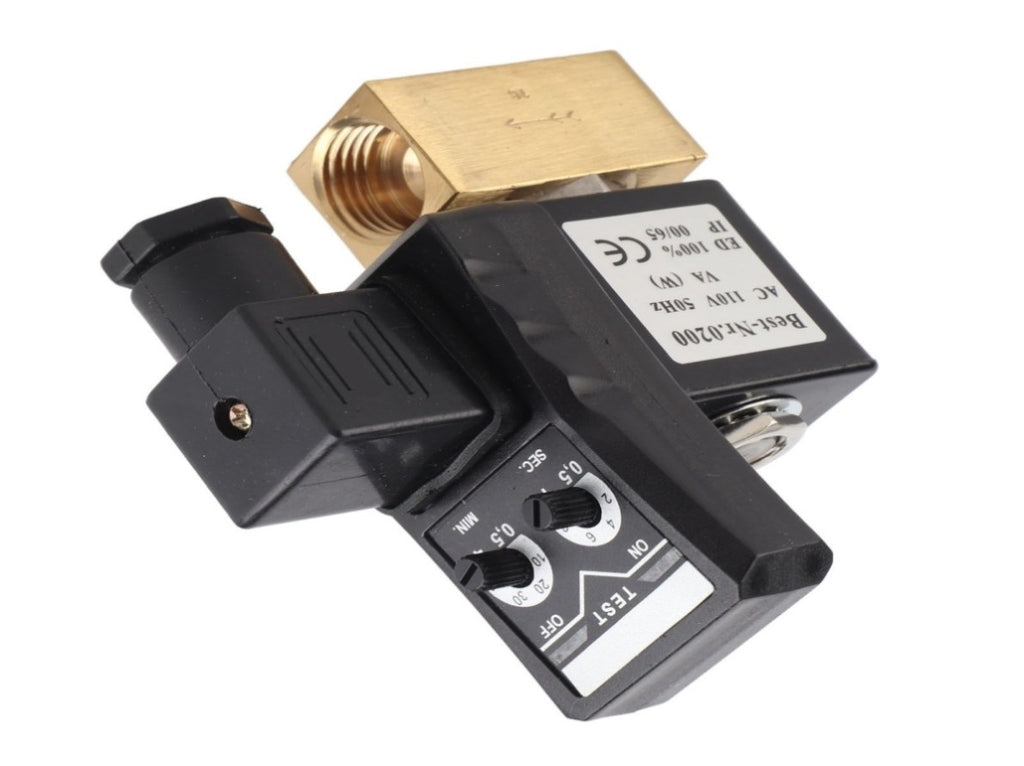

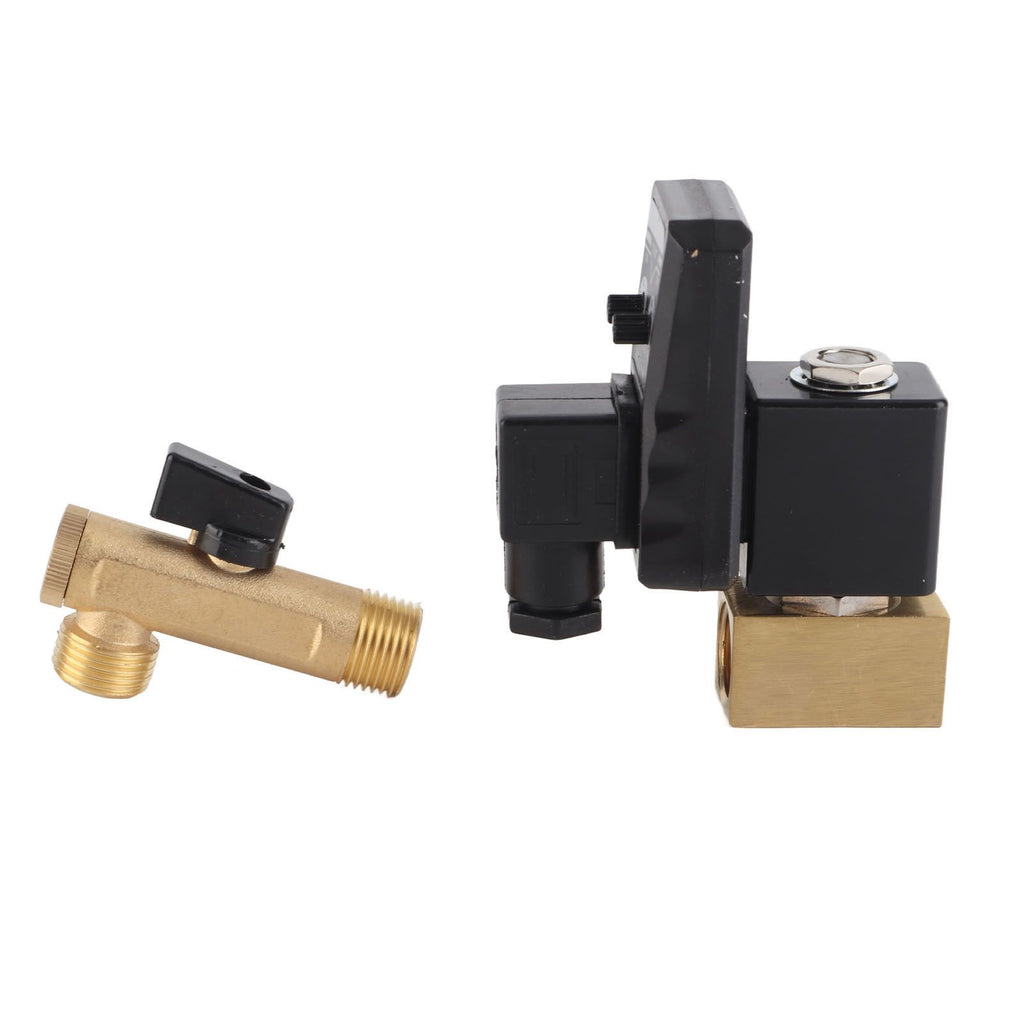

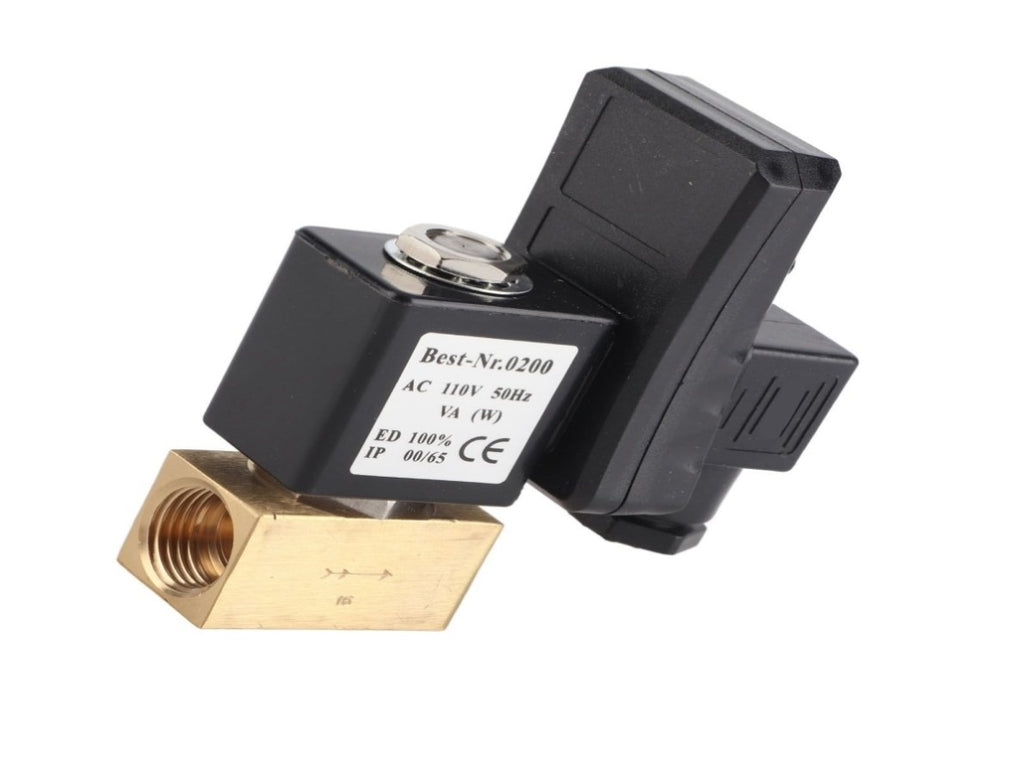

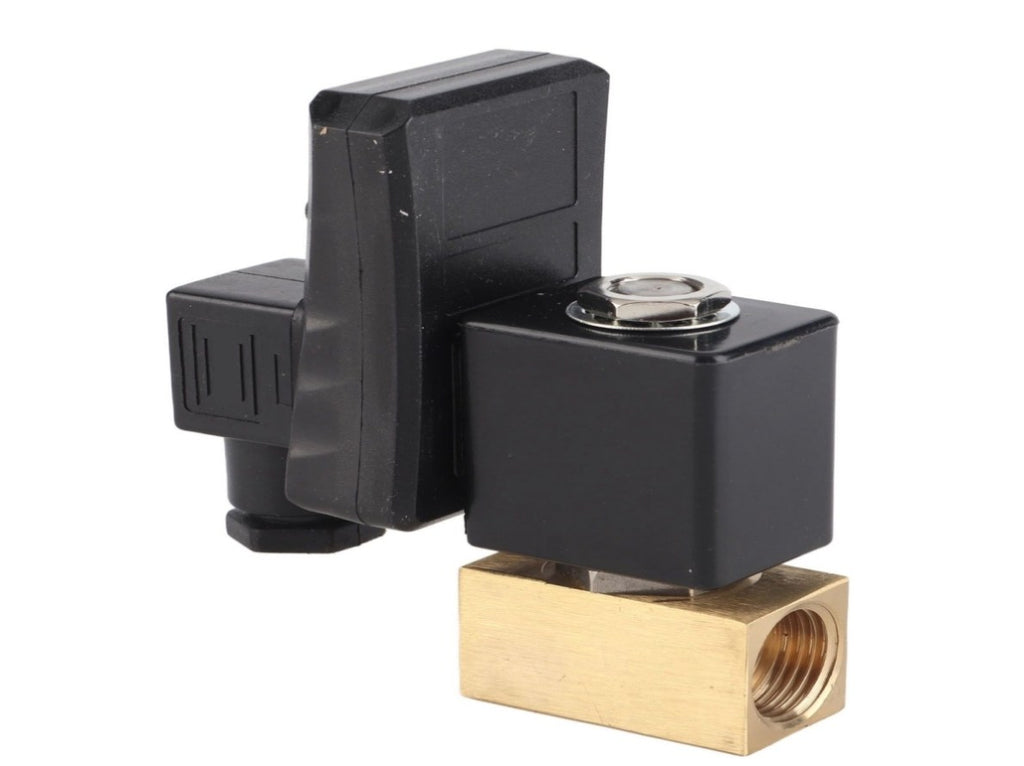

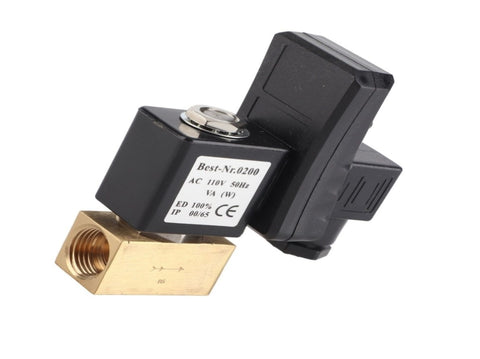

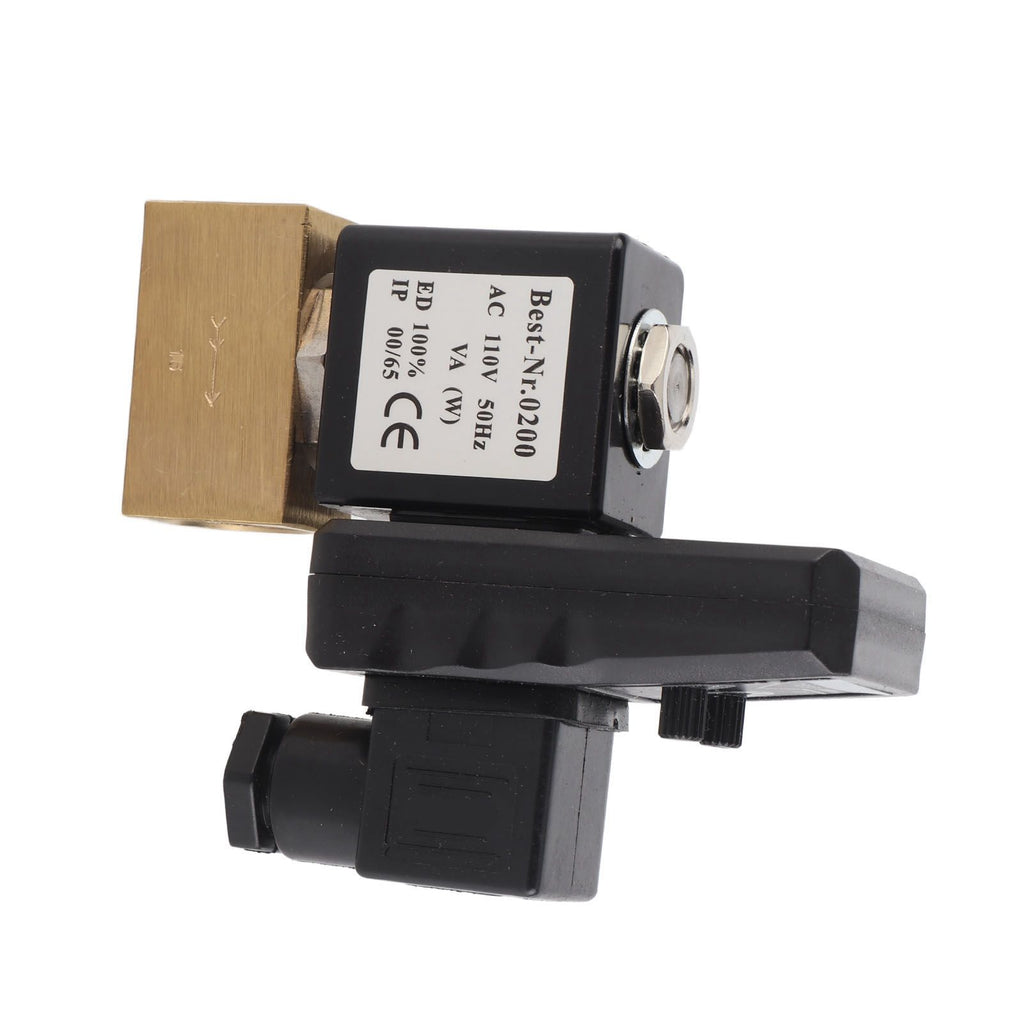

Electronic Timed Drain Valve Automatic Drain Valve for Air Compressor Drying Machine 110V V1294-YM0901-3112210066111

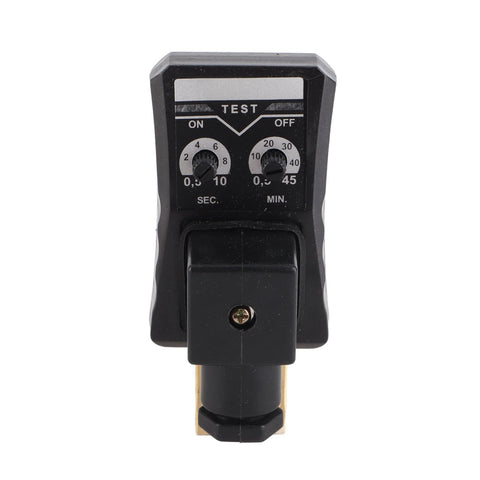

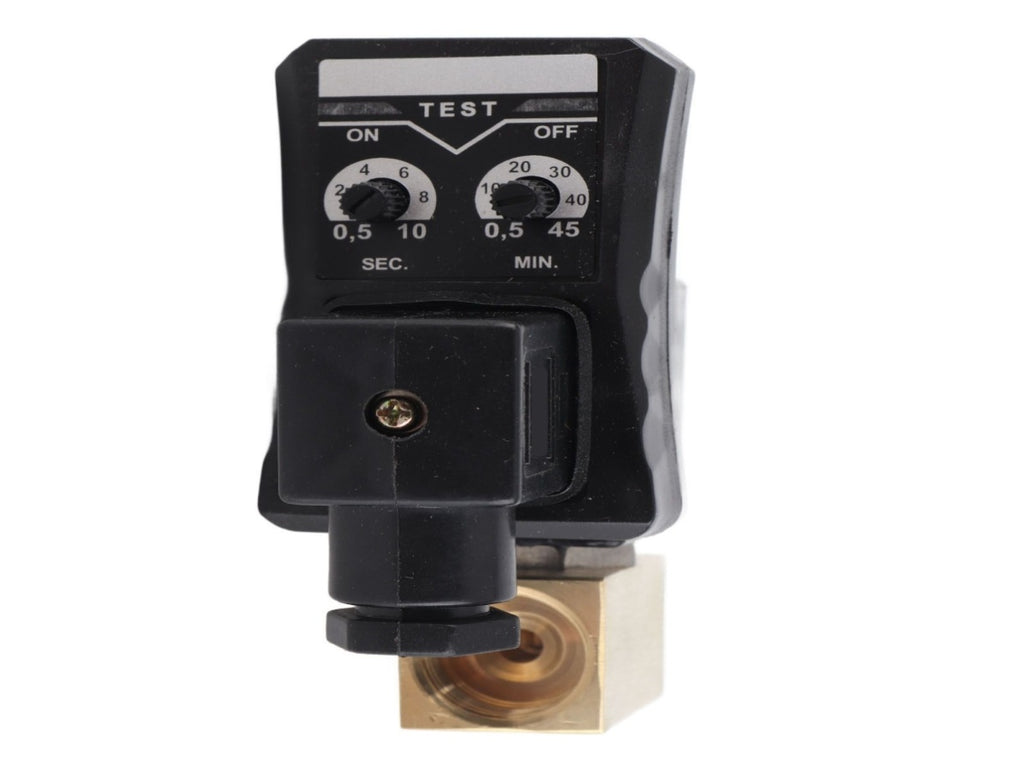

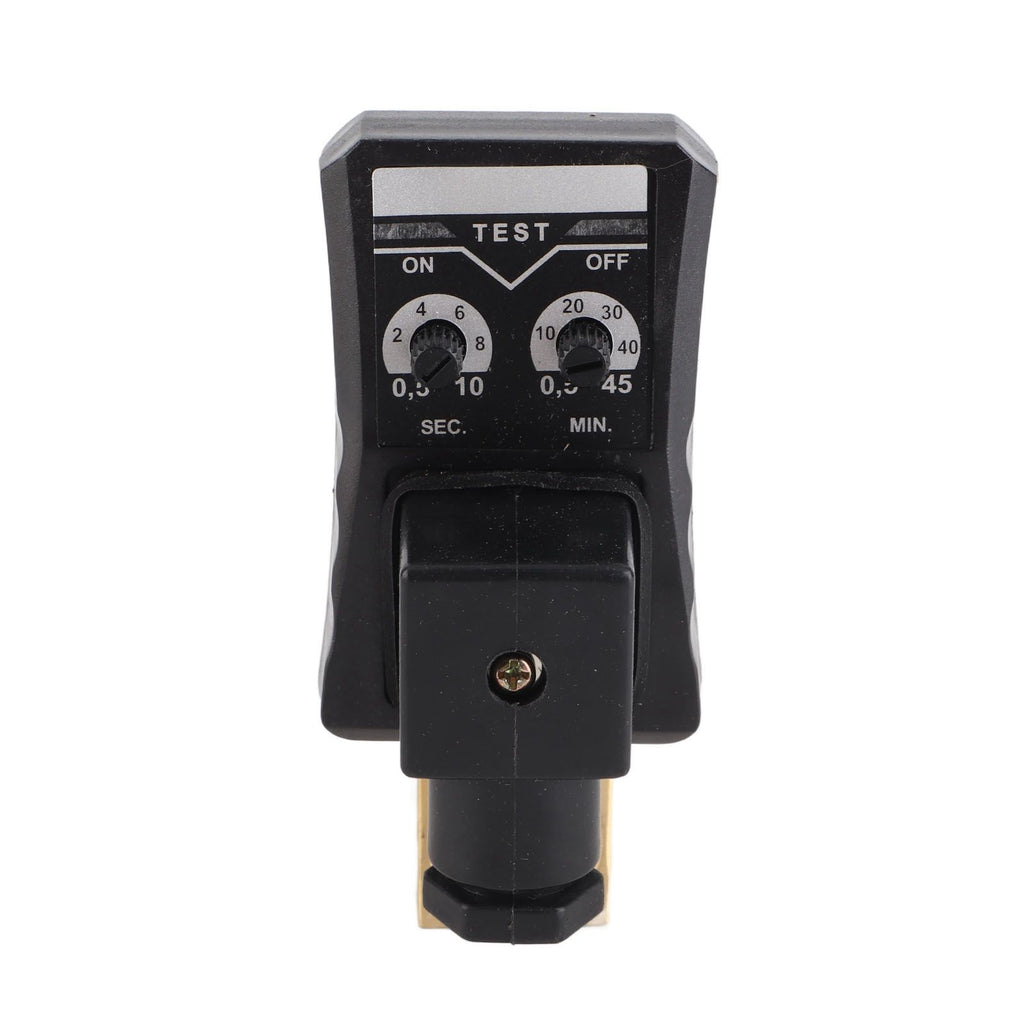

1、The valve opening time is adjustable between 0.5 and 10 seconds, and the closing time is between 0.5 and 45 minutes. 2、This is a reliable, high quality drain valve to keep compressed air treatment equipment running optimally. 3、Clean the compressed air system before installing. Always tighten the long screws on the terminal box to prevent the water from burning. 4、Attention to the direction of the arrow when the valve body, outlet do not use the impact of the hose does not impact. 5、The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected to the connector 1. 6、The factory has been connected to the cable drain valve, fade for the line L, blue for the neutral wire N, yellow and green color for the safe ground GND.
Specification
Item Type: Drain Valve
Valve Material: Brass
Color: As shown in the picture
Model: 588158
Voltage: AC110V 50Hz
Voltage Range: 10%
Time Interval(OFF): 0.5-45 minutes (adjustable)
Discharge Time(ON): 0.5-10 seconds (adjustable)
Manual Test Button: Yes( micro switch)
The Current Consumption: Maximum 4mA
Ambient Temperature: -40°C to 60°C.
Protection Grade: IP65
Shell Material: Flame retardant ABS plastic
Electrical Connection: DIN43650A
Indicator Lamp: LED indicating power ON / OFF
Type: Two-way direct-acting valve
Flow Aperture: 5mm / 0.2in
Insulation Class: H
In / Out Port Size: 1/2in
Maximum Working Pressure: 1.6Mpa
Maximum Temperature: 90°C
Weight: Approx. 542g / 19.1oz
Package List
1 x Drain Valve
1 x Connector
Note
When installing an electronic drain valve, make sure that:
1. Compressed air has been emptied (at zero pressure)
2. Power has been cut off
3. Professional equipment should be installed by professionals.
