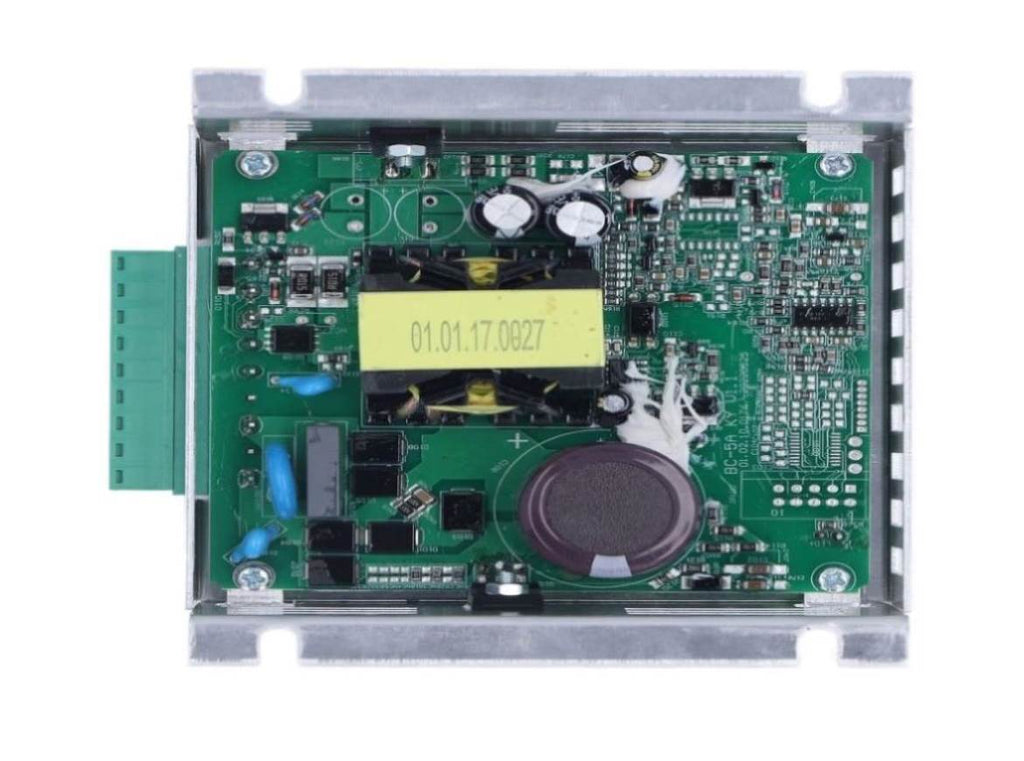

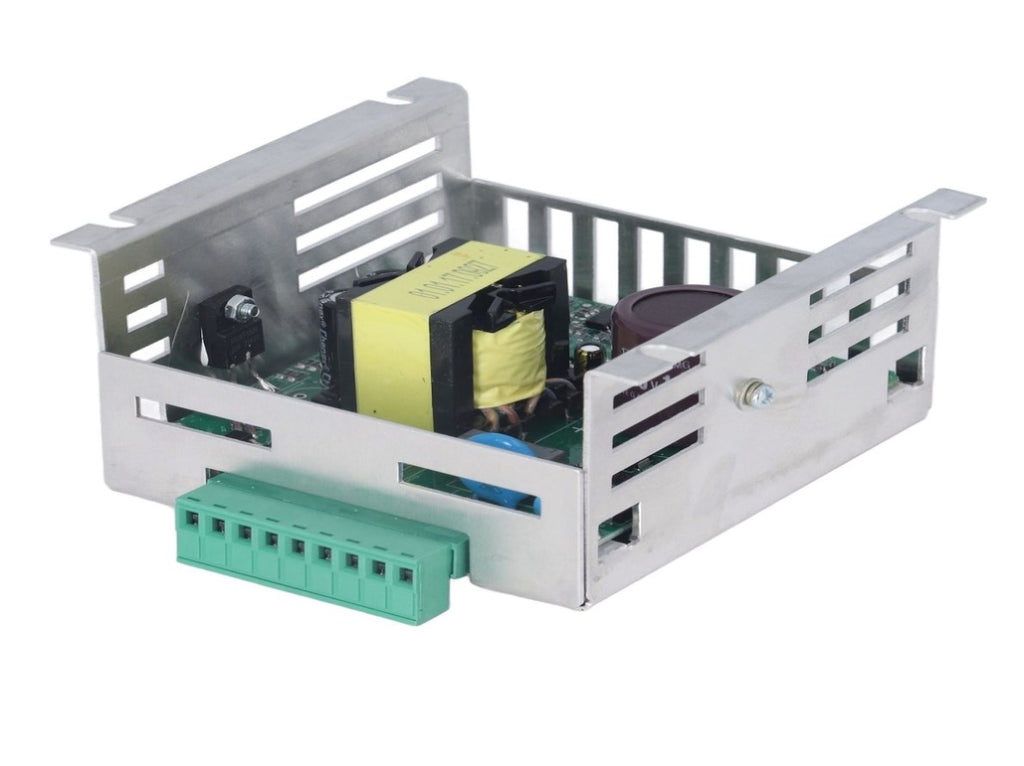

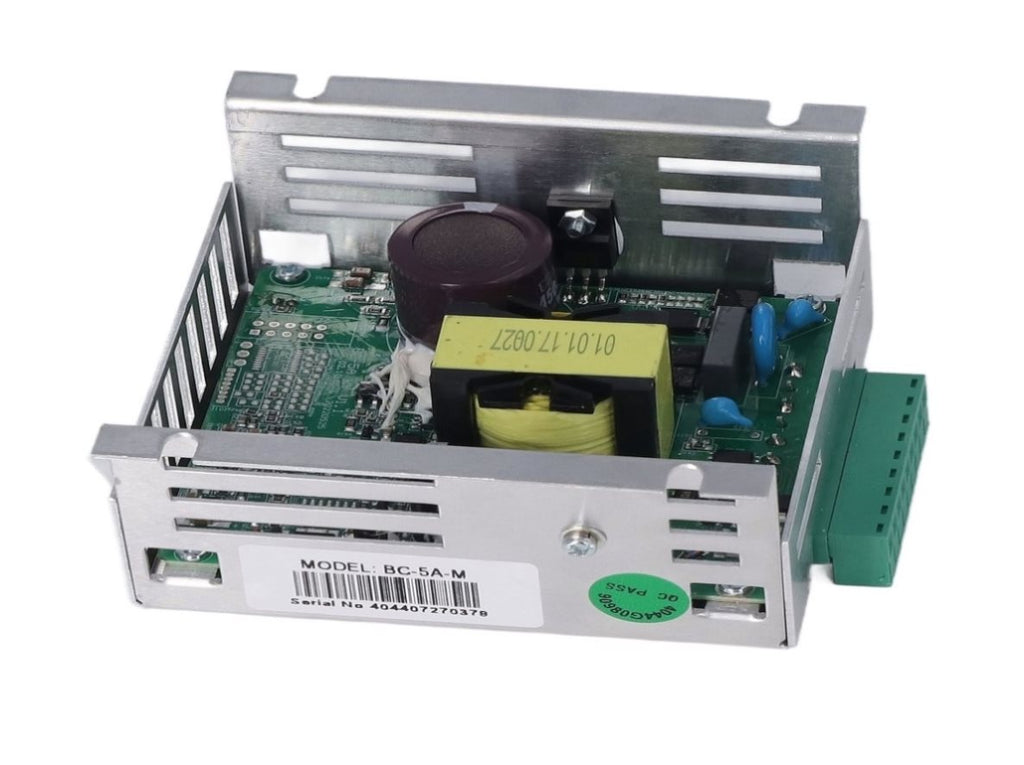

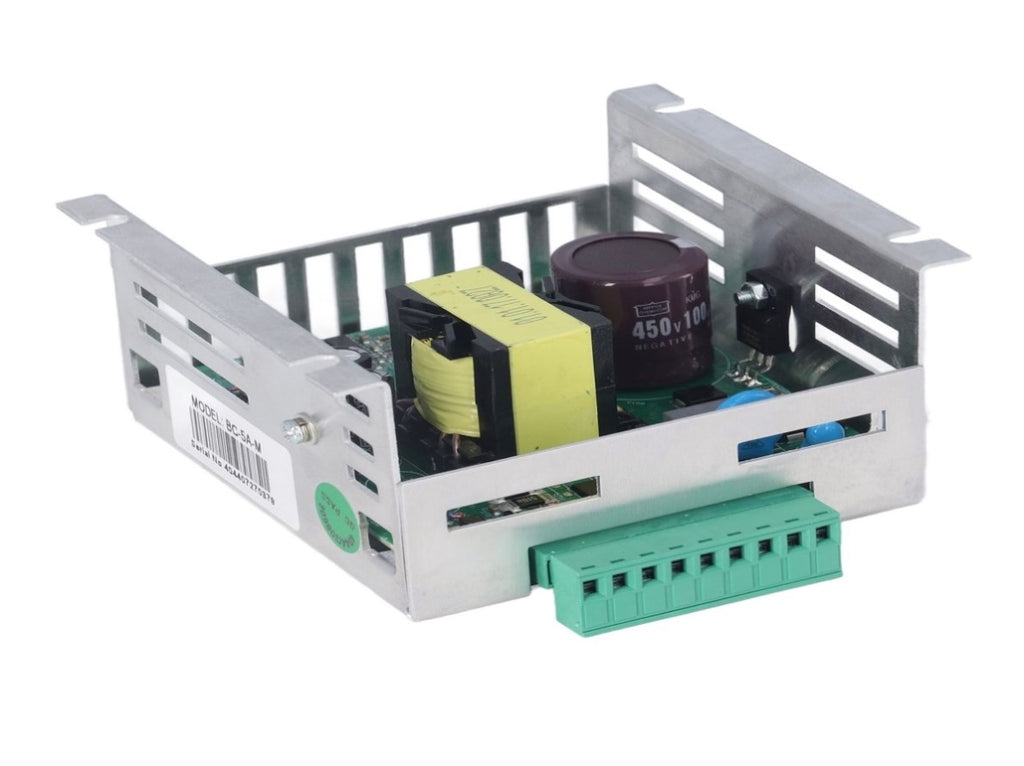

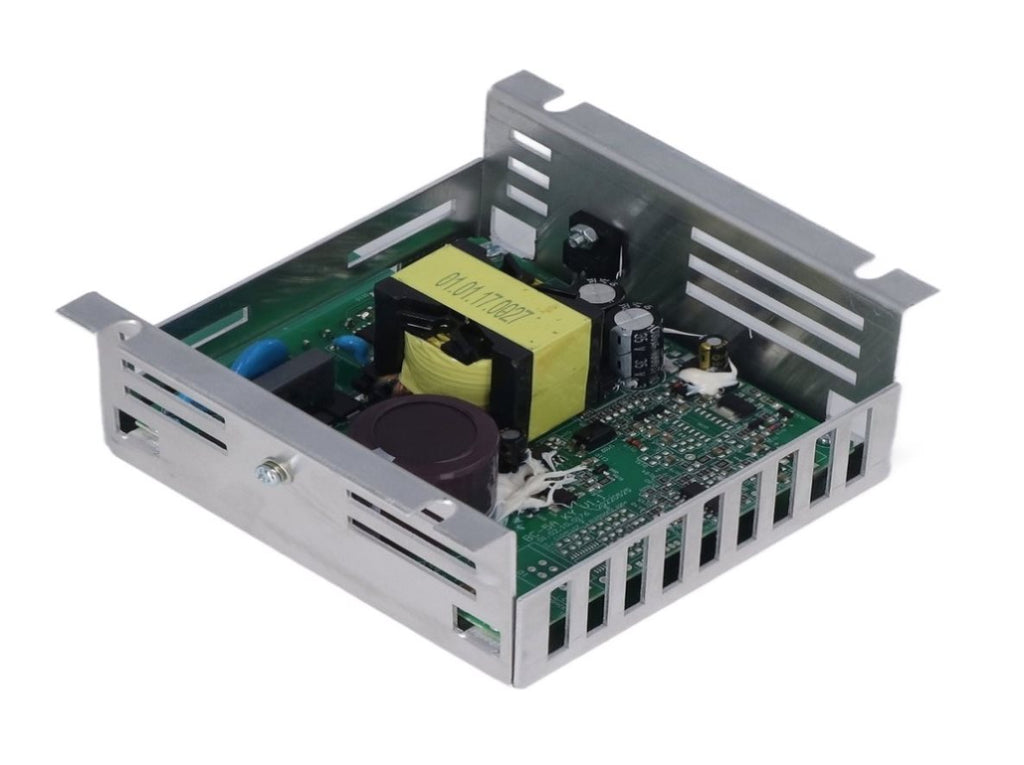

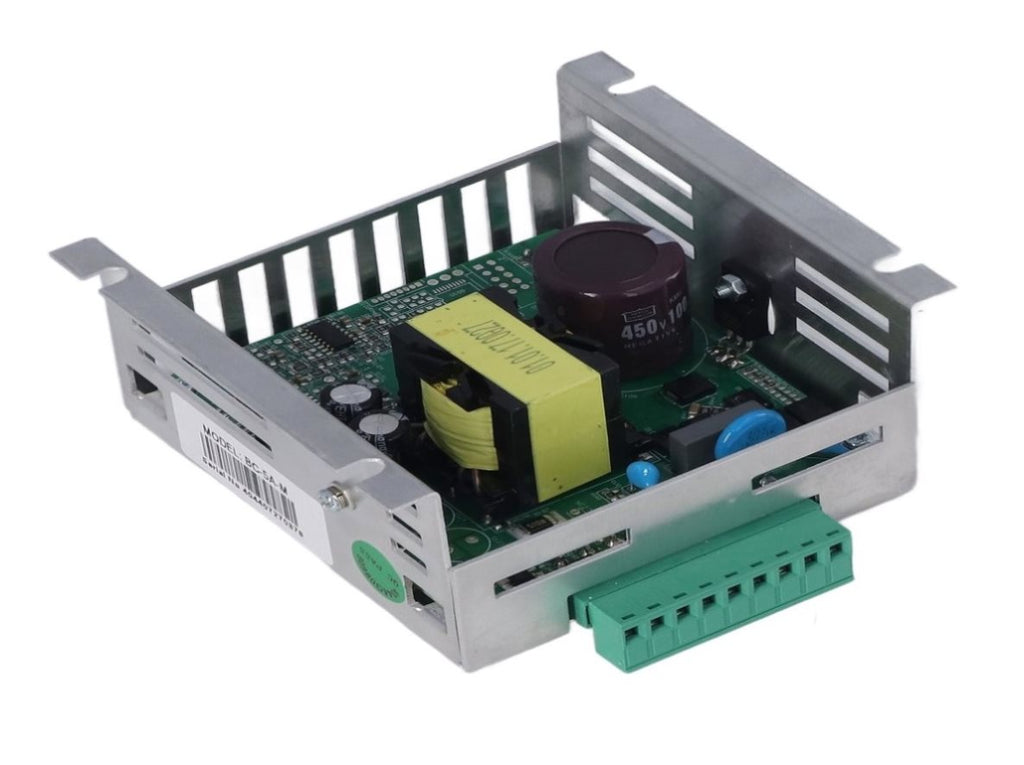

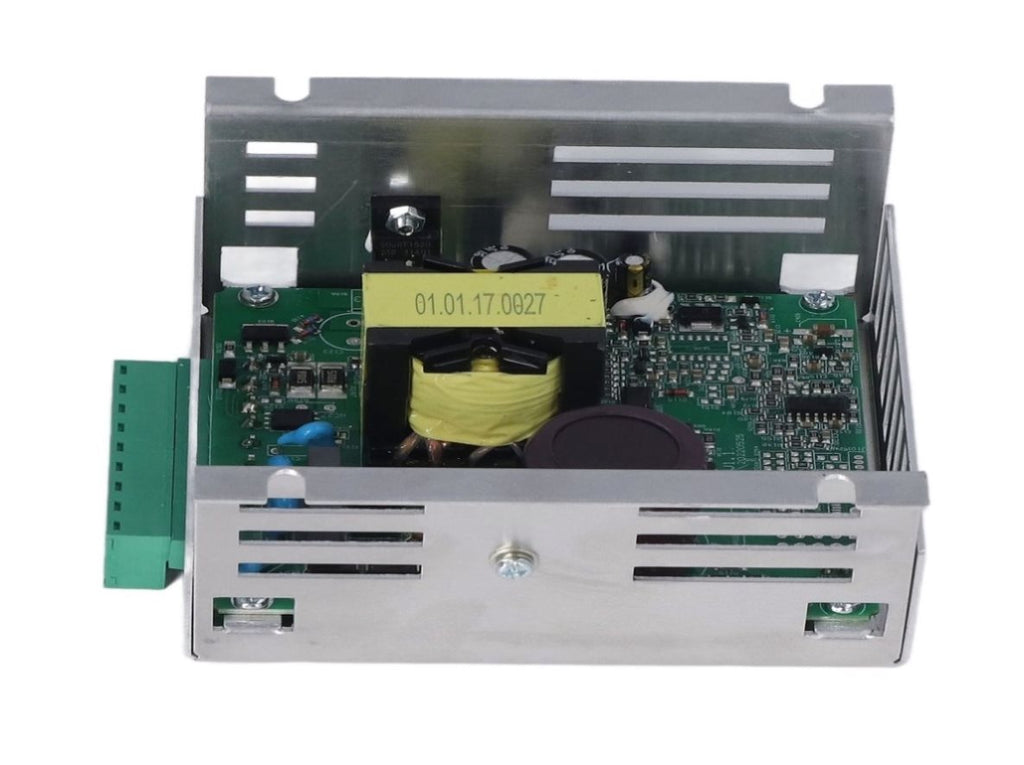

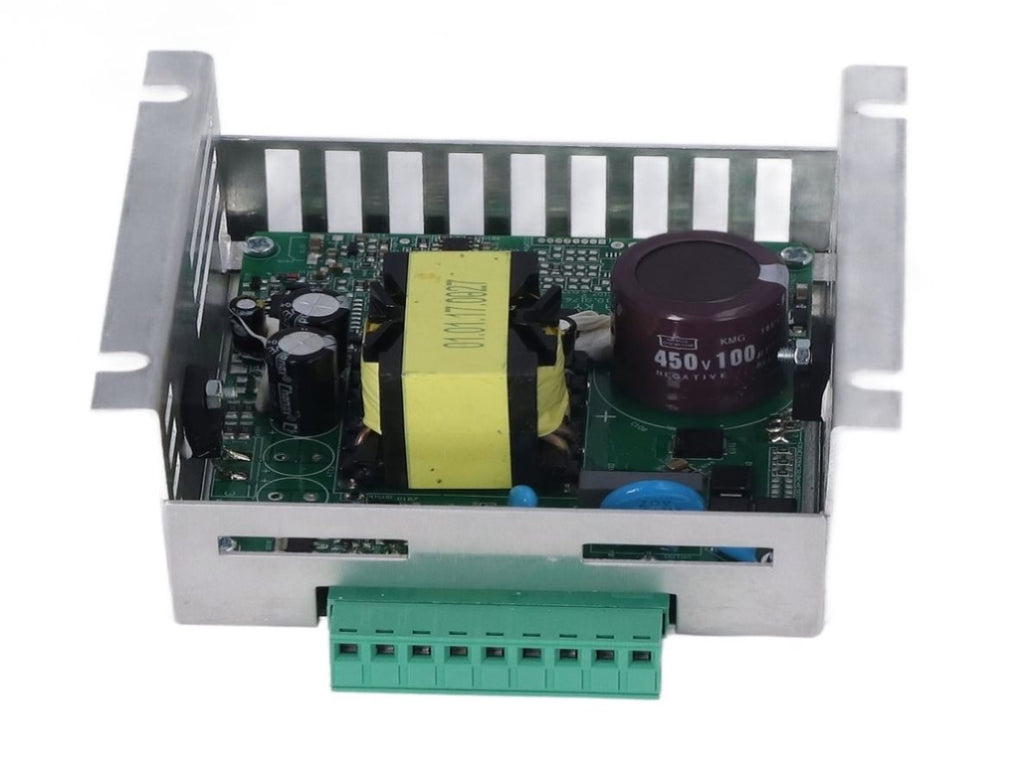

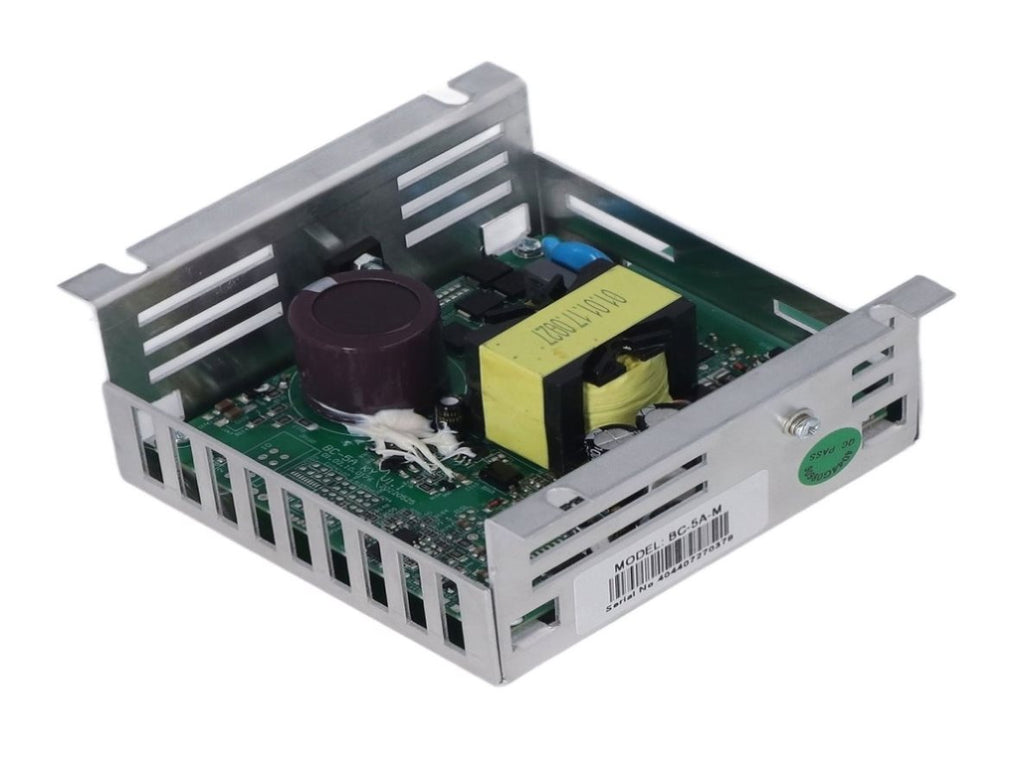

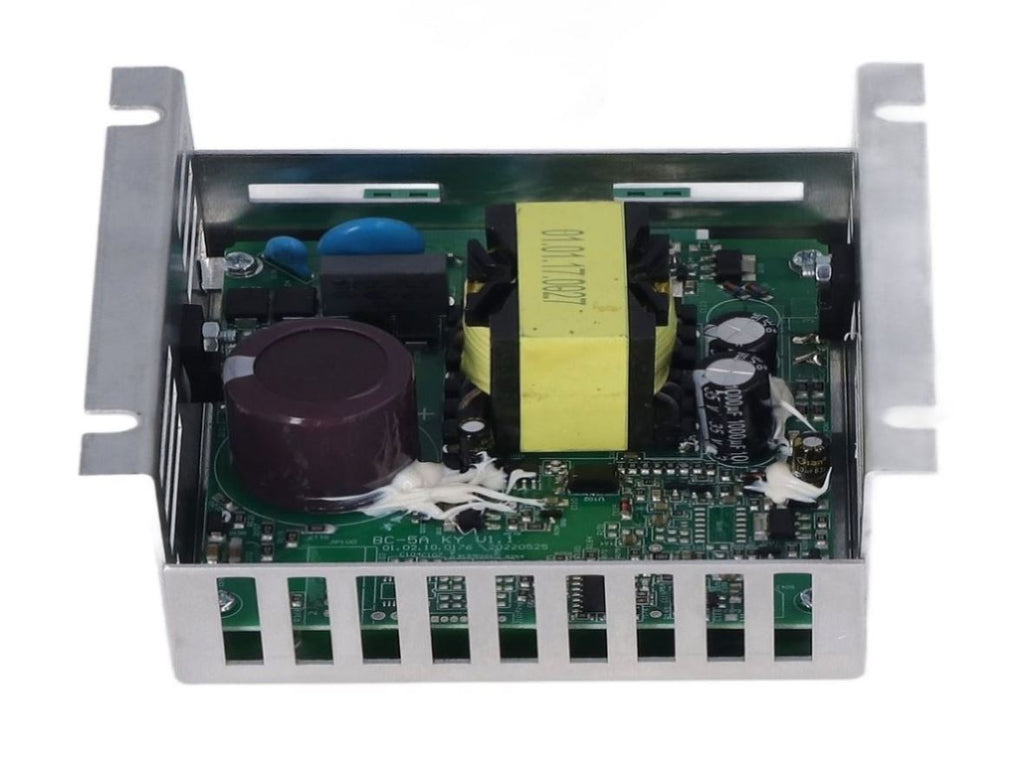

Diesel Generator Battery Charger Module Aluminum Shell Genset Battery Float Charger Adapter Module V1294-YM0512-3111220280511

1、AUTOMATIC REGULATION: Battery float charger module will automatically reduce its output current in case of overheating and continue to operate normally.

2、REDUCED ENERGY CONSUMPTION: Generator float charge module under very low load, they go into burst mode to further reduce consumption.

3、PROTECTS THE ENVIRONMENT: Genset float charger modules have very low power consumption in no load mode, again helping to protect the environment.

4、ALARM FUNCTION: Float charger adapter module transmits the operating status to the control module, which issues an alarm if a fault occurs.

5、HIGH EFFICIENCY: Diesel generator battery charger module has a wide input AC voltage range of 170‑305V AC, small size, light weight and high efficiency.

Item Type: Battery Float Charger Module

Material: Aluminum

Output Voltage (Vo): Automatically Selected, 12 Or 24V DC

Output Current (LO): 5.0A DC (Continuous)

Input Voltage Range: 170‑305V AC

Input Frequency Range: 45/66Hz

Cooling: Natural Convection

Maximum Input Power: 160W

Battery Current Consumption: <10mA

Overload Protection: Limit Output Current to 5A

Short‑circuit Protection: Limits Output Current to 5A

Short‑circuit Duration: Unlimited High Temperature

Protection: Limits Internal Temperature to 85°C

Operating Temperature Range: ‑30°C to +80°C

Storage Temperature Range: ‑40°C to +80°C

Maximum Relative Humidity: 95% (non Condensing)

Electrical Connection: 2.5 Mm²

Gross Weight: 297g/10.5oz

1 x Battery Float Charger Module
