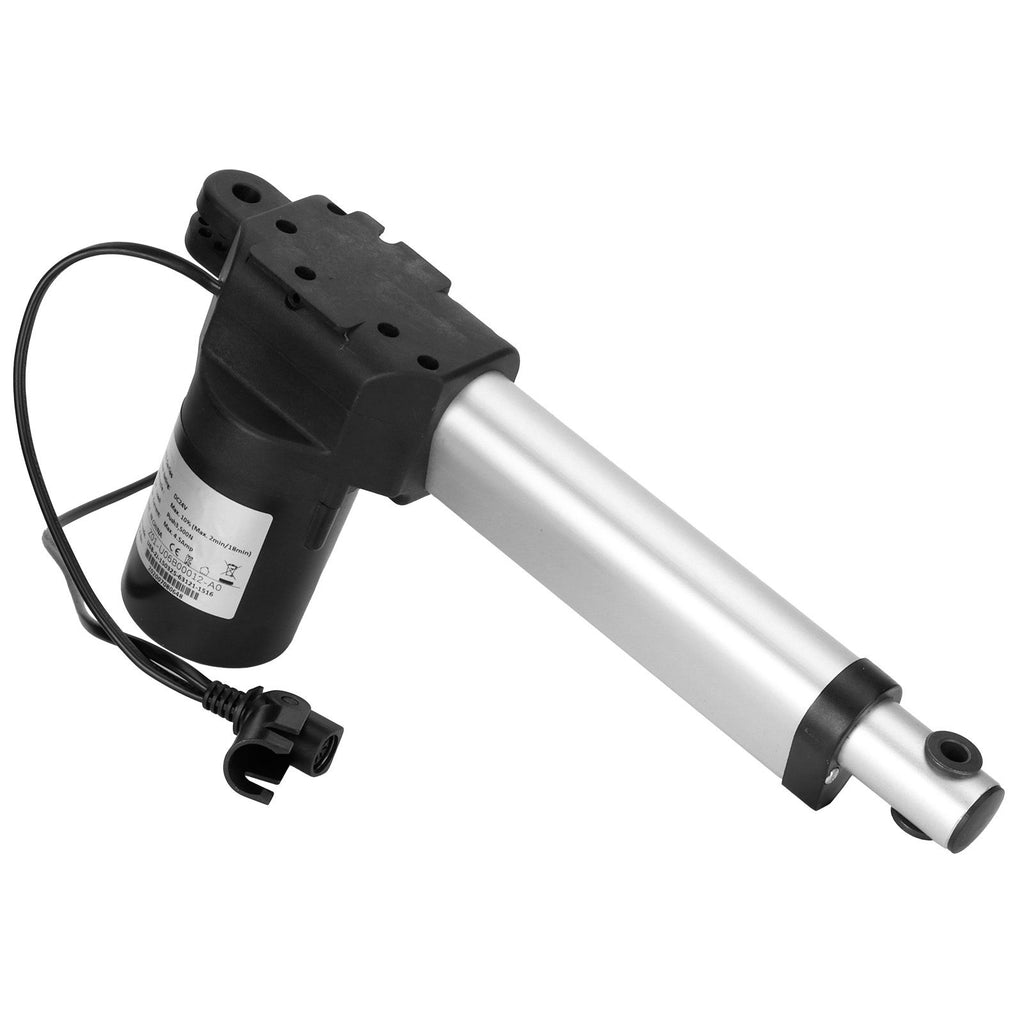

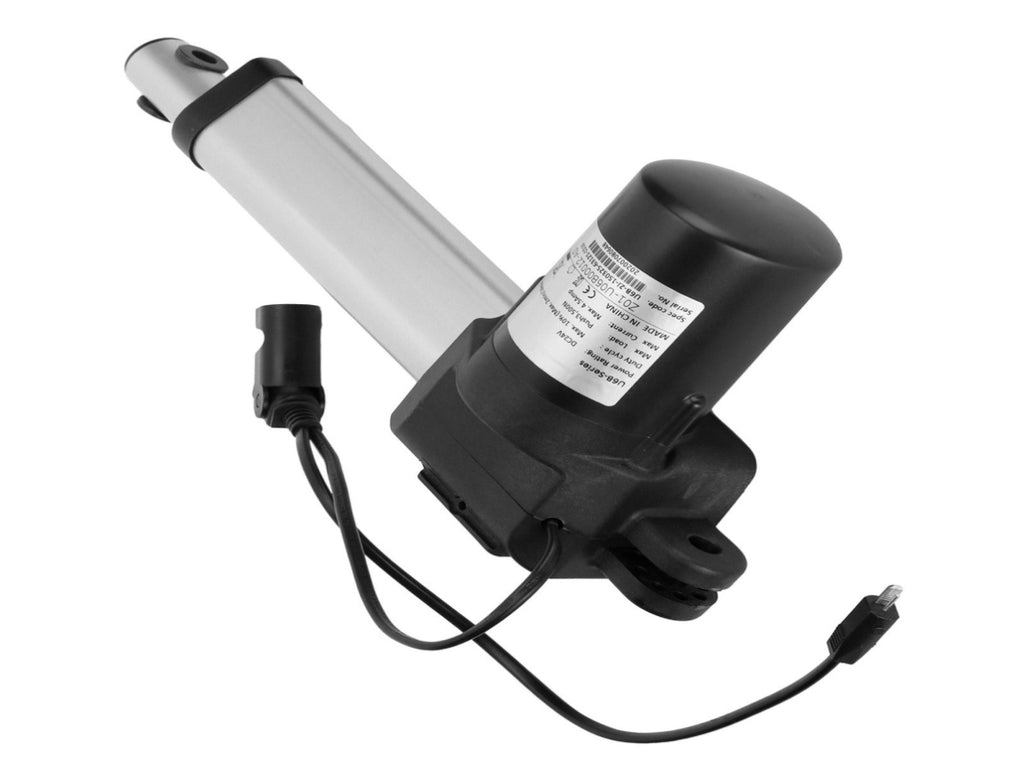

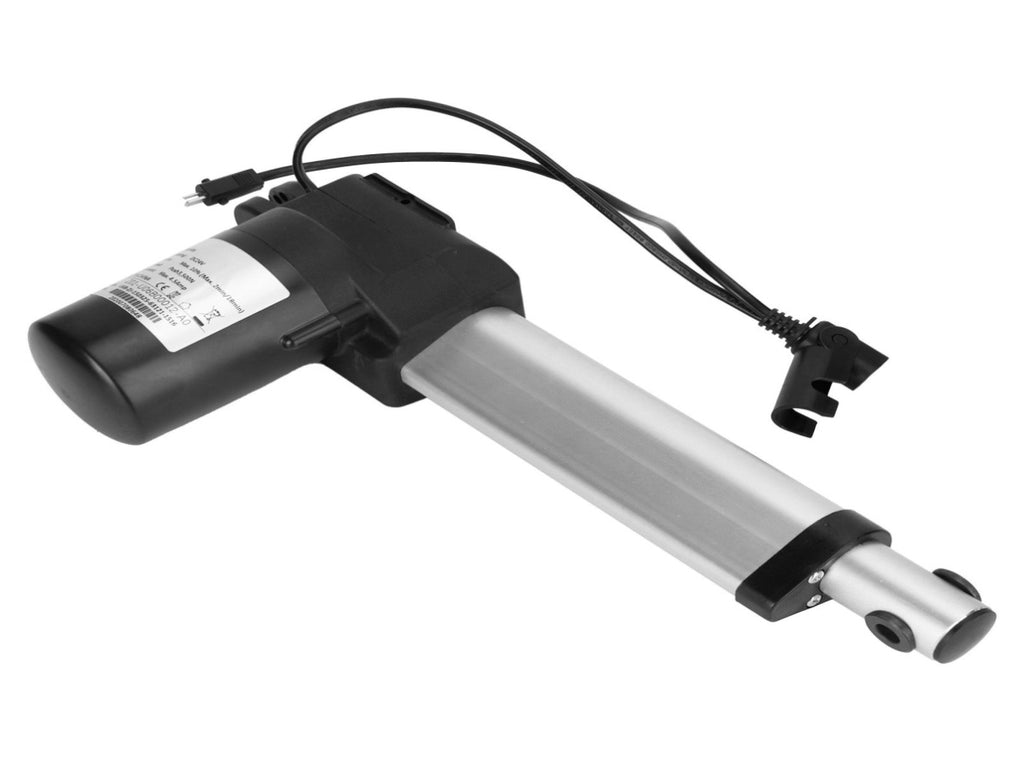

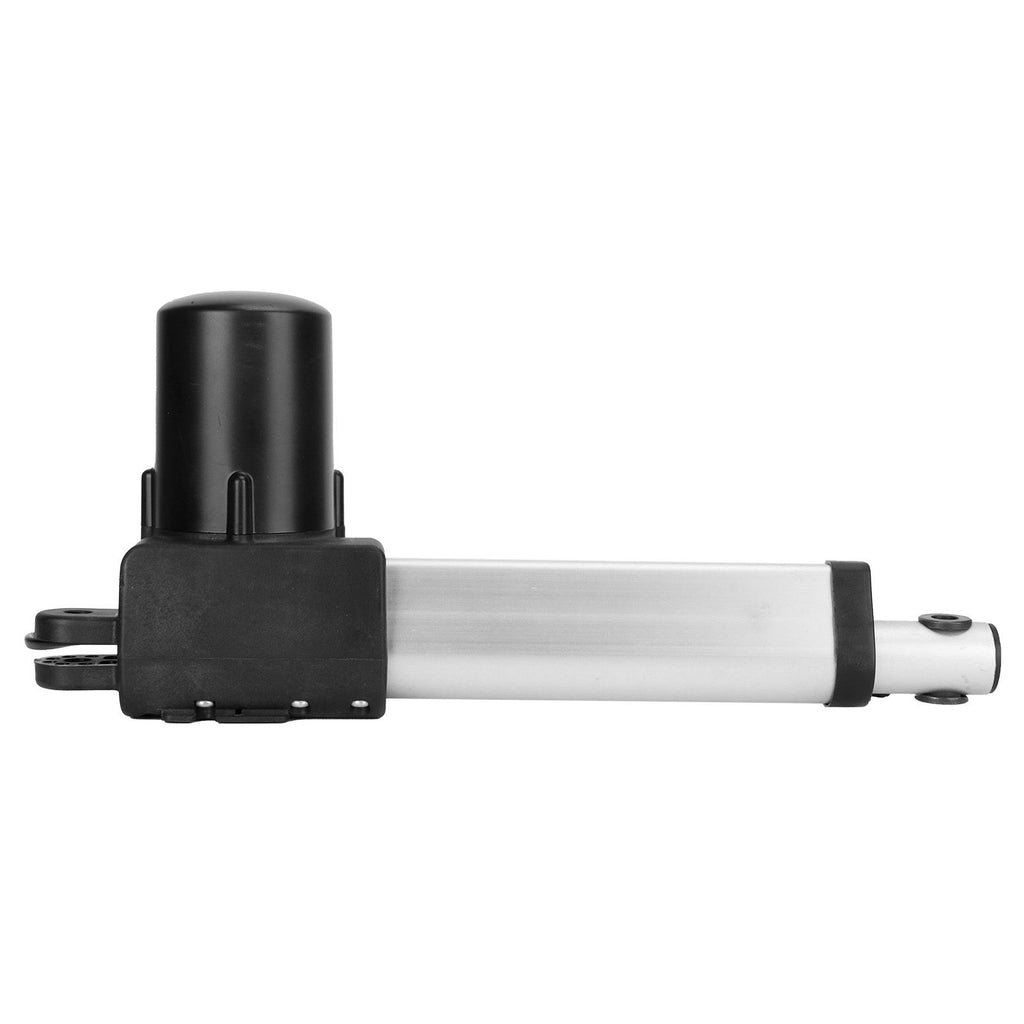

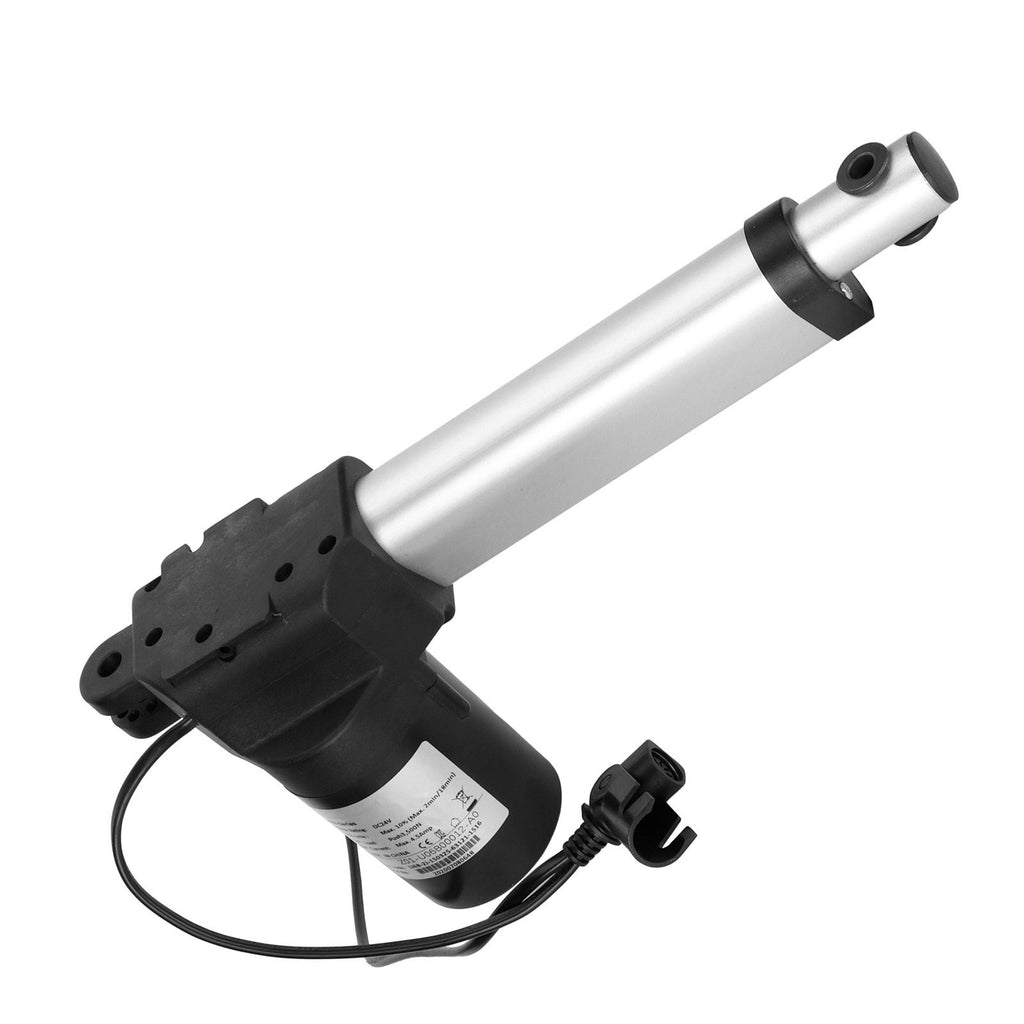

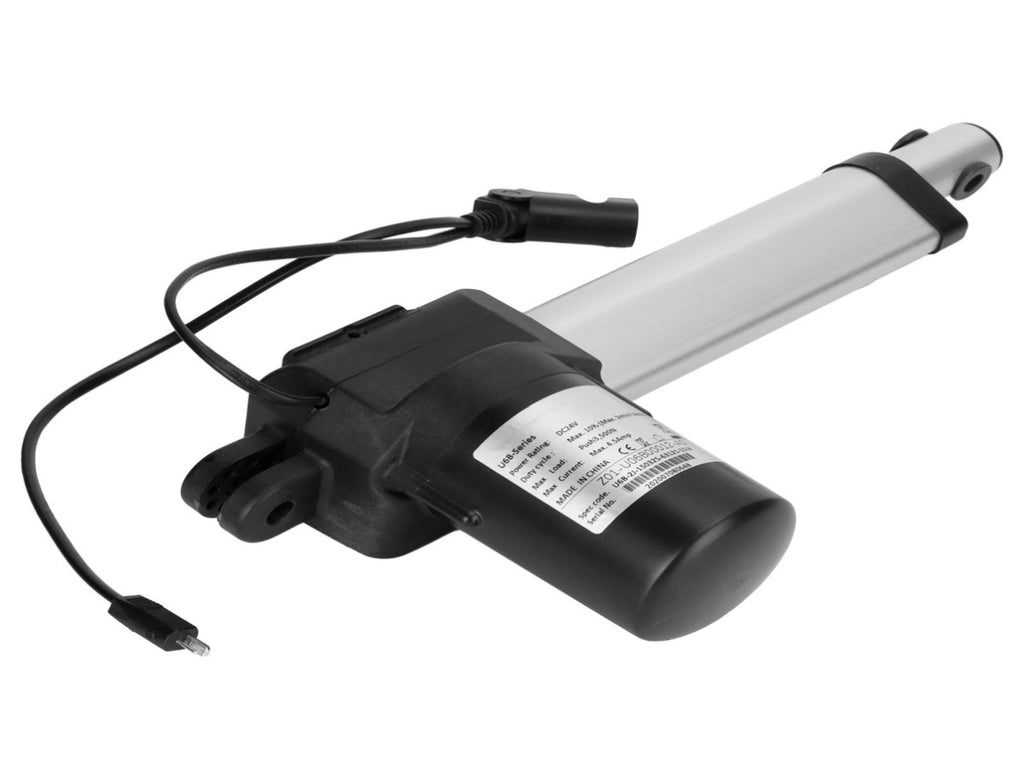

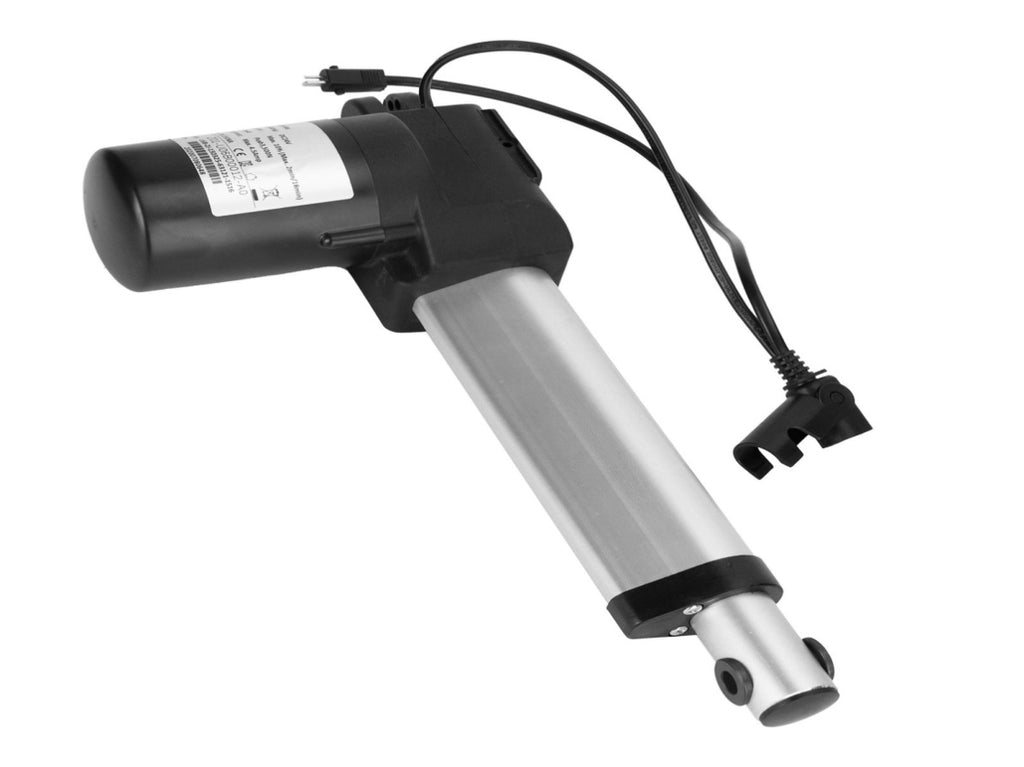

DC24V Linear Actuator Lifting Rod for Automotive Machinery Industry 150mm V1294-YM0901-3113200197511

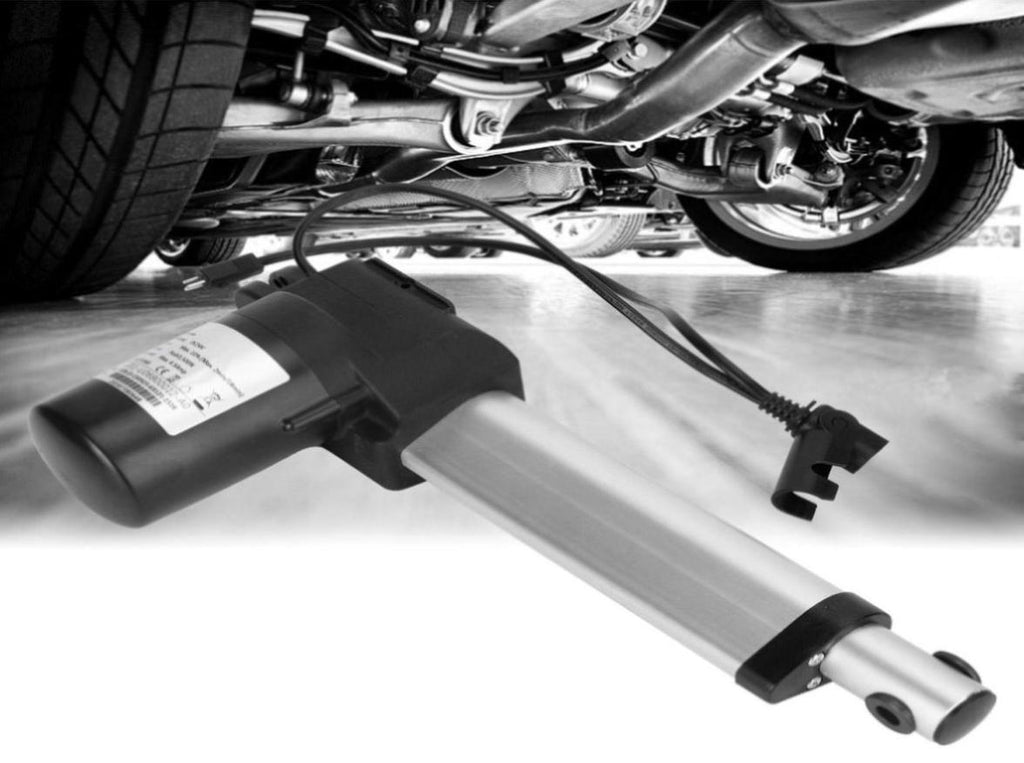

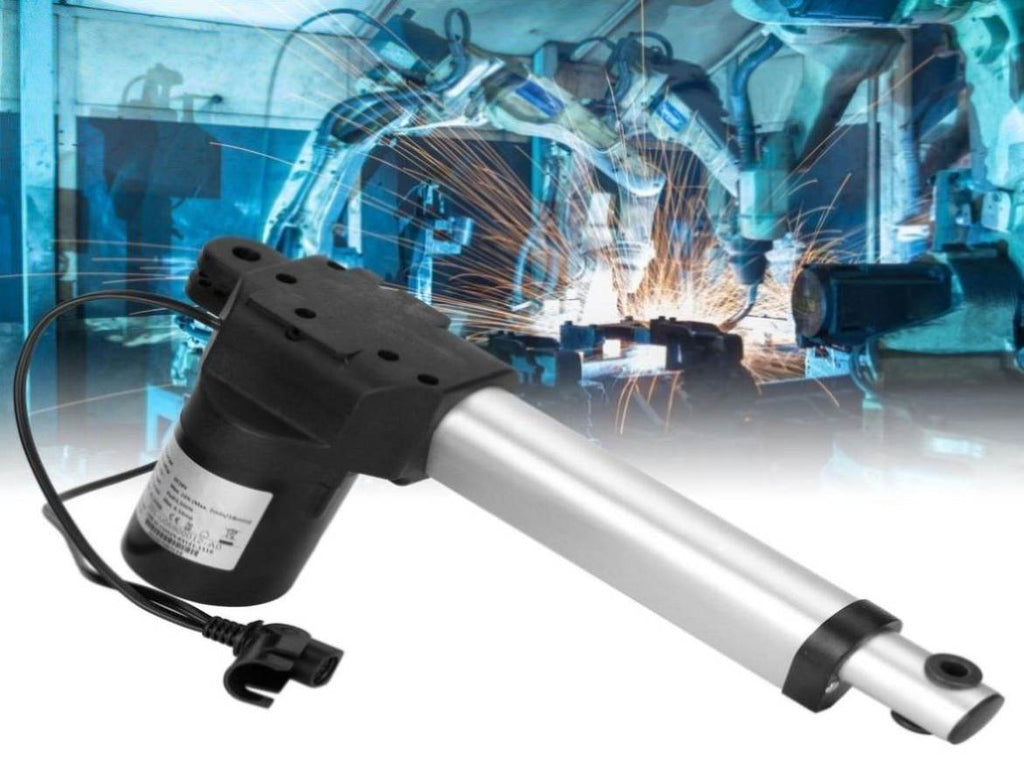

1、Built‑in limit switch, the maximum pushing force is 2000N, easy to operate. 2、The maximum load is 3500N, the load speed is about 8mm/s, and low noise. 3、Strong power and stable start, suitable for automobiles, machinery industry, robots, etc. 4、Linear actuator, uses high‑quality ABS + aluminum alloy, which is durable and long‑lasting. 5、Small size, stable performance, small installation distance and long service life.
Specification
Item Type: Linear Actuator
Material: ABS+Aluminum Alloy
Inner Tube: Aluminum Tube
Head Mounting Connector: Plastic
Rear Mounting Connector: Aluminum Alloy
Weight: Approx. 2175g / 76.7oz
Maximum Pushing Force: 2000N
Maximum Pulling Force: 2000N
Maximum Load: 3500N
Maximum Current: 4.5Amp
Load Speed: 8mm/S
Input Voltage: DC24V
Stroke: 150mm / 5.9in
Installation Direction: H Type or V Type
Limit Switch: Built-In
Protection Level: IPX4
Noise: <55dB(A)
Test Distance: 300mm / 11.8in
Use Environment Temperature: 0 - +40°C
Size: Approx. 265x133x67mm / 10.4x5.2x2.6in

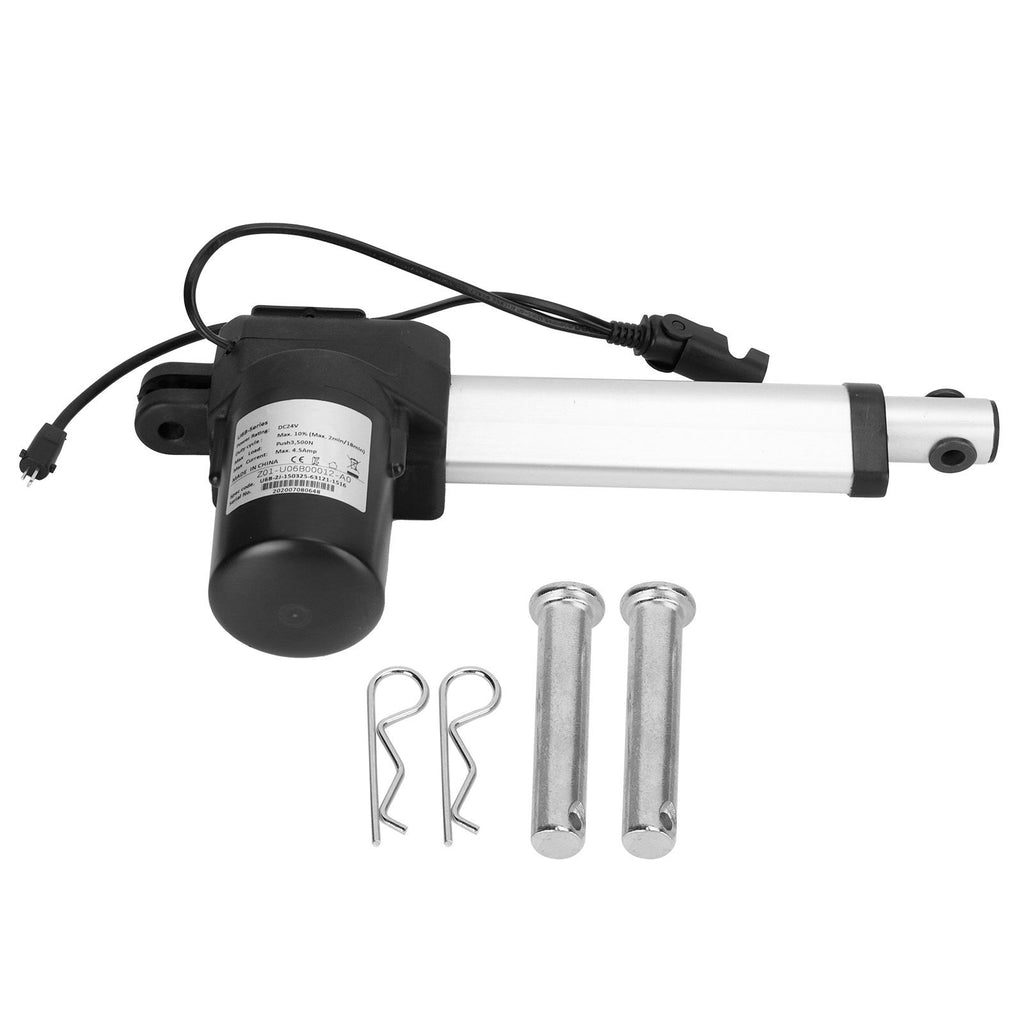

Package List
1 x Linear Actuator
2 x Fixing Accessory
2 x Fixing Buckle
Note
1. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
3. For full load, the working system of the electric push rod trapezoidal tooth screw is generally 25%. If it is not, it can be increased appropriately. The working system of the ball screw is 100%.
4. Balance the lateral force of the push rod to ensure that the electric push rod only bears radial force during operation.
5. The length of the telescopic tube should be increased when the stroke is greater than 800mm, and the stability of the electric push rod should be considered when the stroke is greater than 300mm.
6. The operating temperature of the electric push rod must be within its allowable range.
