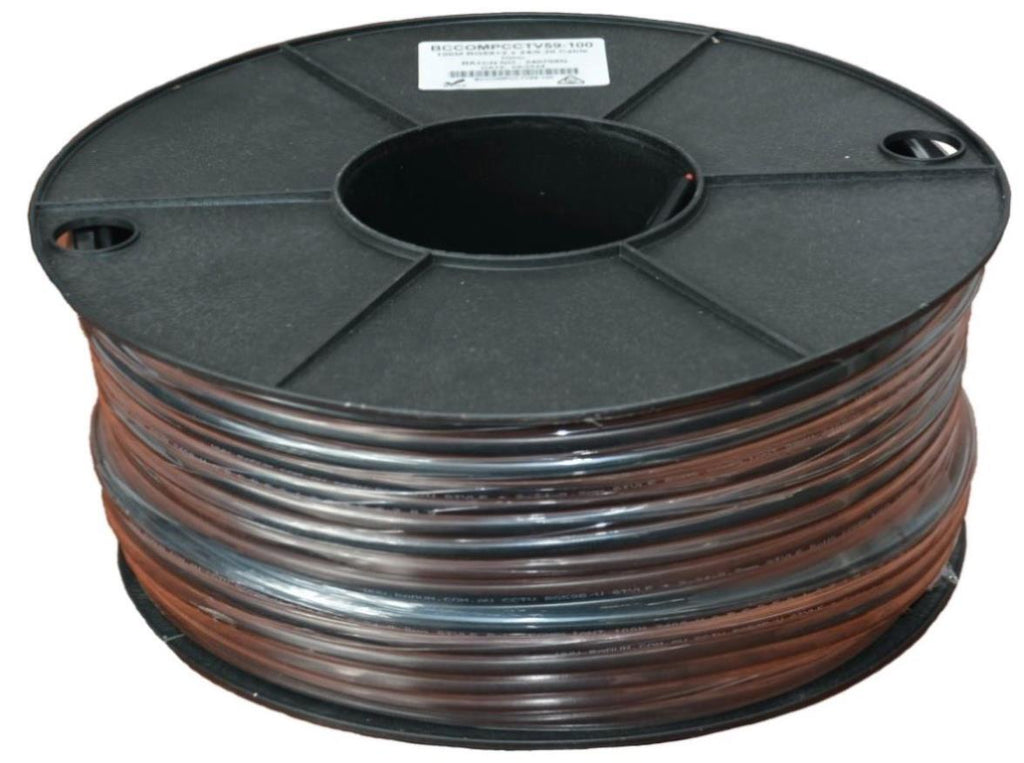

Composite RG 59 B/U & 2 x 24/0.20mm Cable 250m Black 007.003.0136

#html-body [data-pb-style=D9QTW78]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}

Streamline your security camera installations with this professional-grade composite cable, supplied in a convenient 250m drum. Designed specifically for CCTV systems, this all-in-one solution combines a 75 Ohm RG59 coaxial cable for video transmission with a 2-core power cable, all housed within a single, durable PVC jacket. This integrated design significantly reduces installation time and complexity by eliminating the need to run separate cables for video and power, resulting in a cleaner and more efficient setup.

Engineered for exceptional performance, the coaxial component features a solid 0.584mm annealed copper centre conductor, ensuring superior signal integrity and crisp, clear video quality. To protect against signal degradation from external sources, the cable is fortified with a dense 95% coverage braided shield. This robust shielding effectively blocks electromagnetic (EMI) and radio frequency (RFI) interference, providing a stable and reliable video feed for your surveillance system.

The integrated power cable is equally robust, consisting of two 24/0.20mm stranded cores with a 7.5A rating, capable of reliably powering a wide range of CCTV cameras. The entire cable assembly is protected by a flame-retardant V75 PVC outer jacket, offering durability and safety for various indoor installation environments. This composite cable is the ideal choice for professional installers and DIY enthusiasts seeking a high-quality, efficient cabling solution for any security project.

FEATURES

• All-in-one composite design with RG59 Coaxial and 2-Core power
• Supplied in a 250m drum for large-scale installations
• Simplifies and speeds up CCTV installations
• Solid copper conductor for optimal video signal quality
• 95% coverage braided shield protects against EMI/RFI interference
• Integrated 2-core power cable for camera power
• Durable and flame-retardant V75 PVC outer jacket

SPECIFICATIONS

• Coaxial Cable
• Type: RG59 B/U MIL-C-17 Type
• Impedance: 75 Ohm
• Conductor: 0.584mm Solid Annealed Copper
• Insulation: Solid Low-Density Polyethylene
• Shielding: 95% Coverage Copper Braid
• Jacket O/D: ~6.15mm
• Power Cable
• Construction: 2 Core (24 strands of 0.20mm)
• Nominal Area: 0.75mm²
• Current Rating: 7.5A
• Insulation: V75 PVC
• Core Colours: Red/Black
• Composite Cable
• Overall Jacket: V75 PVC
• Jacket Colour: Black
• Overall Dimensions: ~8.6mm x ~13.8mm
• Supplied Length: 250m Drum

WARRANTY

1-Year Limited Warranty
