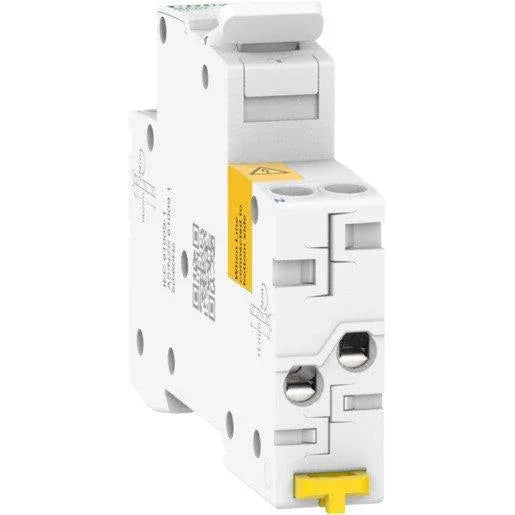

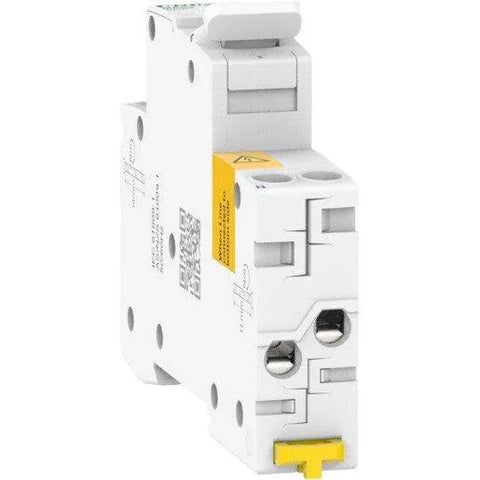

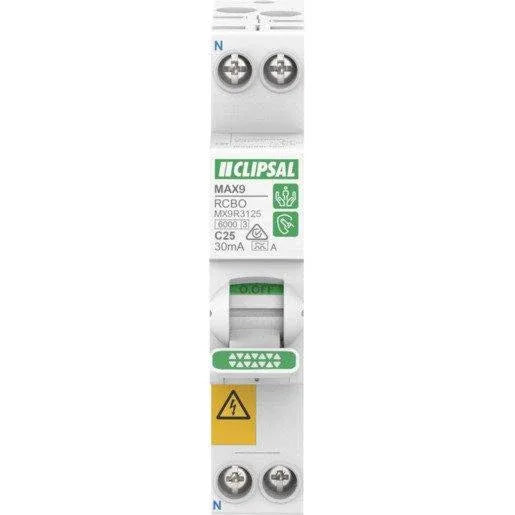

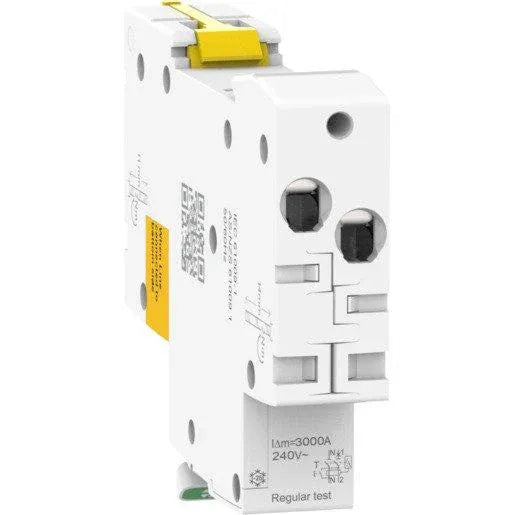

Clipsal Residual Current Breaker with Overcurrent Protection Type A 25Amp 6kA 30mA C Curve 1 V1202-9311554812737
This MAX9 product is an arc fault detection RCBO. It is a 1P+N circuit breaker with 1 protected pole, 10 Amp in rated current at 30 deg C and C tripping curve. The operating frequency is 50Hz. The earth leakage protection class is type A with a sensitivity of 30 mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity goes up to 6000 Amp at 240 Volt AC conforming to IEC 61009 standard. This MAX9 circuit breaker is compatible with TN-S, TT and IT earthing system. It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles. It detects arc fault who comes from fire start and is constantly analysing electric settings. It isolates involved circuit automatically before first flame appearance. It is particularly adapted for circuit protection where the fire start is the most important in domestic installation (outdoors, rooms). It has a RCM quality label. The Ue rated operational voltage is 240 Volt AC. The Ui rated insulation voltage is 440 Volt AC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9 mm pitches is 4. The dimensions are (W) 36 mm x (H) 91 mmx (D) 75 mm. The product colour is white (RAL9003). The product weight is 237g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is from -25 deg C to +70 deg C. The storage temperature is from -40 deg C to +85 deg C. This product is complies with EN/IEC 62606 standard.
| Number of protected poles | 1 |
|---|---|
| Voltage type AC-DC | AC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Connectable conductor cross section solid-core | 1-16 mm² |
| Current limiting class | 3 |
| Rated fault current | 30 A |
| Rated current | 25 A |
| Over voltage category | 3 |
| Number of poles (total) | 2 |
| Flush-mounted installation | No |
| Rated insulation voltage Ui | 440 V |
| Ambient temperature during operating | -25-70 °C |
| Anti-nuisance tripping version | No |
| Frequency | 50/60 Hz |
| Rated voltage | 240 V |
|---|---|
| Built-in depth | 44 mm |
| Connectable conductor cross section multi-wired | 1-10 mm² |
| With interlocking device | Yes |
| Release characteristic | C |
| Concurrently switching neutral conductor | Yes |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
| Surge current capacity | 0.25 kA |
| Leakage current type | A |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 1 |
| Disconnection characteristic | Undelayed |
| Pollution degree | 2 |
| Model | Max9 |
Brand: Clipsal
Manufacturer Part Number: MX9R3125
Barcode: 9311554812737
