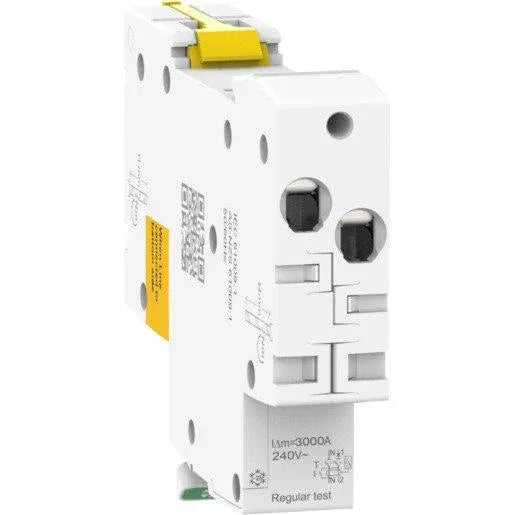

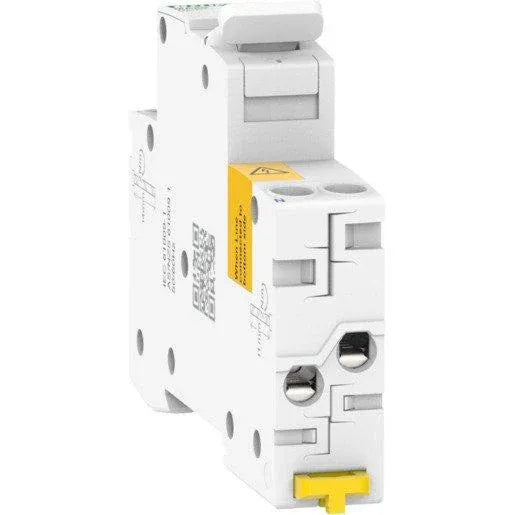

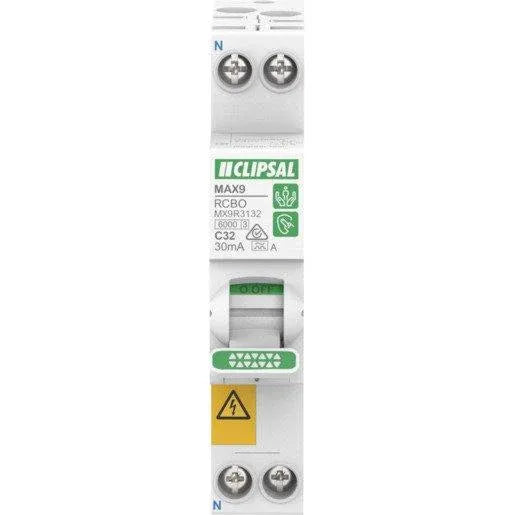

Clipsal MAX9 RCBO with Overcurrent Protection 1PN 32A 30mA C Curve 6000A A Type Slim MX9R3132 V1202-9311554812751
This MAX9 product is a residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 32A In rated current at 30°C and C tripping curve. The operating frequency is 50Hz or 60Hz. The earth leakage protection class is type A with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A at 240VAC. It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It brings safety, reliable solution for commercial and industrial applications with high breaking capacity. It has a RCM quality lable. The Ue rated operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 93mm x (D) 73mm. The product color is white (RAL9003). The product weight is 136g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product is complies with IEC 61009-2-2 and EN/IEC 61009-1 standards.
| Width in number of modular spacings | 1 |
|---|---|
| Rated current | 32 A |
| Leakage current type | A |
| Connectable conductor cross section multi-wired | 1-10 mm² |
| Surge current capacity | 0.25 kA |
| Frequency | 50/60 Hz |
| Current limiting class | 3 |
| With interlocking device | Yes |
| Over voltage category | 3 |
| Connectable conductor cross section solid-core | 1-16 mm² |
| Rated fault current | 30 A |
| Release characteristic | C |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
| Rated voltage | 240 V |
| Ambient temperature during operating | -25-70 °C |
|---|---|
| Degree of protection (IP) | IP20 |
| Concurrently switching neutral conductor | Yes |
| Flush-mounted installation | No |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| Pollution degree | 2 |
| Rated insulation voltage Ui | 440 V |
| Voltage type AC-DC | AC |
| Built-in depth | 44 mm |
| Rated impulse withstand voltage Uimp | 4 kV |
| Disconnection characteristic | Undelayed |
| Anti-nuisance tripping version | No |
| Model | Max9 |
Brand: Clipsal
Manufacturer Part Number: MX9R3132
Barcode: 9311554812751
