Clipsal Max9 RCBO 20A 30mA 240VAC 50/60Hz 6000A 1P N Type A Slim MX9R3120 V1202-9311554812713

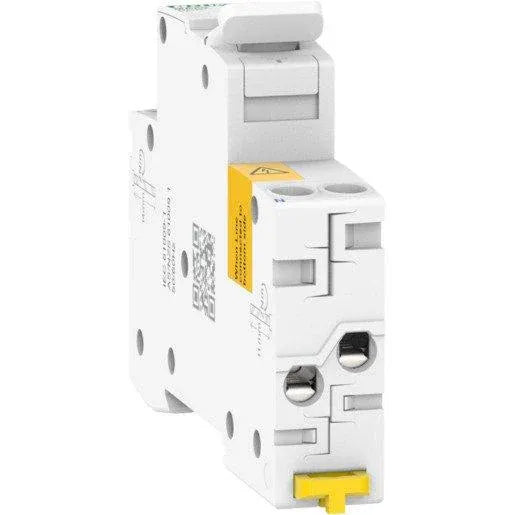

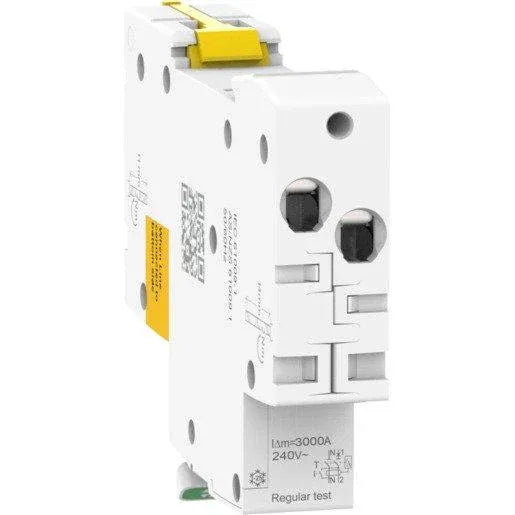

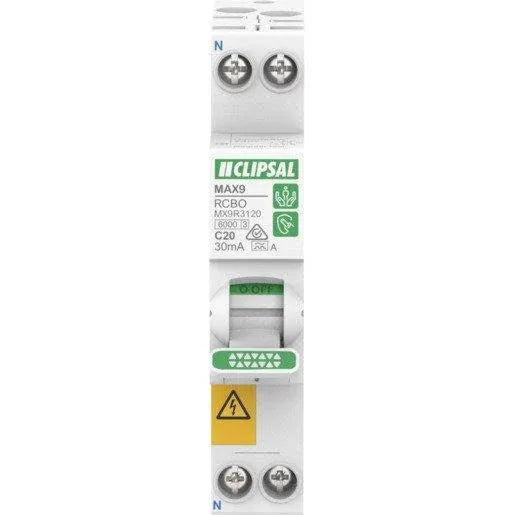

This MAX9 product is a residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 20A In rated current at 30°C and C tripping curve. The operating frequency is 50Hz or 60Hz. The earth leakage protection class is type A with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A at 240VAC. It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It brings safety, reliable solution for commercial and industrial applications with high breaking capacity. It has a RCM quality lable. The Ue rated operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 93mm x (D) 73mm. The product color is white (RAL9003). The product weight is 136g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product is complies with IEC 61009-2-2 and EN/IEC 61009-1 standards.
| Degree of protection (IP) | IP20 |
|---|---|
| Connectable conductor cross section solid-core | 1-16 mm² |
| Number of protected poles | 1 |
| Pollution degree | 2 |
| Over voltage category | 3 |
| Leakage current type | A |
| Rated voltage | 240 V |
| Connectable conductor cross section multi-wired | 1-10 mm² |
| Concurrently switching neutral conductor | Yes |
| With interlocking device | Yes |
| Rated fault current | 30 A |
| Anti-nuisance tripping version | No |
| Voltage type AC-DC | AC |
| Width in number of modular spacings | 1 |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
|---|---|
| Current limiting class | 3 |
| Rated current | 20 A |
| Frequency | 50/60 Hz |
| Release characteristic | C |
| Number of poles (total) | 2 |
| Rated insulation voltage Ui | 440 V |
| Surge current capacity | 0.25 kA |
| Ambient temperature during operating | -25-70 °C |
| Rated impulse withstand voltage Uimp | 4 kV |
| Flush-mounted installation | No |
| Built-in depth | 44 mm |
| Disconnection characteristic | Undelayed |
| Model | Max9 |
Brand: Clipsal
Manufacturer Part Number: MX9R3120
Barcode: 9311554812713
