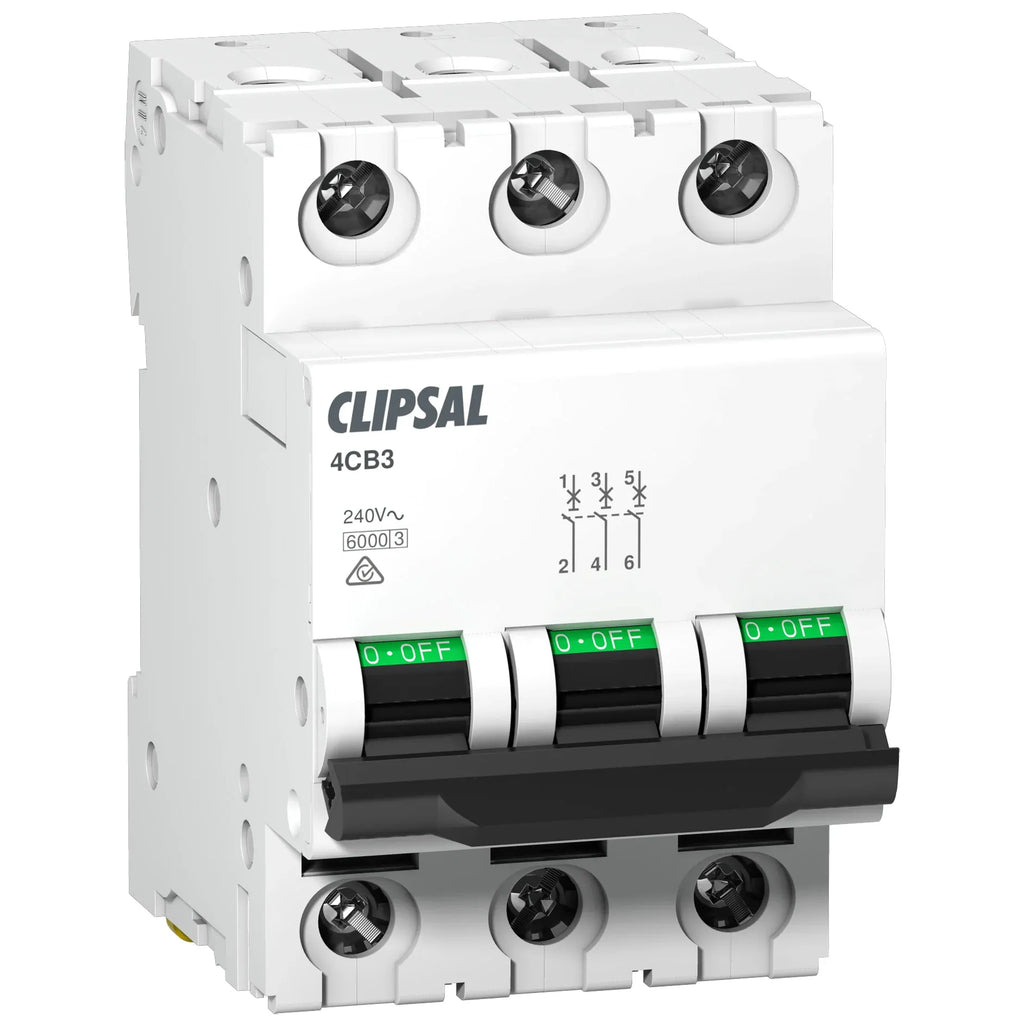

Clipsal Max 4 Miniature circuit breaker 3P 16 A C curve 6000 A 415 V 4CB316/6 V1202-9318795014005
All miniature circuit breakers are sourced from leading Australian suppliers with an impressive range of MCB's to suit local conditions and requirements. They all have the relevant approvals and meet all applicable Australian
This Clipsal Series 4 product is a low voltage miniature circuit breaker (MCB). It is a 3 circuit breaker with 16A rated current and C tripping curve. The rated short circuit breaking capacity is up to 6kA at 415VAC conforming to EN 60898 standard. This product is compliant with AS/NZS 60898 standard. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ue operational voltage is 415VAC. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The dimensions are (W) 54mm x (H) 81mm x (D) 78.5mm. The weight is 310g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.
| Degree of protection (IP) | IP20 |
|---|---|
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Number of poles (total) | 3 |
| Breaking capacity | 6 kA |
| Flush-mounted installation | No |
| Voltage type AC-DC | AC |
| Rated current | 16 A |
| Current limiting class | 3 |
| Built-in depth | 73 mm |
| Release characteristic | C |
| Concurrently switching neutral conductor | Yes |
| Connectable conductor cross section solid-core | 0.75 mm² |
|---|---|
| Frequency | 50 Hz |
| Connectable conductor cross section multi-wired | 0.33 mm² |
| Width in number of modular spacings | 3 |
| Number of protected poles | 3 |
| Ambient temperature during operating | -25 °C |
| Rated voltage | 415 V |
| Rated insulation voltage Ui | 440 V |
| Additional equipment possible | No |
| Mounting method | DIN rail |
