Clipsal Iconic Flush Switch Vertical Mount, 5 Gang, 230/240V, 10Ax1-Way/2-Way Vivid White V1202-9311554786205
Elevate your lighting experience with our premium light switches. Choose from stylish designs and smart options for effortless control. Enhance your homes aesthetics with replacement cover plates available for many models.

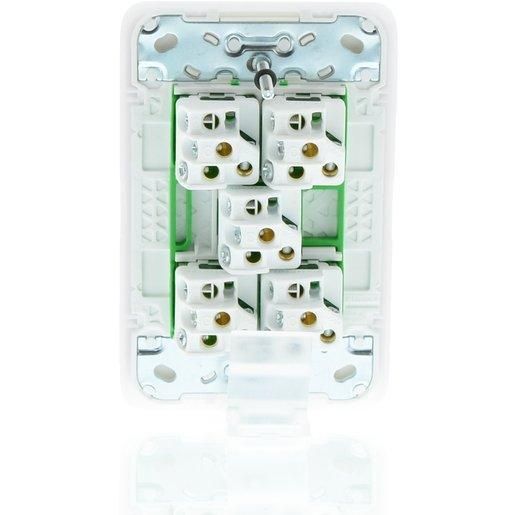

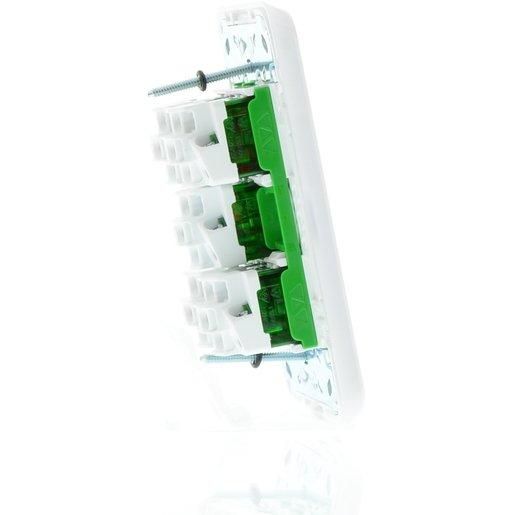

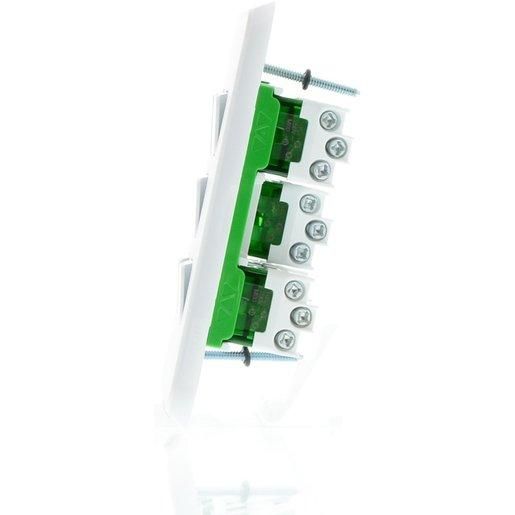

The Clipsal Iconic Flush Switch is a 5-gang switch designed for residential use. It features 2-way switching capabilities and the ability to customize with iconic dollies to indicate switch function in a classic vivid white.
| Device width | 78 mm |
|---|---|
| Type of fastening | Screw mounting |
| Rated current | 10 A |
| Push button switch | Yes |
| Illumination | No |
| Method of operation | Rocker/button |
| Colour | White |
| Feedback-signal contact | No |
| Mounting method | Flush-mounted |
| Type of lighting | Not applicable |
| Function lighting | Not applicable |
| With mounting plate | Yes |
| Device depth | 39 mm |
| Compatible with Amazon Alexa | No |
| Colour of switch operator | White |
| Anti-bacterial treatment | No |
| Compliant with UK Building Regulations Part M | No |
| Device height | 120 mm |
| Min. depth of built-in installation box | 30 mm |
| Connection type | Screwed terminal |
| Washing machine switch | No |
| Compatible with Apple HomeKit | No |
| IFTTT support available | No |
|---|---|
| Compatible with Google Assistant | No |
| Suitable for degree of protection (IP) | IP2X |
| RAL-number (similar) | 9,003 |
| Built-in depth | 30 mm |
| Nominal voltage | 250 V |
| Switching current for fluorescent lamps | 10 AX |
| Surface protection | Untreated |
| Number of modules (module system) | 5 |
| Heating switch | No |
| Material | Plastic |
| Impact strength | Not available |
| Label space/information surface | No |
| Material quality | Thermoplastic |
| Number of rockers | 5 |
| Assembly arrangement | Basic element with complete housing |
| Halogen free | Yes |
| Surface finishing | Matt |
| Wiring system | Other |
| Model | Iconic |
| Mounting direction | Vertical |
