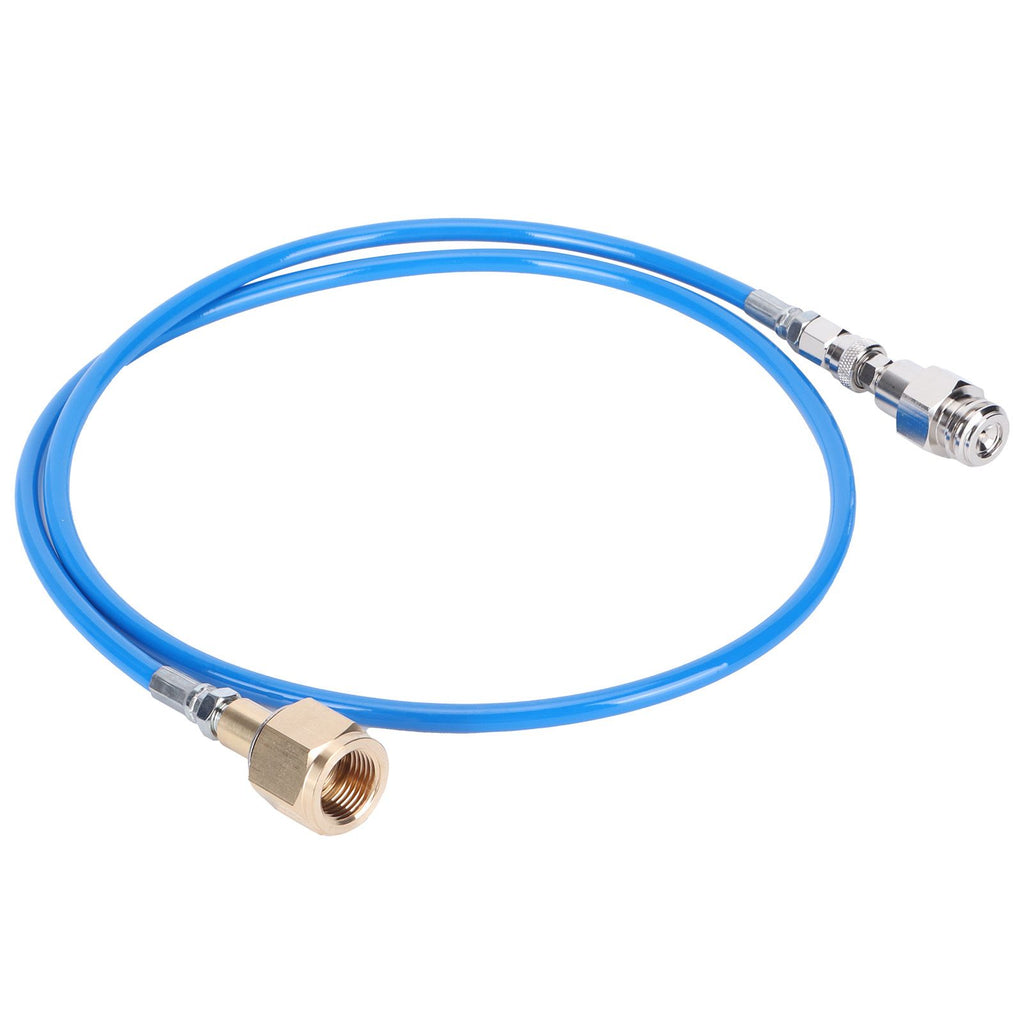

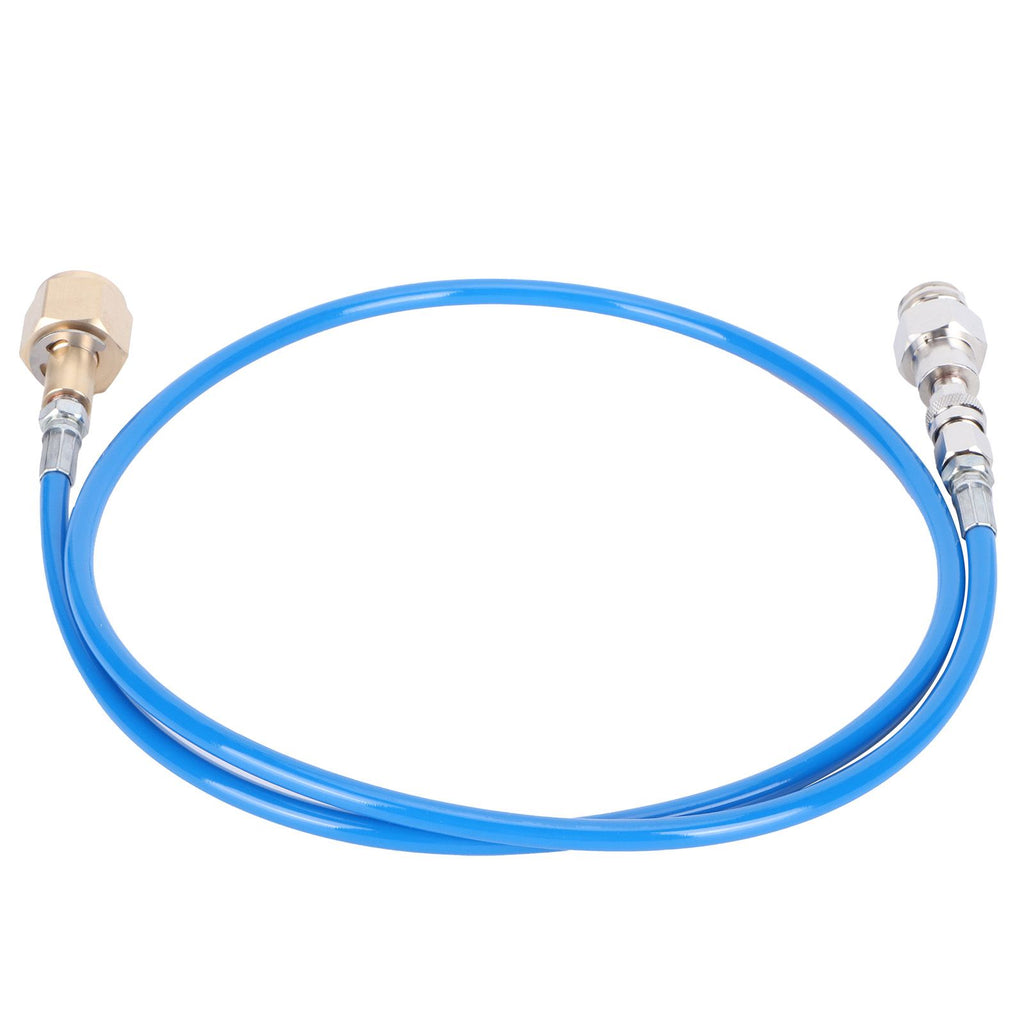

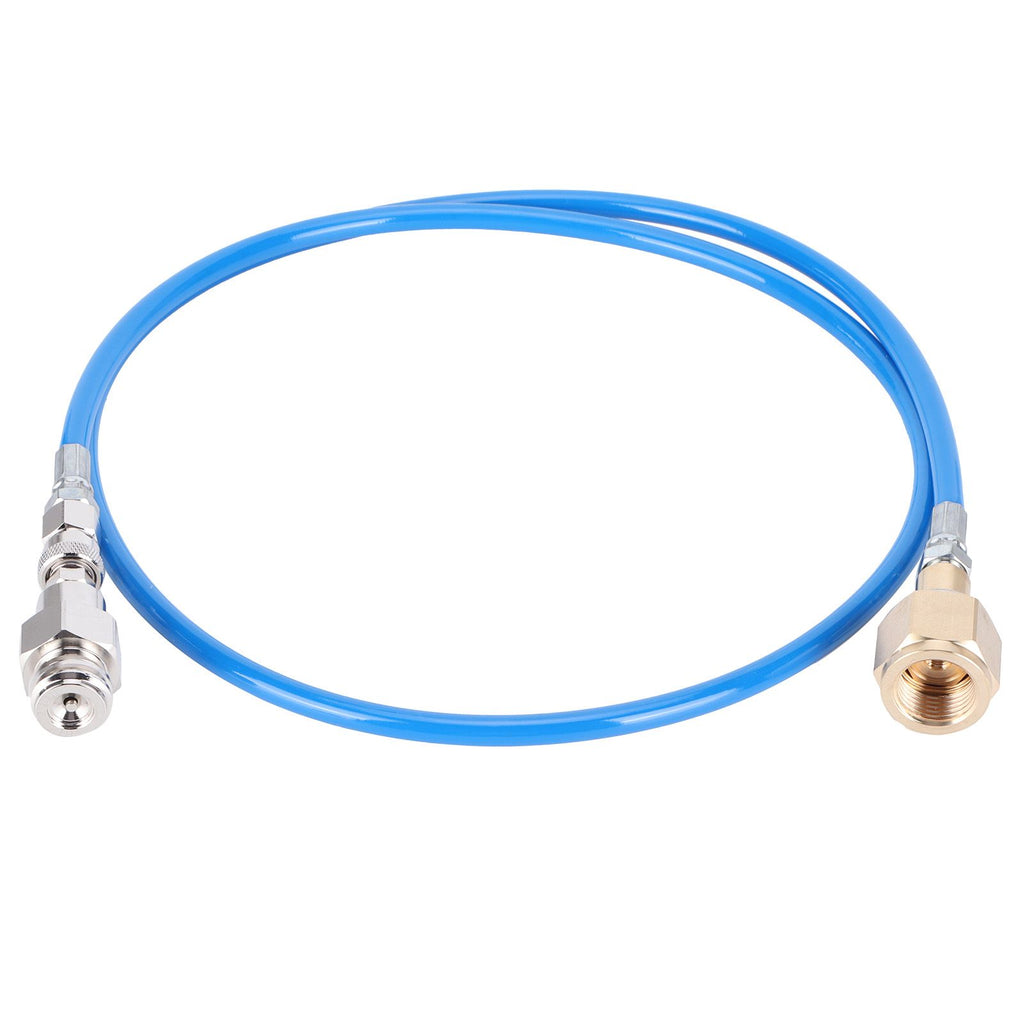

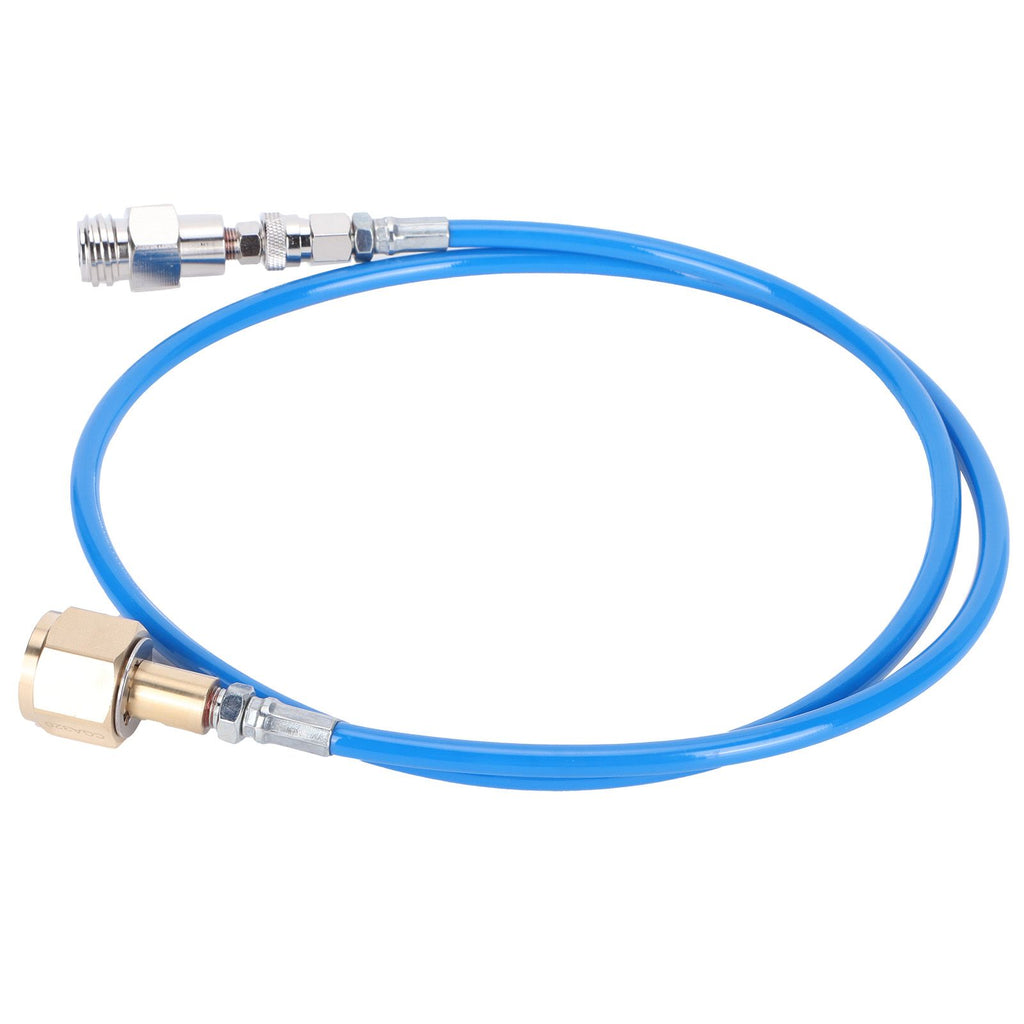

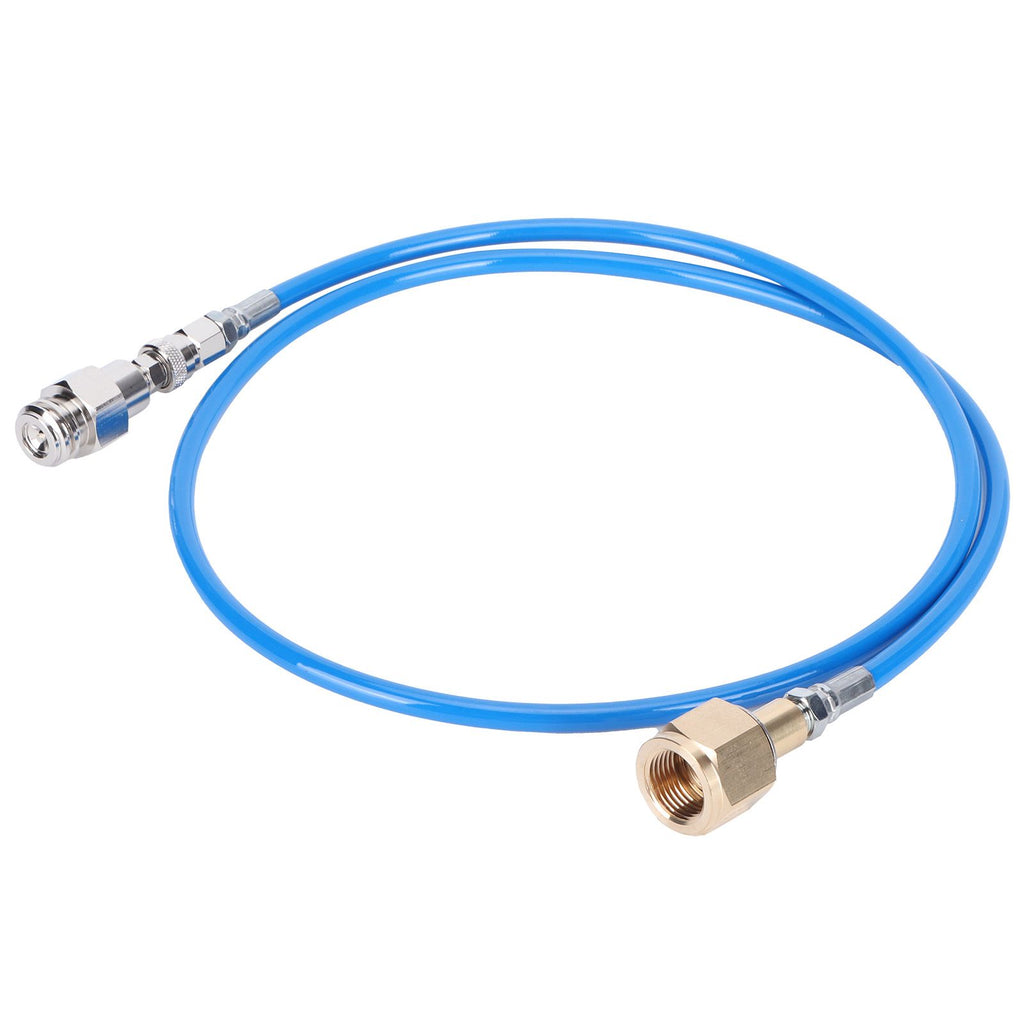

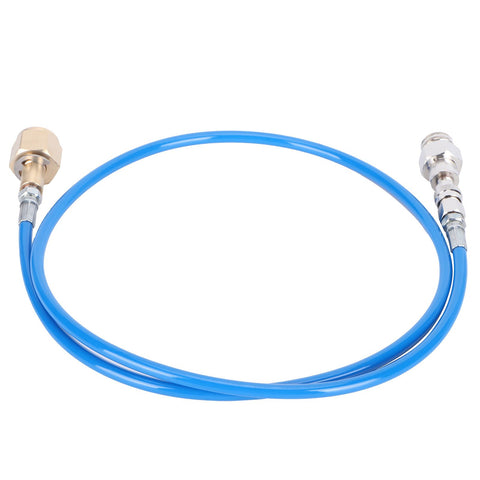

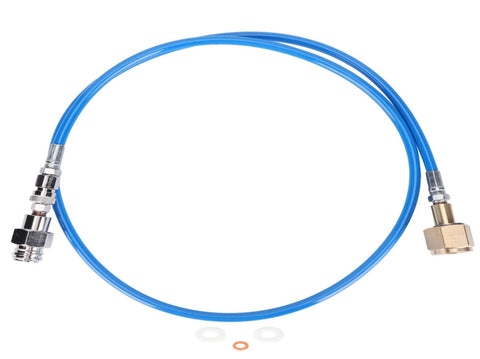

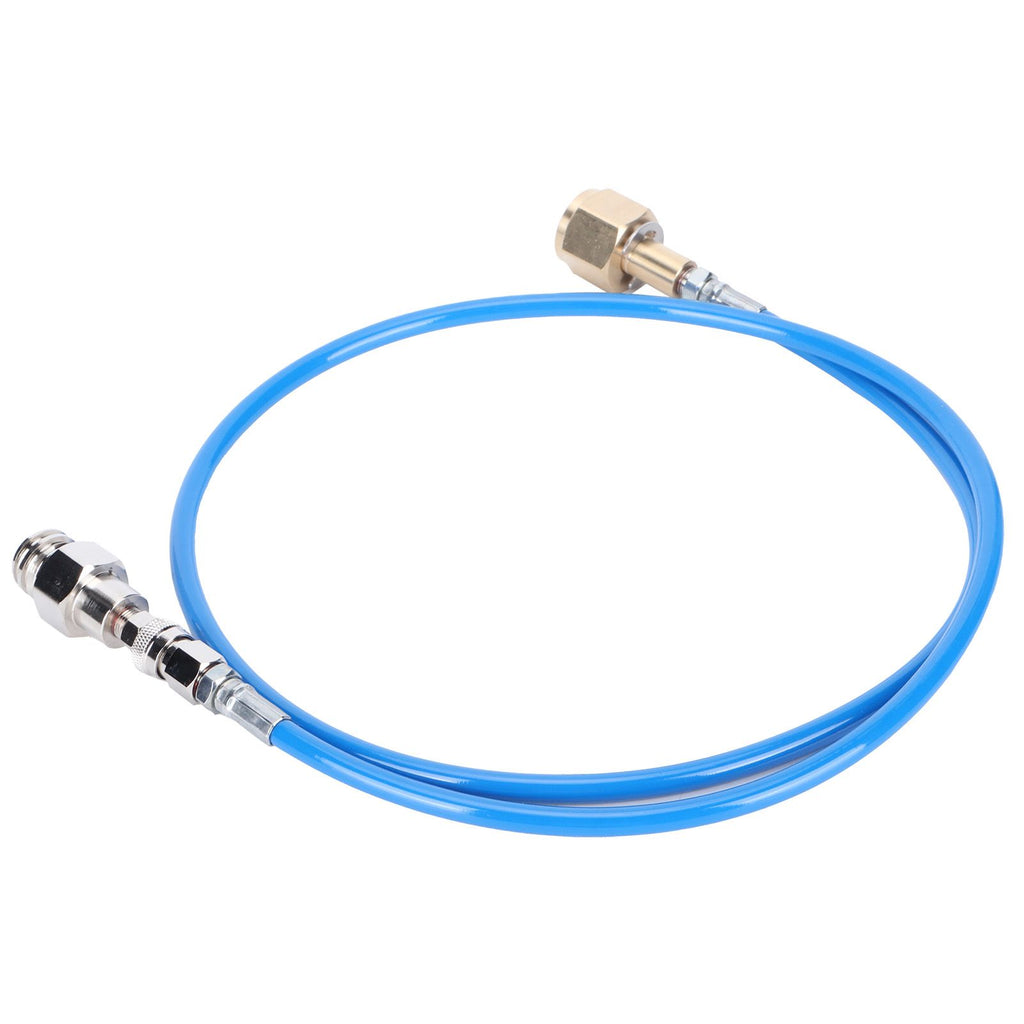

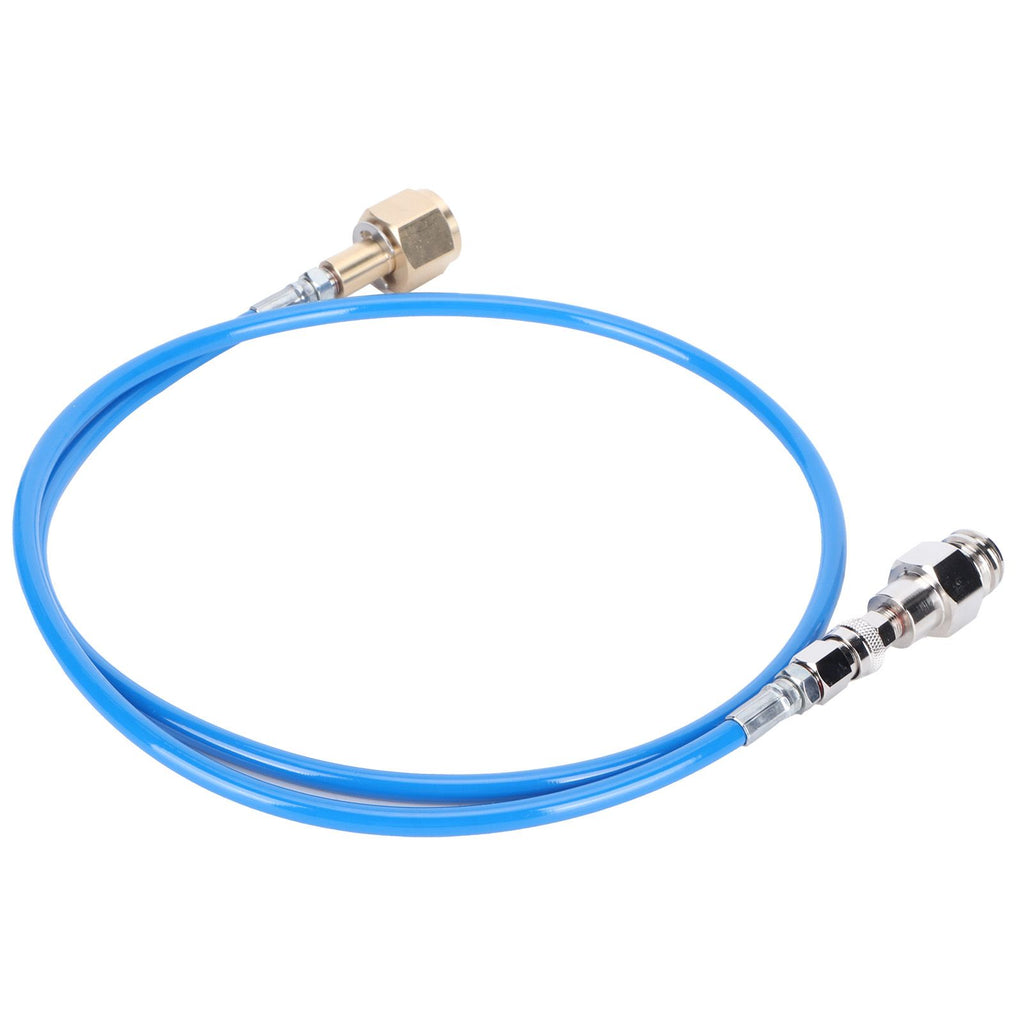

CGA320//TR21-4 Soda Hose Adapter 50in CO2 Gas Cylinder Refilling Connector Accessory Blue V1294-YM0901-3113210023711

1、CGA320 // TR21‑4 thread connection, good tightness, no air leakage. 2、CO2 gas cylinder hose adapter, a necessary part for soda cylinder, easy to connect. 3、Stainless steel + brass material, durable and long‑lasting, wear‑resistant. 4、Good sealing performance, suitable for replenishing and refilling carbon dioxide gas. 5、A very practical accessory, easy to install and disassemble, and long service life.
Specification
Item Type: Soda Hose Adapter
Material: Stainless Steel + Brass
Color: Blue
Weight: Approx. 364g / 12.8oz
Length: Approx. 50in (125cm)
Test Pressure: 8000psi
Working Pressure: 3000psi
Interface Diameter: Approx. 20.8mm / 0.82in
Thread Interface: CGA320 // TR21-4
Applicable Countries: The United States, Canada, Brazil, Colombia, the Philippines (some countries are also called G1/2-14/0.825-14NGO)

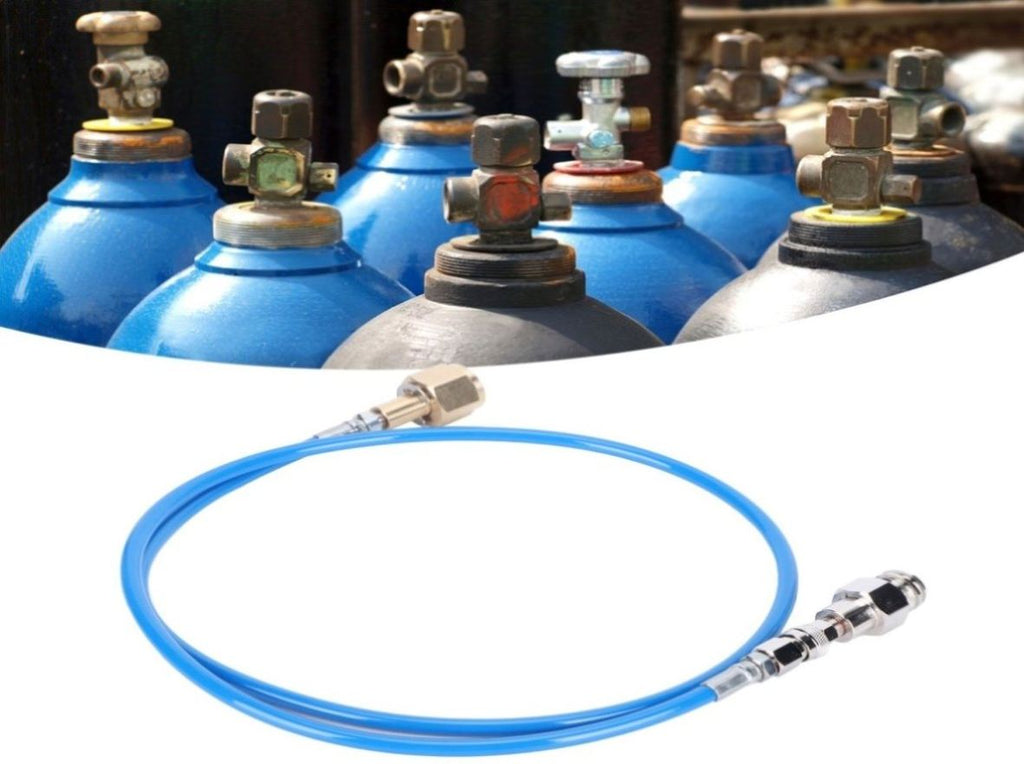

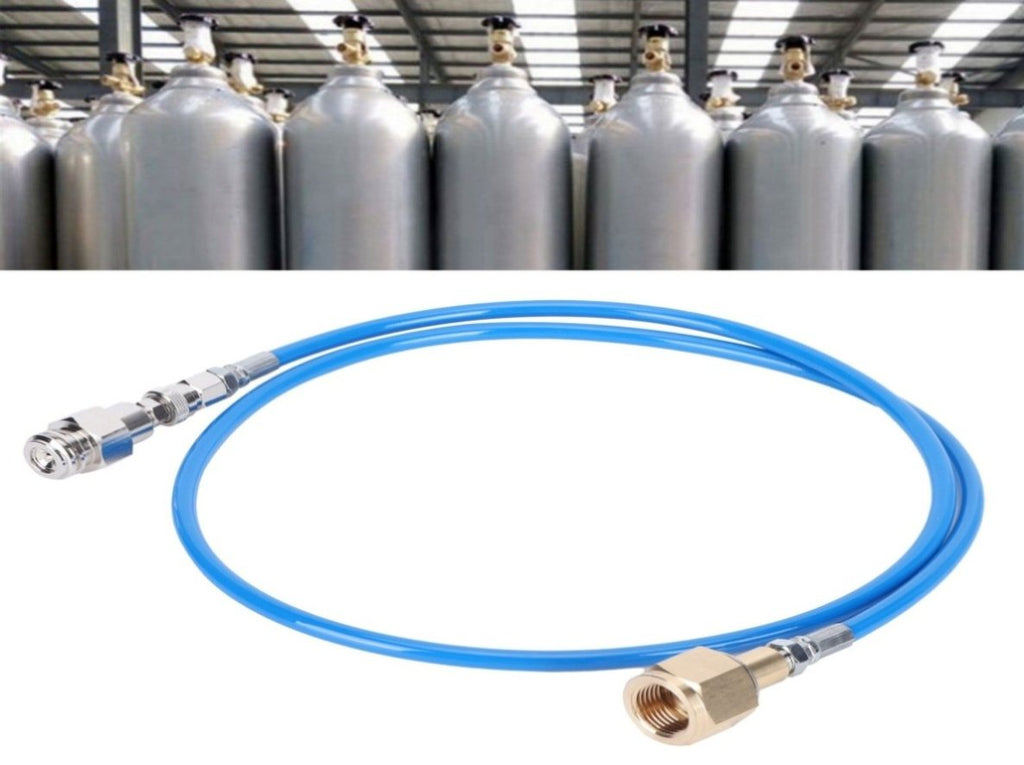

Refilling adapter can be used to replenish a small carbon dioxide tank from a larger carbon dioxide tank. The refill adapter is CGA-320 (G1/2). Make sure that the thread type of the carbon dioxide tank is the same.
How to Use:
1. Screw the pin valve into the soda machine
2. Screw the nut onto the carbon dioxide cylinder and tighten it with a wrench
3. Connect the quick connector
4. Open the valve of the large gas bottle
5. After completion, you can use soda machine
If you want to unscrew items from the machine:
1. Close the large gas cylinder valve
2. Press the button of the soda machine to discharge remaining carbon dioxide (if you do not disconnect the connector according to this guide, the o-ring of the quick connector will blow off)
3. Disconnect the quick connector
4. Unscrew the pin valve on the soda machine and unscrew the nut on the CO2 cylinder

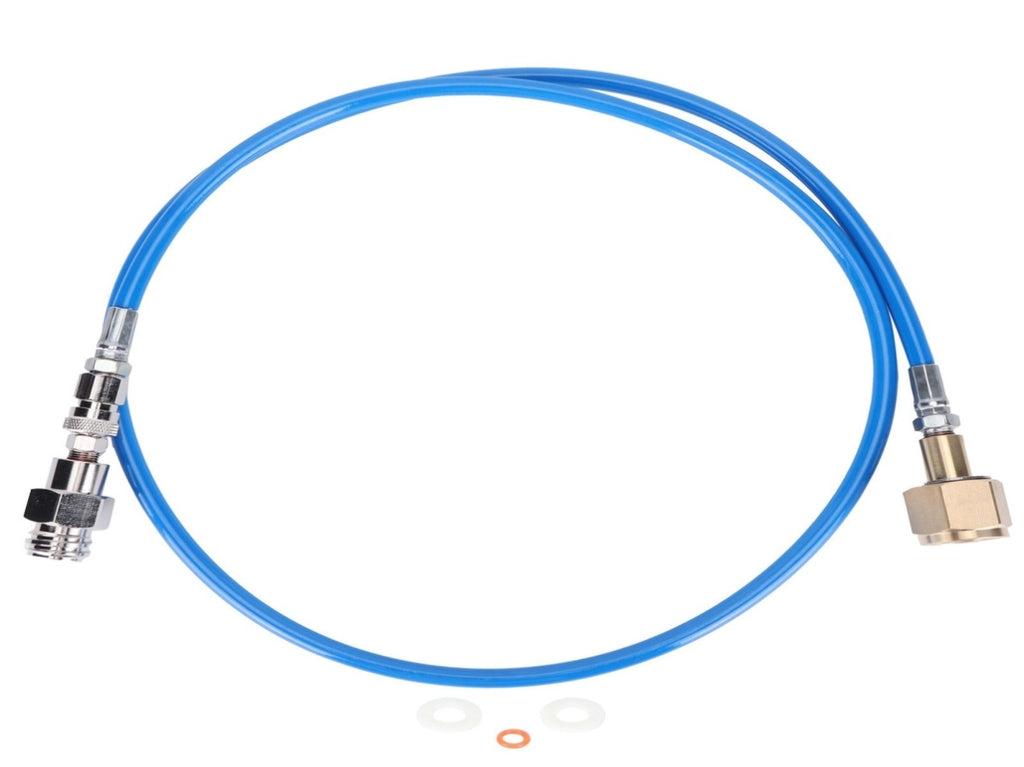

Package List
1 x Soda Hose
1 x Manual
2 x Spacer
1 x Gasket
Note
1. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
3. This item is only applicable to gaseous carbon dioxide, not liquid carbon dioxide. It cannot use a siphon for carbon dioxide tanks.
4. Please do not disconnect the quick disconnect under pressure. The quick disconnect O‑ring will be blown off. It is recommended to discharge the remaining pressure on the soda machine.
