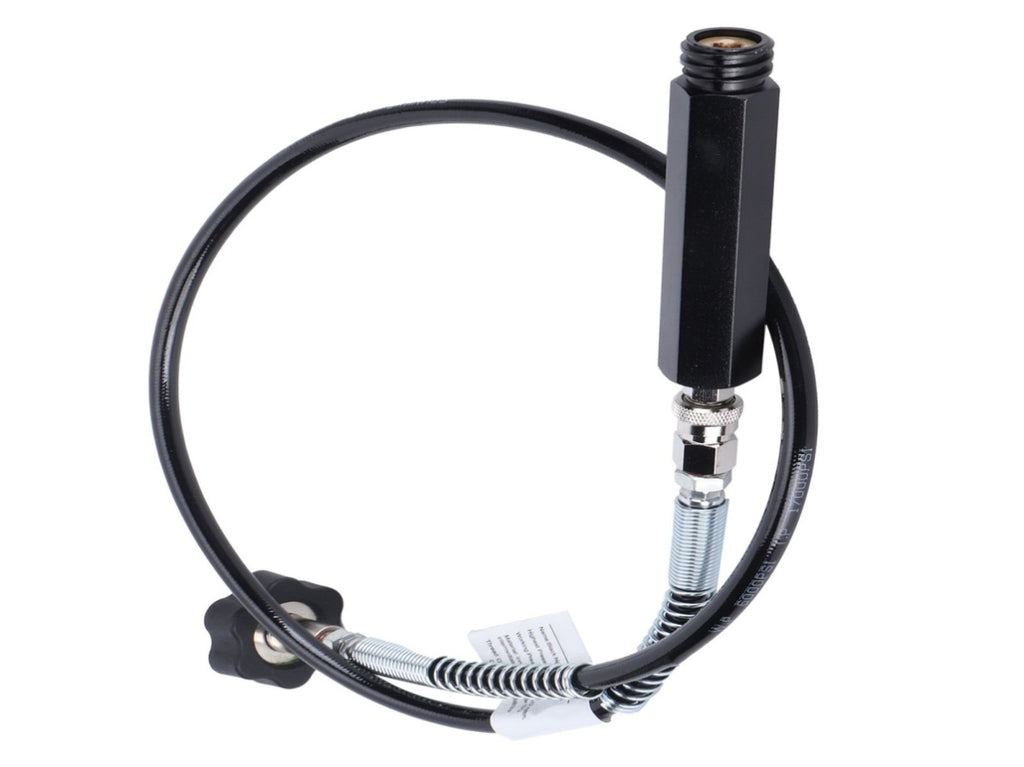

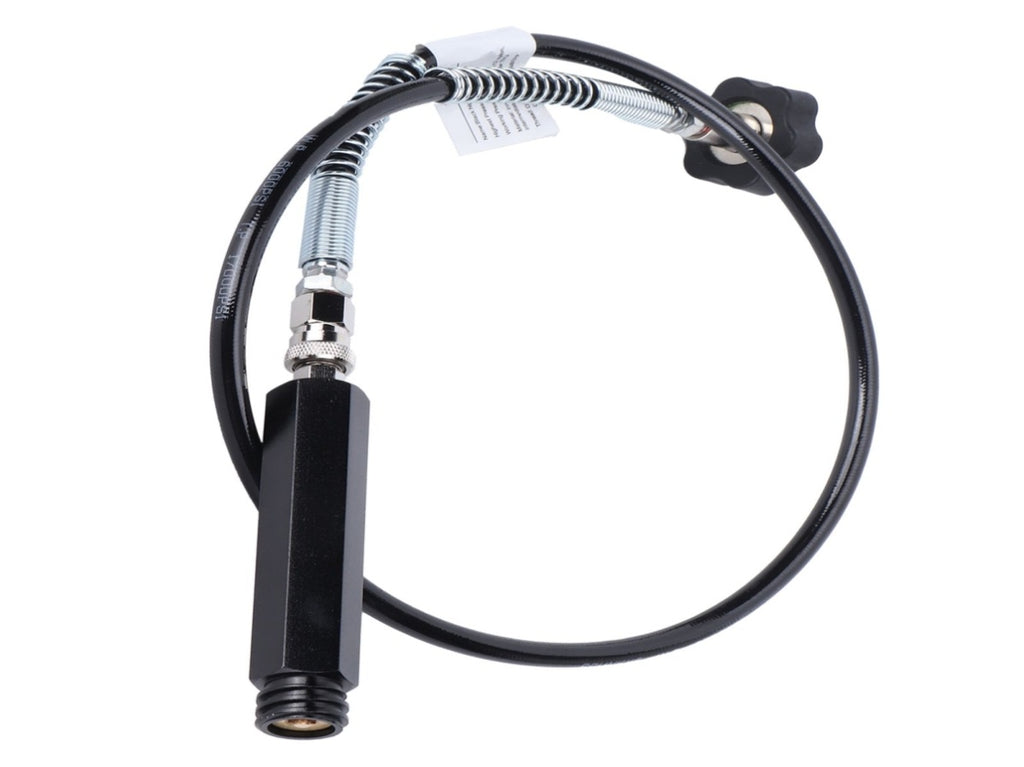

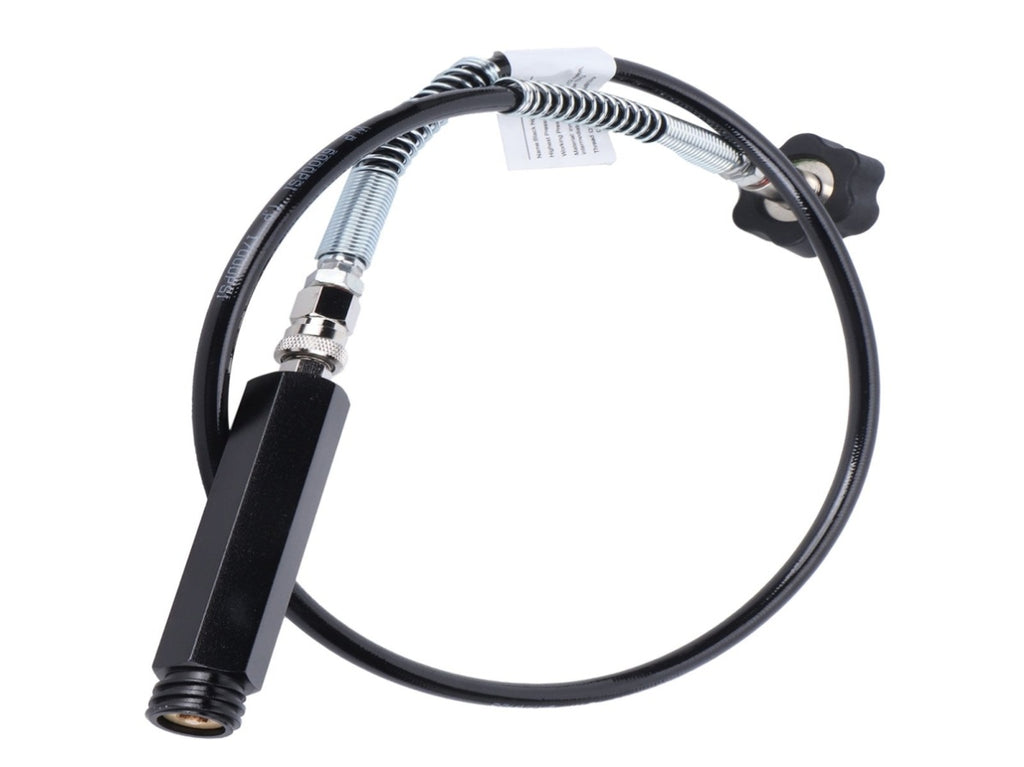

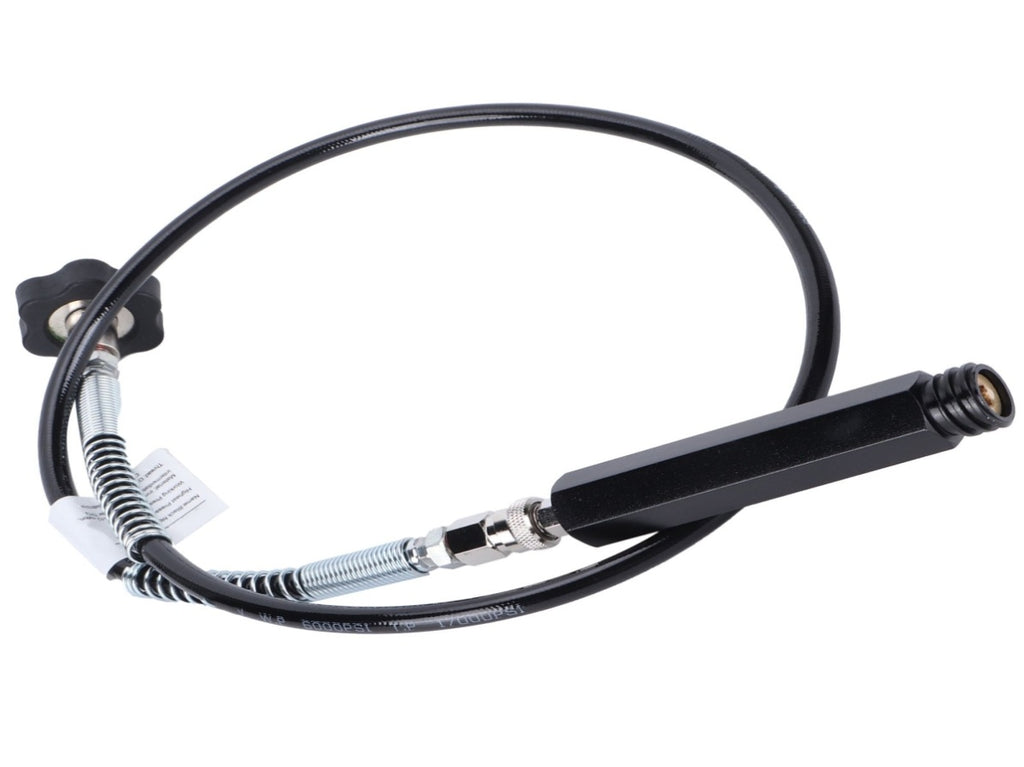

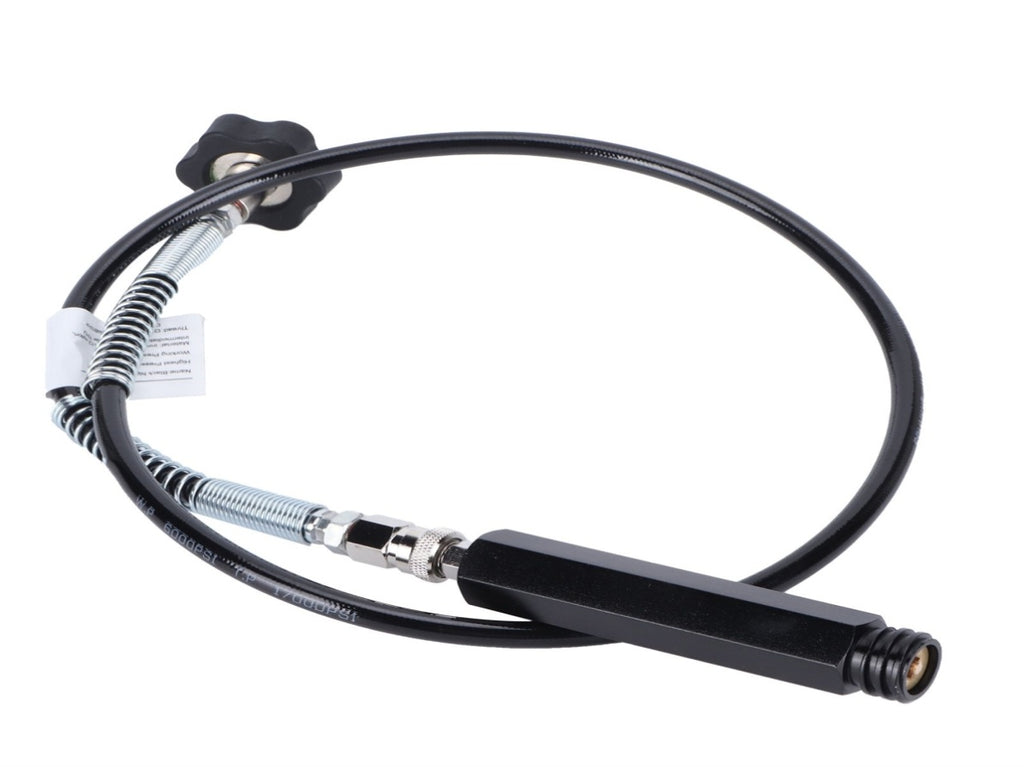

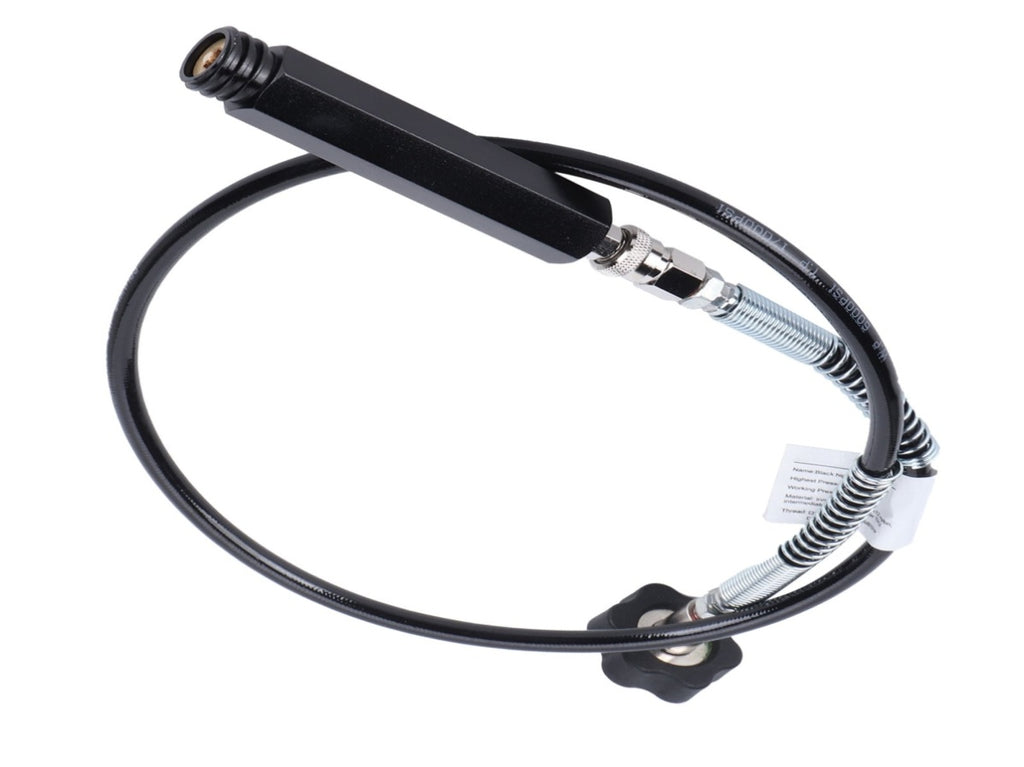

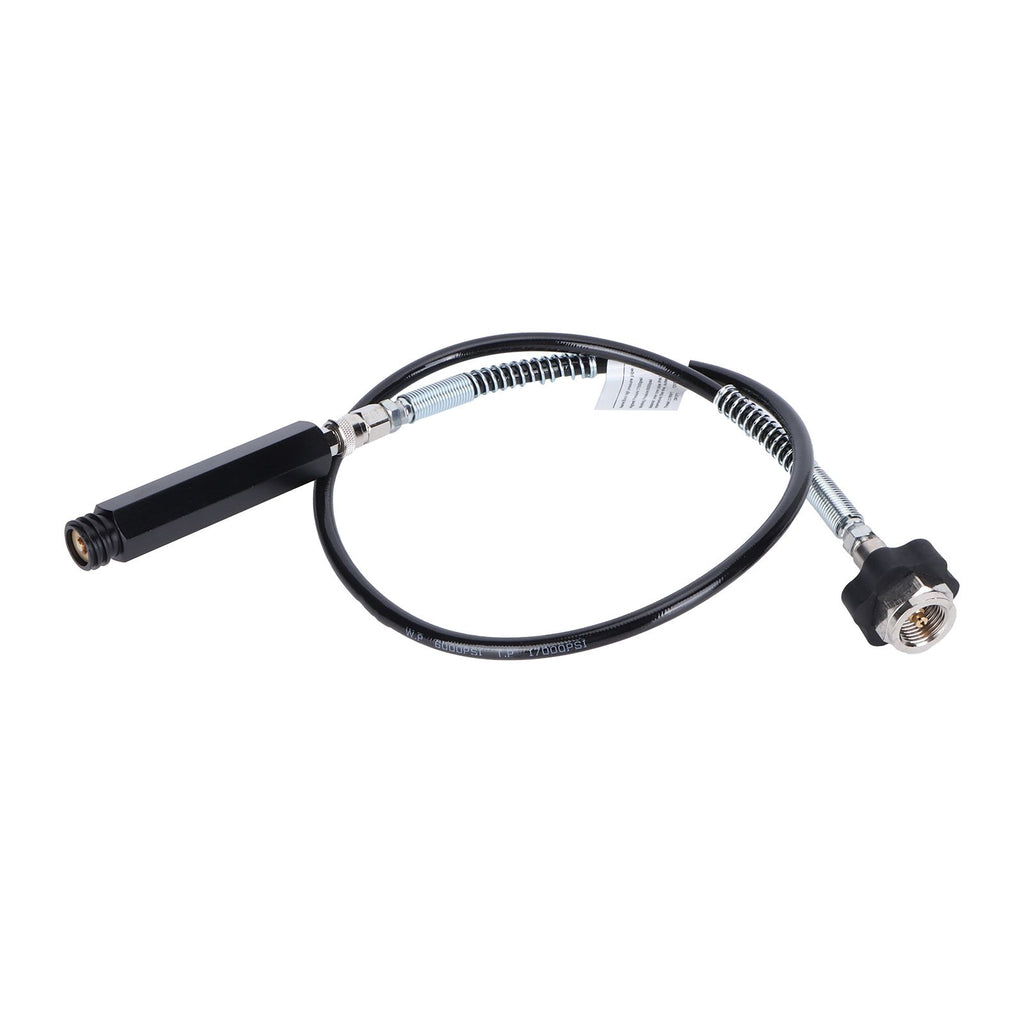

CGA320 TR214 36in Black Soda Hose Adapter Set Stable Performance Sturdy Construction V1294-YM0901-3113210018511

1、With good sealing performance, no air leakage when connected with the cylinder, and it is more convenient to use. 2、The test pressure is 17000PSI and the Working Pressure is 6000PSI, which makes it have high reliability. 3、Adopting high‑quality material stainless steel and aluminum alloy, it is sturdy, not easy to damage, and can be used for a long time. 4、It can well replace old parts that are damaged or need to be replaced, and it is easy to install. 5、Exquisite workmanship, excellent performance, stable performance, is a very practical accessory.
Specification
Item Type: Soda Hose Adapter Kit
Material: Stainless Steel+Aluminium Alloy
Length: Approx. 36in/914mm
Test Pressure (TP): 17000psi
Working Pressure (WP): 6000psi
Interface Diameter: Approx. 20.8mm/0.8in
Thread Interface: CGA320 // TR21-4
Applicable Countries: The United States, Canada, Brazil, Colombia, the Philippines... (some countries also call it G1/2-14/0.825-14NGO)
Weight: Approx. 425g/0.9lbs

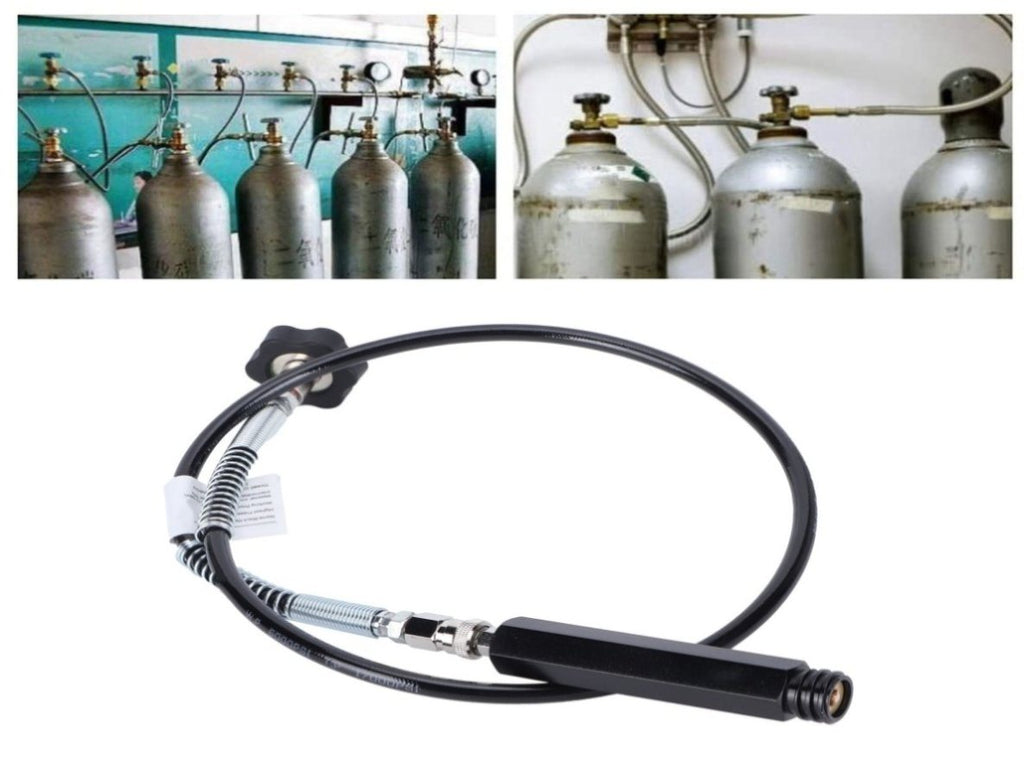

The replenishment adapter can be used to replenish a small carbon dioxide tank from a larger carbon dioxide tank. The supplementary adapter is American CGA-320 (G1/2). Make sure that the thread type of the carbon dioxide tank is the same.

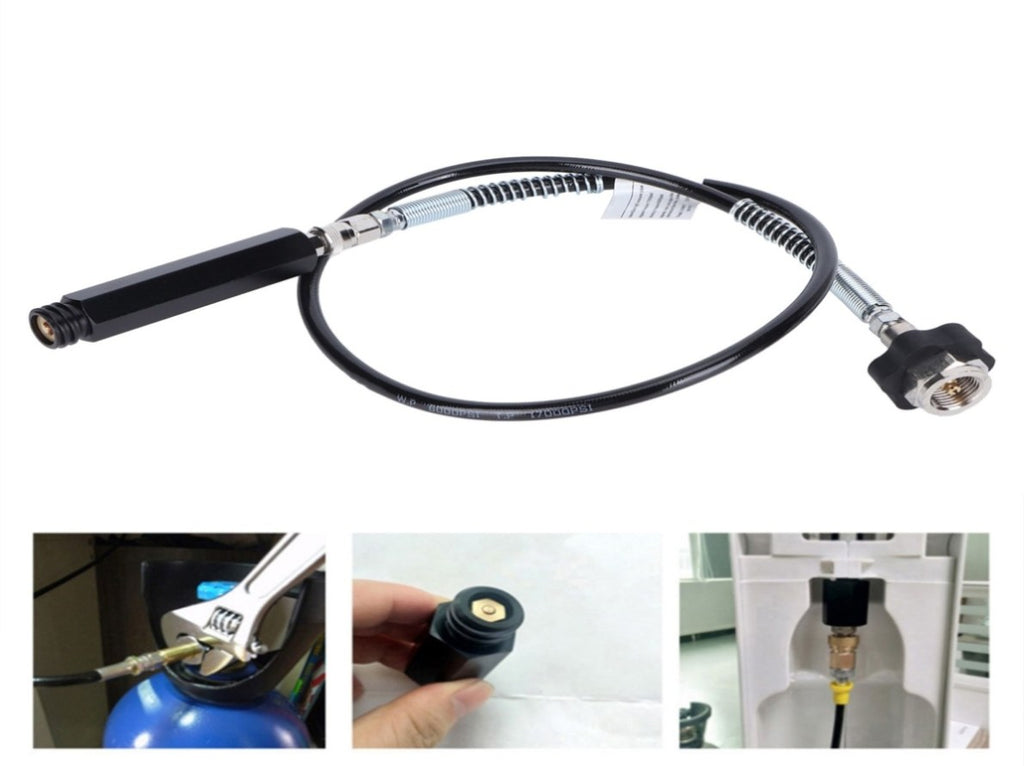

How to Use:
1. Screw the pin valve into the machine.
2. Screw the nut onto the carbon dioxide cylinder and tighten it with a wrench.
3. Connect the quick connector.
4. Open the valve of the large atmosphere bottle.
5. After completion, it can be used.
If You Want To Unscrew Items From The Machine:
1. Close the atmospheric cylinder valve.
2. Press the button of the machine to discharge the remaining carbon dioxide (if you don't disconnect the connector according to this guide, the o-ring of the quick connector will blow off).
3. Disconnect the quick connector.
4. Unscrew the pin valve on the machine and unscrew the nut on the CO2 cylinder.

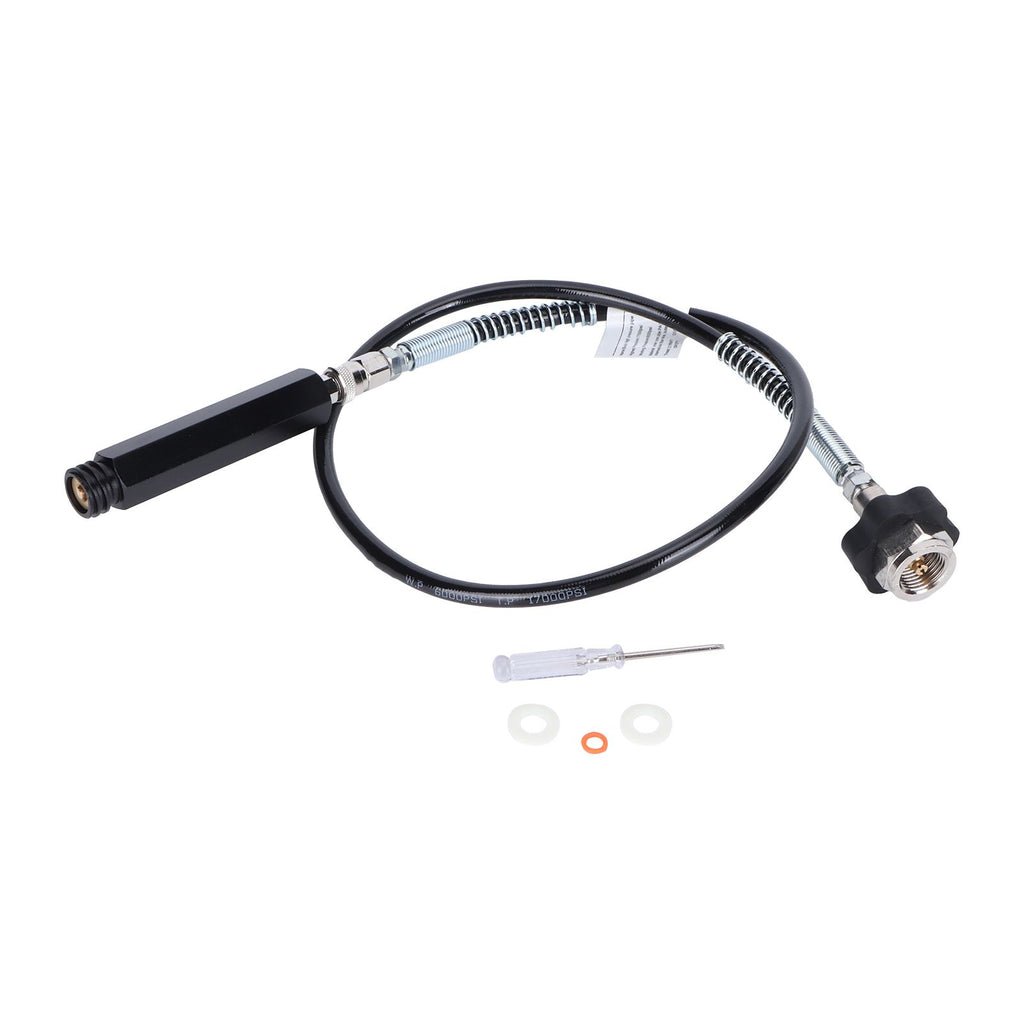

Package List
1 x Soda Hose Adapter
1 x Manual
2 x Gasket
1 x Washer
1 x Screwdriver
Note
1. This item is only applicable to gaseous carbon dioxide, not liquid carbon dioxide. It can't use siphon carbon dioxide tank!!
2. Please do not quickly disconnect under pressure. The o‑ring will be blown off if you disconnect it quickly. It is recommended to discharge the remaining pressure on the machine.
3. Please allow 0‑2 cm error due to manual measurement. Thanks for your understanding.
4. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
