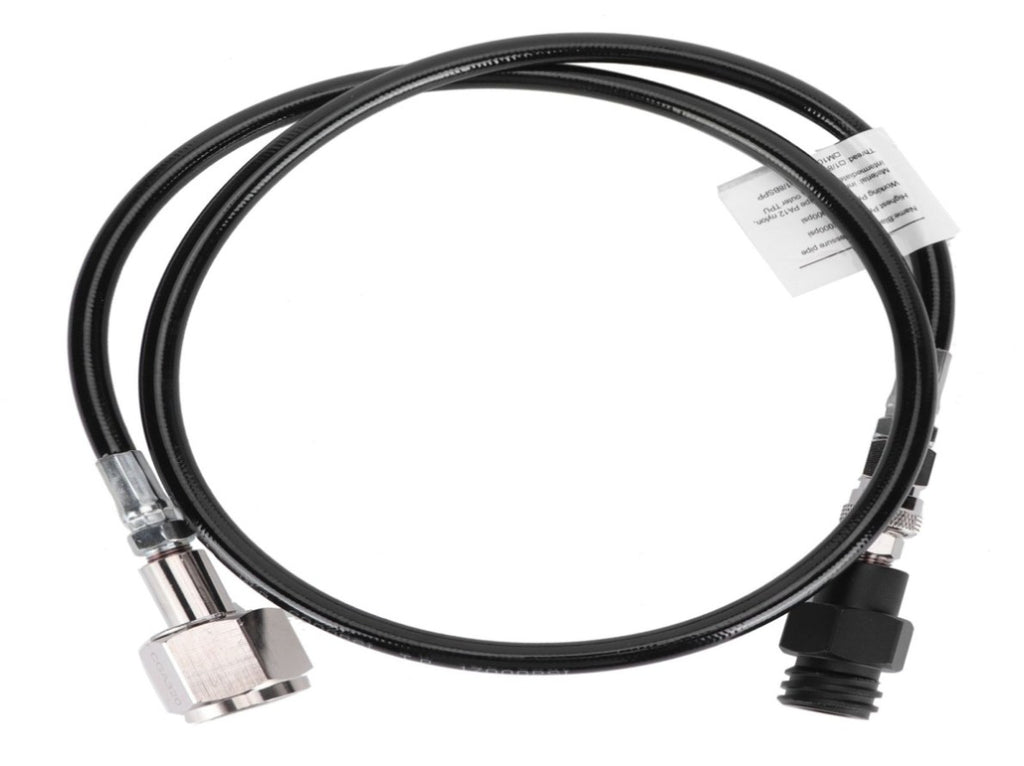

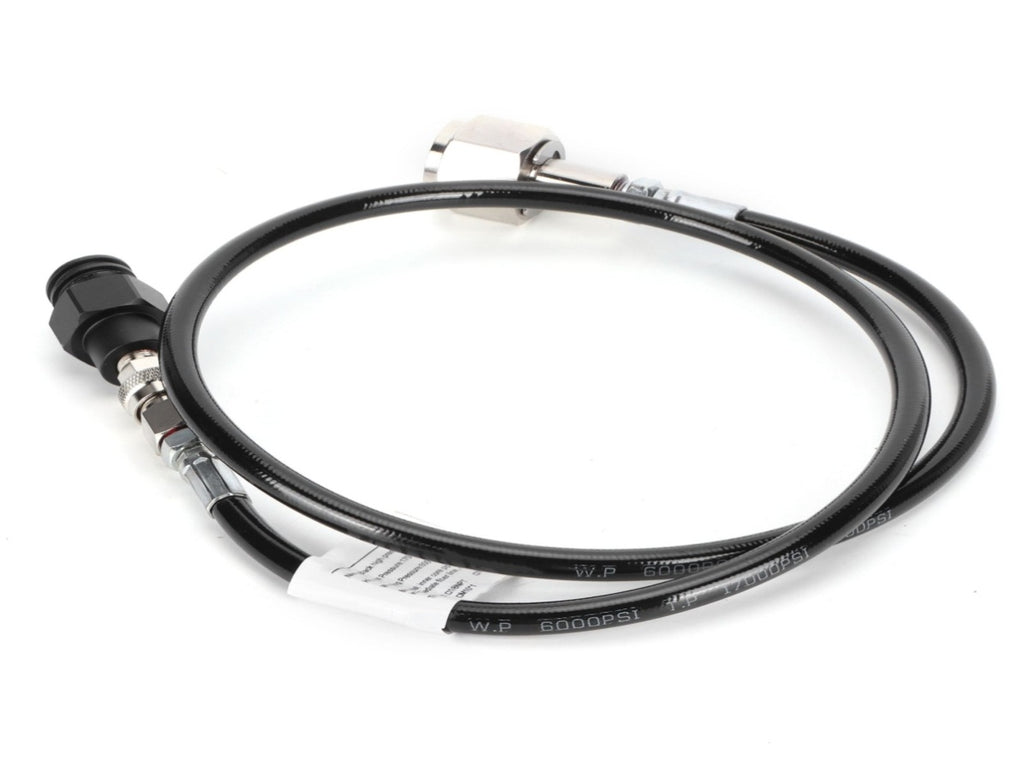

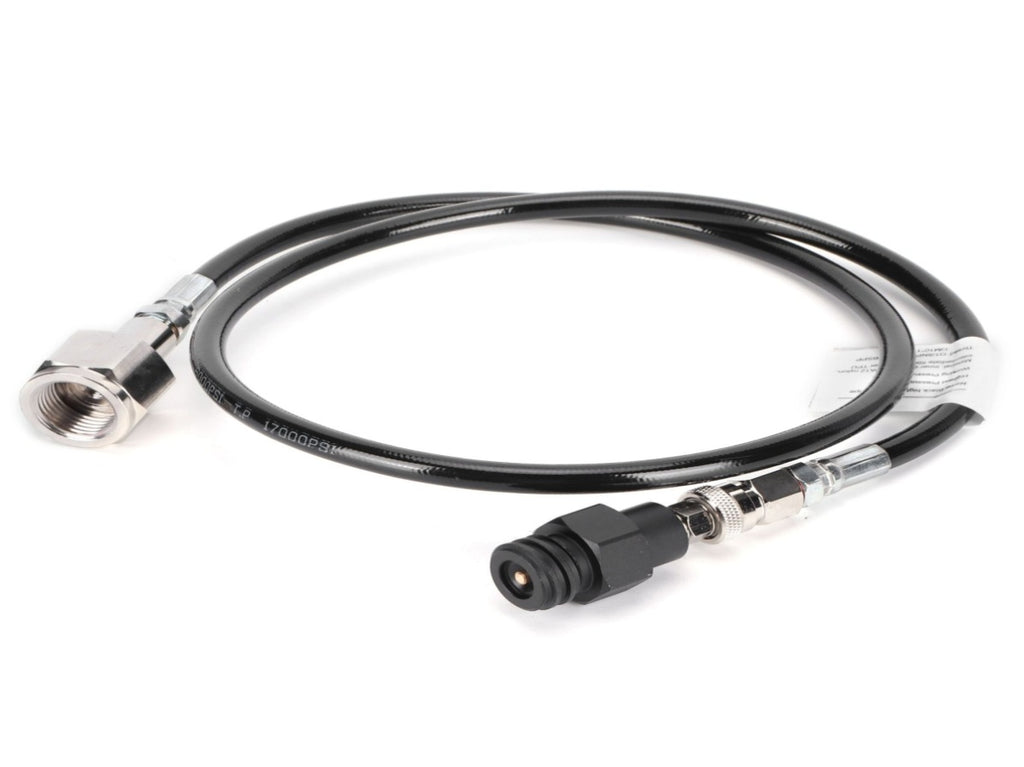

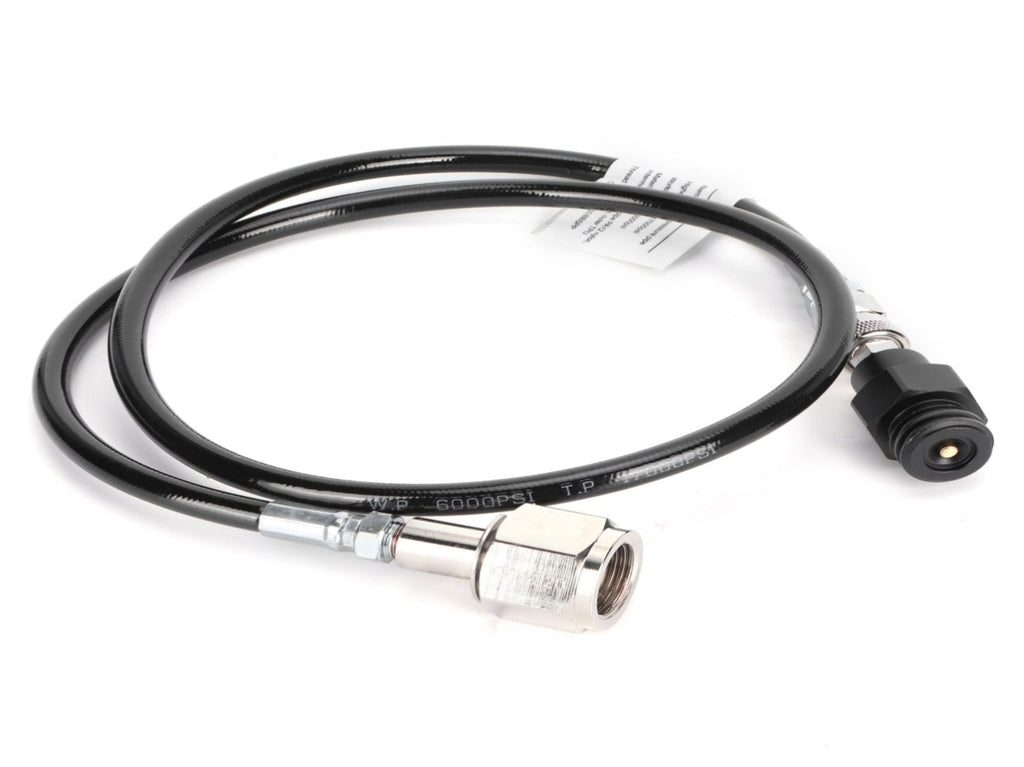

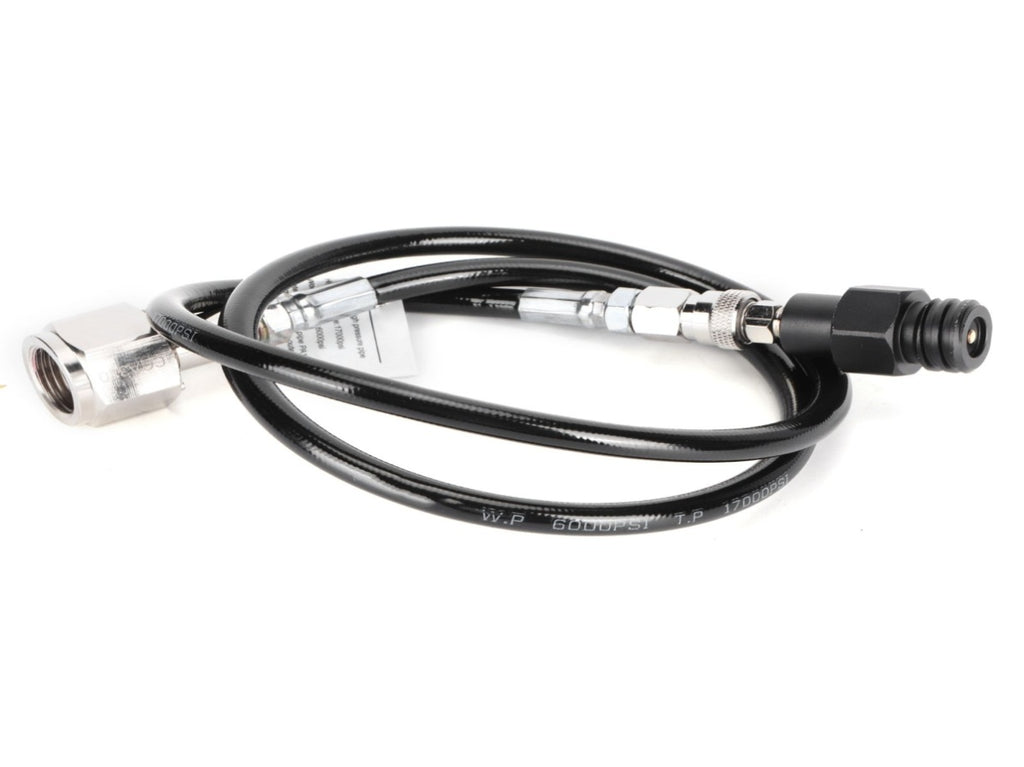

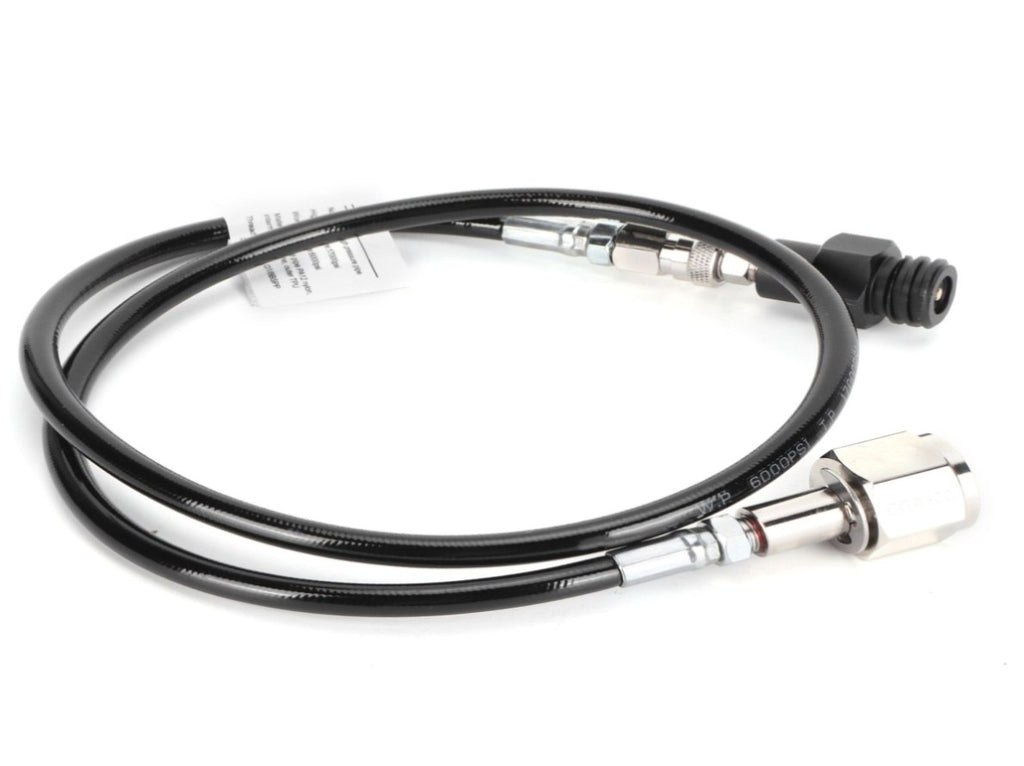

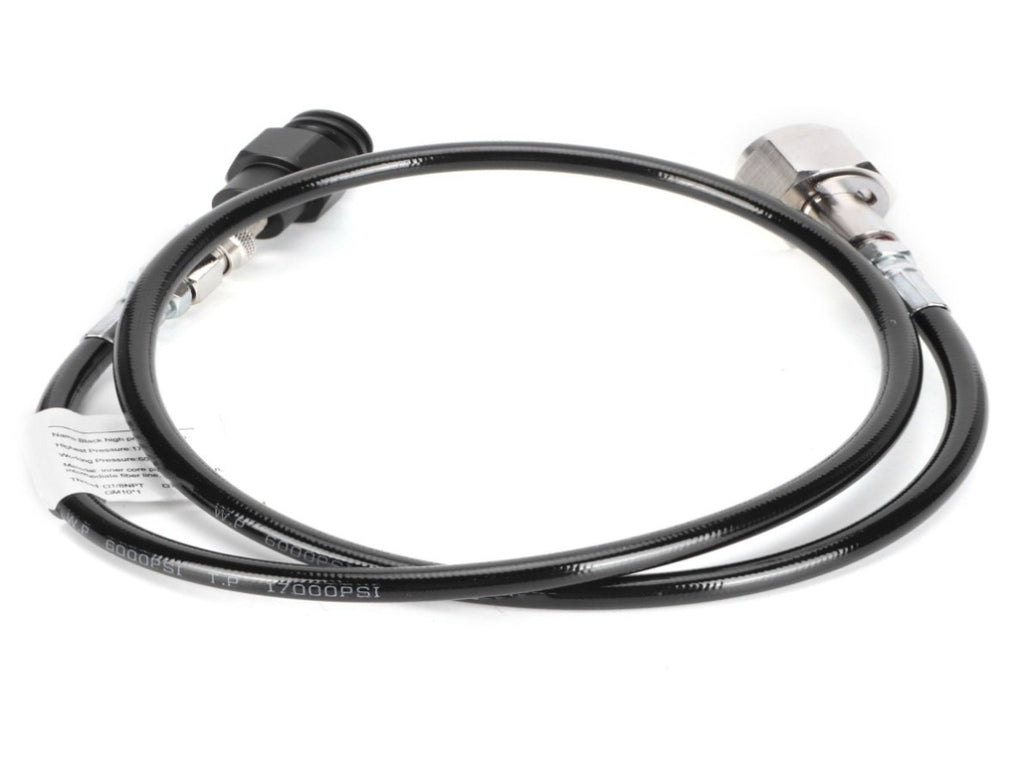

CGA320 Hose Adapter for Soda Machine Carbon Dioxide Gas Cylinder Refill Adapter Connector V1294-YM0901-3113210019911

1、It has good sealing performance, no air leakage when connected with the cylinder, and it is more convenient to use. 2、With exquisite workmanship, excellent performance and stable performance, it is a very practical accessory. 3、The installation method is simple and practical, and the old or damaged parts can be replaced directly. 4、Using high‑quality stainless steel + aluminum alloy materials, no rust, no corrosion, durable. 5、Applicable countries are the United States, Canada, Brazil, Colombia, and the Philippines.
Specification
Item Type: Soda Hose
Material: Stainless Steel + Aluminum Alloy
Color: Black
Length: Approx.1m/3.3ft
Weight: Approx.285g/10.1oz
Test Pressure (TP): 17000psi
Working Pressure (WP): 6000psi
Interface Diameter: 20.8mm/0.82in
Thread Interface: CGA320 // TR21-4
Applicable Countries: the United States, Canada, Brazil, Colombia, the Philippines... (some countries are also called G1/2-14/0.825-14NGO)

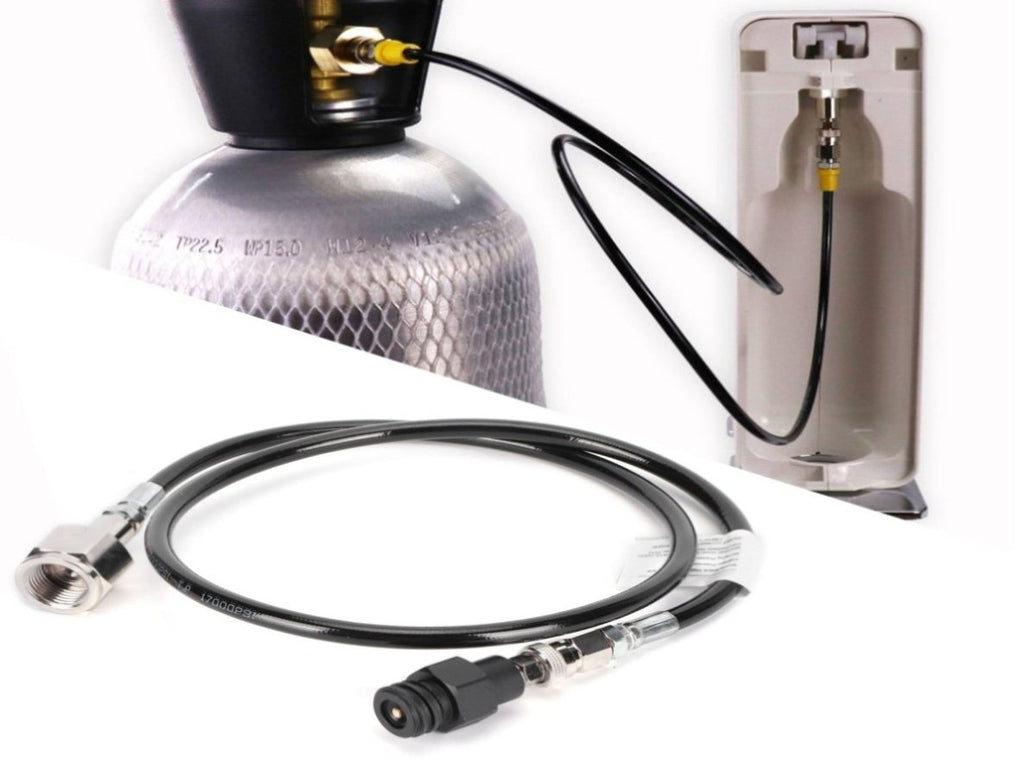

How to Use:
1. Screw the pin valve into the Soda machine
2. Screw the nut onto the carbon dioxide cylinder and tighten it with a wrench
3. Connect the quick connector
4. Open the valve of the gas cylinder
5. After completion, you can use the Soda machine.
If you want to unscrew items from the machine:
1. Close the atmospheric cylinder valve
2. Press the button of the Soda machine to discharge the remaining carbon dioxide (if you do not disconnect the connector according to this guide, the o-ring of the quick connector will blow off)
3. Disconnect the quick connector
4. Unscrew the pin valve on the Soda machine and unscrew the nut on the CO2 cylinder

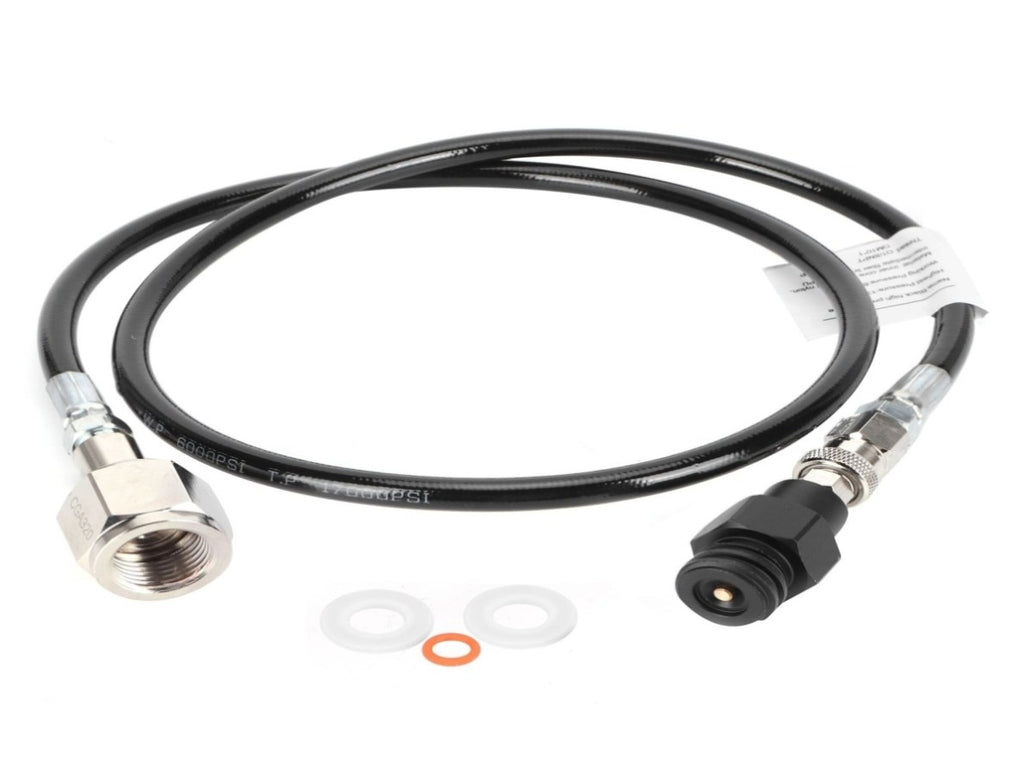

Package List
1 x Soda Hose
1 x Instruction Manual
2 x Spacer
1 x Gasket
Note

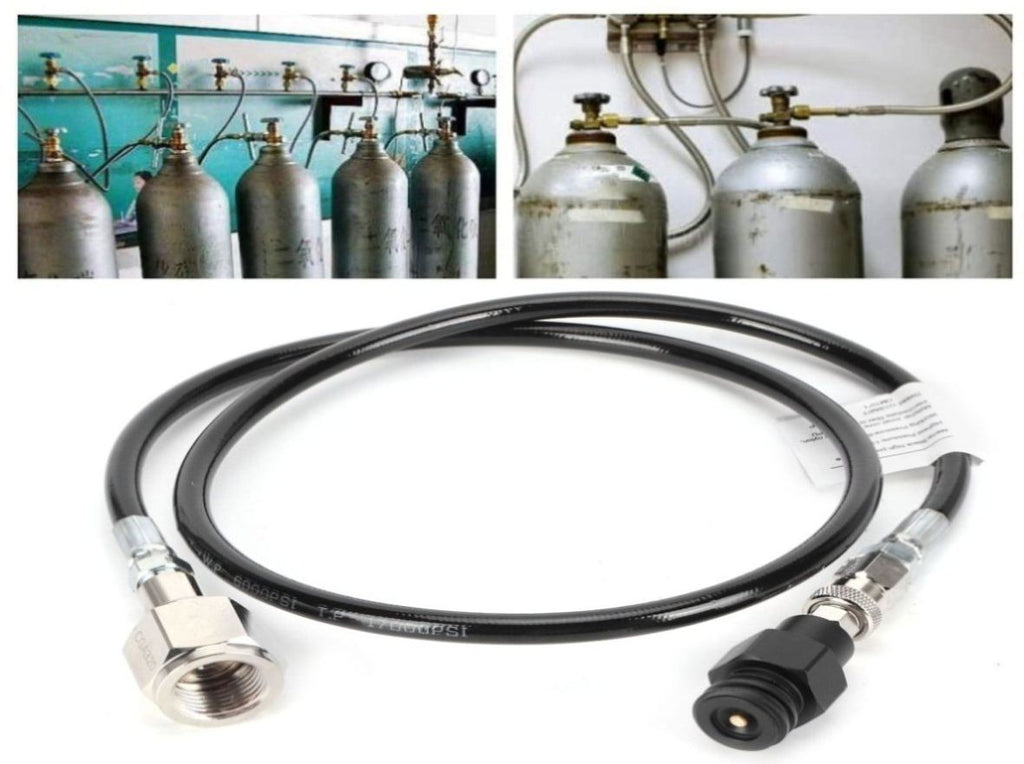

1. The refill adapter can be used to refill a small CO2 cylinder from a larger CO2 cylinder. The refill adapter is American CGA‑320 (G1/2). Make sure that the thread type of the CO2 cylinder is the same.
2. This item only applies to gaseous carbon dioxide, not liquid carbon dioxide. It can't use siphon carbon dioxide tank!!
3. Please do not disconnect the quick disconnect under pressure. The quick disconnect O‑ring will be blown off. It is recommended to discharge the remaining pressure on the Sodas machine.
