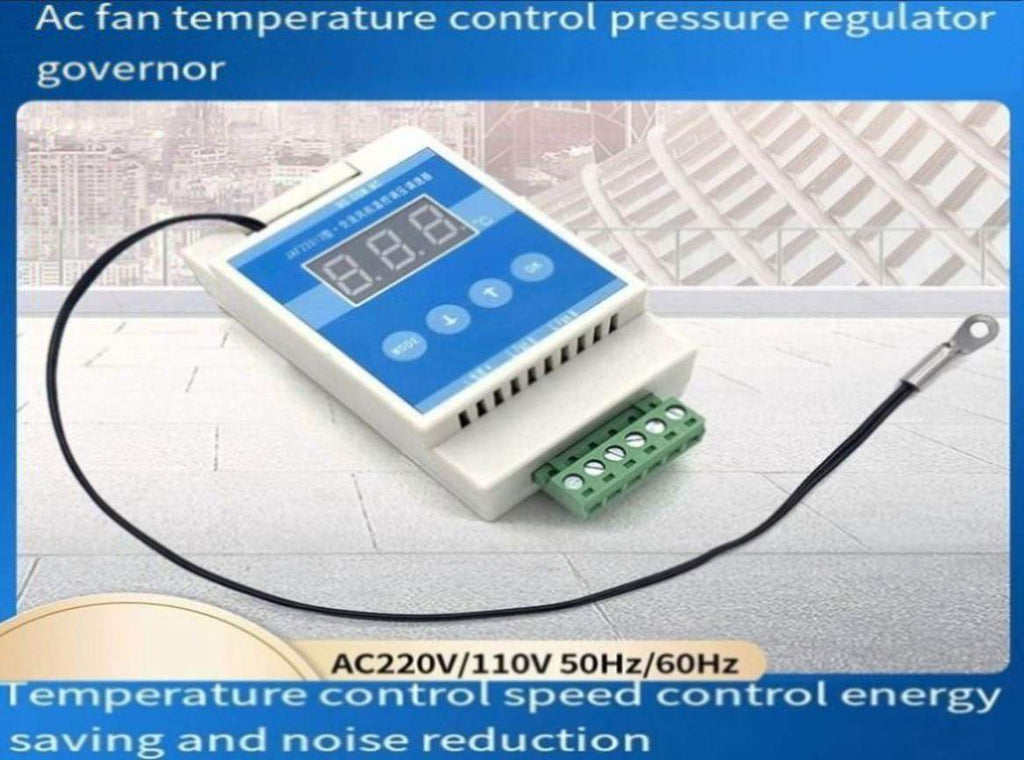

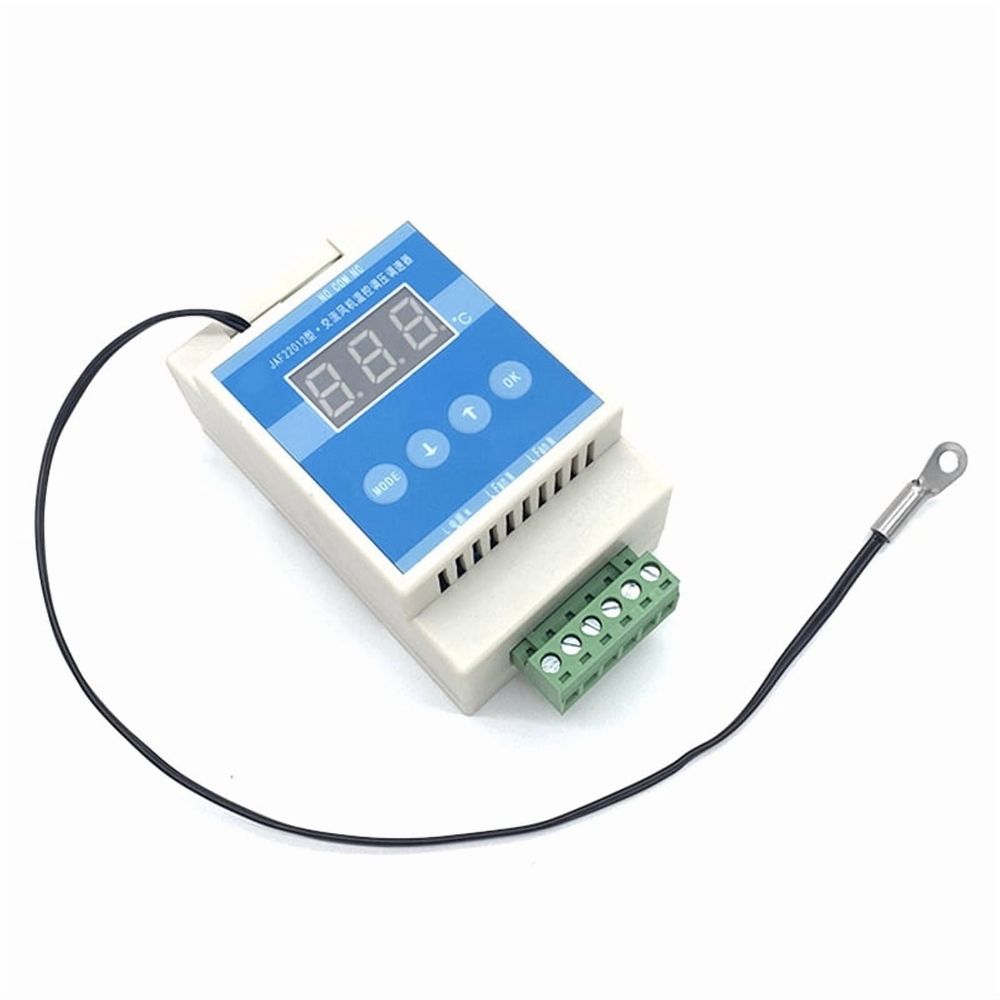

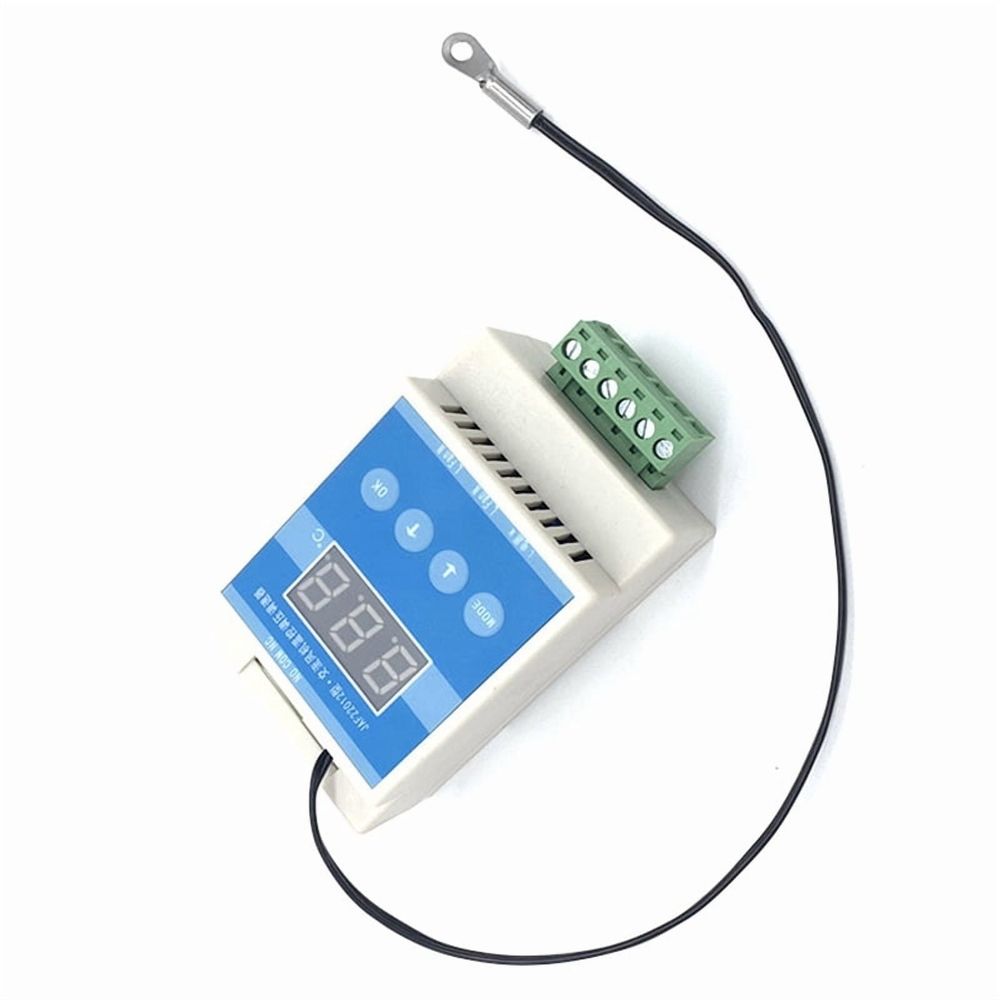

Cabinet Fan Speed Control Automatic Temperature Control AC 220V/110V Fan Motor Water Pump Adjust V1192-AZ-W-20921

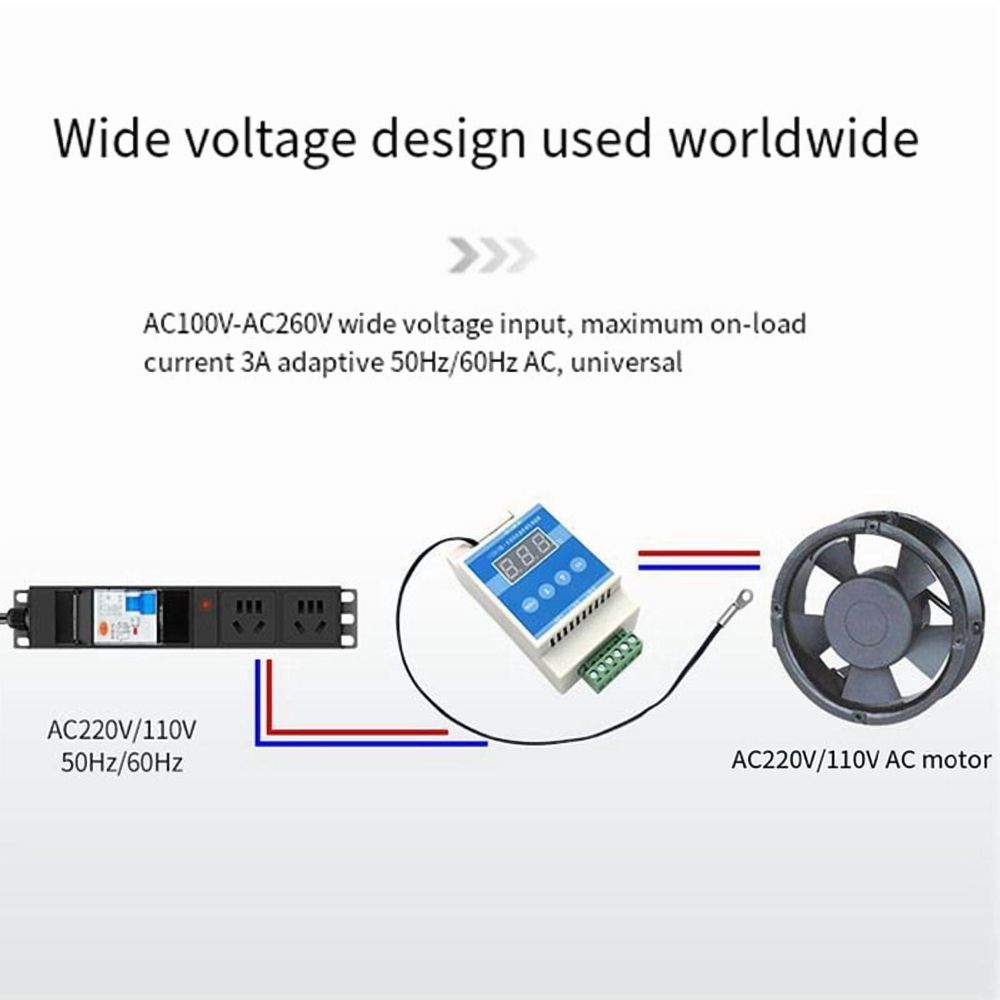

name:Cabinet Fan Speed Control Material: Plastic Color: White + blue Product model: JAF22012 Specifications:for AC 220V/110V 50Hz&60Hz functions and technical parameters of the product: 1. Industrial-grade solution, integrated high-voltage and high-current thyristor chip, stable performance, can be used with confidence in outdoor/industrial scenes 2. Wide voltage design, adaptive 220V / 110V / 50HZ / 60HZ alternating current, maximum drive current 3A 3. With LED digital tube indication, real-time temperature display, with keys, you can easily set various parameters 4. Built-in fuse, RC surge absorption current, power supply short-circuit protection circuit 5. Support two working modes: non-stop fan mode and shutdown mode 6. Comes with a high temperature warning relay output (dry contact), when the temperature exceeds the set high temperature threshold, the relay be closed 7. The temperature measurement range is -9~99°C, and the temperature control accuracy is ±1°C 8. Guide rail installation, suitable for use in various outdoor cabinets Package Contents: 1 x Temperature control governor Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

This governor is suitable for AC 220V/110V 50Hz&60Hz fan motors. The governor can control the voltage of the fan according to the monitored temperature, so as to realize the speed control of the fan/motor When the temperature is lower than the set starting temperature value, the governor controls the fan to stop or maintain a low speed When the temperature is higher than the set full speed temperature, the fan runs at full speed, When the temperature is between the -up temperature and the full-speed temperature, the fan speed increases as the temperature increases, and slows down as the temperature decreases, so as to achieve the purpose of intelligent temperature control, saving, noise reduction and emission reduction. Cabinet Fan Speed Control
