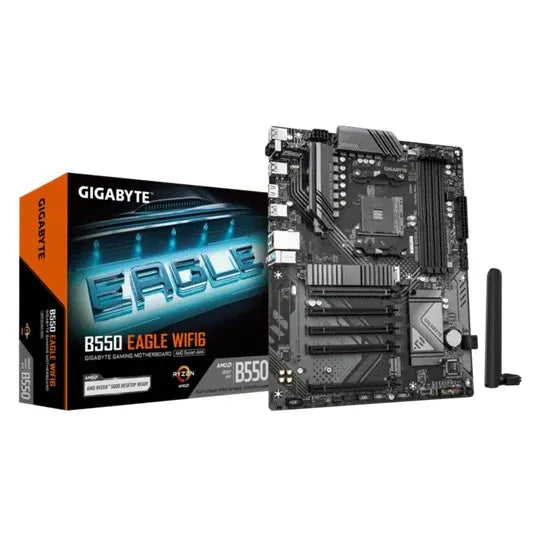

B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support, Ryzen 30005000 CPUs, DDR4 up to 128GB, PCIe V1202-V2-MBG-B550EAGLEWIFI6
B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support, Ryzen 3000–5000 CPUs, DDR4 up to 128GB, PCIe 4.0, dual M.2, Wi-Fi 6, Bluetooth 5.3, HDMI 2.1
High-performance ATX motherboard powered by the AMD B550 chipset, designed for AMD Ryzen™ processors and modern connectivity.
Key Features:
AMD B550, ATX
•
Socket / CPU Support: AM4
•Ryzen 3000, 3000G, 4000G, 5000, 5000G
•
Chipset: AMD B550
•
Memory:
•
4× DDR4 DIMM, up to 128 GB
•
Dual-channel, 2133–3200 MT/s
•
XMP support, ECC & Non-ECC (unbuffered)
•Integrated Graphics:
•
AMD Radeon Graphics (CPU-dependent)
•
1× HDMI 2.1, up to 4K@60Hz
•Max shared memory: 16 GB
•Expansion Slots:
•1× PCIe x16
•PCIe 4.0 (Ryzen 3000/5000)
•PCIe 3.0 (G-Series)
•4× PCIe 3.0 x1
•
Storage:
•
2× M.2 (PCIe 4.0/3.0, CPU-dependent)
•
4× SATA 6Gb/s
•
RAID 0 / 1 / 10 (NVMe & SATA)
•Networking:
•Realtek Gigabit LAN
•Wi-Fi 6, Bluetooth 5.3
•Audio:
•
Realtek HD Audio, up to 7.1-channel
•
USB:
•USB-C (rear & header)
•USB 3.2 Gen 2 / Gen 1
•USB 2.0
•
Internal Headers:
•
24-pin ATX, 8-pin CPU power
•
CPU fan + pump header, 3× system fan
•RGB & ARGB headers
•
TPM header, Clear CMOS jumper
•Back Panel I/O:
•HDMI
•USB-C, USB 3.2, USB 2.0
•RJ-45 LAN
•
Audio jacks
•Q-Flash Plus button
•BIOS:
•AMI UEFI, 128 Mbit flash
•
Q-Flash & Q-Flash Plus
•OS Support: Windows 10 / 11 (64-bit)
•
Form Factor: ATX – 30.5 × 24.4 cm
Brand: Gigabyte
Manufacturer Part Number: B550 EAGLE WIFI6
Barcode: 4719331868406
Warranty: 36 months
Weight: 0.84kg
