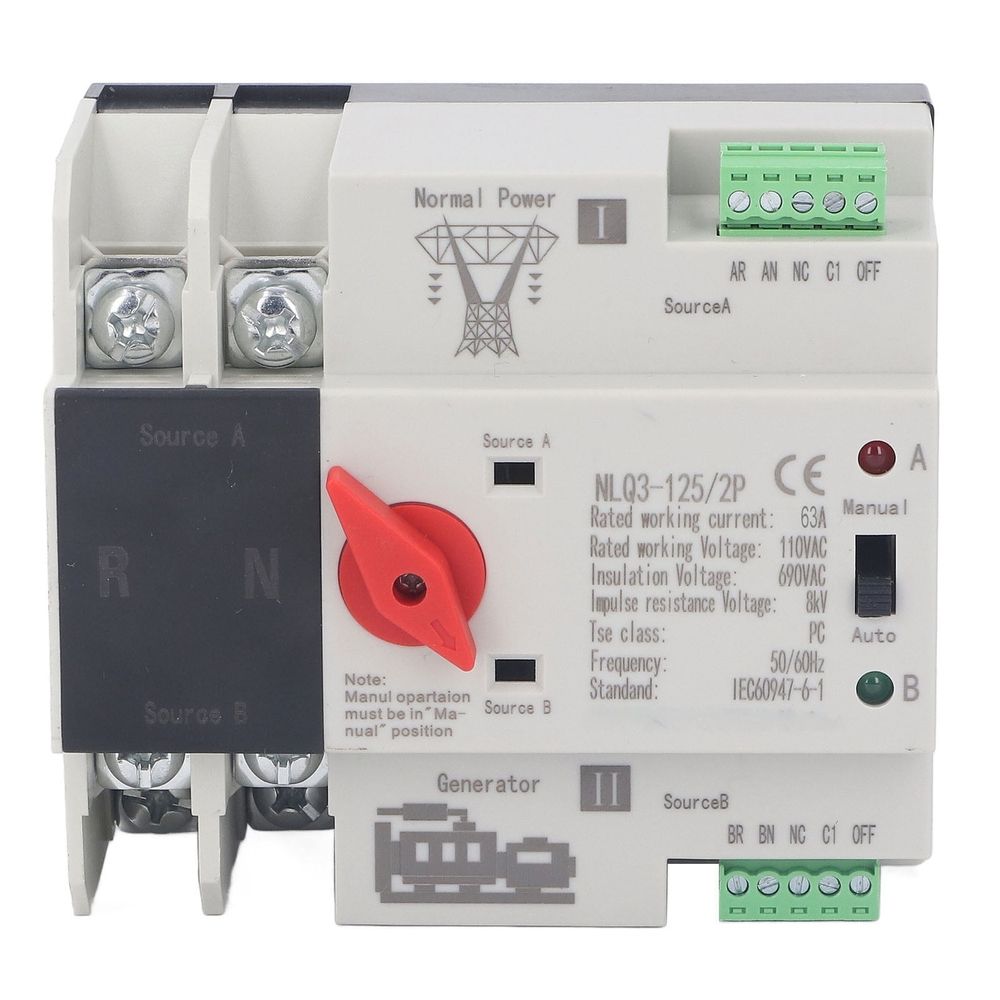

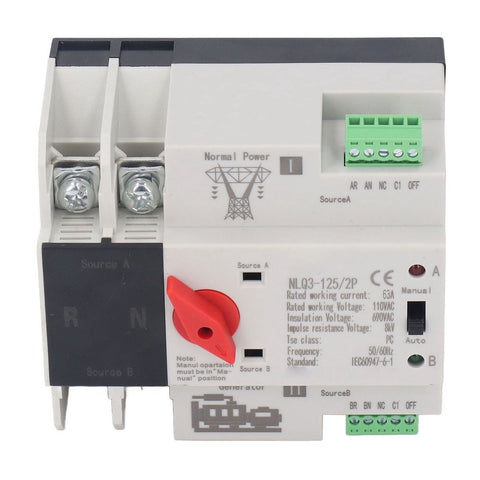

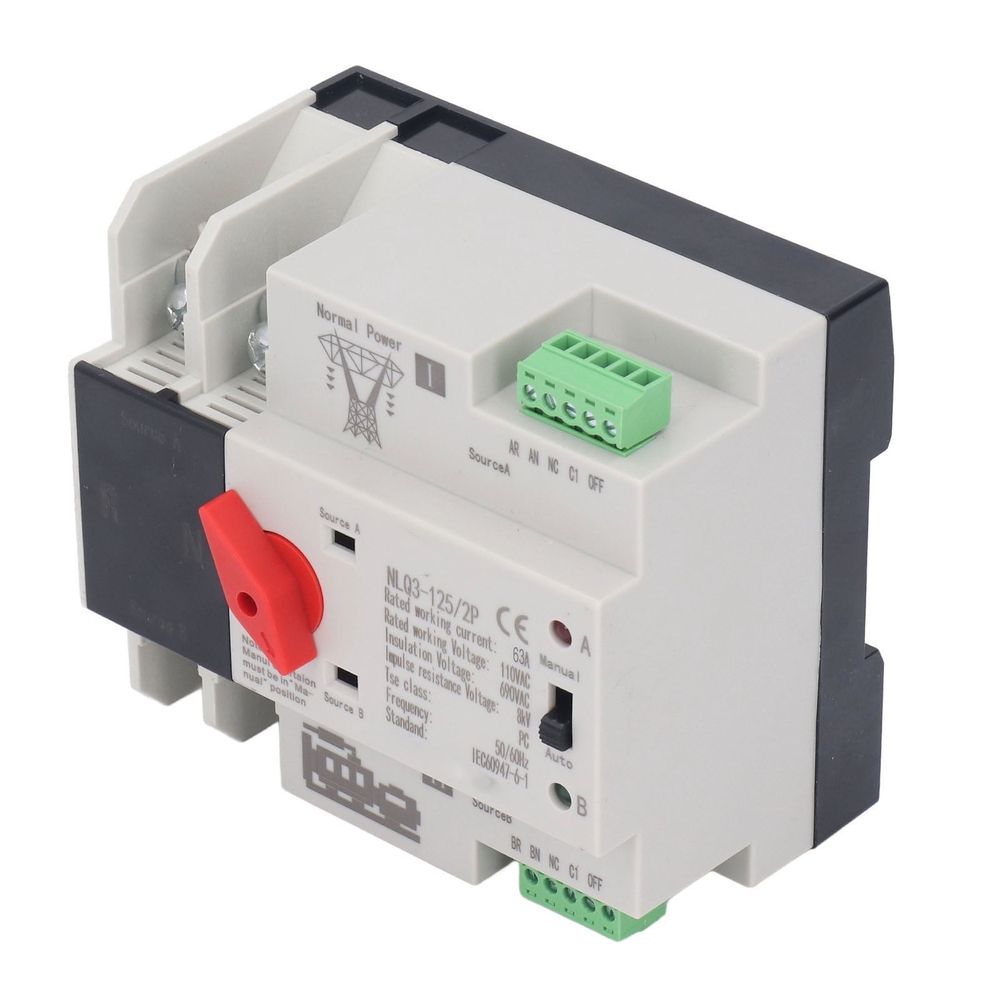

Automatic Transfer Transfer Changeover Switch, PC Grade 2P Dual Power Automatic Transfer Switch for V1366-AZ2-W-19101

Transfer Changeover , PC Grade 2P Dual Power Automatic Transfer for FactorySpecification:Item Type: Double Power Automatic Transfer Material: PC, Silver Rated Current Le: 63A Insulation Voltage Ui: AC690V Rated Voltage Ue: AC110V Frequency: 50 60HZ Rated Control Voltage US: 110VAC 85%Us-110%Us Grade: PC Grade Specification: 2P Life Span: Electrical: 2000 Times Mechanical: 5000 Times Rated Short Circuit Current: 50kA : RT16 00 63A Rated Impulse Withstand Voltage: 8kV Auxiliary Circuit: Two Relays, Each Relay Has Two Sets Of Contact Capacity AC110V50HZ Le 5y Touch Time: 1. The maximum surrounding temperature shall not exceed 40 degrees Celsius , the minimum shall not be lower than ‑5 degrees Celsius , and the average temperature within 24 hours shall not be higher than 35 degrees Celsius 2. The altitude of the installation site should not be higher than 2000m 3. When the maximum temperature reaches 40 degrees Celsius , the relative humidity of the installation site should not exceed 50%; when the temperature is the lowest temperature ‑5 degrees Celsius , the relative humidity is higher, for example, the temperature is 25 degrees Celsius , and the relative humidity is 90%. Due to temperature changes, special measures should be taken to deal with the occasional condensation on the of the product "5

2 Methods: Automatic transfer can be operated automatically or manually to ensure the continuity of power supply, compact structure and .Continuous Power Supply: The automatic transfer operates so that when the normal power supply is abnormal, the standby power supply works immediately to ensure the continuity of power supply. When the normal power supply is on, it will automatically back to normal power supply from the backup power supply.Standard 35mm Rail Mount: This automatic transfer is suitable for 50 or 60Hz AC rated 110V 63A emergency power supply system, designed for home rail mounting and dedicated for PZ30 distribution box.Flame Retardant PC Material and Silver Contacts: The dual power automatic transfer is made of flame retardant PC material, which is well insulated and high temperature , and silver contacts, which are anti aging and easy to install and maintain.Widely : The automatic transfer is anti interference, self throwing and self repeating type,
