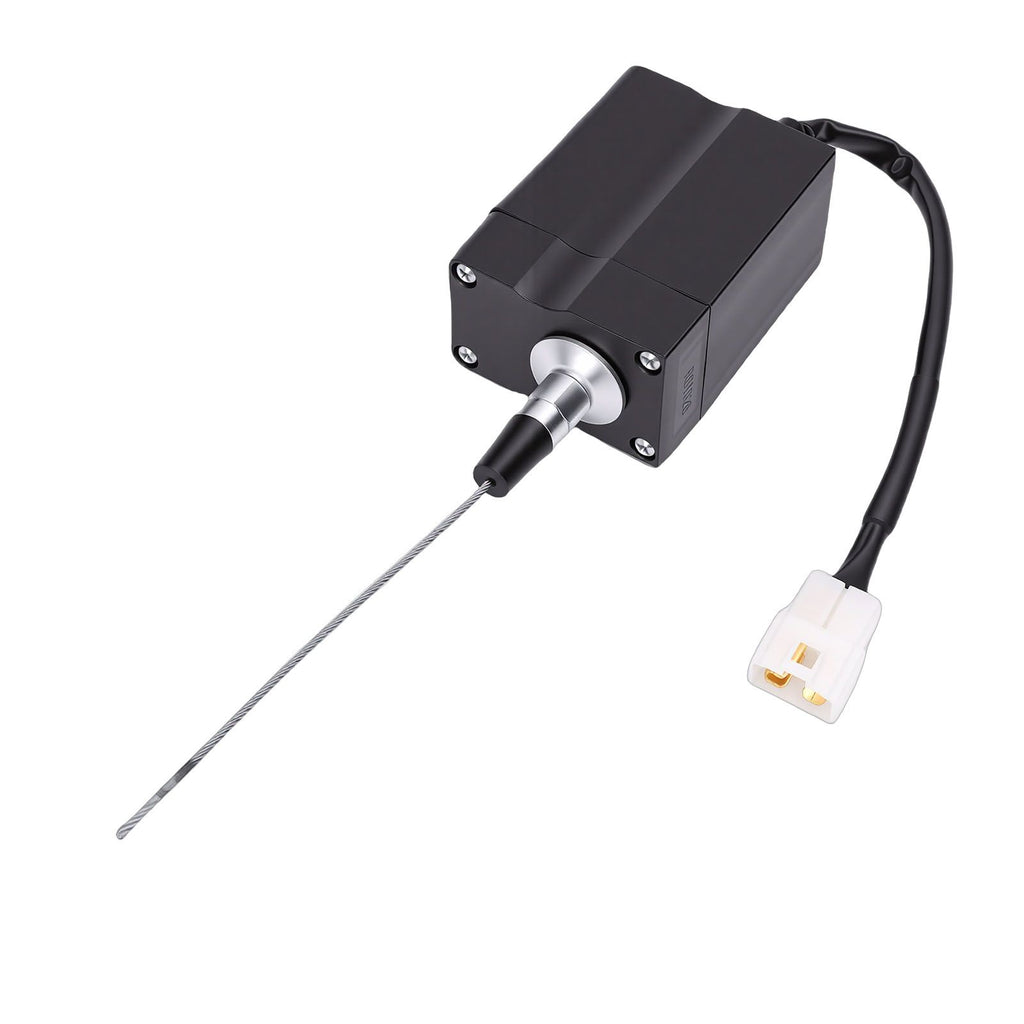

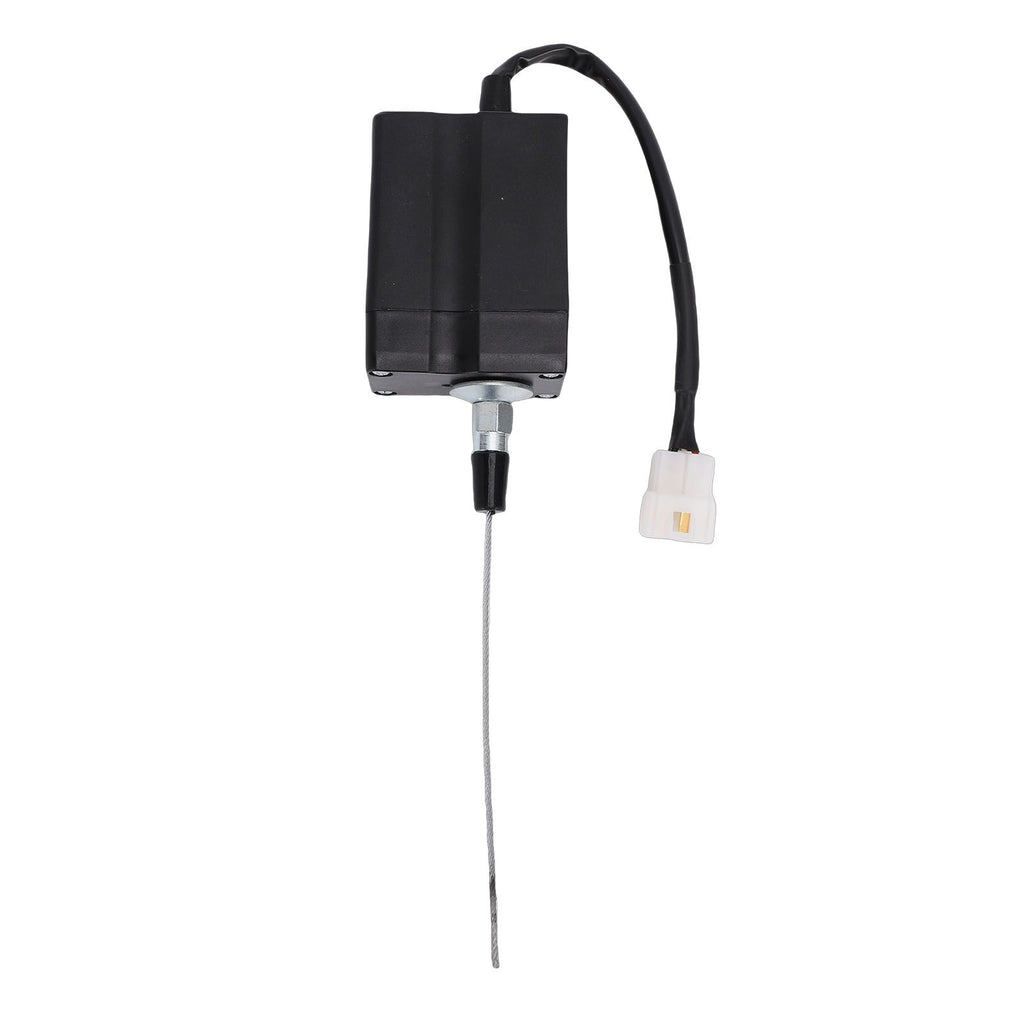

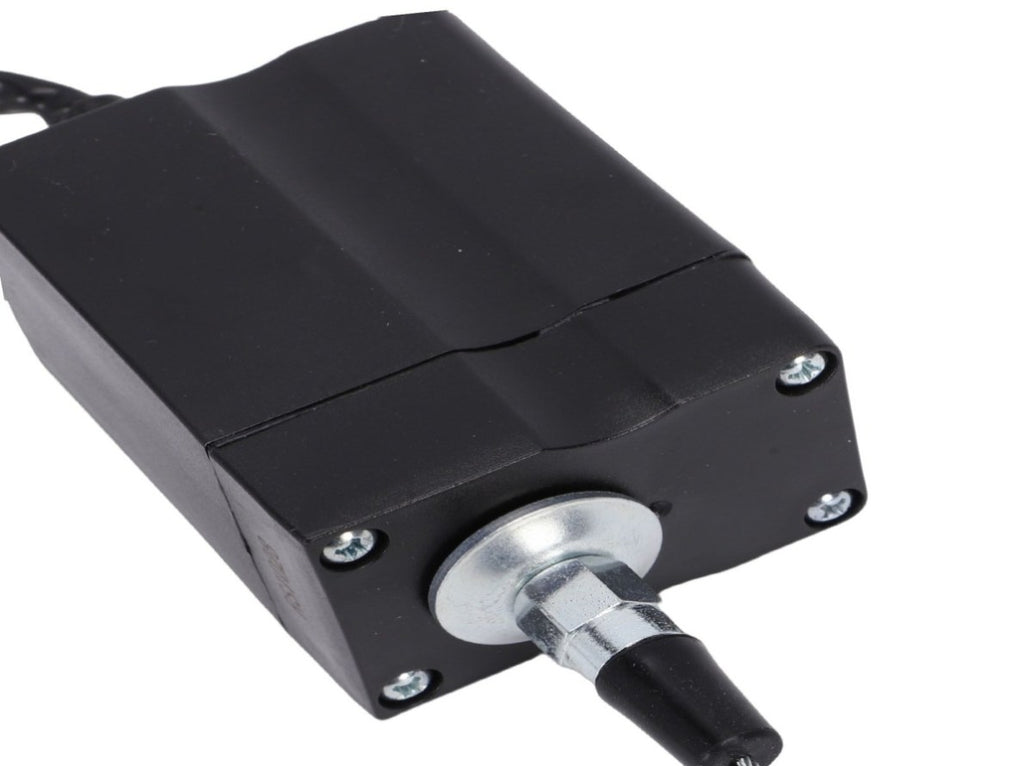

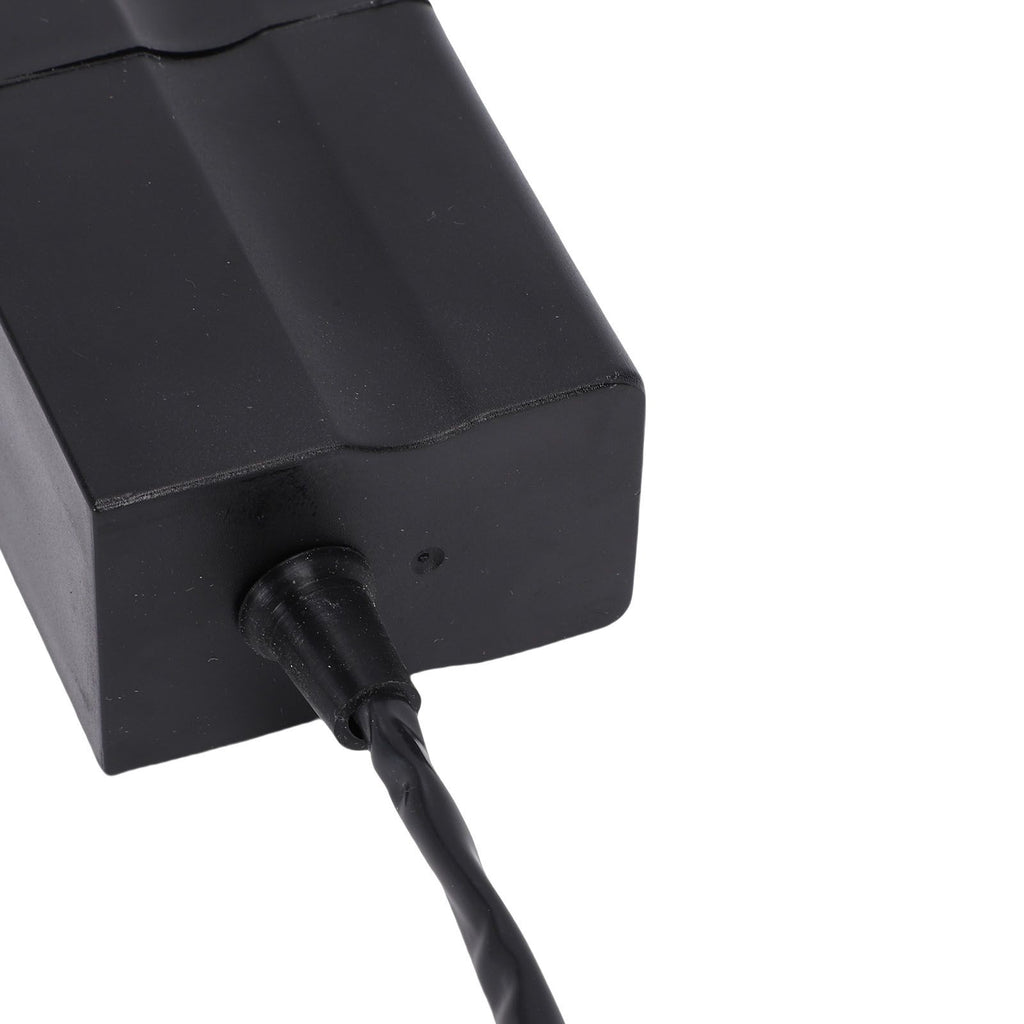

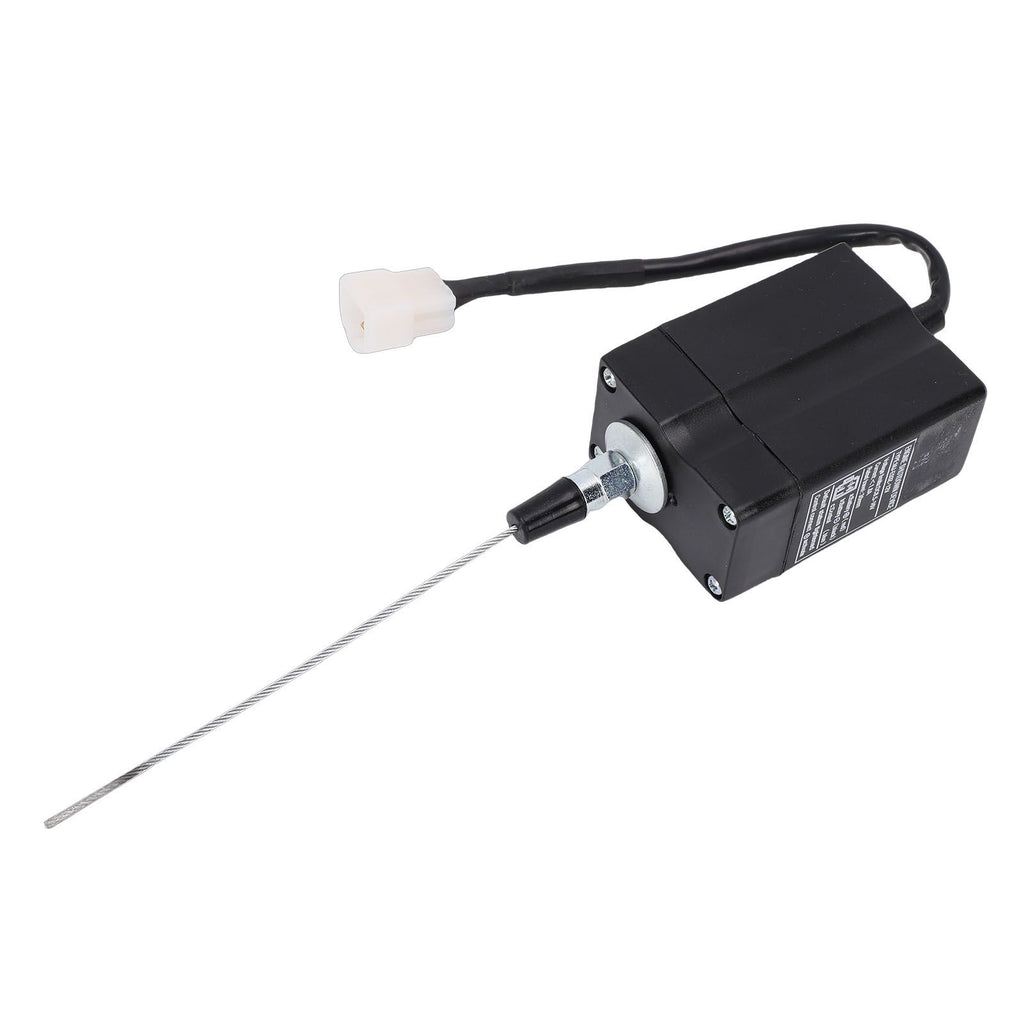

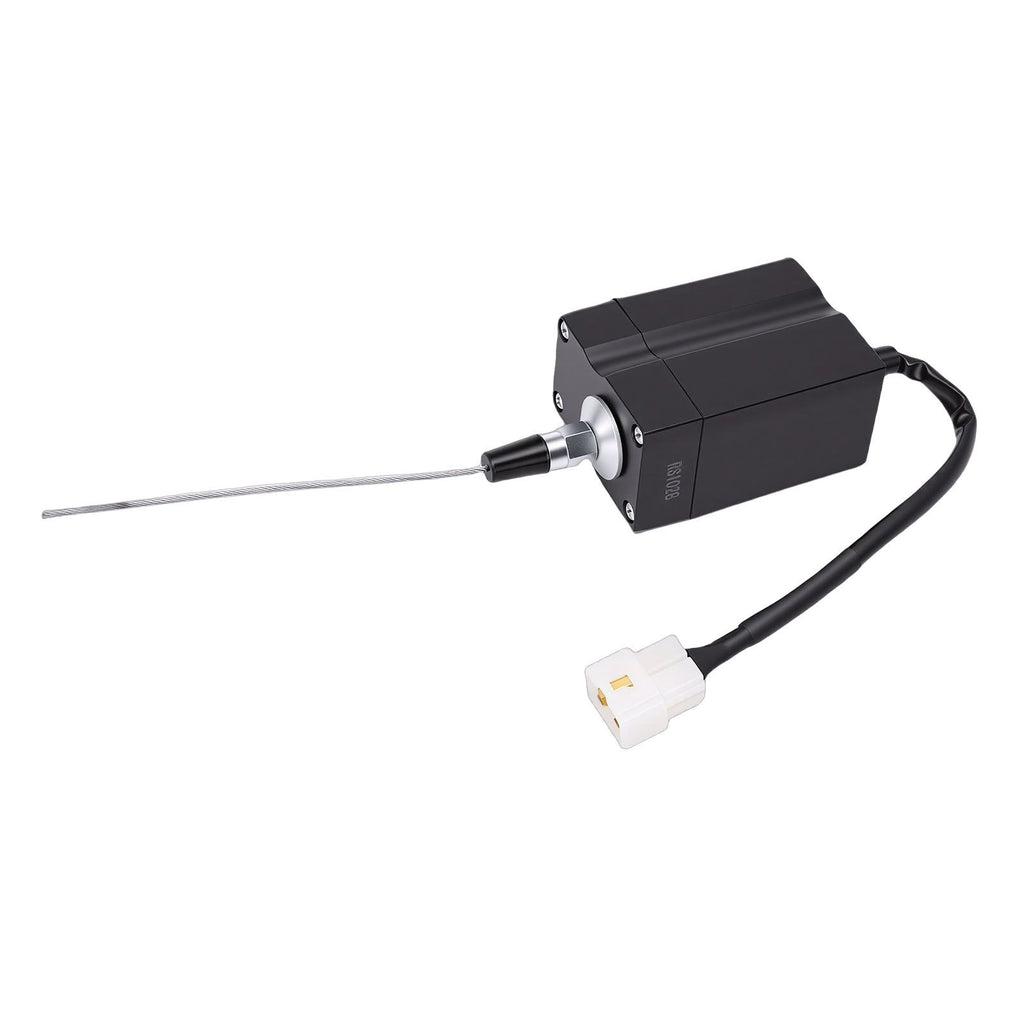

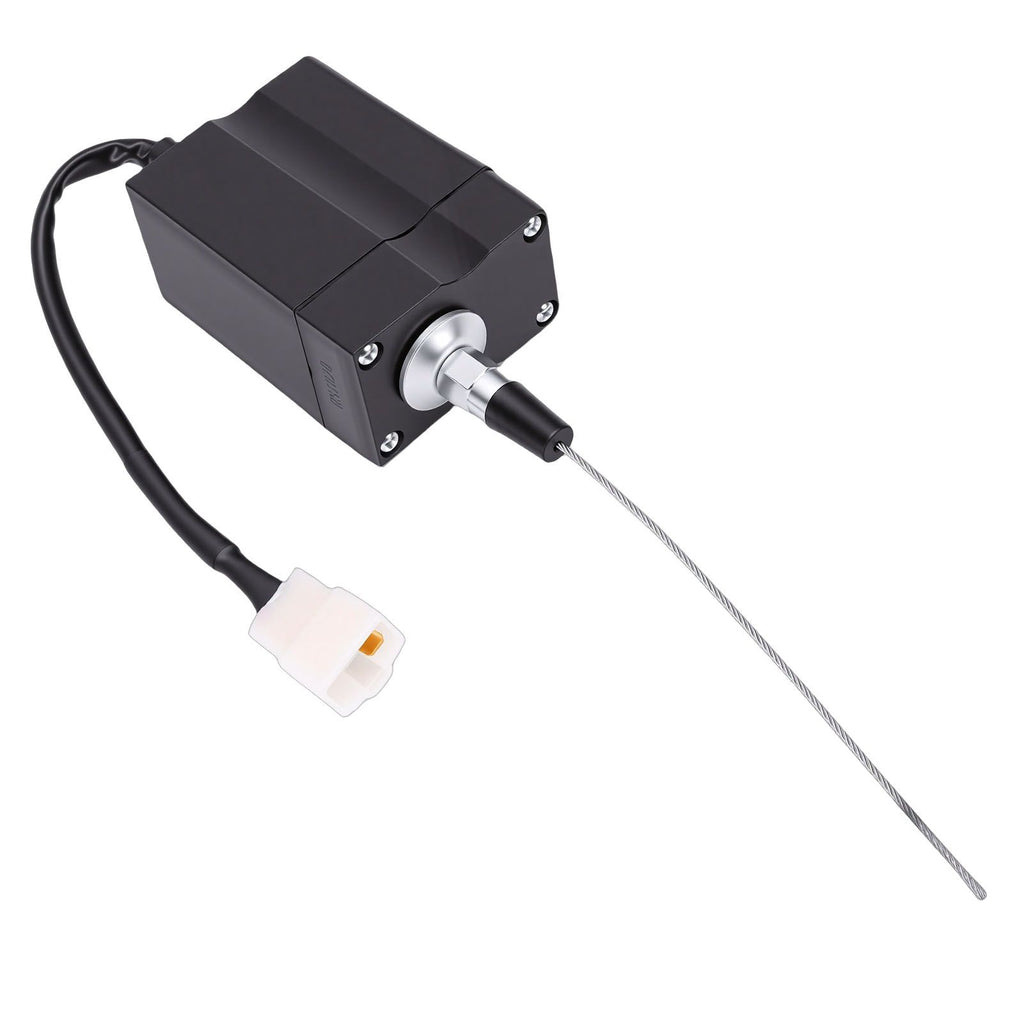

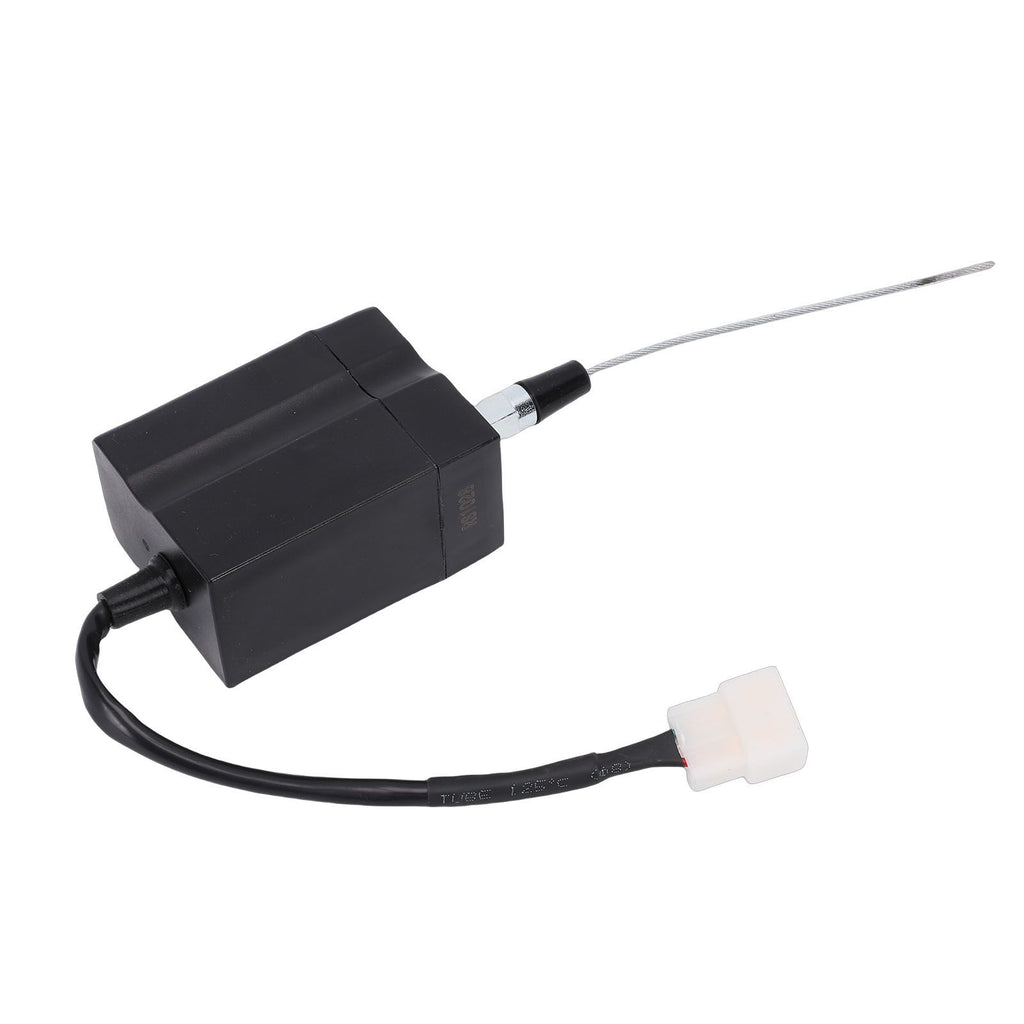

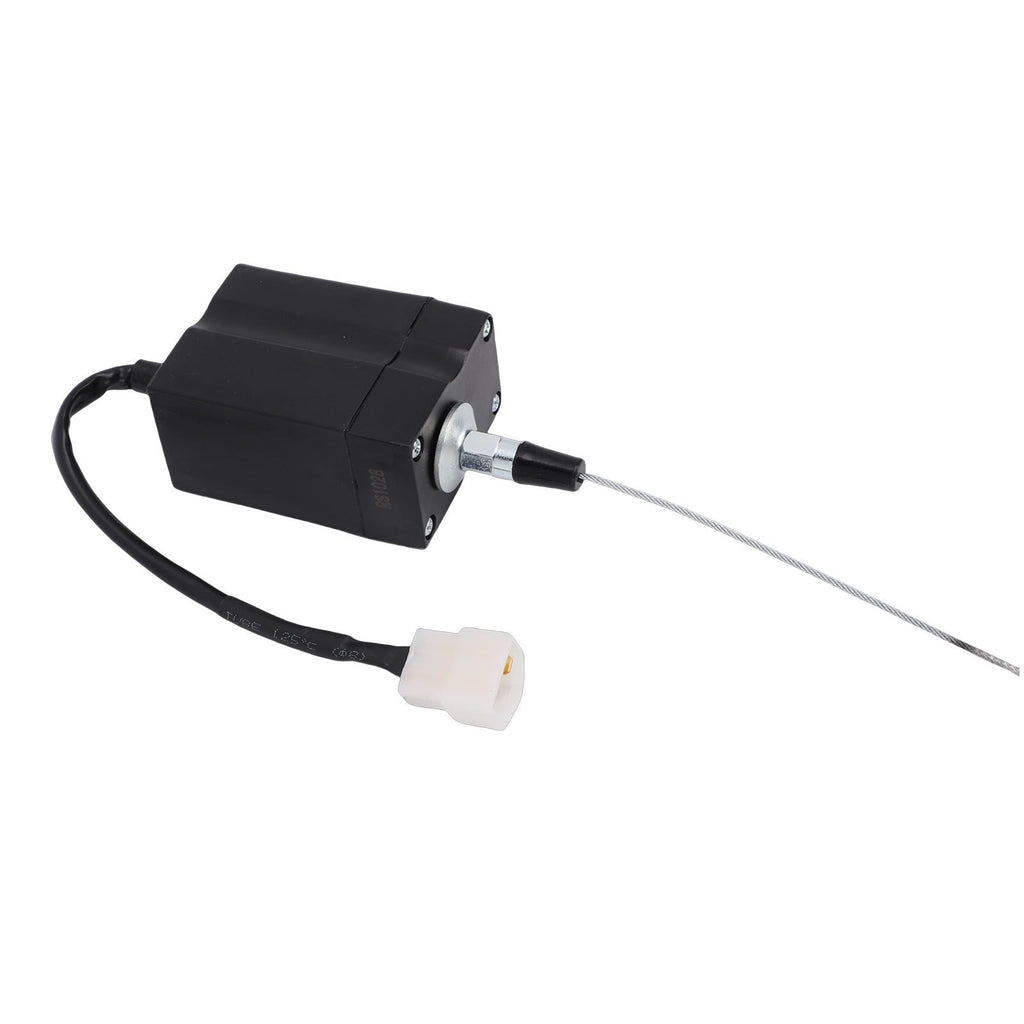

Air Cooled Engine Kill Switch Line Pull Type Fuel Shut Off Solenoid Fast Stop Controller V1294-YM0901-3111260016311

1、Engine Shutoff Controller: Using professional DC motor drive chip, this engine shutoff switch ensures precise and dependable control, making it suitable for more applications 2、Overload Protection: Equipped with overload protection, this engine kill switch protects the system from potential damage caused by excessive current, enhancing durability 3、Stall Protection: This fuel shut off controller features stall protection function, preventing motor burnout by automatically cutting power if the mechanism becomes obstructed 4、Battery Reverse Connection Guard: This engine switch offers reverse battery protection to prevent damage from incorrect battery connections, ensuring long term reliability 5、Fast Stop Switch: The motor current does not pass through the limit switch, with IP56 rating, extending the lifespan of this fuel stop switch, suitable for harsh environments
Specification
Item Type: Engine Kill Switch
Material: Plastic, Iron
Working Current: <1.8A
Maximum Pull Force: ≥8.0Kg
Action Time: 1.5s
Working Stroke: Approx. 29±2mm / 1.14±0.08in
Ambient Temperature: -40°C-105°C
Service Life: ≥50000 times
The steel wire rope is in a tightened state when leaving the factory
Weight: Approx. 309g / 10.9oz
Package List
1 x Engine Kill Switch
