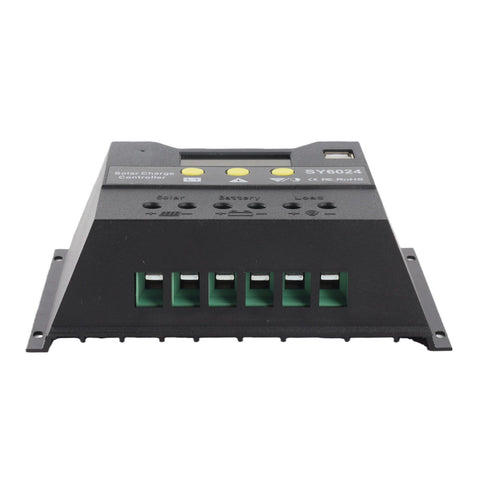

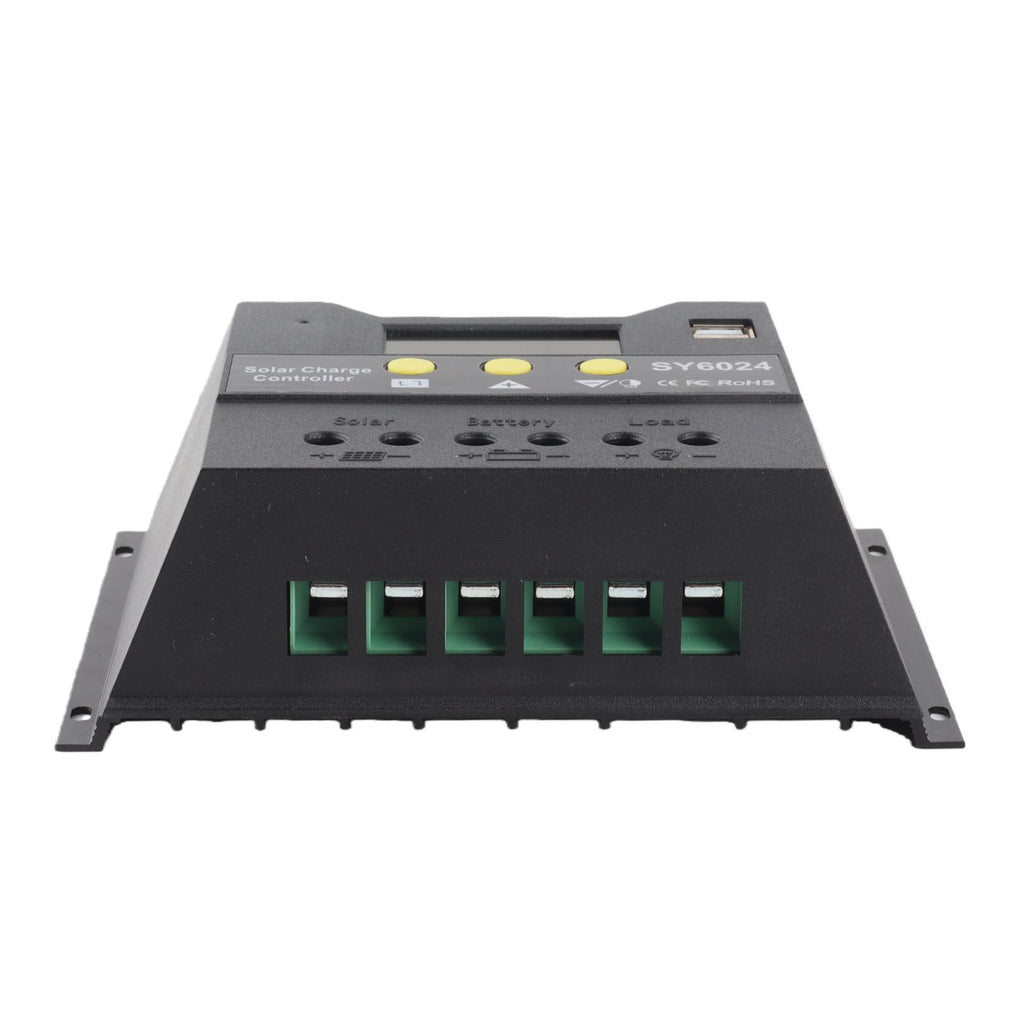

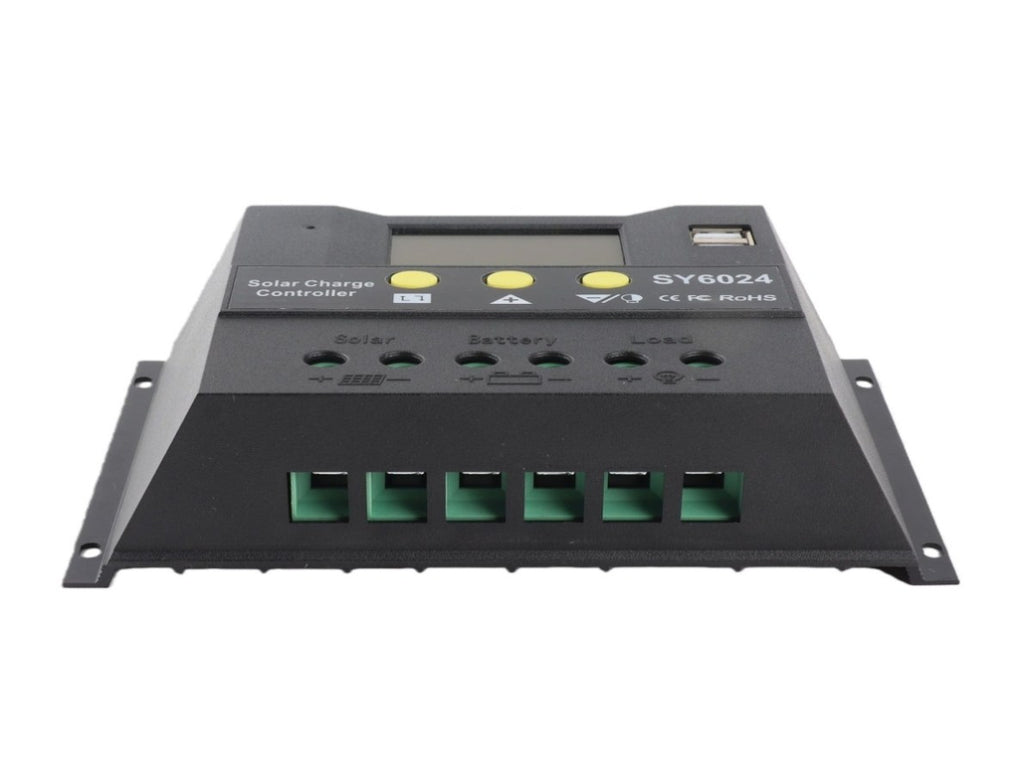

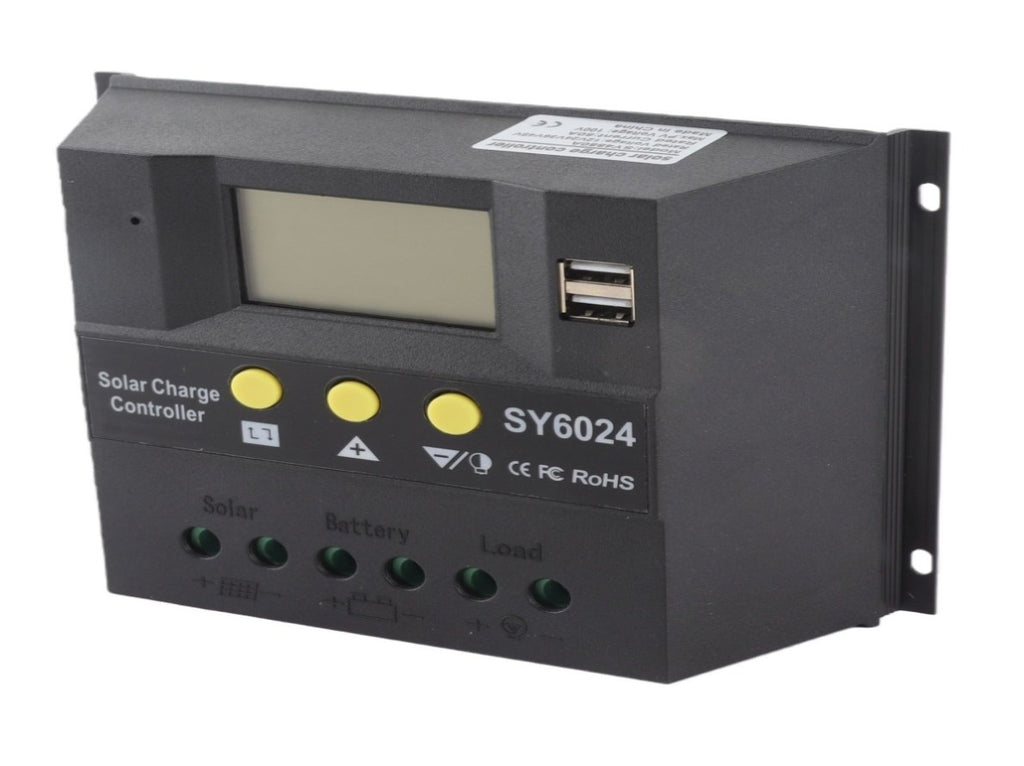

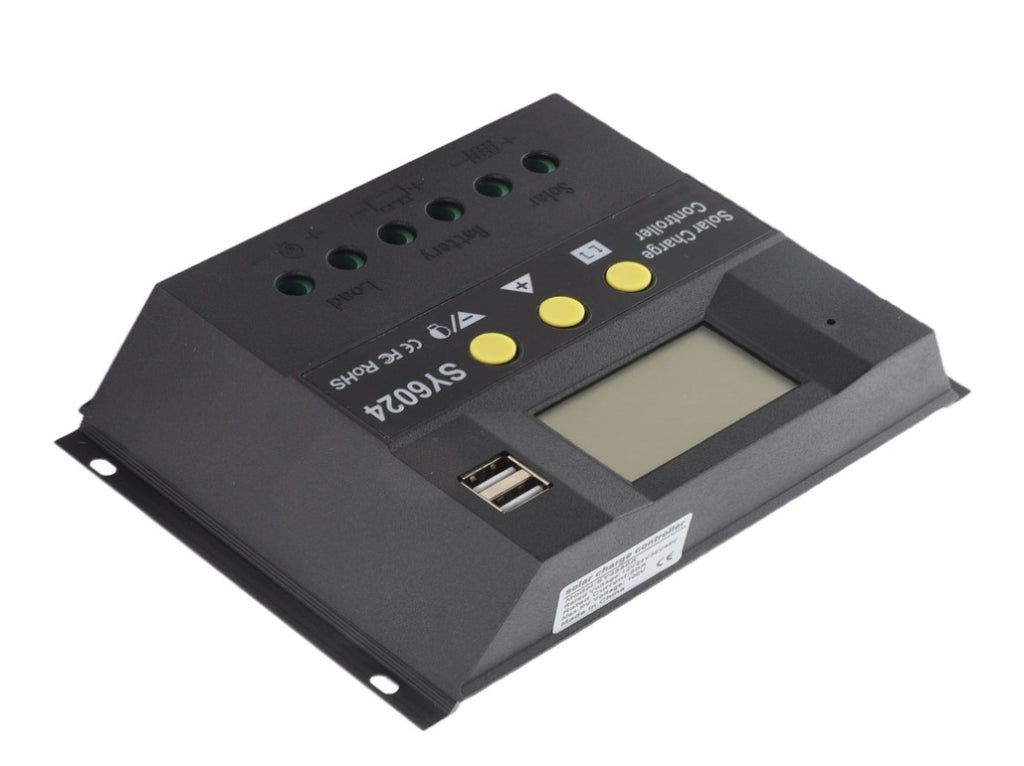

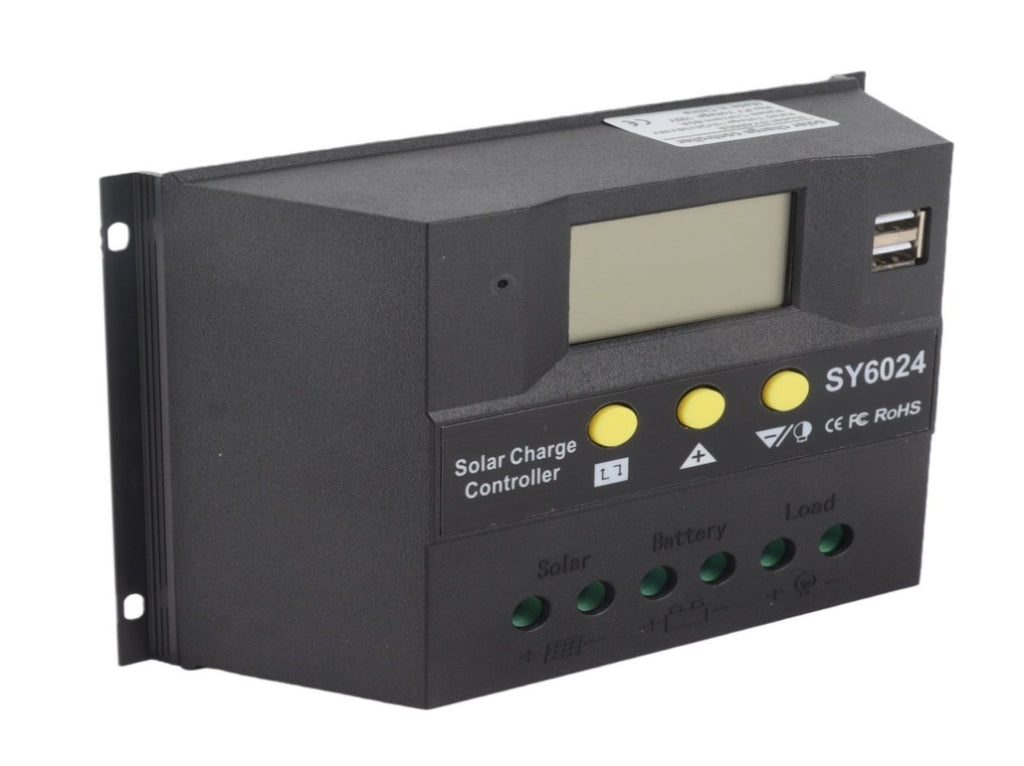

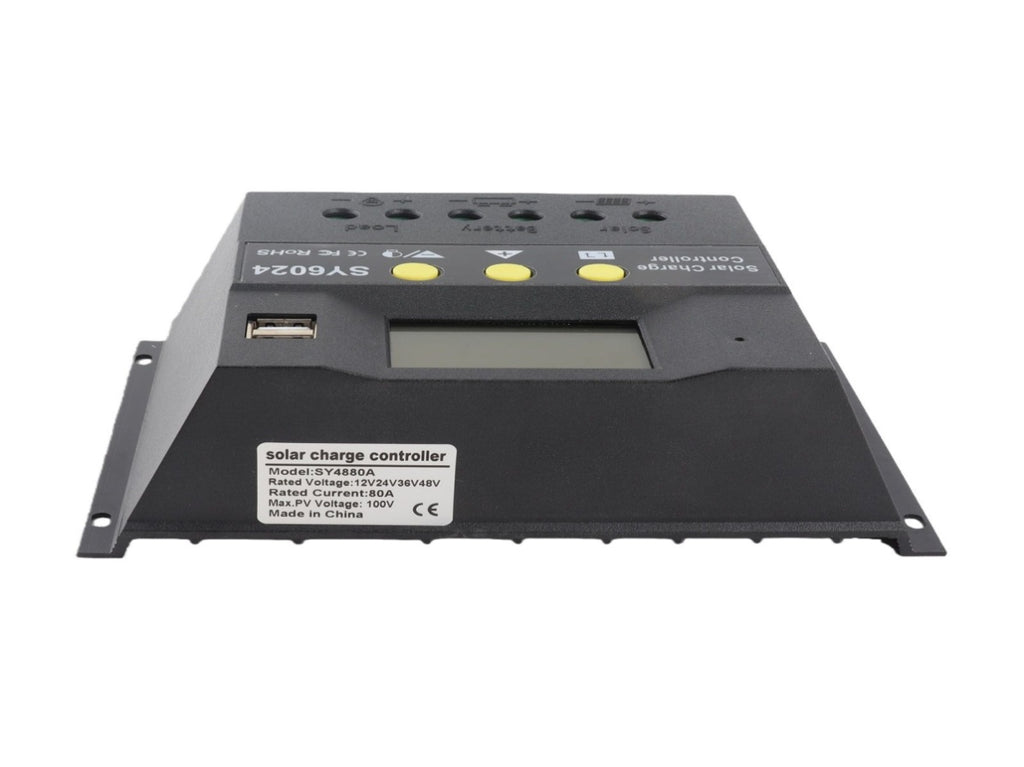

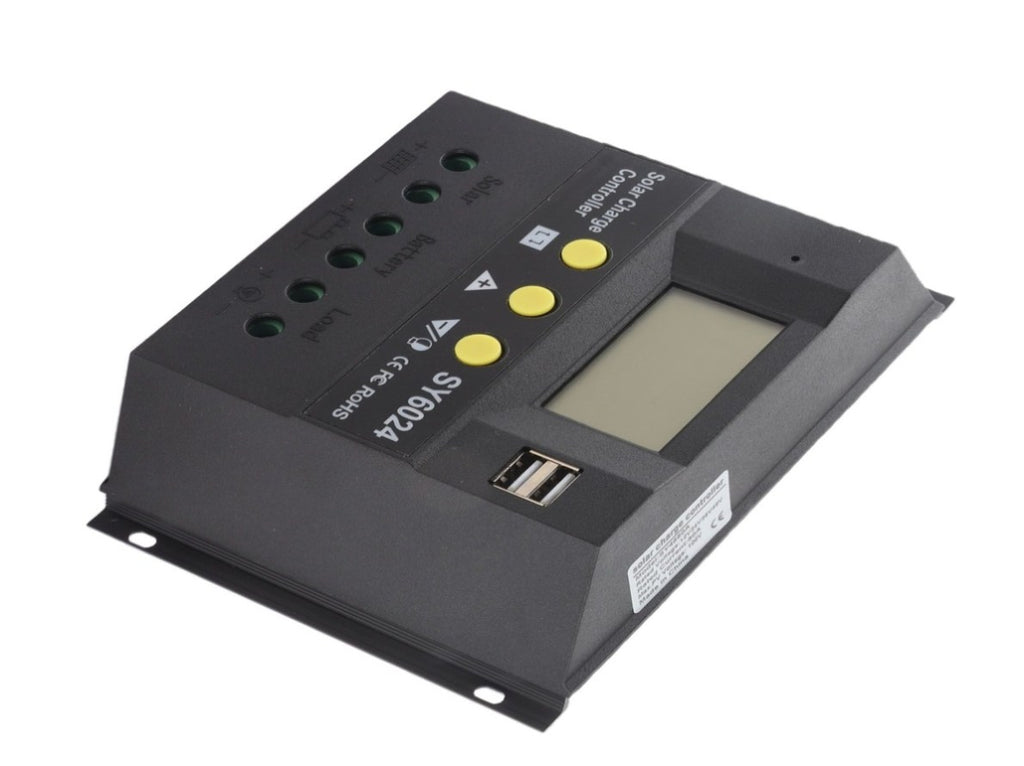

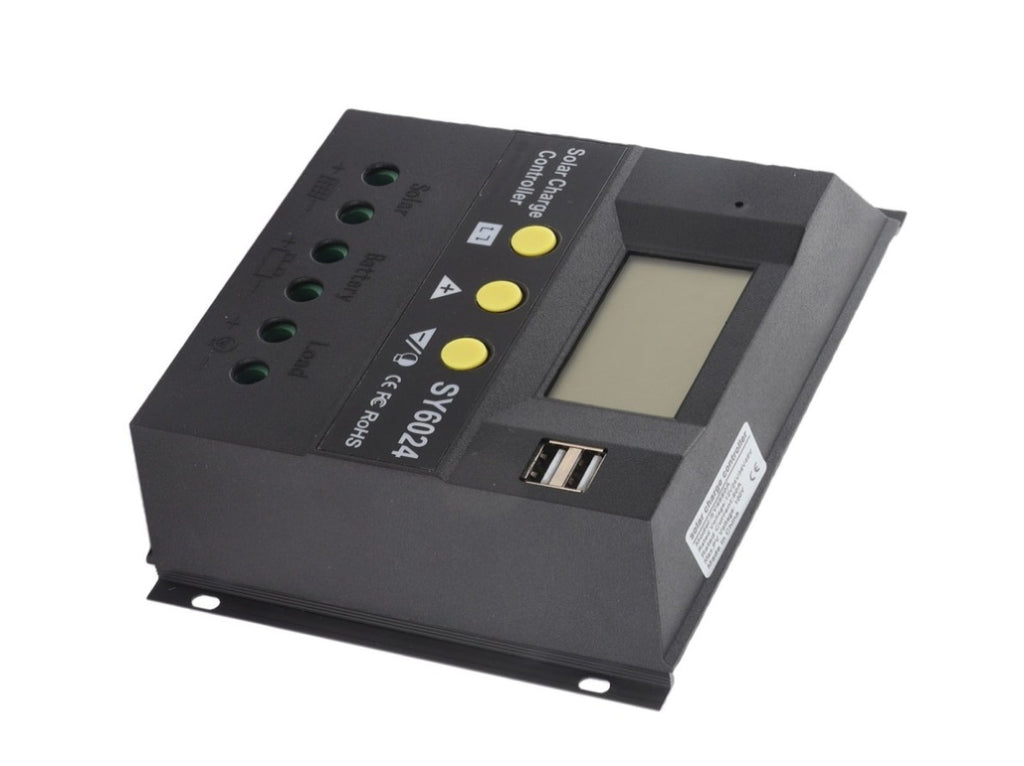

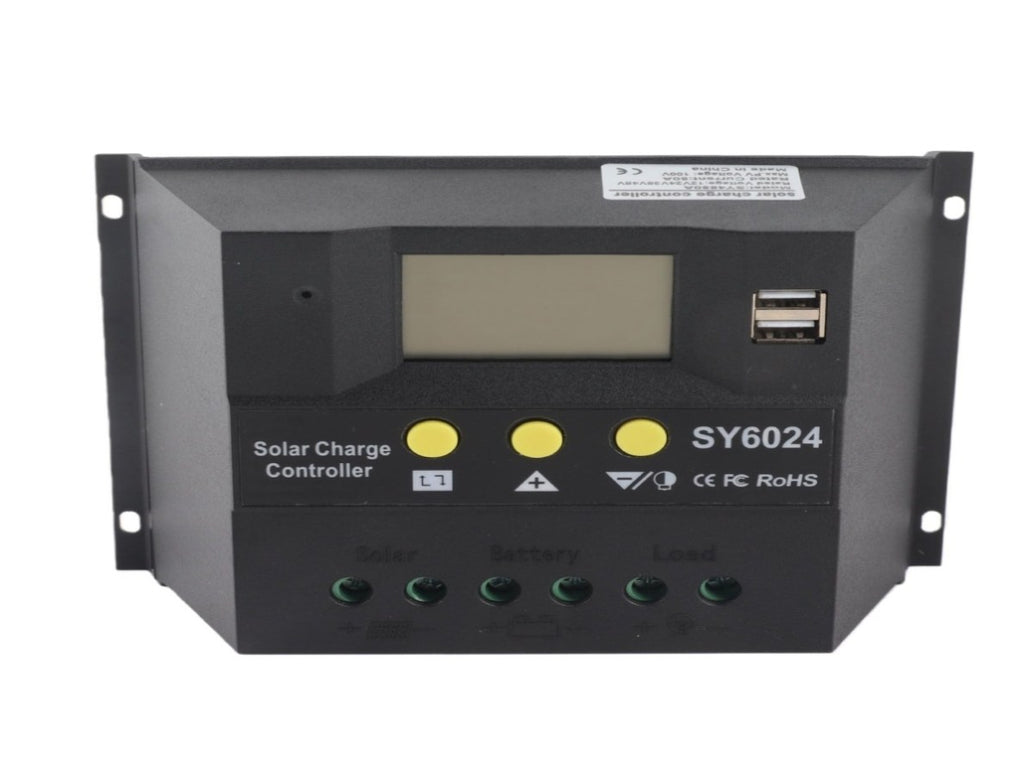

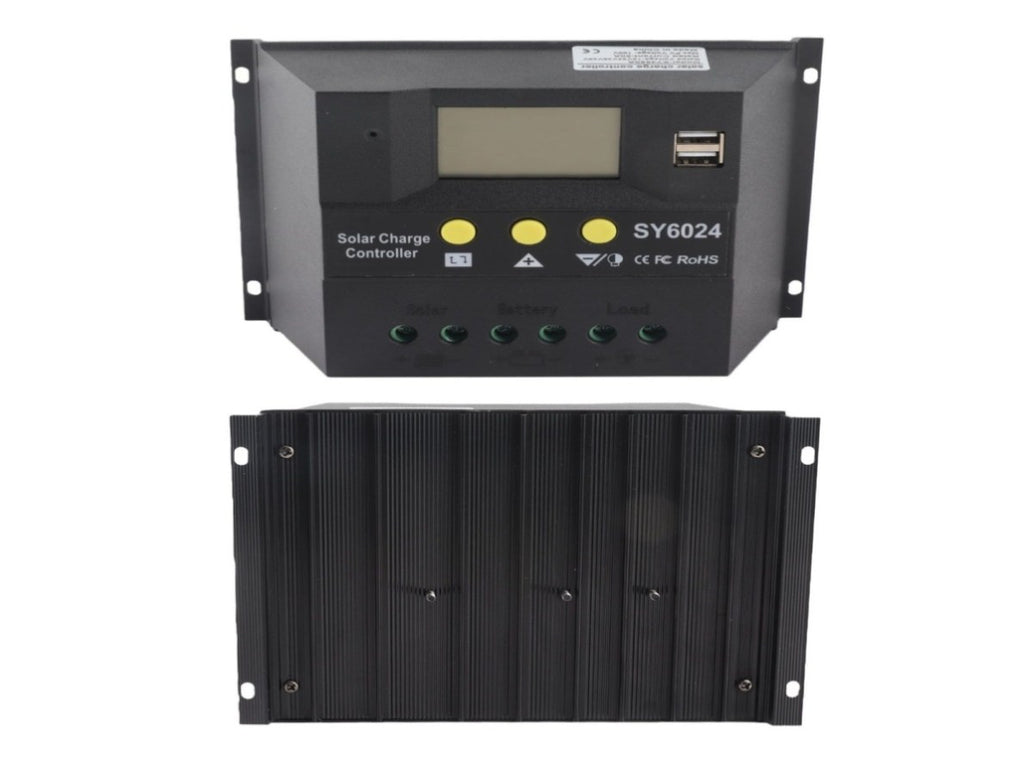

80A DC 12/24V PWM Solar Charge Controller Battery Charger Regulator 720/1440W V1294-YM0901-JY02033

1、​User-friendly LCD display shows various parameter clearly 2、It adopts intelligent PWM charging mode to improve the system efficiency and prolong the service life of battery 3、Grade auto switch of system voltage 4、Settable working modes of loads 5、Dependable protection: battery back discharging, battery low voltage, overloading, short circuit, battery reverse connected
Specification
Description:
This solar charge controller is great for solar application system, such as industrial water, agriculture irrigation, PV generation and desert governing. With protections for safety use. It adopts high efficiency PWM charging mode and allows you to set parameters freely to meet your demand.
Features:
User-friendly LCD display shows various parameter clearly.
It adopts intelligent PWM charging mode to improve the system efficiency and prolong the service life of battery.
Grade auto switch of system voltage.
Settable working modes of loads.
Auto temperature compensation.
Dependable protection: battery back discharging, battery low voltage, overloading, short circuit, battery reverse connected.
Support relayed auto restart after overloading protection.
Specifications:
Material: Plastic
Color: as Shown in the Picture
Rated Working Voltage: 12V/24V DC AUTO
Rated Working Current: 80A
Voltage of Solar Panel: 50V
Float Charging Voltage(settable): 13.8V/27.6V
Low Voltage Protection(settable): 10.7V/21.4V
Low Voltage Recovery (settable): 12.5V/25.0V
No Load Loss: ≤30mA
Loop Voltage Drop: ≤200mV
Temperature Compensation: -4mv/°C/cell
Installable Maximum Cable: 3# AWG (25mm²)
Working Temperature: -20°C~50°C
Storage Temperature: -30°C~70°C
Temperature Requirement: ≤90%, no condensation
Charging Mode: PWM mode
Solar Panel Power: 720W/12V 1440W/24V
Size: approx. 189 x 132 x 57mm / 7.4 x 5.2 x 2.2in
Mounting Hole Spacing: approx. 98 x 178mm / 3.9 x 7.0in
Weight: approx. 713g
Package Included:
1 x Solar Charge Controller
1 x Temperature Sensor
