4K Video Wall Controller 3x3 Setup HDMI Processor 9 Outputs 17 Stitching Modes 1pc V1263-JX-7355

Key Features
- Connect a single HDMI or DVI source and display content across a 3×3 grid of 9 screens, creating a unified large-format visual experience with synchronized audio and video

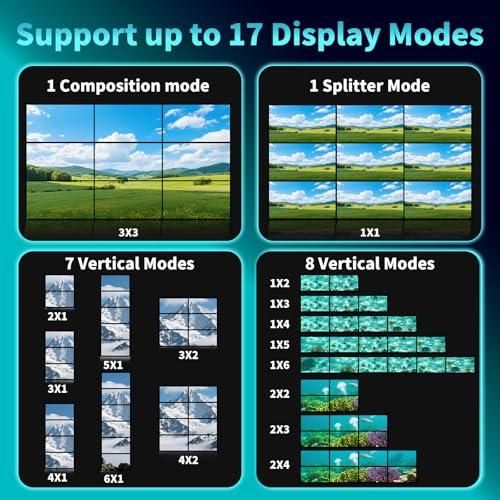

- Choose from 17 stitching modes including 2×1, 2×2, 2×3, 3×1, and 3×2 configurations to match your installation setup and display requirements

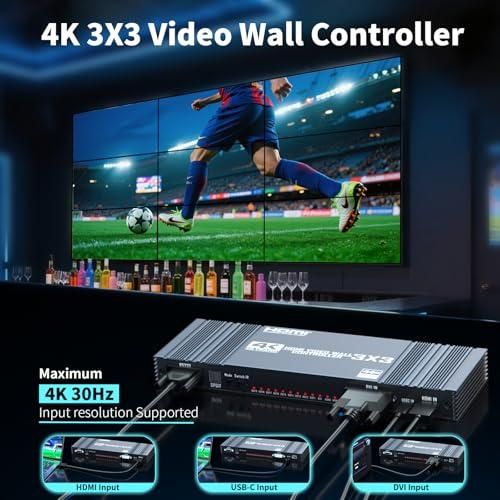

- Accept 4K@30Hz input and output a fixed 1080p@60Hz signal across all 9 HDMI outputs for smooth, reliable visual performance
- Rotate the entire displayed image by 180° using the included remote control, ideal for unconal mounting orientations
- Extract audio separately through the optical fiber output to connect external speakers or amplifiers for enhanced sound

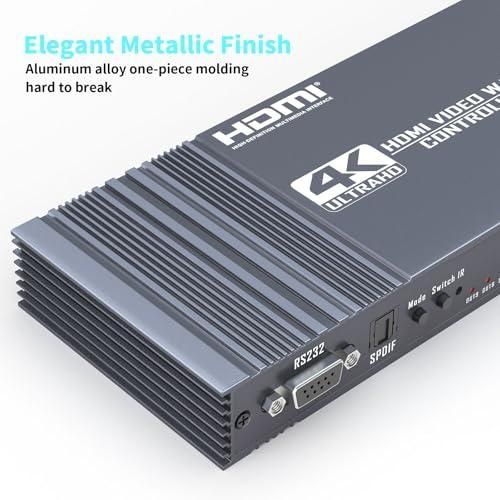

- Built with an aluminum alloy chassis for anti-interference stability, corrosion resistance, and effective heat dissipation

Specifications
Maximum Input Resolution: 4K@30Hz
Output Resolution: 1080p@60Hz (fixed across all HDMI outputs)

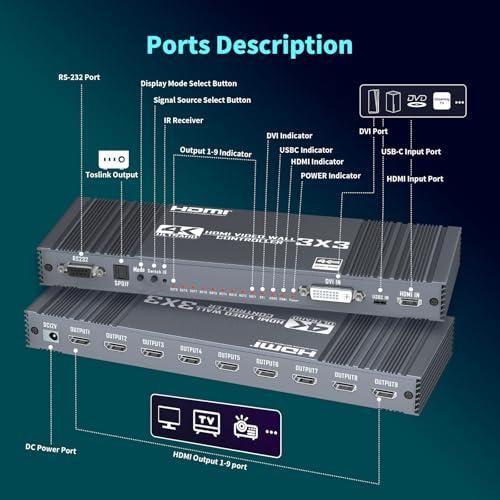

Input Ports: HDMI, DVI, USB-C
HDMI Output Ports: 9
Stitching Modes: 17
Supported Configurations: 2×1, 2×2, 2×3, 3×1, 3×2
Rotation: 180° (via remote control)
Audio Output: Optical fiber (5.1CH)
Control Methods: IR remote control, panel buttons, RS232
Housing Material: Aluminum alloy
Interface Finish: Gold-plated connectors

Package Contents
1 x Video Wall Controller
1 x Remote Control
