4Cabling 45RU 800 x 1000 Premium Server Cabinet NSW Department of Education Approved 002.016.4581

#html-body [data-pb-style=DXVY5XM]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}

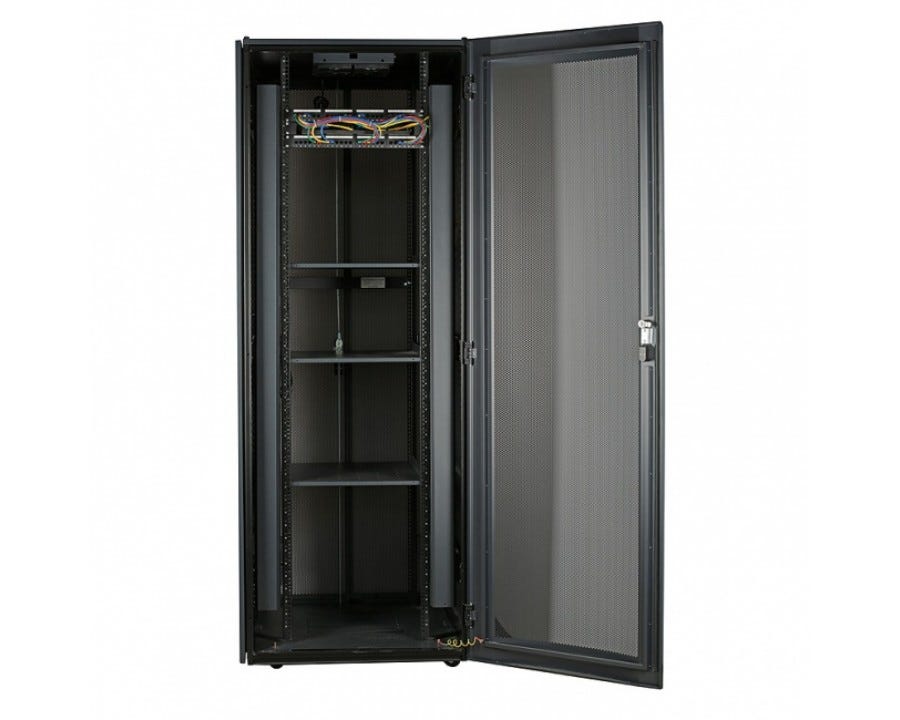

Elevate your cabling, telecommunications, IT, industrial, or home installations with the Full Height MCR Server Rack. This 45RU server rack, measuring 800mm x 1000mm, is designed to house your valuable rack-mount equipment securely and efficiently. Delivered fully assembled, this rack simplifies the installation process and ensures maximum protection during transit. Featuring a robust, welded frame, this server rack offers a static loading capacity of over 1000kg, ensuring durability and reliability for all your equipment needs. The intelligent design includes a 4-way ceiling mount fan kit with a temperature sensor controller, 3 heavy-duty fixed shelves, and adjustable L rails at the front and rear. It also comes with an 8-way Australian type PDU. Please note that it requires a 10-way Vertical IEC 60297-2 PDU with a 15A captive plug (SKU: 002.025.0001) to meet Department of Education specifications.

FEATURES

• Single perforated curved mesh front door with spring handle lock & customised keys
• Bi-fold perforated flat mesh rear door with spring handle lock & customised keys
• Removable side panels with bolt locks and customised keys
• Durable, fully assembled welded frame
• Static loading capacity over 1000kg
• 4-Way Ceiling Mount Fan Kit with temperature sensor controller
• 3 Heavy duty fixed shelves
• Adjustable L Rails Front & Rear
• 1pc 8 ways Australia type PDU
• Cable entry glands on the top and bottom
• 2pc vertical cable management channels, each 100mm in width, with hinged magnetic lids
• 2pc 300mm Vertical cable tray
• 20 sets of M6 cage nuts
• Earth Bonded
• Top Cover with 4 pre-installed 120mm*120mm fans
• Removable side panel with locks
• Adjustable 19" rails
• Easy cable entry on top and bottom panels, with 2 additional cutouts on the roof
• NSW Department of Education Approved

SPECIFICATIONS

• Rack Units: 45RU
• Dimensions: 800mm (W) x 1000mm (D) x 2150mm (H)
• Frame Quantity: 2
• Horizontal Bracket Quantity: 4-6
• Vertical Rail Quantity: 4
• Top Cover Quantity: 1
• Bottom Panel Quantity: 1
• Front Door Quantity: 1
• Rear Panel Quantity: 1
• Side Panel Quantity: 2
• Fixed Shelf Quantity: 3
• PDU Quantity: 1
• Fan Panel with 4 fans Quantity: 1
• Wheels Quantity: 4
• Adjustable Feet Quantity: 4
• Cable Management Channels: 2 (100mm width each)
• Vertical Cable Trays: 2 (300mm)
• Cage Nuts: 20 sets of M6
• Packing Width: 820mm
• Packing Depth: 1020mm
• Packing Height: 2200mm
• Gross Weight: 155kg
• Volume: 1.84cbm
• Loading Capacity: 1000kg

WARRANTY

1-Year Limited Warranty
