4Cabling 45RU 600 x 600 Premium Server Cabinet NSW Department of Education Approved 002.016.4566

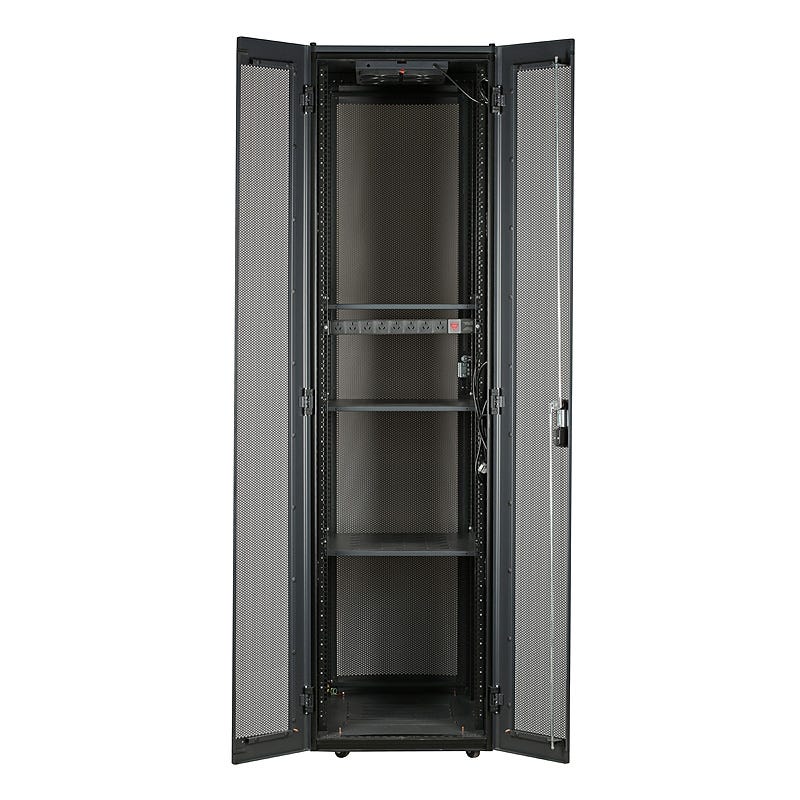

The 45U 600x600mm Server Rack is the ultimate pre-assembled solution for housing your critical IT equipment, including servers, cabling, and telecommunications hardware. Fully NSW Department of Education Approved, this cabinet is designed for rapid deployment in any IT, industrial, or educational environment. Its robust and rigid construction ensures exceptional stability, boasting an impressive static loading capacity of over 1000kg, providing a secure foundation for your entire network infrastructure.
Engineered for superior thermal management and security, this rack features a single perforated curved mesh front door and a bi-fold perforated flat mesh rear door. This design promotes optimal airflow, preventing equipment from overheating while allowing for visual inspection. Both doors, along with the removable side panels, are fitted with secure locks (customised key LF92380), ensuring your assets are protected against unauthorised access while still allowing for easy maintenance and equipment changes.
This server cabinet is a comprehensive package, arriving complete with essential accessories to get you started immediately. It includes a 4-way ceiling-mounted fan kit for active cooling, three heavy-duty fixed shelves for non-rack-mount devices, and an 8-way Australian-type Power Distribution Unit (PDU). Please note that to meet Department of Education specifications, this rack requires the separate installation of a 10-way Vertical IEC 60297-2 PDU with a 15A captive plug (SKU: PDU.10V.15A).
Ease of use is central to this cabinet's design. It features adjustable 19-inch L-rails at the front and rear, complete with printed 'U' markings to simplify equipment alignment and installation. Cable management is made easy with entry glands on the top and bottom panels. For mobility and stability, the rack is equipped with four lockable castors and four adjustable levelling feet, allowing you to position it perfectly and secure it in place.
FEATURES
- NSW Department of Education Approved
- Supplied fully-assembled for rapid deployment
- Single perforated curved mesh front door with secure spring handle lock
- Bi-fold perforated flat mesh rear door with secure spring handle lock
- Removable side panels with bolt locks for easy access
- Includes 4-way ceiling mount fan kit for active cooling
- Comes with 3 heavy-duty fixed shelves
- Requires 10-way Vertical IEC 60297-2 PDU (SKU: PDU.10V.15A) for DoE compliance
- Fitted with 4 lockable castors and 4 adjustable levelling feet
- Convenient cable entry glands on the top and bottom
- Adjustable 19" L-rails at front and rear with printed 'U' markings
- Includes 20 sets of M6 cage nuts and earthing bolts
SPECIFICATIONS
- Part Number: 002.016.4566
- Capacity: 45U
- Static Loading Capacity: 1000kg
- External Dimensions (WxDxH): 600mm x 600mm x 2150mm
- Gross Weight: 115kg
- Doors: Mesh front and rear doors
- Included Fans: 4 x 120mm fans
- Included Shelves: 3 x Fixed Shelves
- Included PDU: 1 x 8-way Australian Type (Standard)
- Required PDU (DoE): 10-way Vertical IEC 60297-2 with 15A captive plug (SKU: PDU.10V.15A)
- Included Hardware: 20 x M6 Cage Nut Sets
- Mounting Rails: Adjustable 19" L-Rails
WARRANTY
3-Year Limited Warranty
