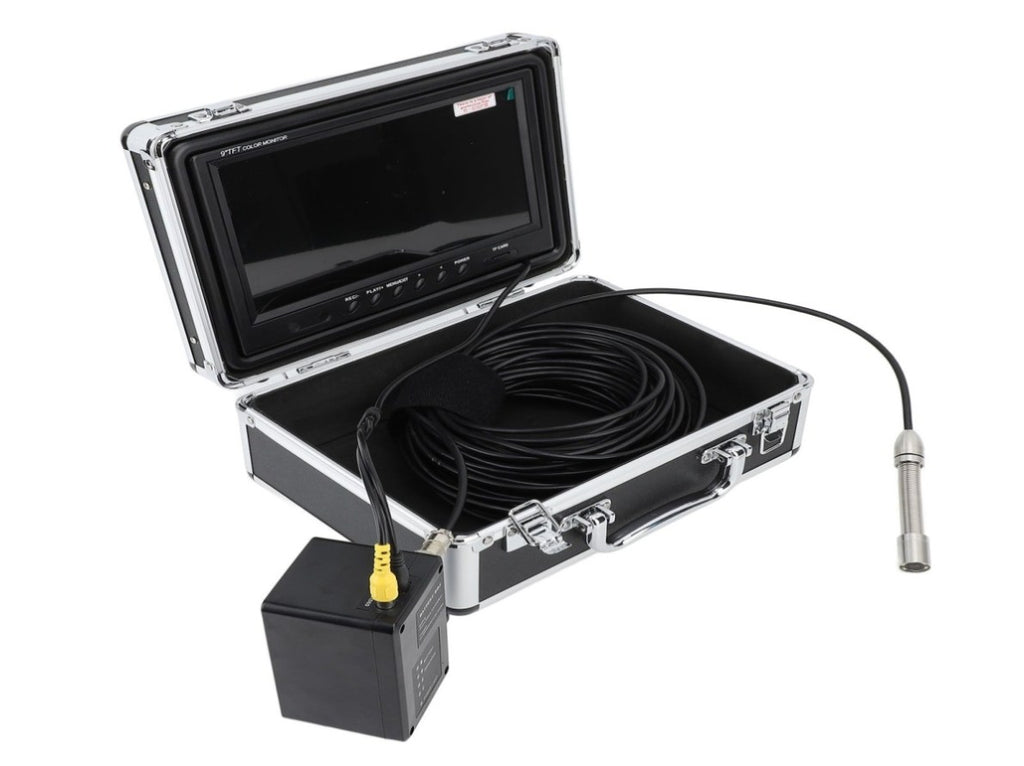

32.8ft Pipe Inspection Camera with Recording Function 6 LED Lights 9 Inch Color TFT LCD Screen IP68 V1294-YM0901-3111240027313

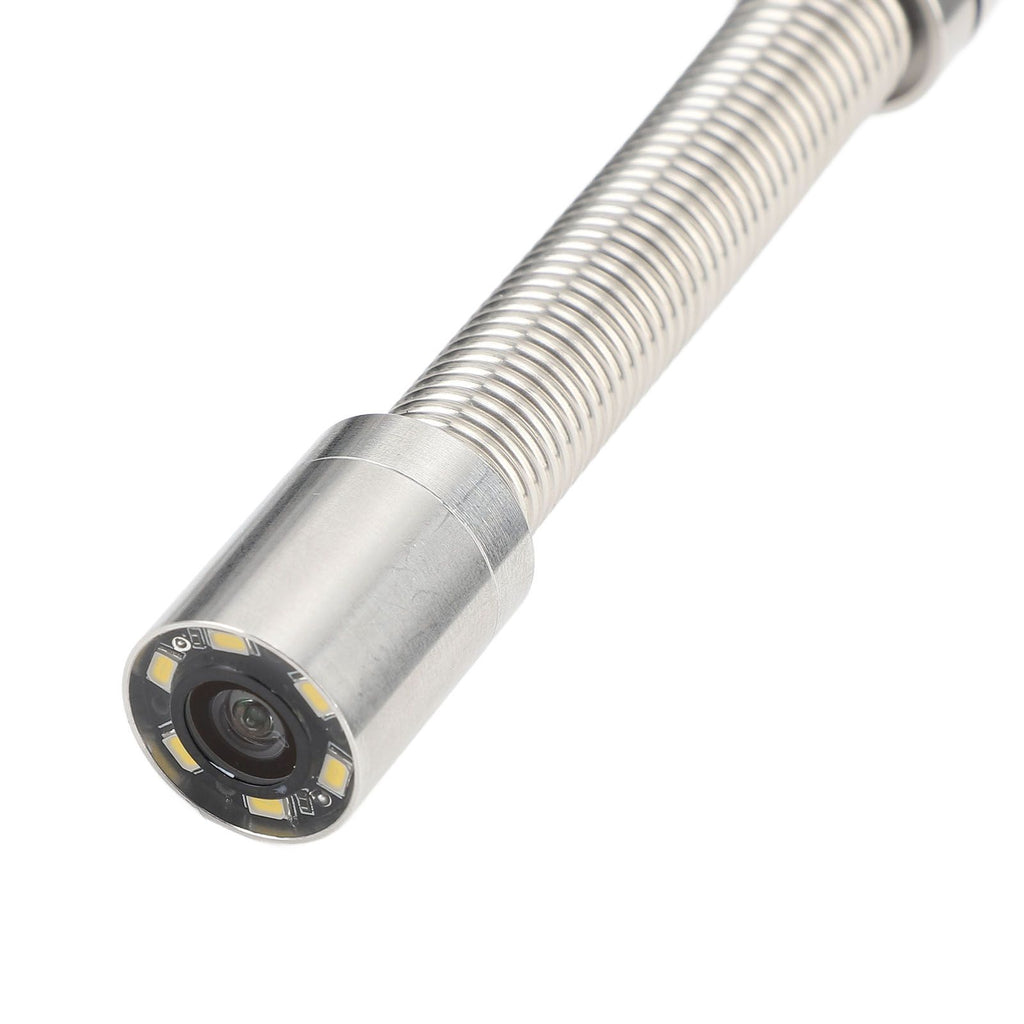

1、9 Inch Color TFT LCD Screen: To serve clear images and colorful display, here we prepare a 9 inch LCD monitor for you. A striking color experience and broad viewing screen features you can find breezily in this 1200TVL TFT LCD monitor. 2、6 LED Lights and Night Vision Function: The integrated and flexible spring of the camera enables it to make turns easily in the pipelines, especially in the ordinarily hard to reach areas. The 6 LED lights in the camera can provide excellent illumination. And the camera has night vision capability. 3、IP68 Waterproof Sewer Camera: The sewer inspection camera is IP68 waterproof and can be used underwater up to 20 meters. Premium cable, waterproof and antirust, cold, tension resistance. 4、Stainless Steel Camera: The sew camera is made of stainless steel and comes with a 25mm metal protective cover. The camera has a diameter of 17mm, making it suitable for pipes larger than 18mm. 5、Power Display and Recording FunctionThe battery has a power indicator, displaying the battery level at all times. The camera has a built in recording function, allowing for video playback.
Specification
Item Type: Sewer Camera
Material: ABS, Aluminum Alloy, Stainless Steel
Weight: Approx. 2560.00g / 90.3oz

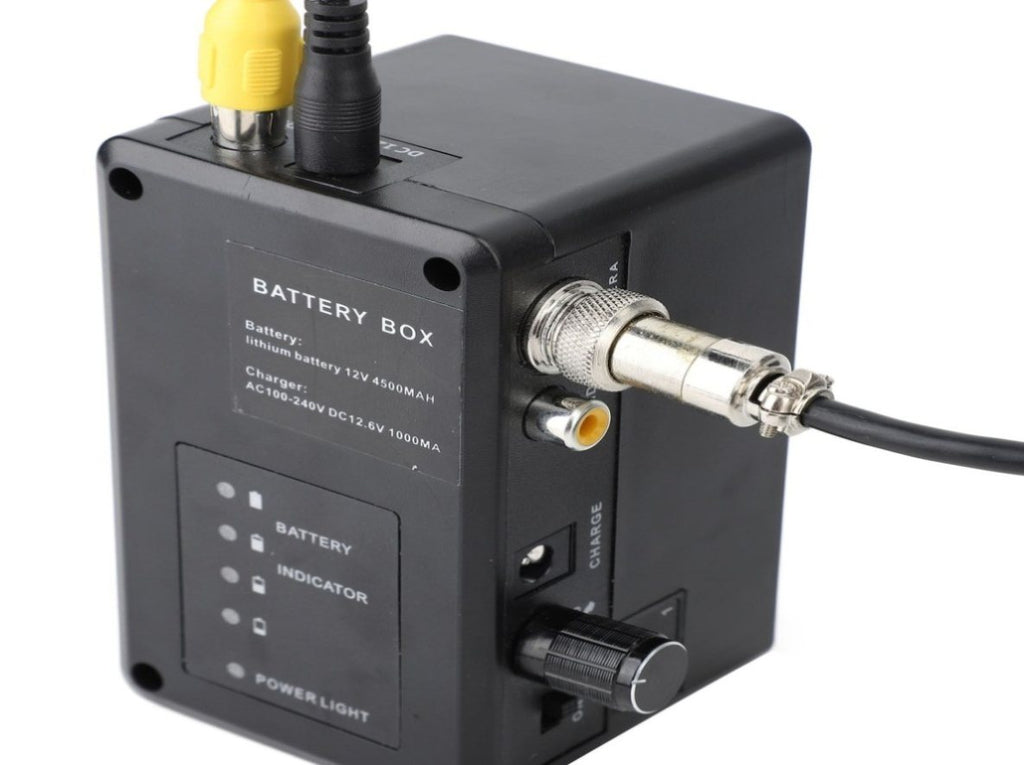

Battery: Lithium Ion Battery 4500MAH (Shipped with)
Battery Continuous Usage Time: Approx. 6h
Cable Length: 10m / 32.8ft
Waterproof Level: IP68
Menu Language: Multiple Languages
Camera Image: Color
Operating Temperature: -20-60 °C
Camera Light Source: 6 LED Lights
Camera Diameter: 17mm / 0.7in
Camera Viewing Angle: 140 Degree
Applicability: Water Pipes, Air Conditioning Pipes, Cable Pipes, Vacuum Systems, Construction, Buried Pipes, etc.

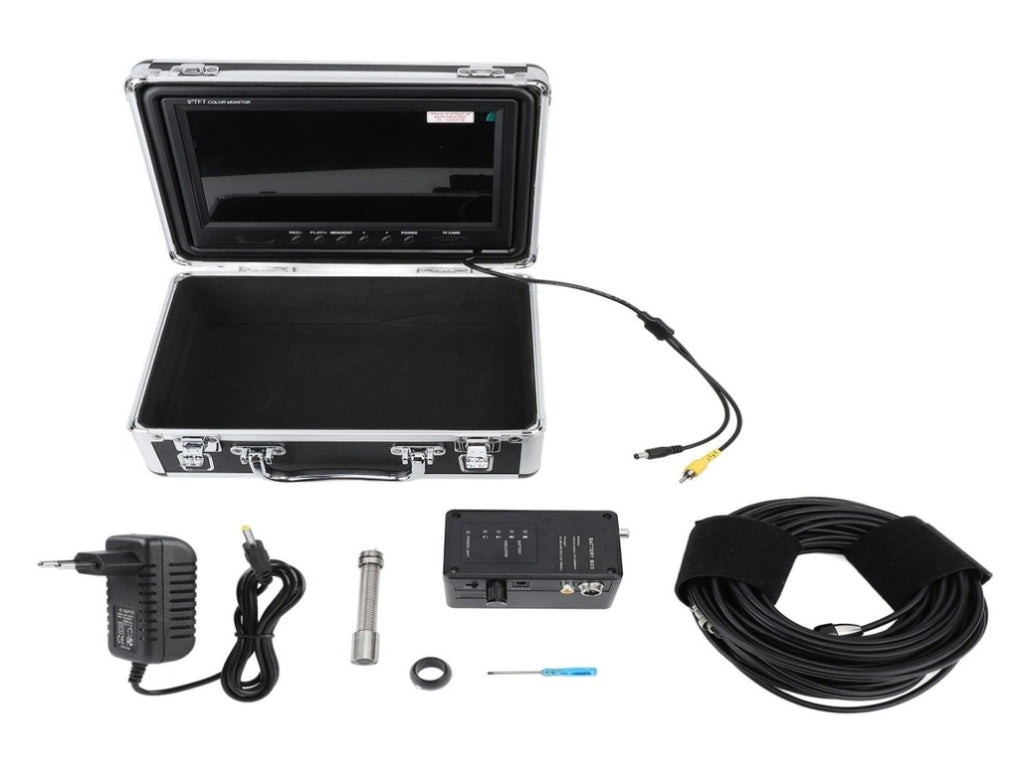

Package List

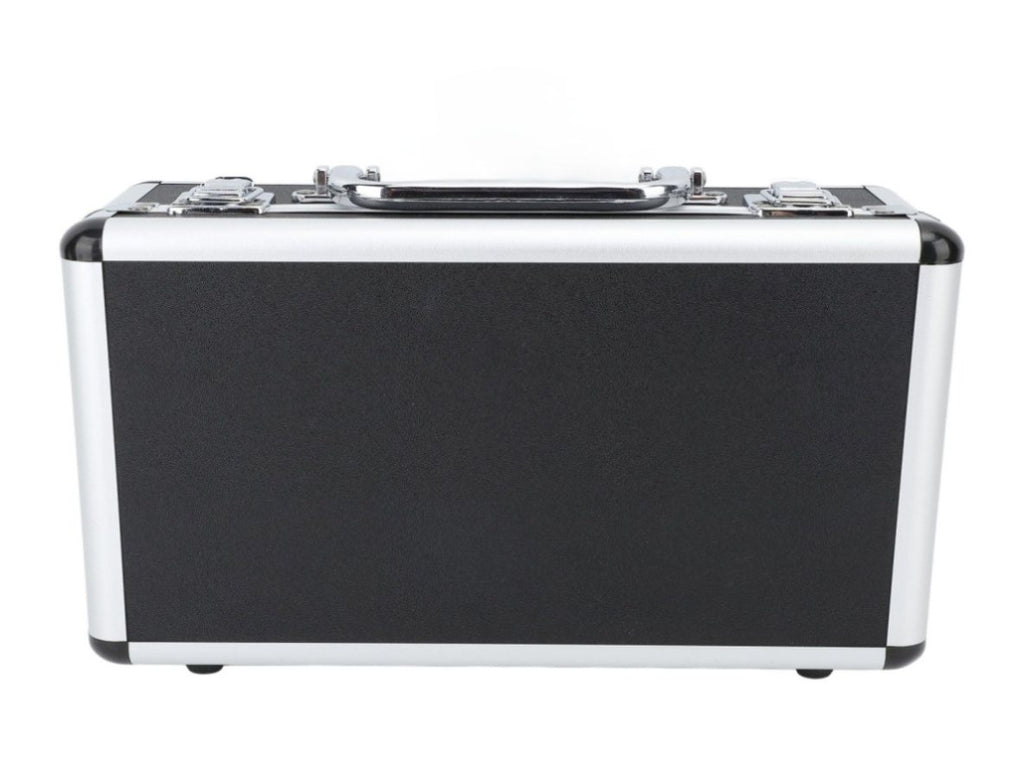

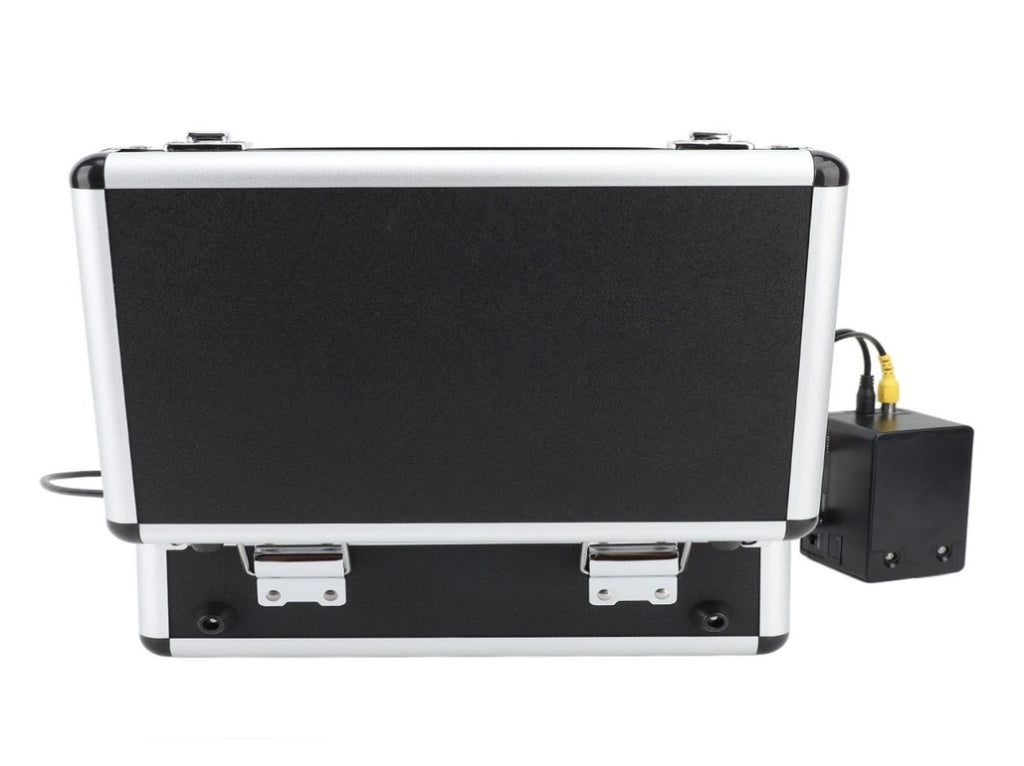

1 x Storage Box
1 x Monitor
1 x 8GB Memory Card
1 x Power Control Box
1 x Sewer Camera
1 x Cable
1 x Charger
1 x Screwdriver
1 x Camera Protective Cover
1 x User Manual
Note
1. During installation, make sure each interface is connected correctly.
2. If a blue screen appears during the installation process, it indicates that the camera, battery box, and display screen are not connected successfully.
a. Check if the camera is loose and tighten it.
b. Check if the camera video cable is fully connected to the battery box.
c. Check if the display screen video cable and power cable are fully connected.
3. During use, pay attention to the battery power indicator. When it shows the last bar of power, recharge it timely to prevent battery depletion and inability to charge.
4. The cable should not be tangled during use, and the bending angle of the cable should not be less than 90 degrees.
5. Do not forcefully drop the product to prevent the cable from breaking.
6. Please power off before inserting or removing the memory card.
7. To facilitate playback and prevent loss of recording files, the recordings will be automatically saved in a bundle.
8. Photos are stored in the device and not on the memory card, so they can only be viewed on the device.
