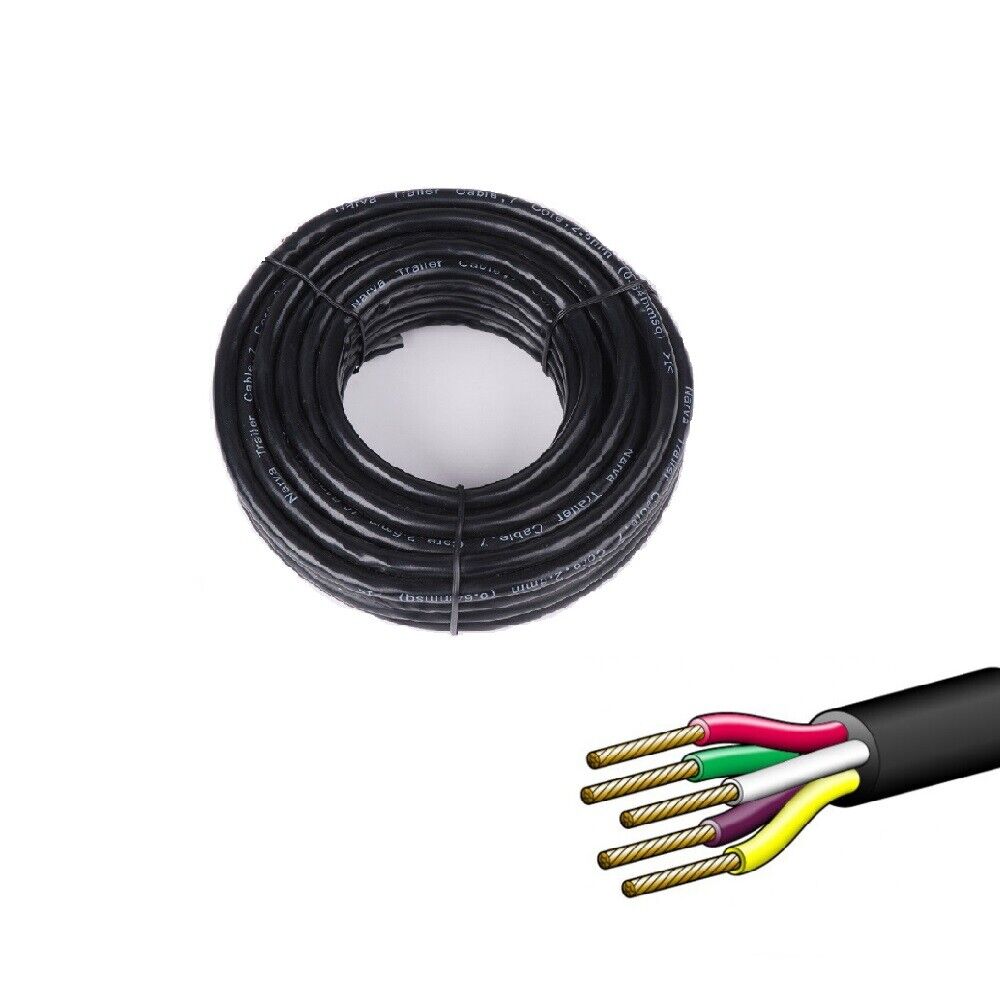

30M x 5 Core Wire Cable Trailer Cable Automotive Boat Caravan Truck Coil V90 PVC V465-97309_30M
5 core Trailer cable!
Perfect for electric braked caravans!
Conductor = OXYGEN FREE Plain Copper Wire to AS/NZS 1125

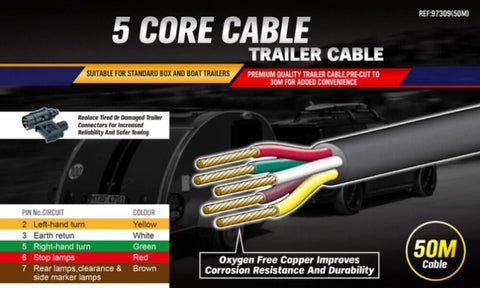

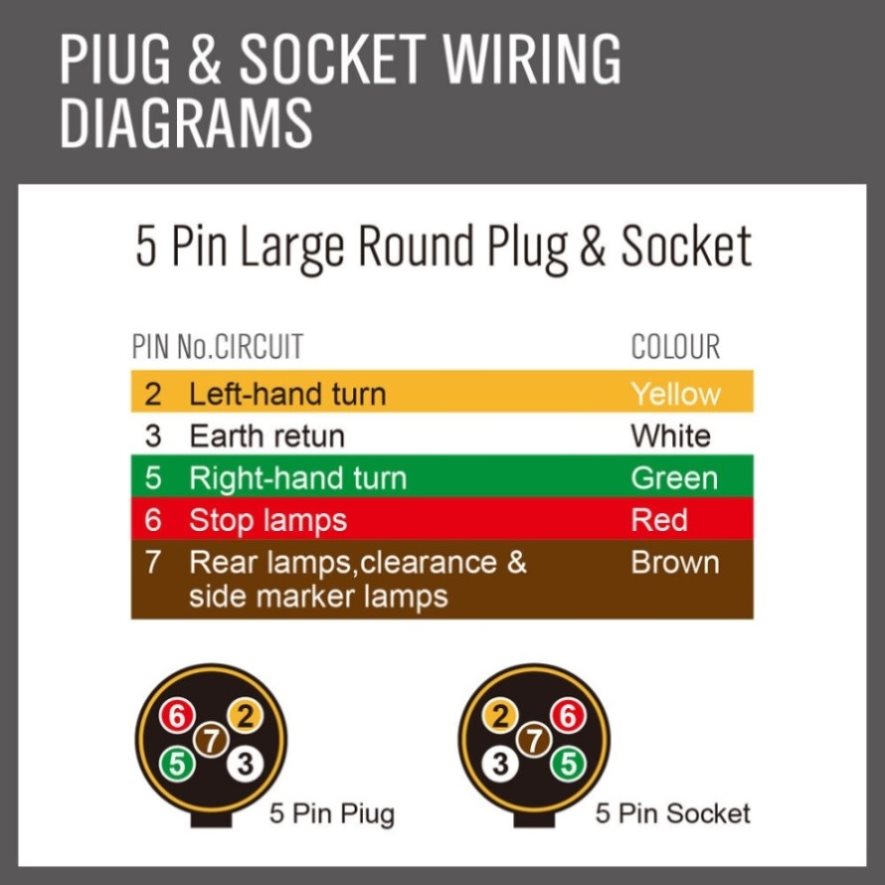

Core Colours = 2Yellow 3White 5Green 6Red 7Brown
Sheath colour = Black
MM Thickness = 2.5mm
Number of cores = 5
Amp Rating at 30C = 6 amps
Electrical resistance at 20c (ohm/km) = 29.9
Strand Number & Size = 9/.30
Perfect for electric braked caravans!
Conductor = OXYGEN FREE Plain Copper Wire to AS/NZS 1125
Core Colours = 2Yellow 3White 5Green 6Red 7Brown
Sheath colour = Black
MM Thickness = 2.5mm
Number of cores = 5
Amp Rating at 30C = 6 amps
Electrical resistance at 20c (ohm/km) = 29.9
Strand Number & Size = 9/.30
SPECIFICATIONS
Net Weight: 2.1kg
Suitable for many applications including:
•Caravan •4wd •Cars •Motorhome •Trailers •Bike •And many others...
