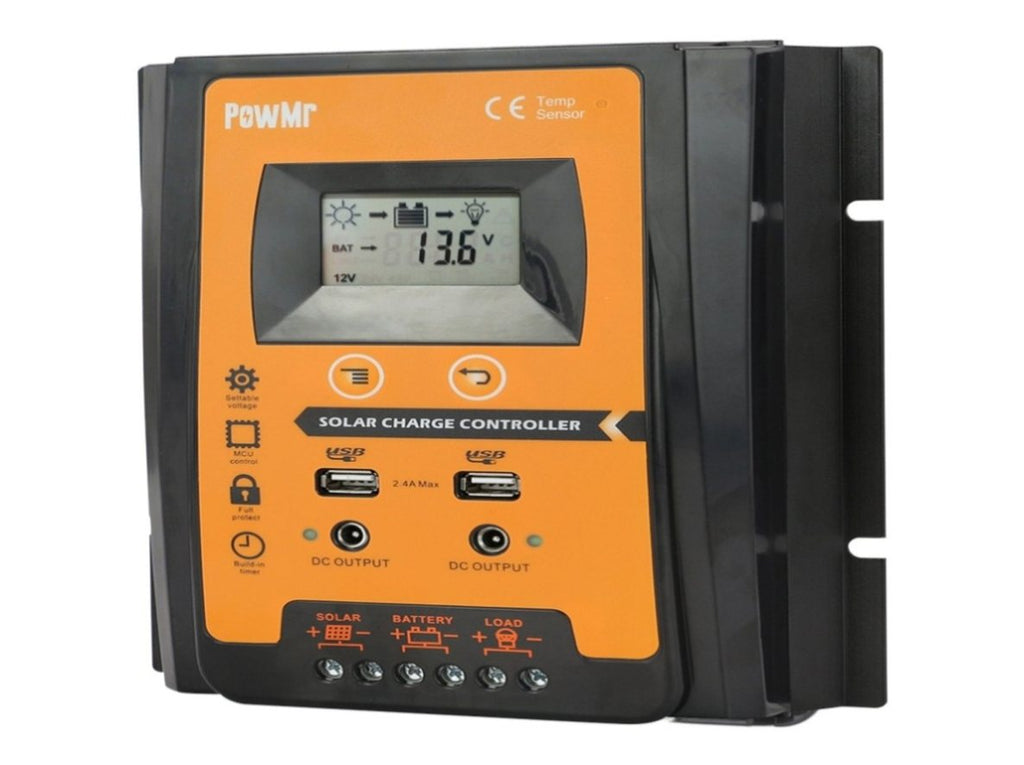

30A PWM Solar Charge Controller for 12V/24V Solar Panel System IP32 PV Battery Controller Charge V1294-YM0901-H35082-30

1、Solar controller with dual USB output \u0026 dual DCoutput, and applicable for lead-acid, batteries. 2、[Alloy Cooling Backplane]It can quickly dissipate heat to prevent the circuit from heating due to the long-term operation of the device. 3、[Multi-conservation]The PWM charging method support overload, short circuit conservation, battery Undervoltage conservation, temperature compensation function, reverse battery conservation. 4、[LCD Display]LCD screen for dynamically displaying the device\u0027s operating data and working conditions. 5、[Automatically]The solar charge controller can set time control mode, and system voltage can automatic identification.
Specification
Description:
The PWM solar controller is a multi-purpose solar charge and discharge controller, each parameter can be flexibly set to meet your different application needs. It can be widely used on a solar home system, traffic signal, solar street light, solar garden lamp, etc.
Features:

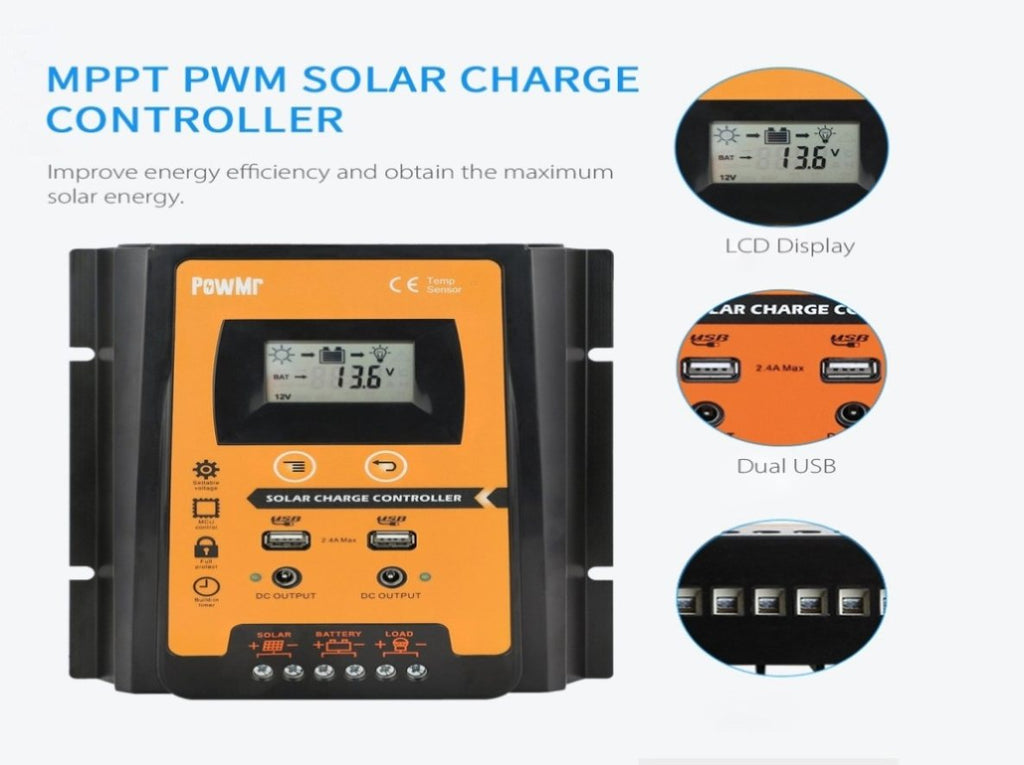

[Multi-ports]Solar controller with dual USB output & dual DCoutput, and applicable for lead-acid, batteries.
[Alloy Cooling Backplane]It can quickly dissipate heat to prevent the circuit from heating due to the long-term operation of the device.
[Multi-conservation]The PWM charging method support overload, short circuit conservation, battery Undervoltage conservation, temperature compensation function, reverse battery conservation.
[LCD Display]LCD screen for dynamically displaying the device's operating data and working conditions.
[Automatically]The solar charge controller can set time control mode, and system voltage can automatic identified.
Specifications:
Rated Load Current(A): 30A;50A;70A (Optional)
Color: Black + Orange
Rated Voltage(Va):12/24V Auto
USB output: 2.1A*2
DC output: 2
Over Charge Current(V): 13.7V/*2 24V
Over Discharge Current(V):10.5-11V/*2 24V
Temperature Compensation:-3mv/°C/cell
Empty Load Wastage:<45mA
Loop Voltage Drop:<200mv
Display: LCD display
Charging type: PWM
Waterproof grade: IP32
Material: Plastic
Occasion: Outdoor, Home, Camping, etc
Package Size: 19*17*5cm/7.48*6.69*1.96inch(30A);23*20.5*6cm/9.05*8.07*2.36inch(50A);25*20*6cm/9.84*7.87*2.36inch(70A)
Package Weight: 478g/1.05lb(30A);881g/1.94lb(50A);1410g/3.1lb(70A)
Package List:
1 * Solar Charge Controller
1 * English Manual
Note: Only 30A Solar Controller does not show charging current, 50A 70A shows charging current.
Package List
1 * Solar Charge Controller
1 * English Manual
Note: Only 30A Solar Controller does not show charging current, 50A 70A shows charging current.
