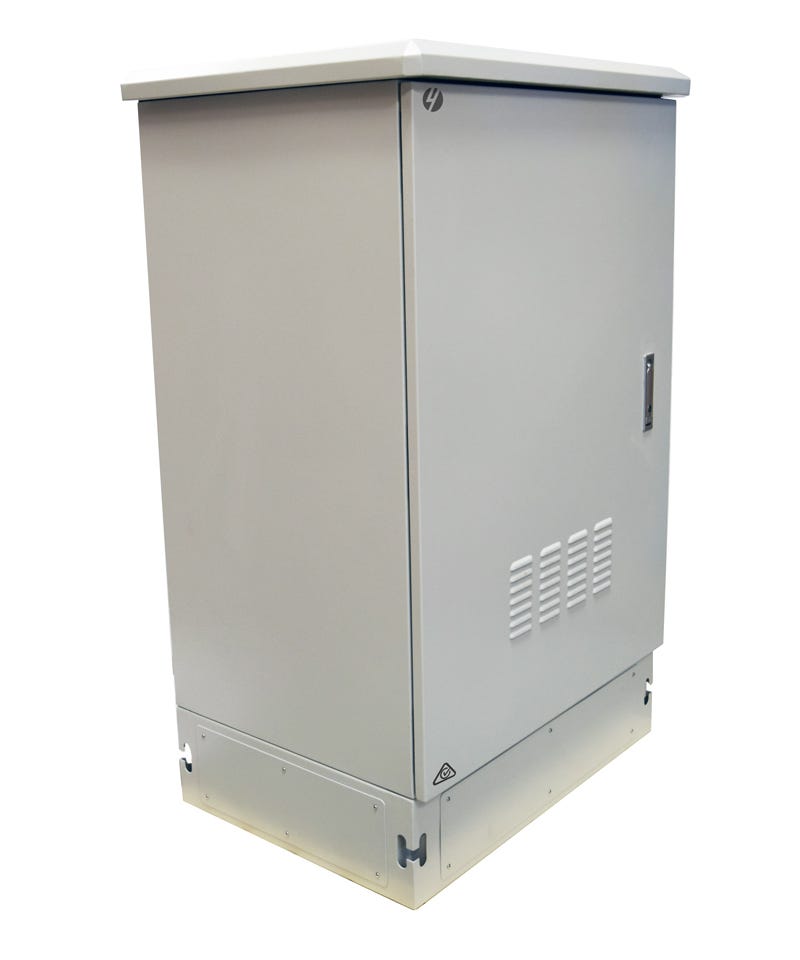

22RU 800mm Wide x 600mm Deep Galvanized Steel OUTDOOR VENTILATED FREESTANDING Cabinet IP45 002.015.2286.V.G

#html-body [data-pb-style=R9PQ8M6]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}

Protect your sensitive network equipment from harsh Australian environments with this robust 22RU 800mm Wide x 600mm Deep Freestanding Outdoor Cabinet. Constructed from durable galvanized steel and featuring a fully welded design, this cabinet is built to last. It offers superior protection from the elements, keeping your equipment secure and well-ventilated.

Achieving an IP45 rating, this cabinet is designed to safeguard your gear from rain and dust. It includes a protective rain hood, a high-grade polyurethane door joint strip, and a lockable vented front door secured with a 3-point locking system. All fixtures are internal, ensuring a secure solution against tampering.

Installation and maintenance are made easy. The cabinet arrives fully assembled and includes a 200mm high plinth for stable, raised mounting. It features adjustable 19-inch mounting rails (front and rear) with clear RU markings, front-mounted vertical cable management rings, and round cable glands on the base for tidy cable entry.

Keep your equipment cool with the included 4-way ceiling mount fan kit with a dedicated switch. The vented front door also features a replaceable filter, promoting airflow while keeping contaminants out. With a static load capacity of 800kg, this cabinet is a secure and reliable choice for any outdoor deployment.

FEATURES

• Vented front door with 3-point locking system and replaceable filter
• Fully welded design for strength and durability
• Made from Galvanized steel
• Supplied fully assembled, ready to be installed
• Rain hood Included
• Adjustable 19" mounting rails installed front and rear with RU markings
• Max rail to rail depth of 370mm that can be adjusted to your needs
• Front-mounted vertical cable management rings on both sides
• Round cable glands with removable rubber covers on the base
• High-grade polyurethane door joint strip
• IP45 rated to protect it from rain
• Earthing bar conveniently located at the front
• Includes 200mm high plinth
• 4-way ceiling mount fan kit with switch included

SPECIFICATIONS

• External Dimensions: 850mm Wide x 650mm Deep
• Colour: Grey
• Protection Rank: IP45 rated standard IEC 60529:2013
• RU Size: 22RU
• Material: Galvanized steel
• Net Weight: 117kg
• Load Capacity: 800kg

WARRANTY

2-Years Limited Warranty
