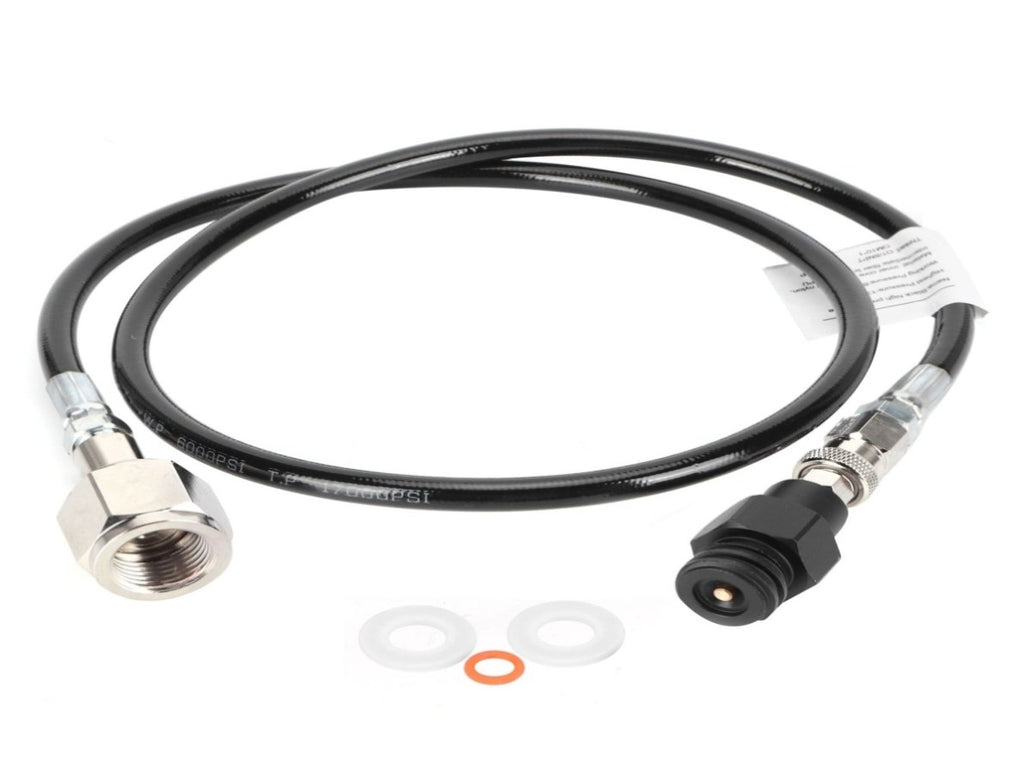

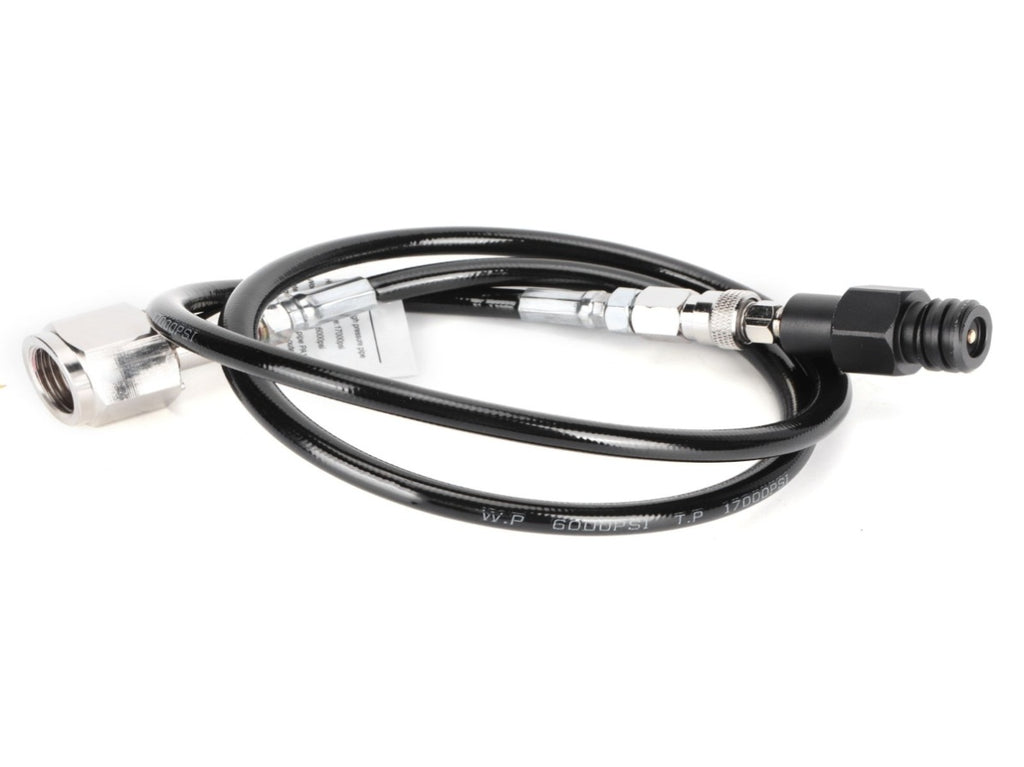

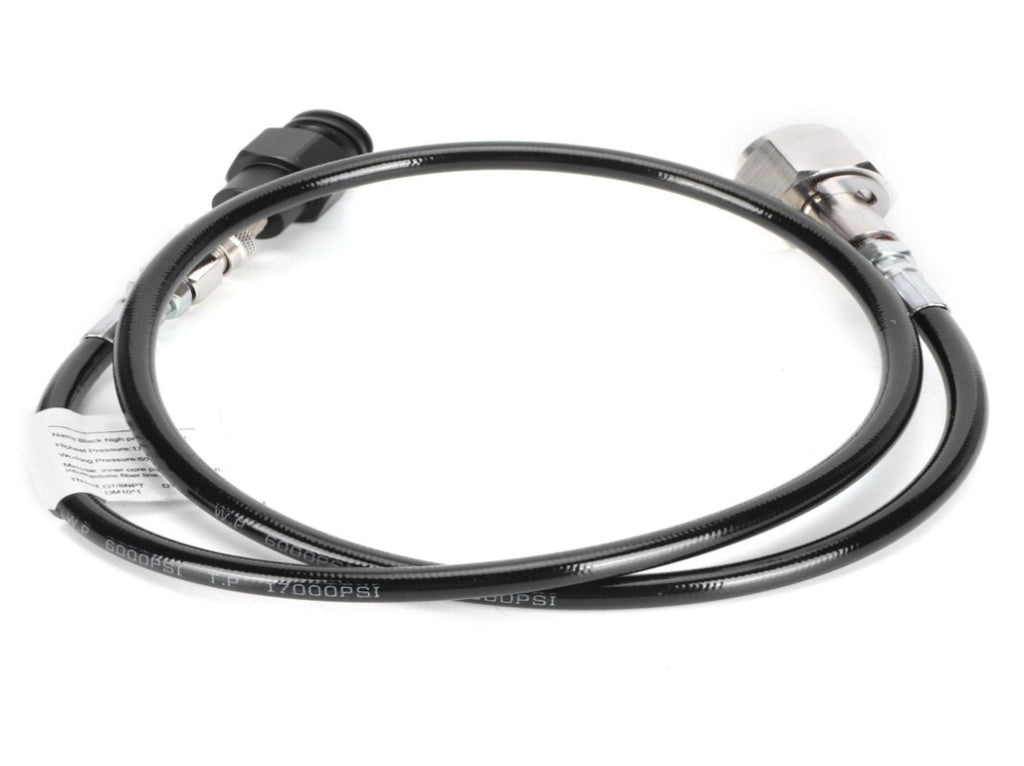

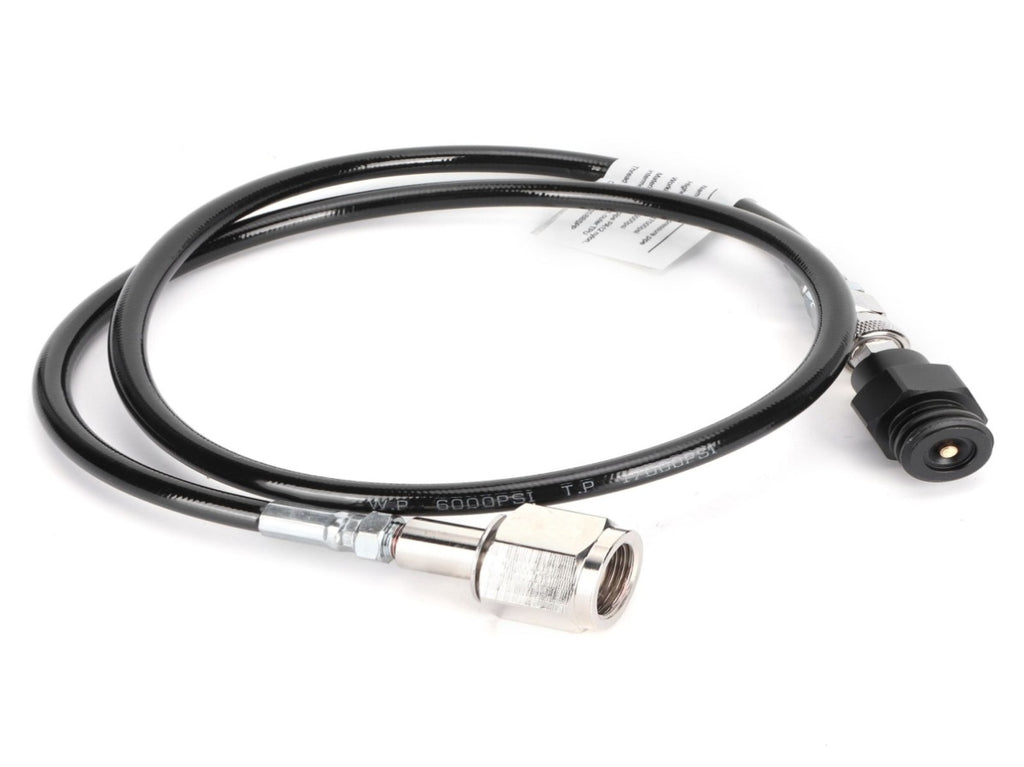

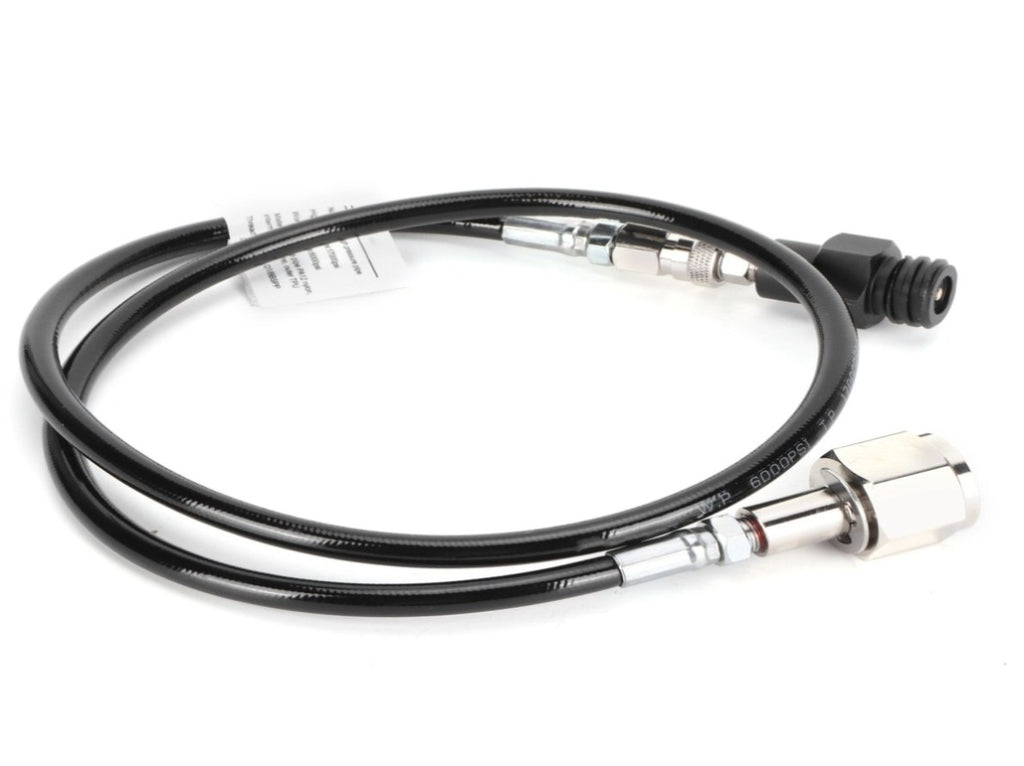

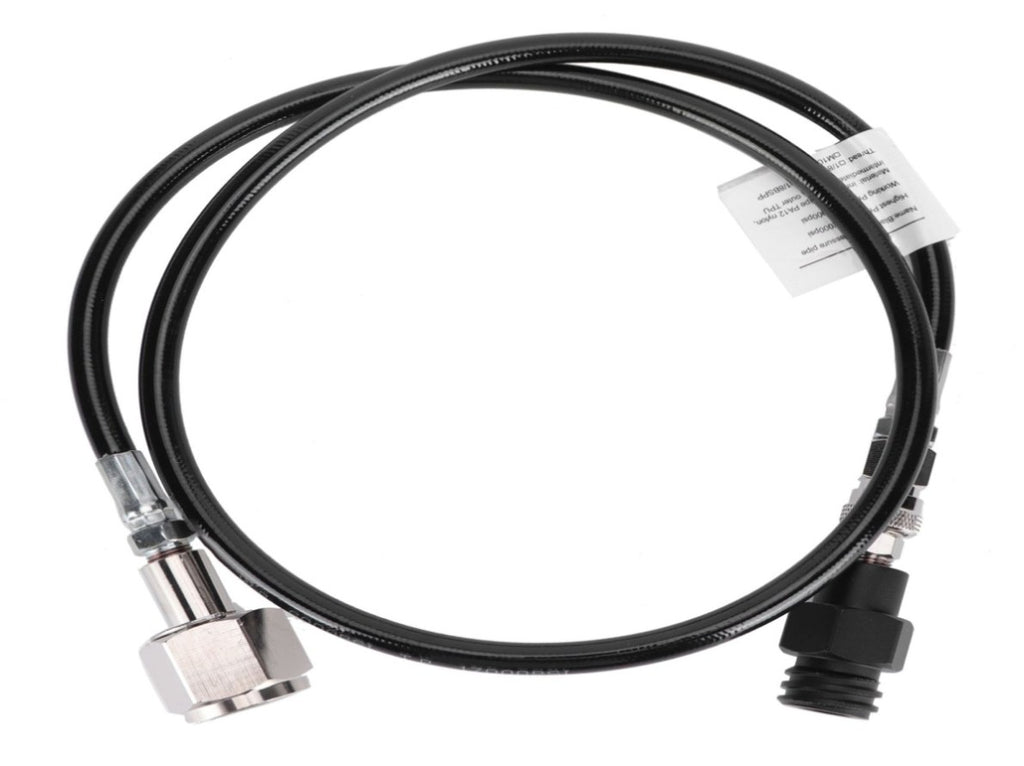

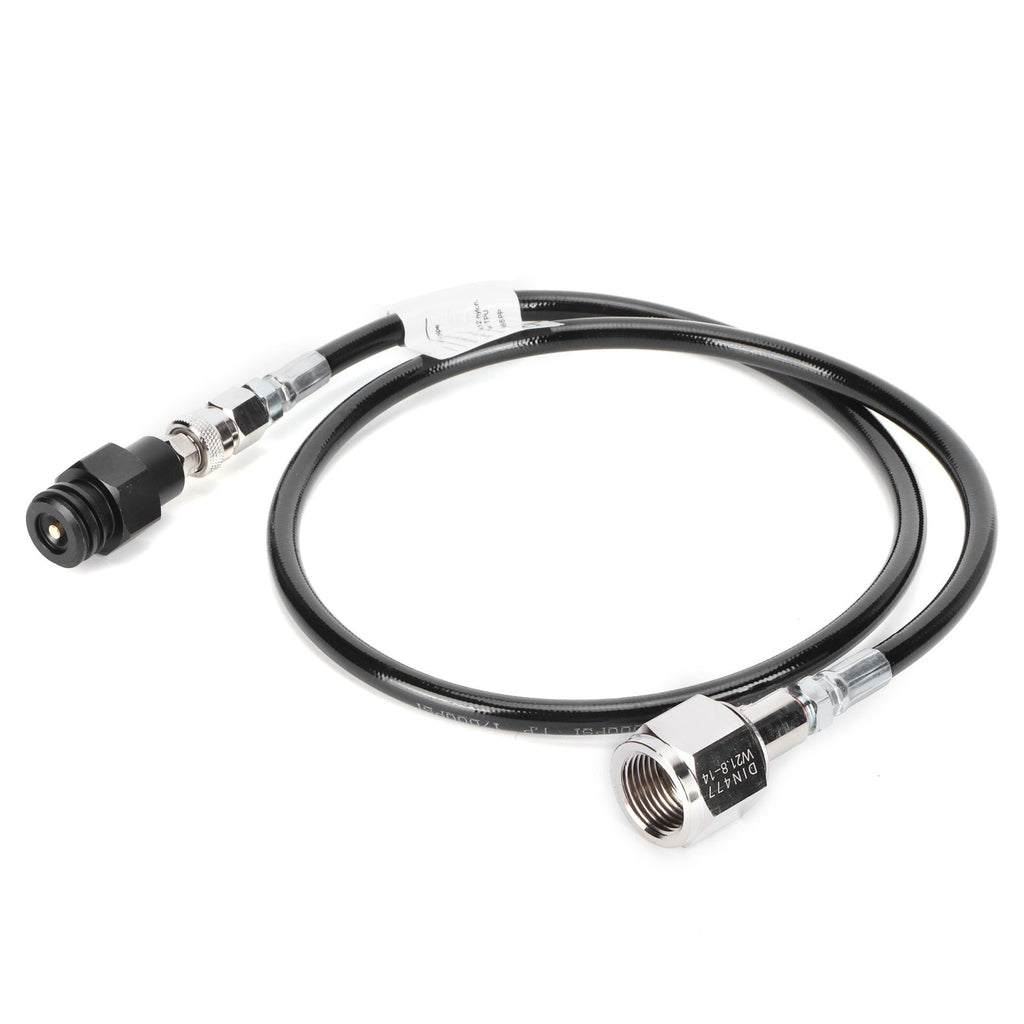

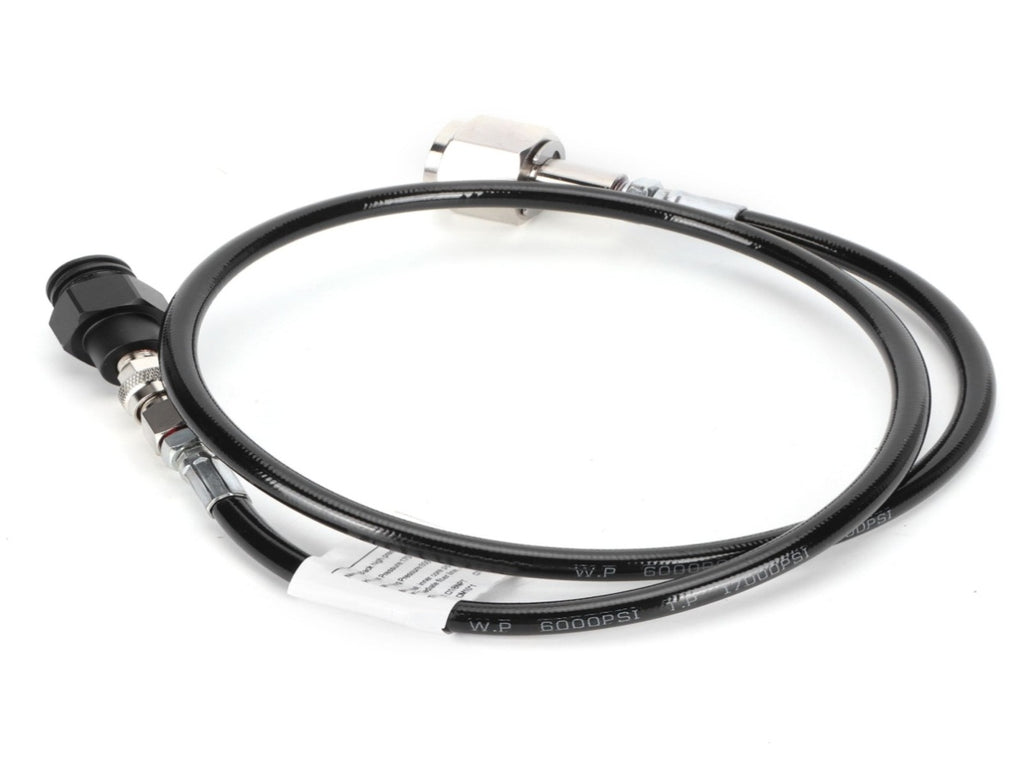

1M Soda Hose to Soda Machine Connector CO2 Cylinder Refill Adapter Connector W21.814 V1294-YM0901-3113210020111

1、1 meter hose, working pressure is 6000psi, very soft, not easy to fold break, is a very practical accessories. 2、Works most for soda machines and allows normal operation without any complex changes. 3、Light weight and easy to install, the old or damaged parts can be directly replaced. 4、Applicable countries are South Korea, Japan, Britain, Germany, France, Poland, Norway, Switzerland, Russia, Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore. 5、Good sealing performance, no air leakage when connected with the cylinder, more convenient to use.
Specification
Item Type: Soda Hose
Material: Stainless Steel + Aluminum Alloy
Color: Black
Length: Approx.1m/3.3ft
Weight: Approx.284g/10oz
Test Pressure (TP): 17000psi
Working Pressure (WP): 6000psi
Interface Diameter: 21.8mm/0.86in
Thread Interface: W21.8-14 // TR21-4
Applicable Countries: South Korea, Japan, Britain, Germany, France, Poland, Norway, Switzerland, Russia, Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore... (some countries are also called DIN477 /JIS m22-14)

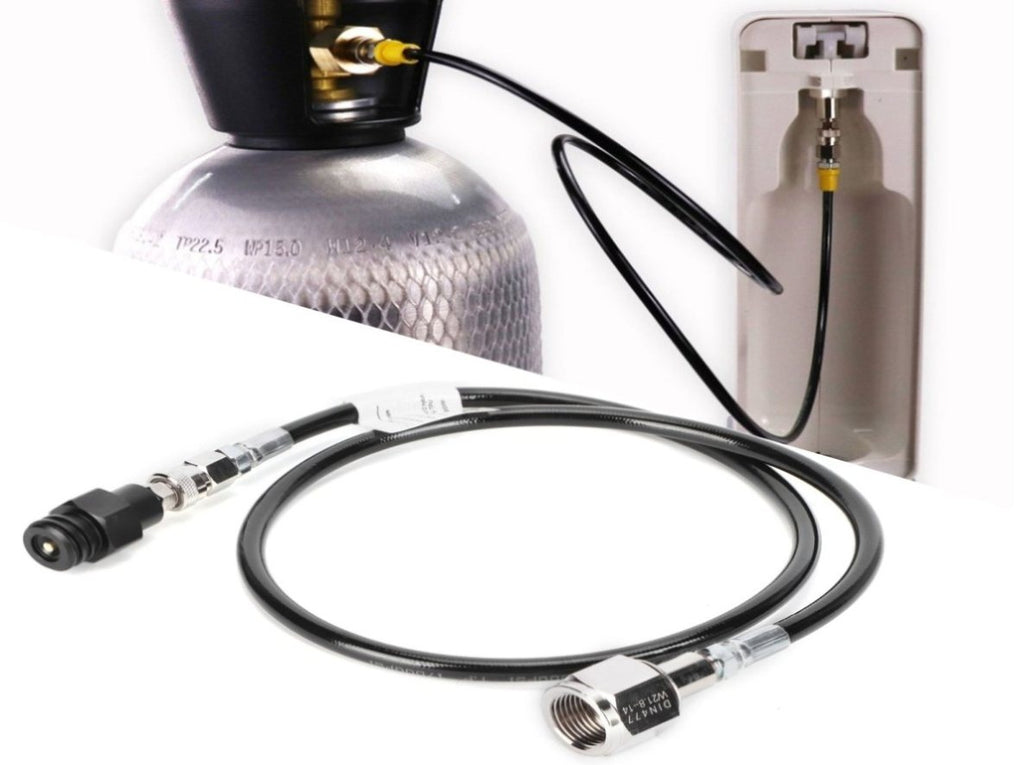

How to Use:
1. Screw the pin valve into the Soda machine
2. Screw the nut onto the carbon dioxide cylinder and tighten it with a wrench
3. Connect the quick connector
4. Open the valve of the gas cylinder
5. After completion, you can use the Soda machine.
If you want to unscrew items from the machine:
1. Close the atmospheric cylinder valve
2. Press the button of the Soda machine to discharge the remaining carbon dioxide (if you do not disconnect the connector according to this guide, the o-ring of the quick connector will blow off)
3. Disconnect the quick connector
4. Unscrew the pin valve on the Soda machine and unscrew the nut on the CO2 cylinder
Package List
1 x Soda Hose
1 x Instruction Manual
2 x Spacer
1 x Gasket
Note

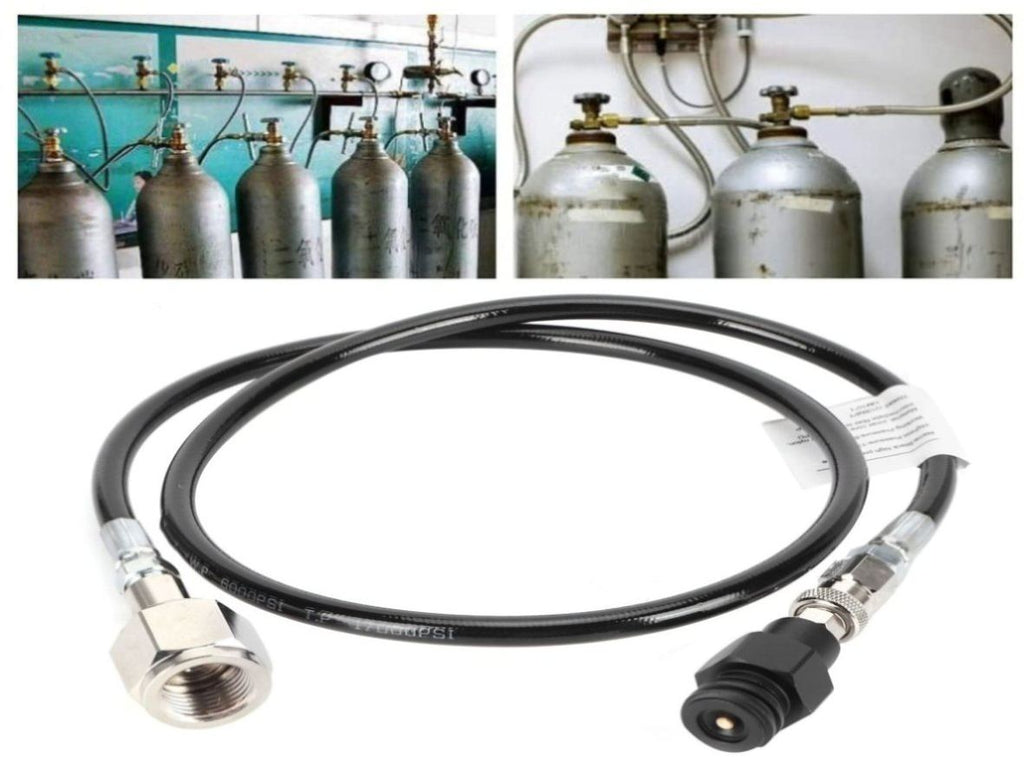

1. The refill adapter can be used to refill a small CO2 cylinder from a larger CO2 cylinder. The refill adapter is W21.8‑14. Make sure that the thread type of the CO2 cylinder is the same.
2. This item only applies to gaseous carbon dioxide, not liquid carbon dioxide. It can't use siphon carbon dioxide tank!!
3. Please do not disconnect the quick disconnect under pressure. The quick disconnect O‑ring will be blown off. It is recommended to discharge the remaining pressure on the Soda machine.
