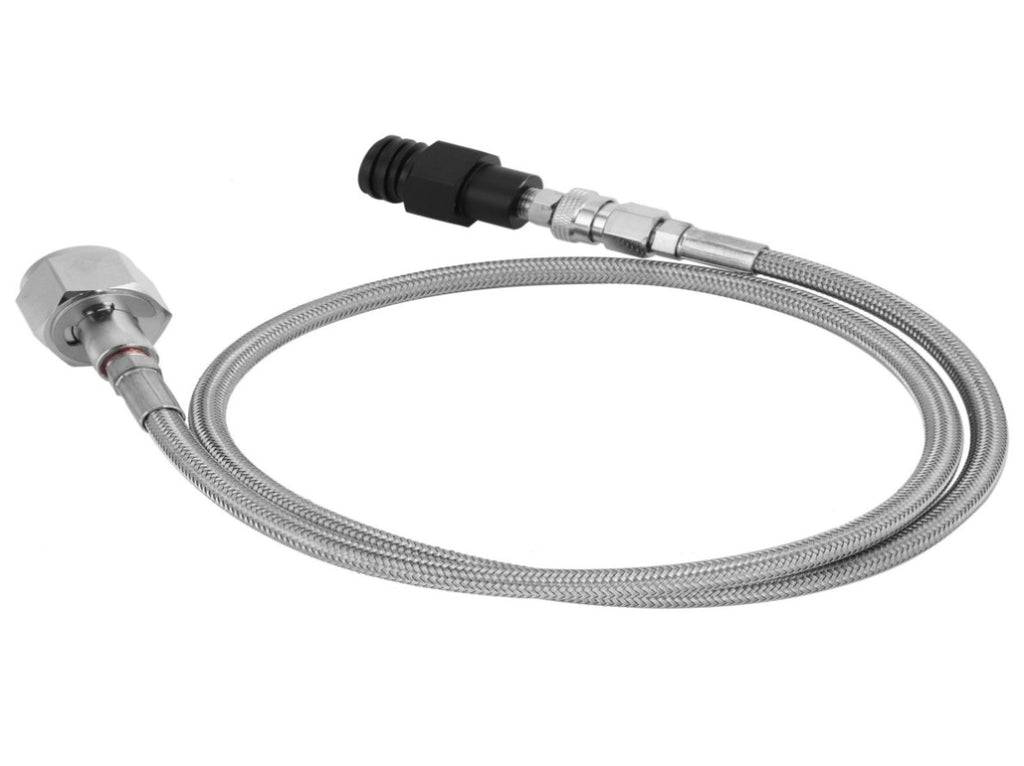

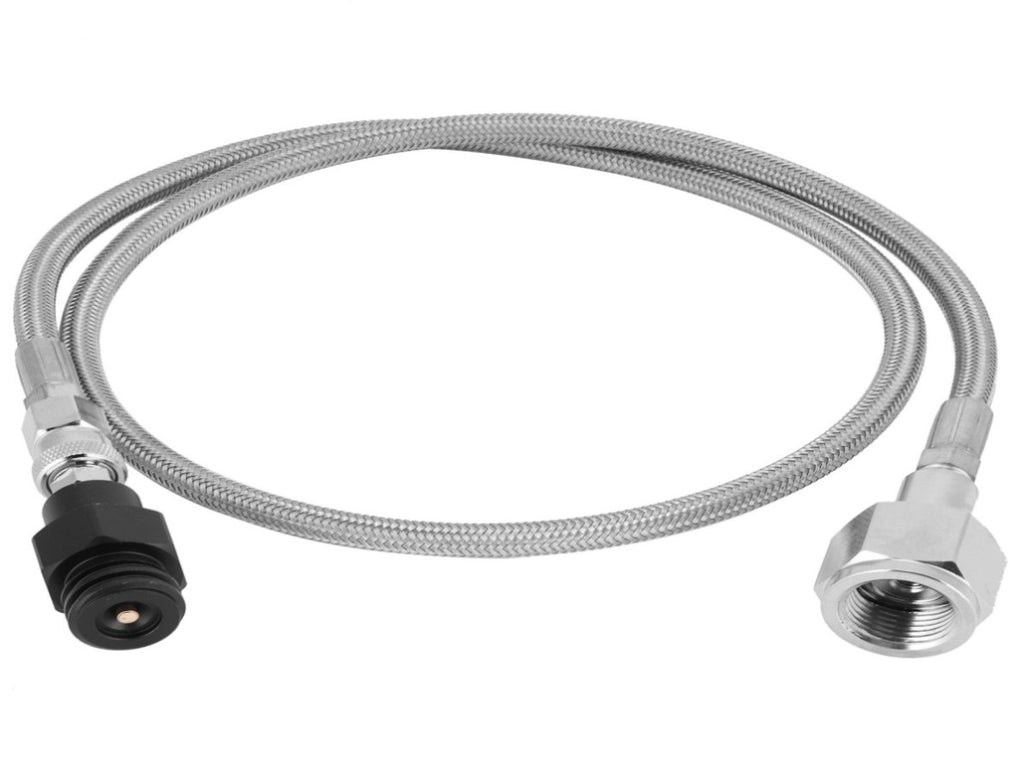

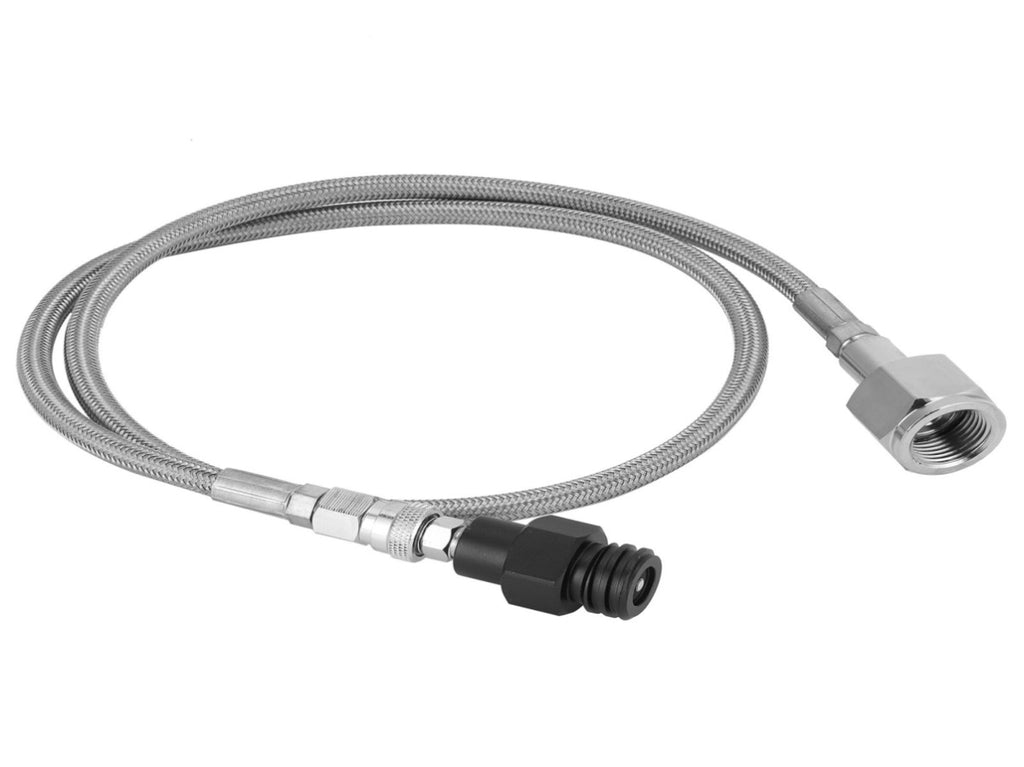

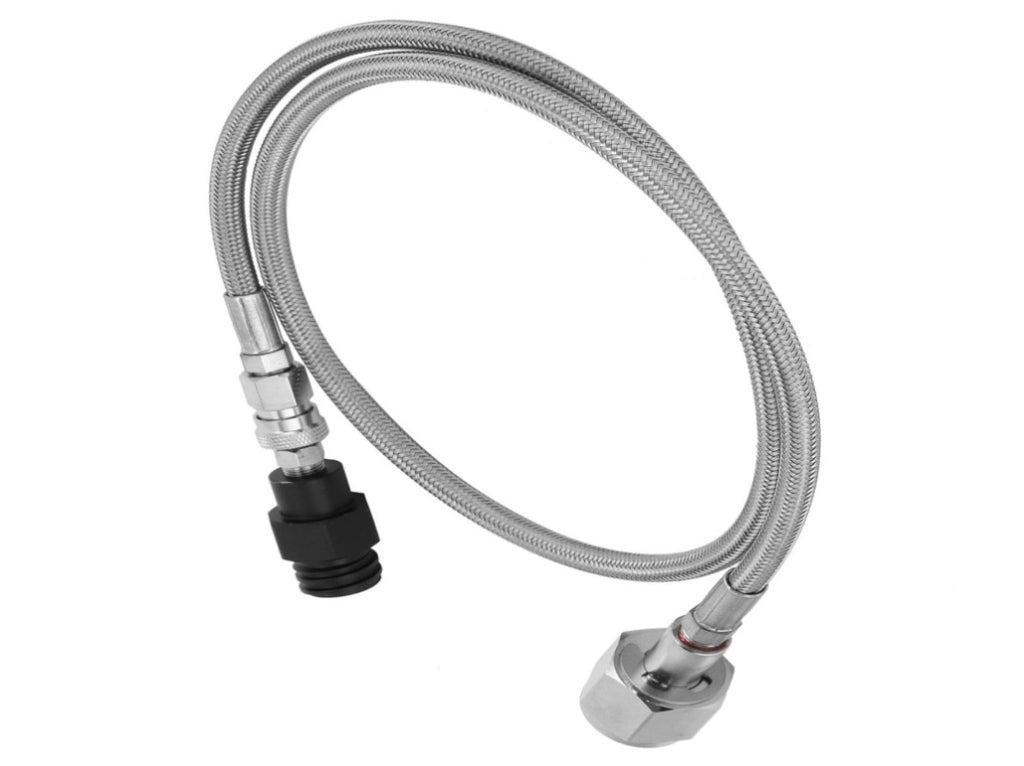

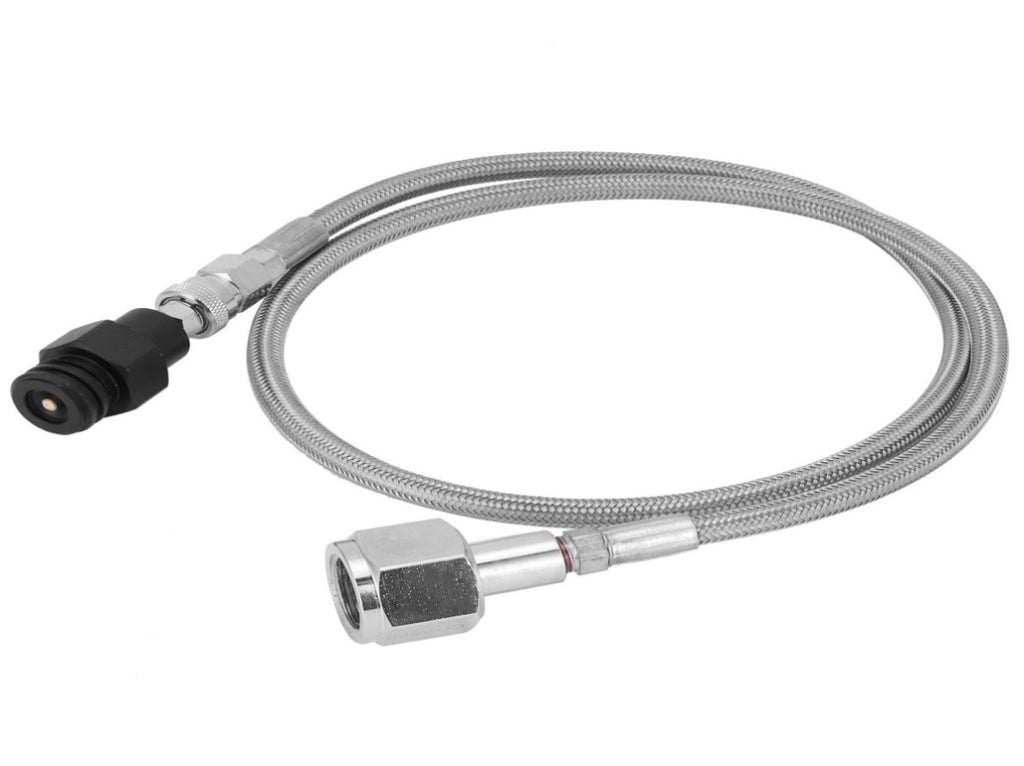

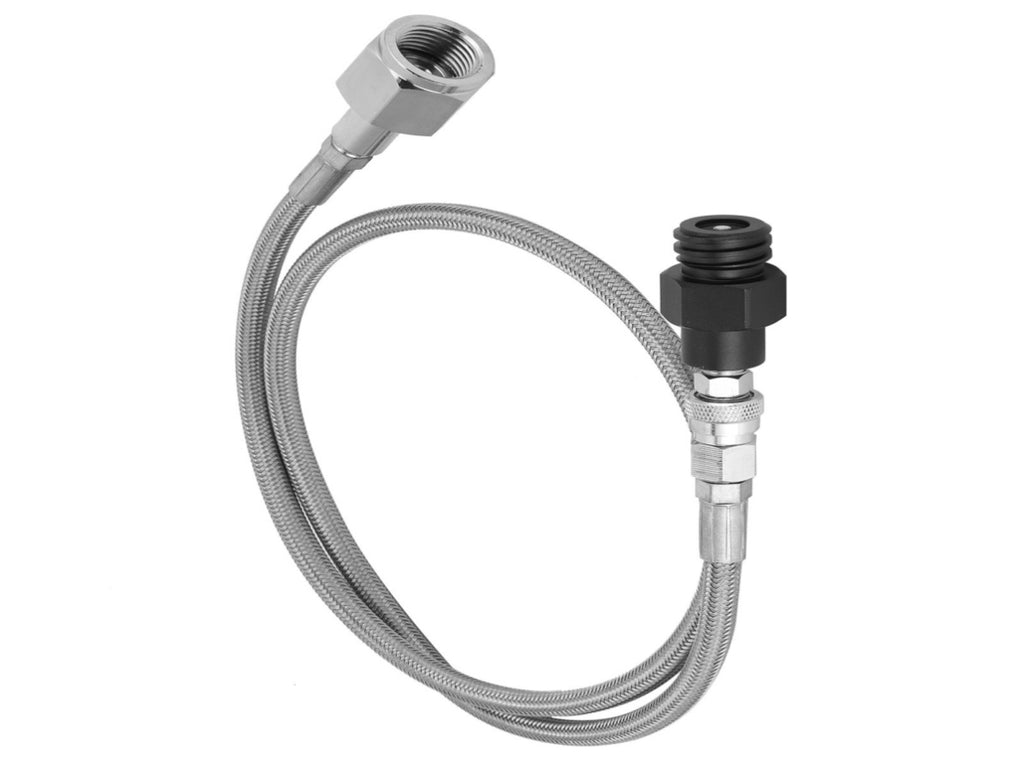

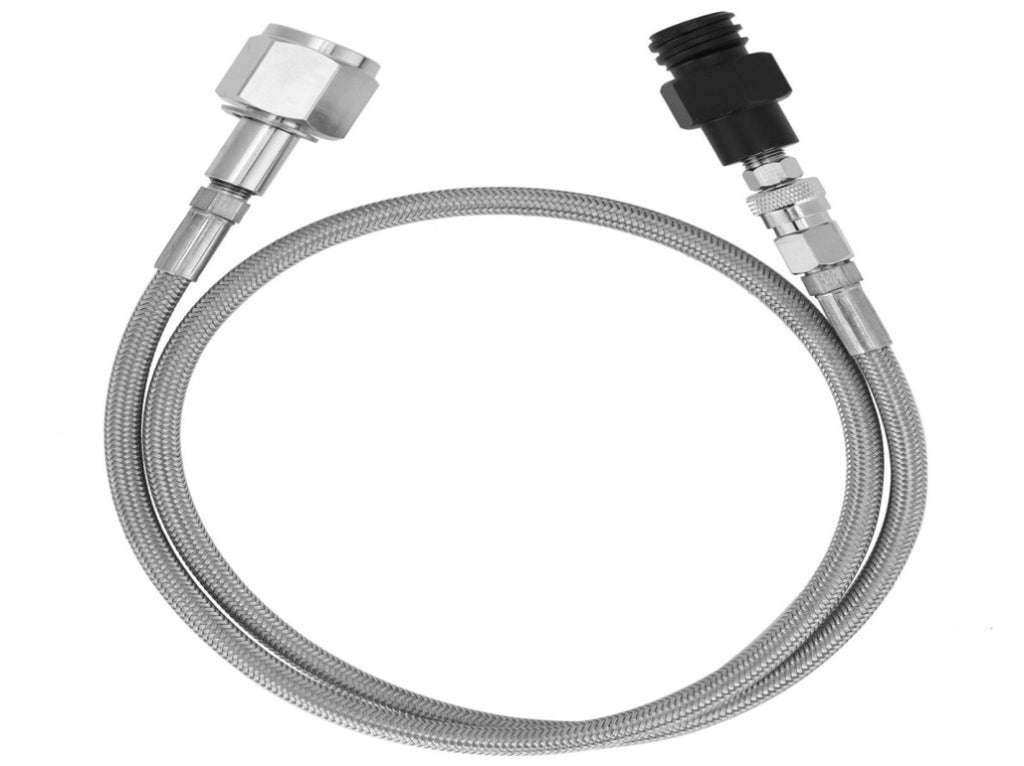

1.5m Soda Hose CGA320 // TR21-4 Carbon Dioxide Gas Cylinder Refilling Adapter Kit Silver V1294-YM0901-3113210019111

1、Carbon dioxide cylinder refilling soda hose adapter, which is a practical soda machine accessory. 2、Good sealing performance, no air leakage when connected with the cylinder. 3、Use CGA320 // TR21‑4 threaded interface, with excellent performance and reliability. 4、Easy to install and use, easy to connect to the carbon dioxide cylinder. 5、Exquisite workmanship, corrosion resistance, pressure resistance and long service life.
Specification
Item Type: Soda Hose
Material: Stainless Steel + Copper
Color: Silver
Weight: Approx. 369g / 13oz
Length: Approx. 1.5m / 4.9ft
Working pressure: 1500psi
Interface diameter: Approx. 20.8mm / 0.82in
Thread interface: CGA320 // TR21-4
Applicable Countries: the United States, Canada, Brazil, Colombia, the Philippines (some countries are also called G1/2-14/0.825-14NGO)

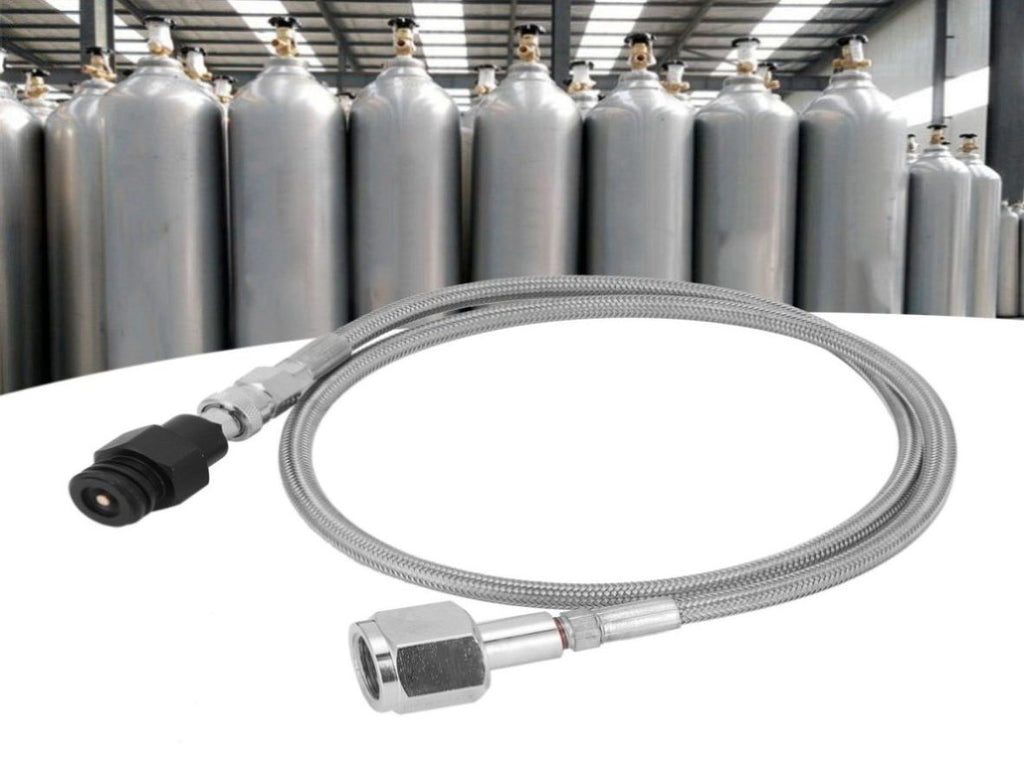

Refilling adapter can be used to replenish a small carbon dioxide tank from a larger carbon dioxide tank. The refill adapter is CGA-320 (G1/2). Make sure that the thread type of the carbon dioxide tank is the same.

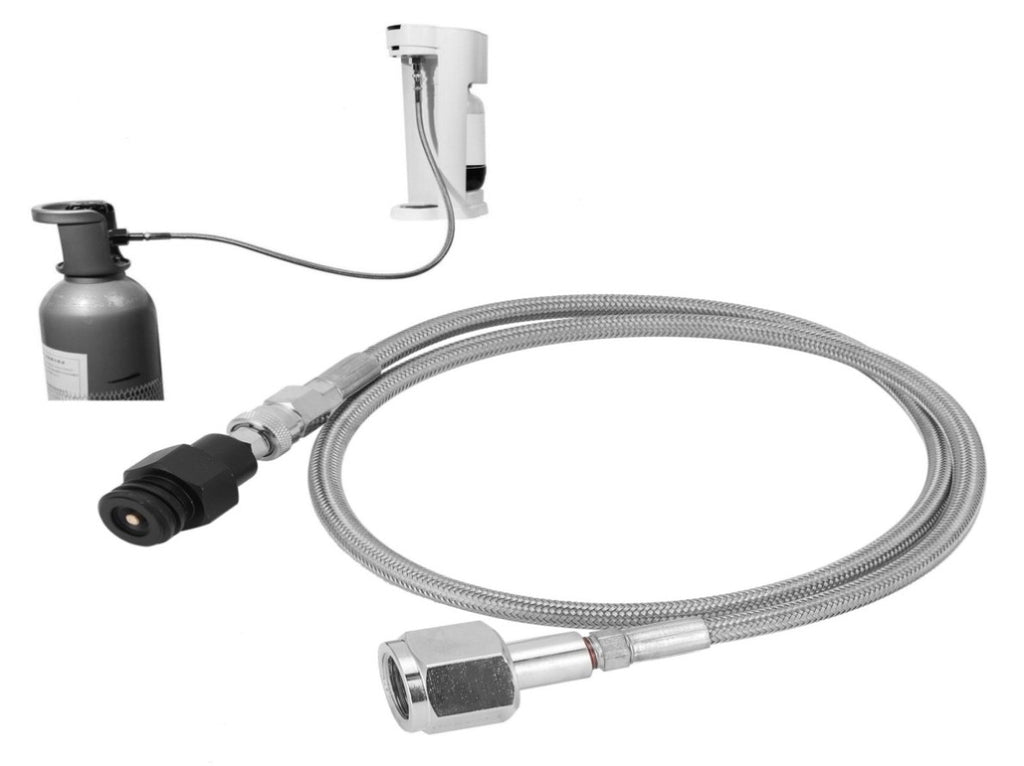

How to Use:
1. Screw the pin valve into the soda machine
2. Screw the nut onto the carbon dioxide cylinder and tighten it with a wrench
3. Connect the quick connector
4. Open the valve of the large gas bottle
5. After completion, you can use soda machine
If you want to unscrew items from the machine:
1. Close the large gas cylinder valve
2. Press the button of the soda machine to discharge remaining carbon dioxide (if you do not disconnect the connector according to this guide, the o-ring of the quick connector will blow off)
3. Disconnect the quick connector
4. Unscrew the pin valve on the soda machine and unscrew the nut on the CO2 cylinder

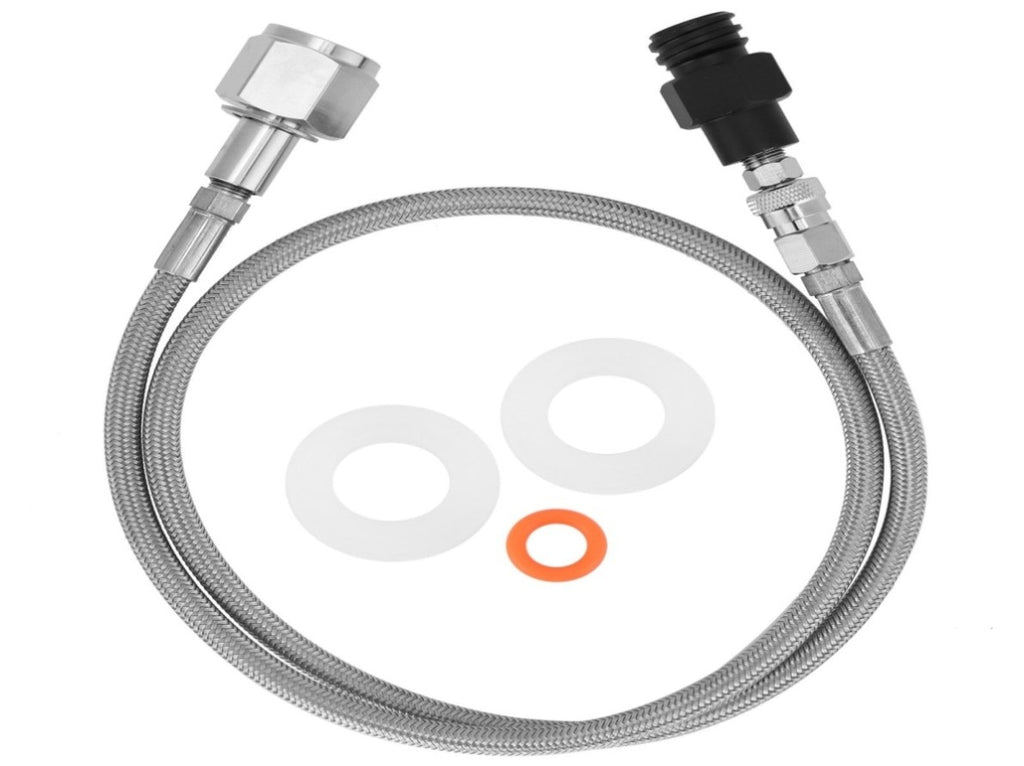

Package List
1 x Soda Hose
1 x Manual
2 x Gasket
1 x Washer
Note
1. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
3. This item is only applicable to gaseous carbon dioxide, not liquid carbon dioxide. It cannot use a siphon for carbon dioxide tanks.
4. Please do not disconnect the quick disconnect under pressure. The quick disconnect O‑ring will be blown off. It is recommended to discharge the remaining pressure on the soda machine.
