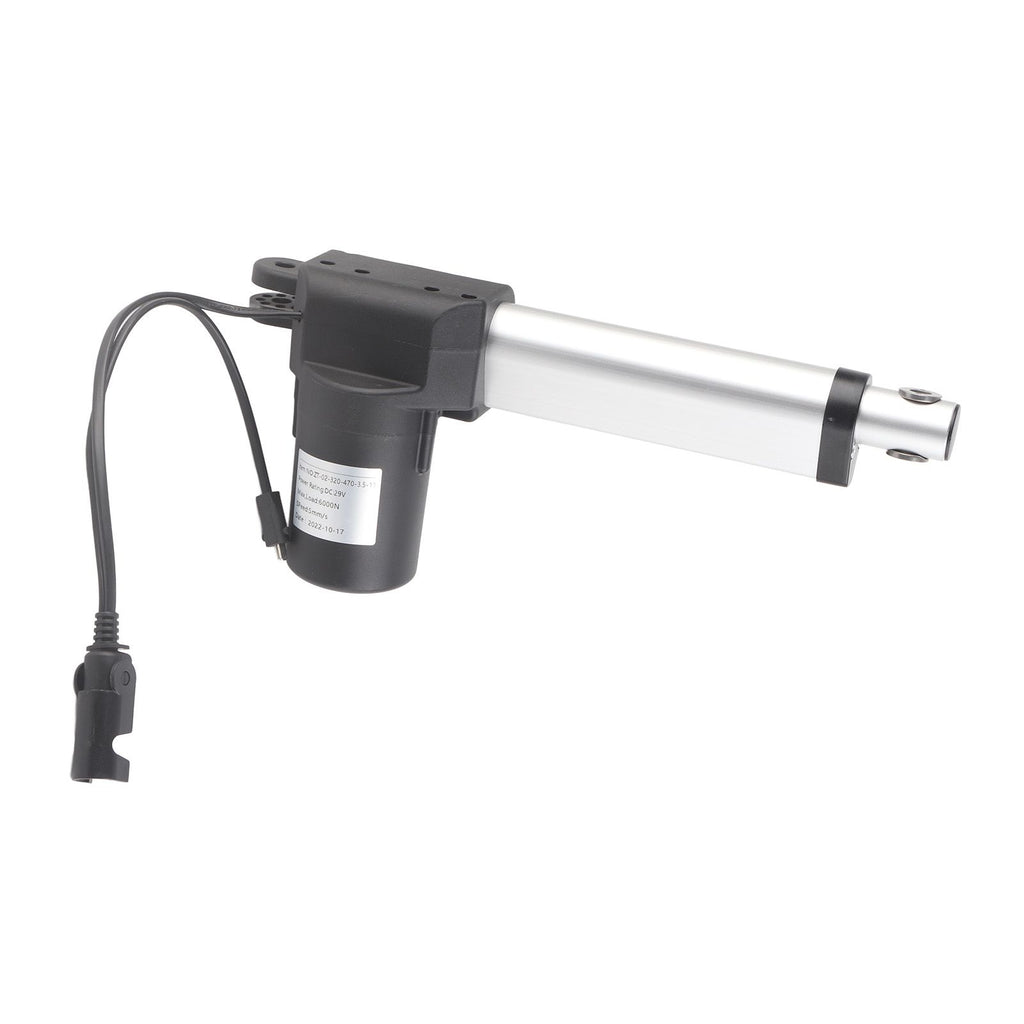

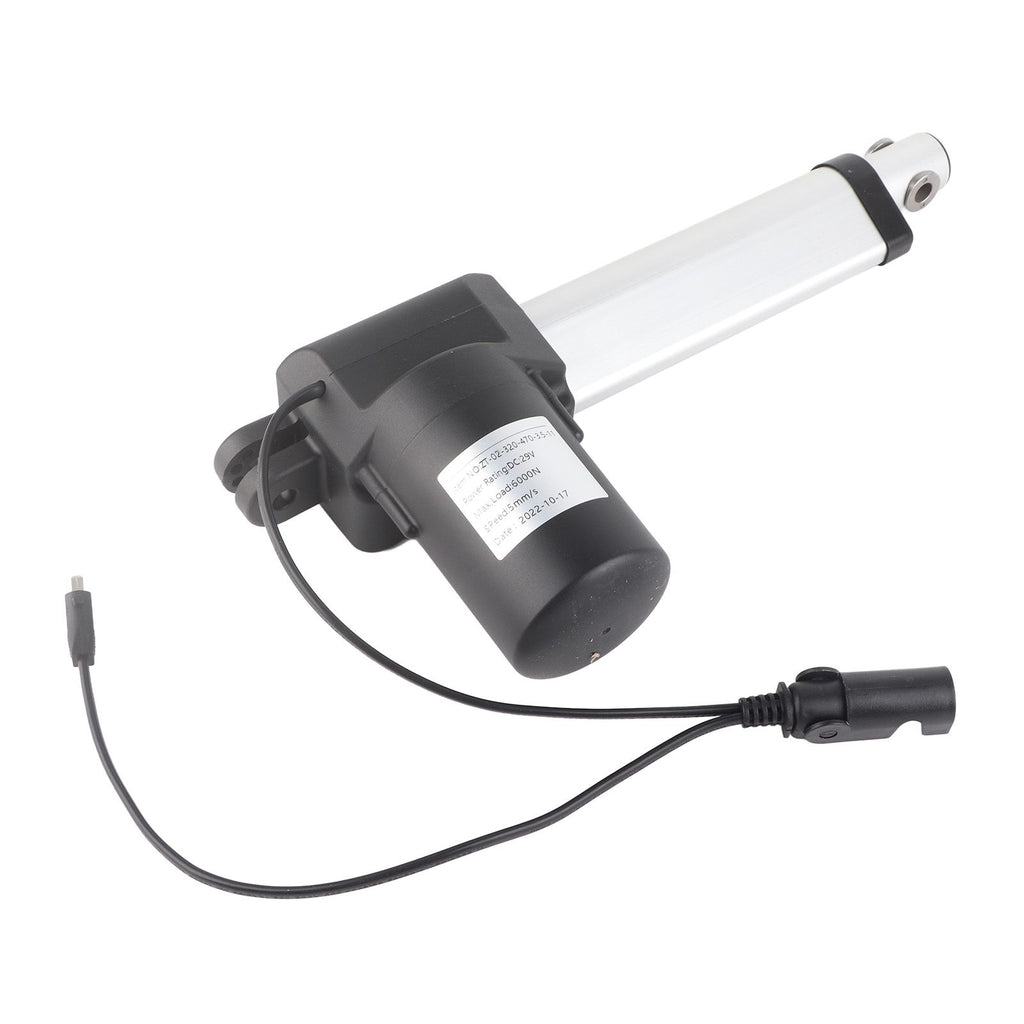

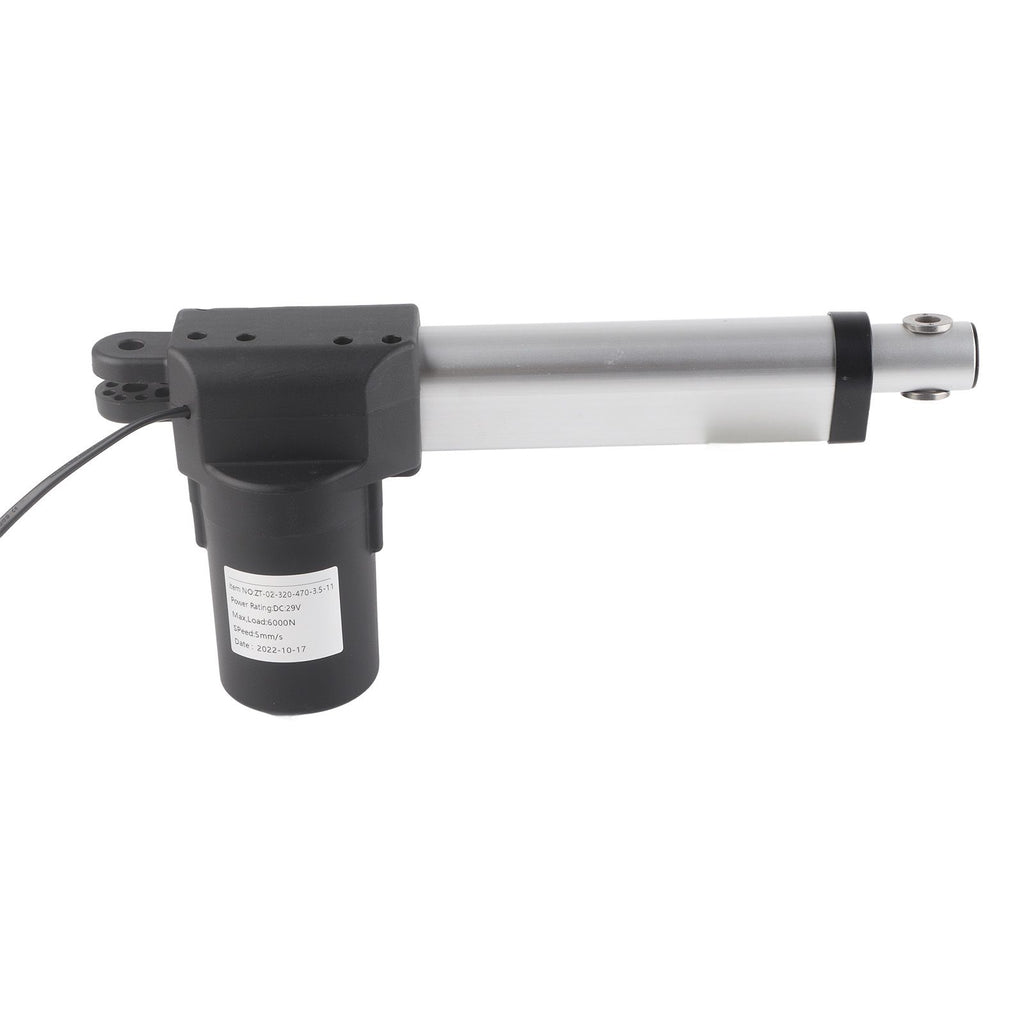

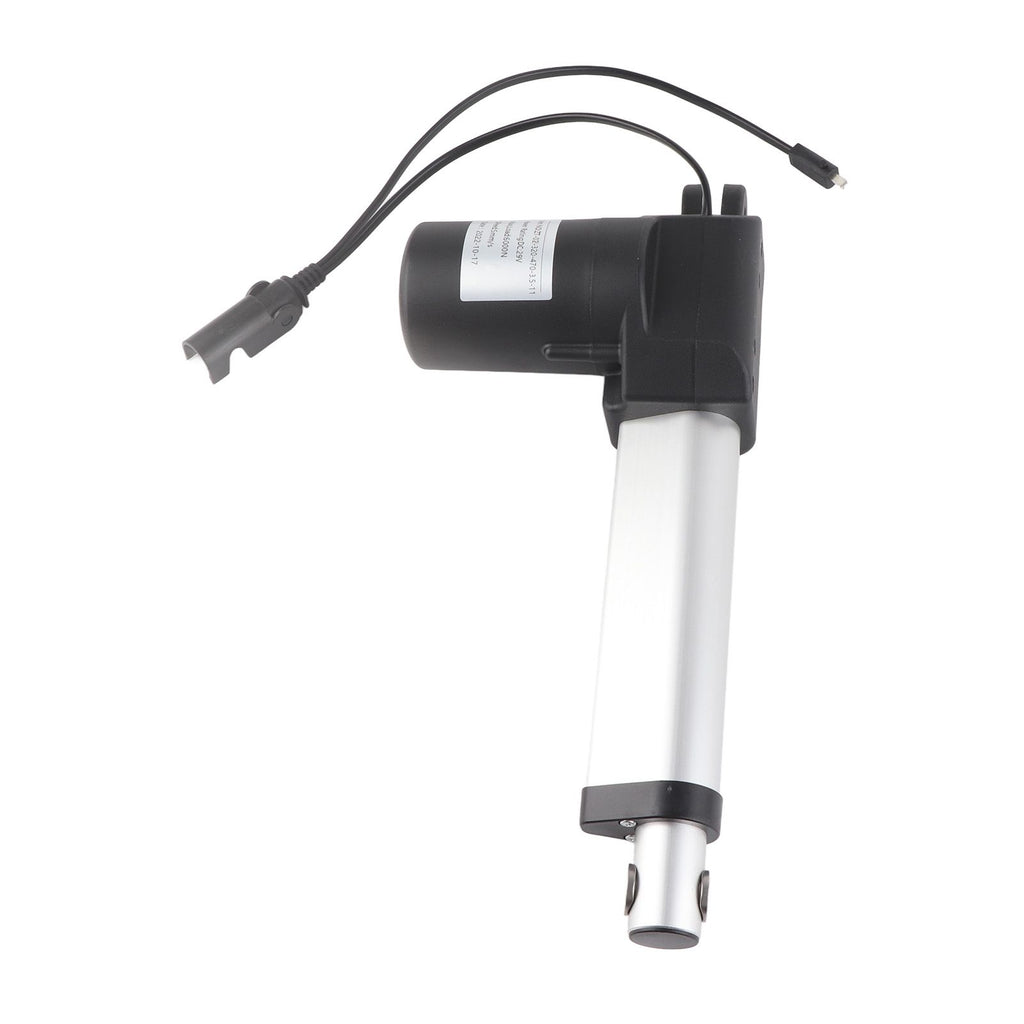

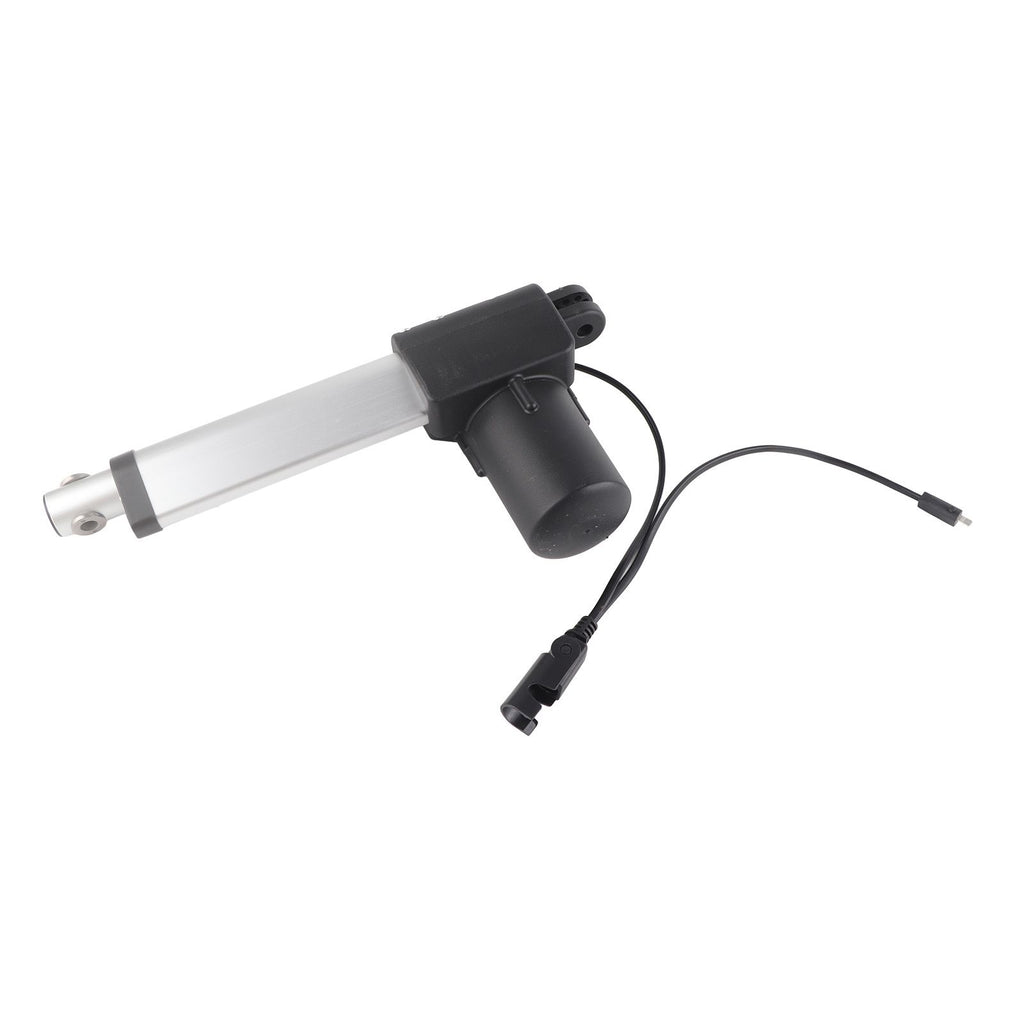

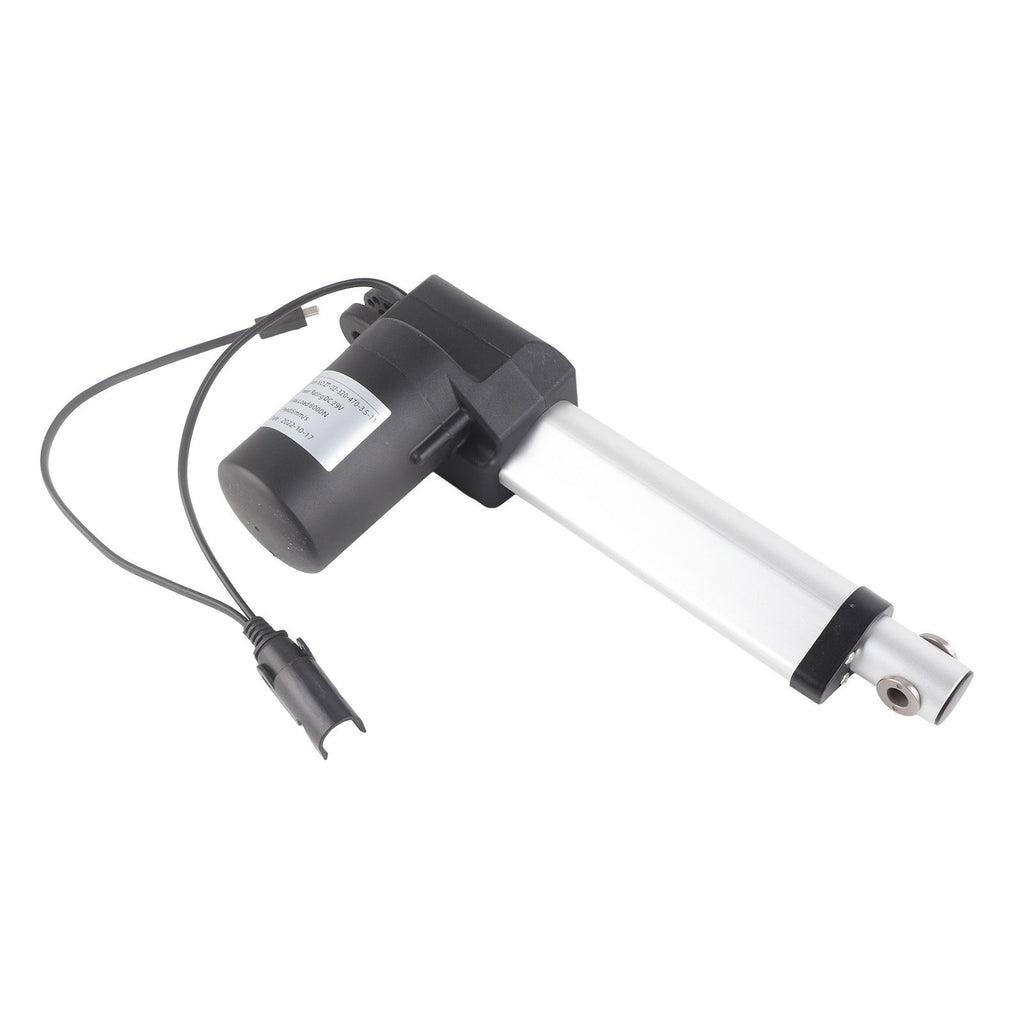

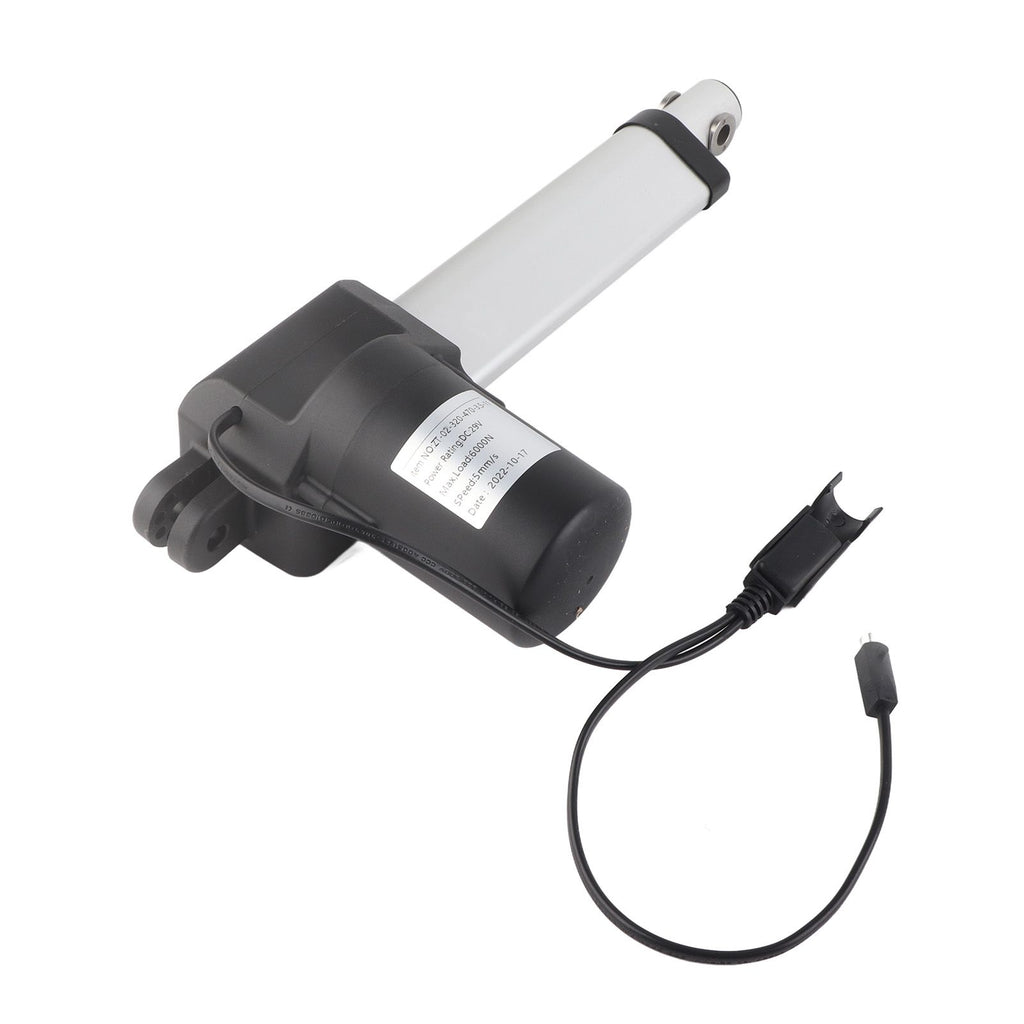

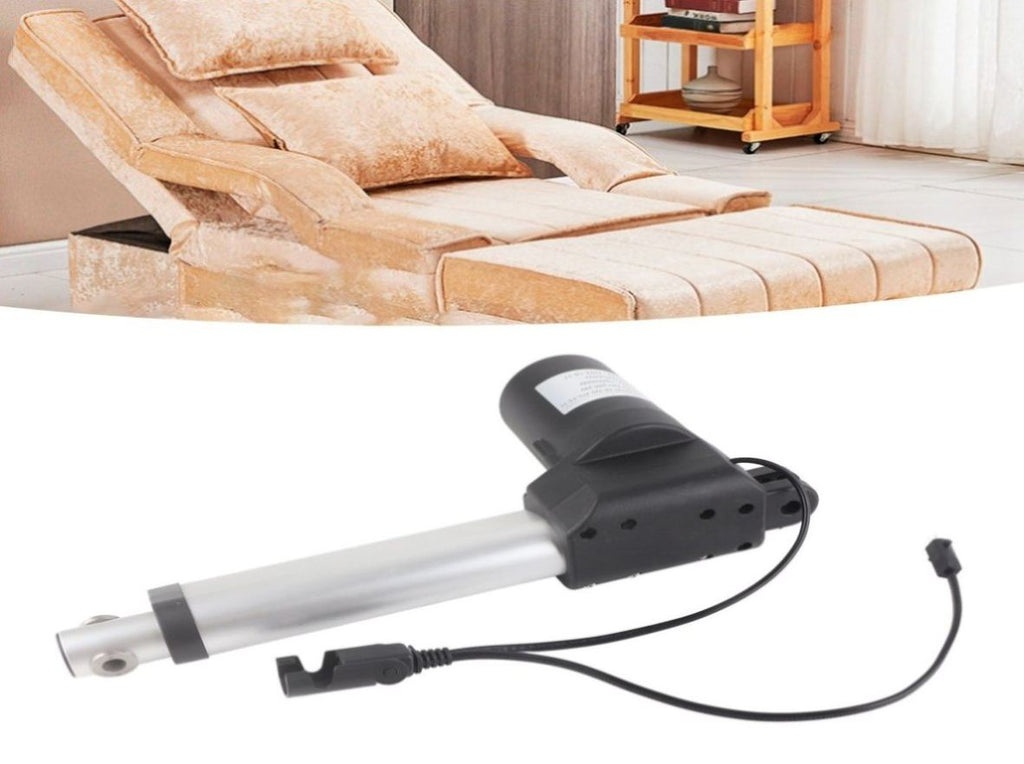

150mm Stroke Electric Linear Actuator 29V DC Motor Lifter for Automotive Industrial 100240V V1294-YM0901-3113200197911

1、With compact size and easy connection, low noise, save space, it is practical accessory. 2、Adopting high quality material, not easy to be damaged, durable and has long life. 3、Reliable linear actuator with stable performance and reliability, strong power, smoother start. 4、Easy to install and easy to replace, a direct replacement for the broken or old cable. 5、Precise and accurate size, 01 male + 5P female, easy to connect and use.
Specification
Item Type: Linear Actuator
Color: As shown in the picture
Overall Size: Approx.133x67x265mm/5.24x2.64x10.43in
Weight: Approx.2482g/87.5oz
Maximum Pushing Force: 2000N
Maximum Pulling force: 2000N
Maximum Load: 6000N
Maximum Current: 4.5Amp
Load Speed: 5mm/s
Stroke: 150mm
Installation Direction: H type or V type
Limit Switch: Built-in
Inner Tube: Aluminum tube
Head Mounting Connector: Plastic
Rear Mounting Connector: Aluminum alloy
Protection level: IPX4
Noise: <55dB(A)
Test Distance: 300mm/11.81in
Use Environment Temperature: 0~+40°C

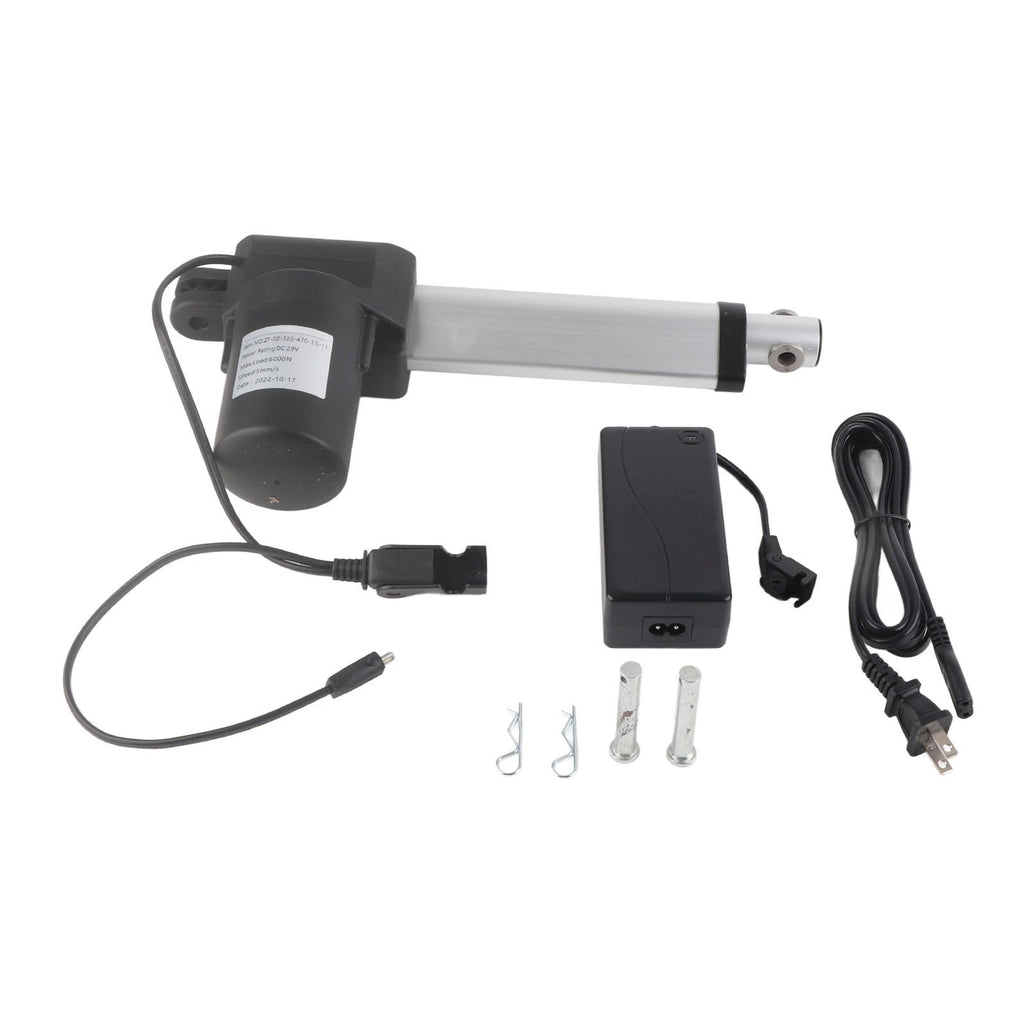

Package List
1 x Linear Actuator
2 x Fixator
2 x Fixed Buckle
1 x Power Supply
1 x Power Cord
Note
1. In terms of full load, the working system of the electric push rod trapezoidal tooth screw is generally 25%. If it is not, it can be increased appropriately. The working system of the ball screw is 100%.
2. Balancing the lateral force of the push rod to ensure that the electric push rod only bears radial force during operation.
3. The length of the telescopic tube should be increased when the stroke is greater than 800mm, and the stability of the electric push rod should be considered when the stroke is greater than 300mm.
4. The operating temperature of the electric push rod must be within its allowable range.
