LockMaster Electric Sliding Gate Opener 1200KG Auto Remote Hardware Kit Rail 4M GO-DSR1200-SV-RX2
Automatic Sliding Gate| Hardware Kit| Simple & Easy
It's winter time and lazy to get down from the car to unlock the gate Why not get an automated gate We've got all the necessary hardware kit here, you just need to pick a sliding door from your local stores and ready to have it all done in a couple hours.
Or your existing sliding gate is not working too well Our hardware kit can definitely help you out. If you're not confident with DIY, you can always hire a professional to do it with our money-worth hardware kit to fix on. As easy as that.
Check out our features and specifications for more information. Act now if you like a change for good.
Kind tips Lockmaster products may come under a different brand name "UL Tech" but this is still the same product.
Features
Powerful 450W
Recommended gate weight of 1200kg for faster operation
Smooth and ultra-quiet opening/ closing
Comes with a wireless keypad
Built-to-last nylon reinforced racks
Emergency manual release key
Built-in adjustable auto-close system
Pedestrian/ midway mode available
Quick selection for open/close direction
Reliable rolling code technology for remote control
Built-in motor running limitation
Reliable electromagnetism limit for easy adjustment
Can be equipped with a wide range of accessories
Adjustable screw thread flute for different door thickness
Perfect for maintaining existing sliding gates or installing a new one
Made of galvanised metal ensuring your gate slides smoothly
Ideal for home DIY projects, renovations, repairs
12 months warranty
Specifications:
Motor: 230V AC
Power: 450W
Material: Galvanised steel
Max. weight capacity: 1800kg
Recommended gate capacity: 1200kg
Gate moving speed: 12m/min
Max. pulling force: 160N
Max. torque: 28Nm
Protection class: IP44
Ultra-quiet rail: 4 x 1m
Dimension: 29 x 29 x 15cm
Assembly Required: Yes
Remote control battery: Alkaline zinc manganese battery 12V 27A
Please note: This item comes in 4 Packages

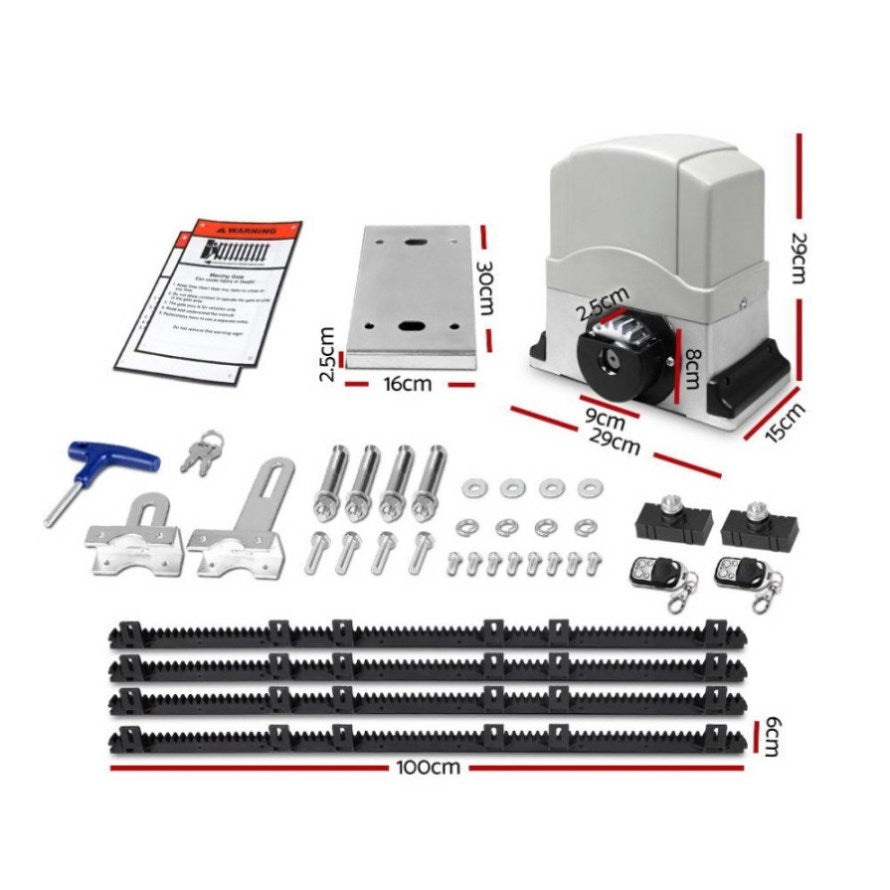

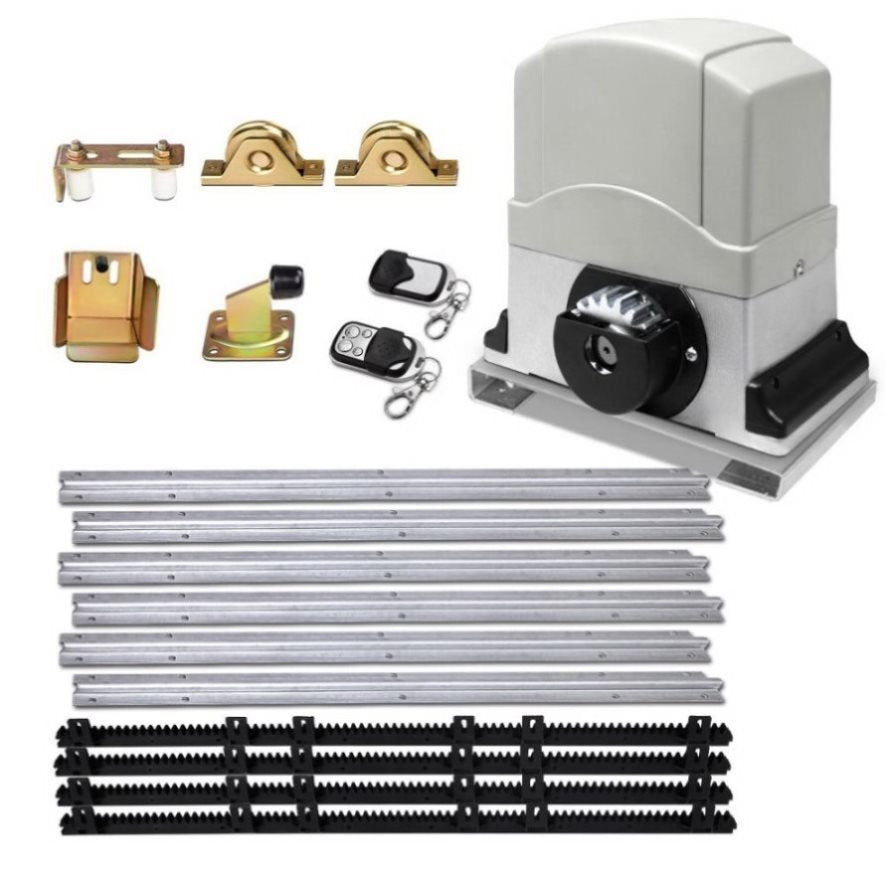

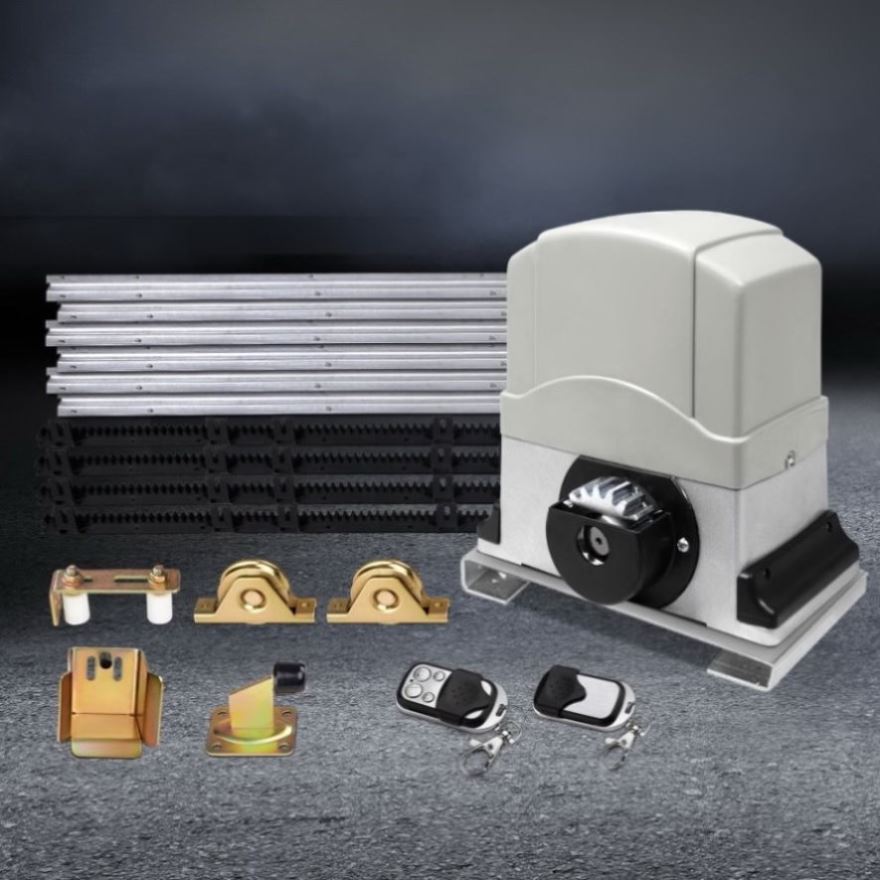

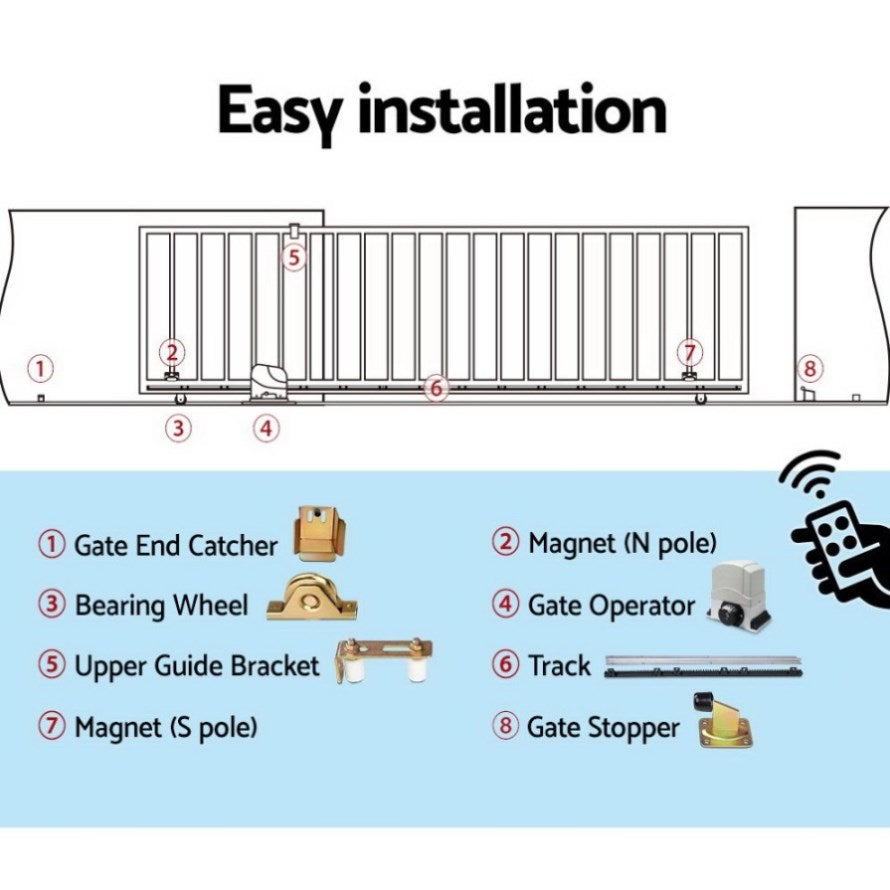

Package Content
(1) 450W Motor x1
(2) 1M Rail x4
(3) Remote Control x2
(4) Standard Accessories x1 Set
(5) User Manual x1
(6) Gate Stopper x1
(7) 1M U Groove Galvanised Ground Track x6
(8) Upper Guide Bracket with 2 Nylon Rollers x1
(9) 90mm U Groove Bearing Wheels x2
(10) Gate End Stop/ Catcher (93mm Opening) x1
This product comes with 1 year warranty
