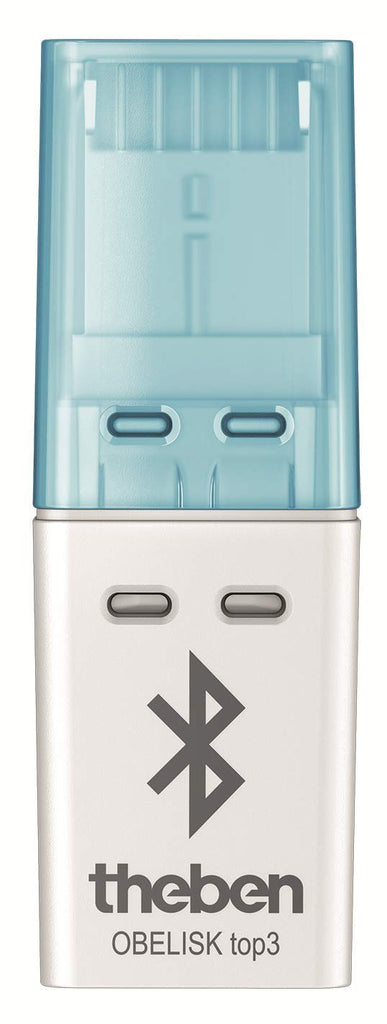

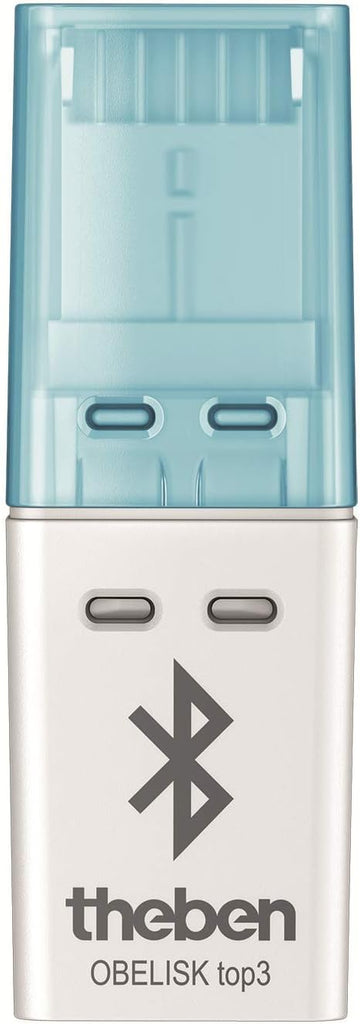

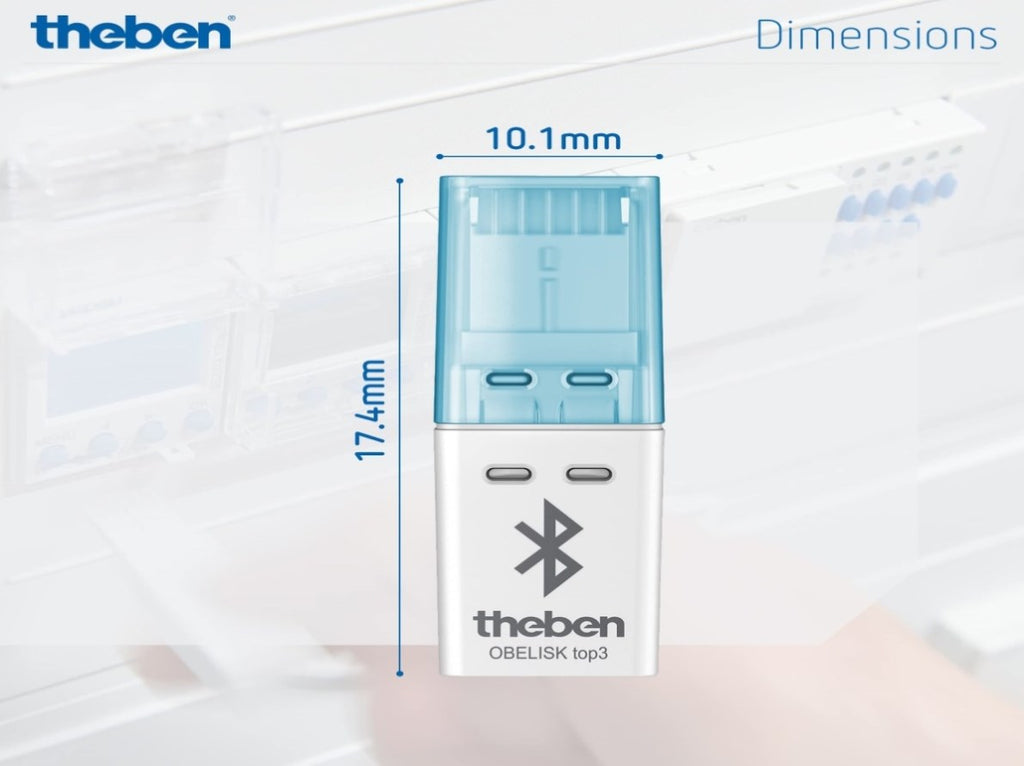

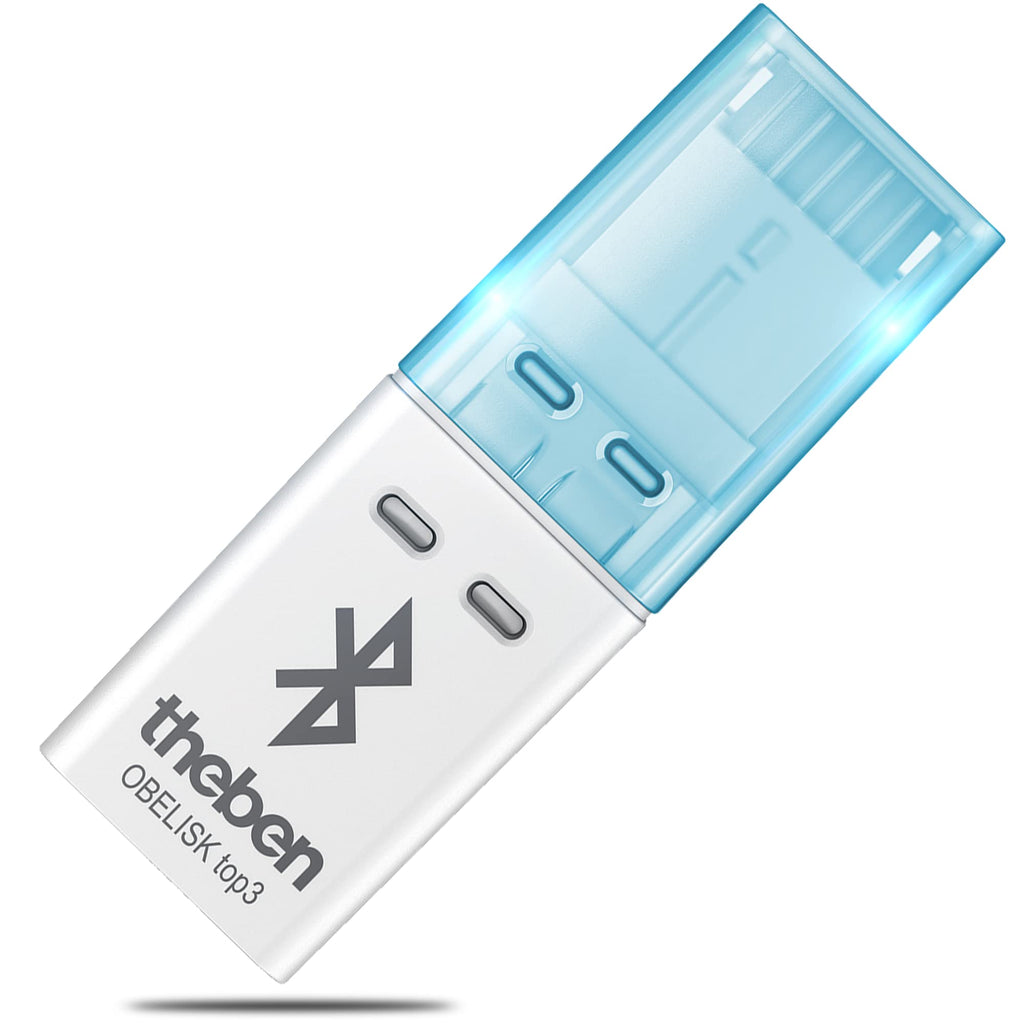

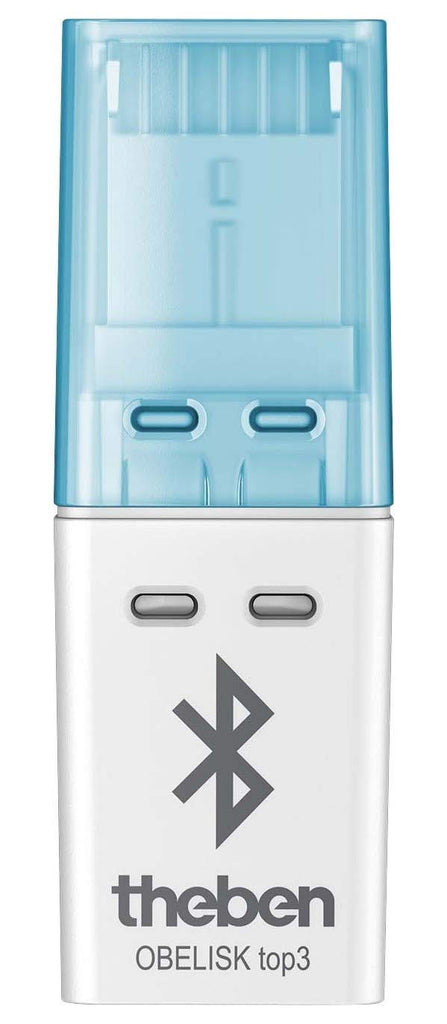

Theben 9070130 Bluetooth Obelisk top3 9070130 Bluetooth Obelisk top3 - Bluetooth Low-Energy dongle V1202-V1-THETR612TOP3
Brand: Theben
Features:
- Program the TR 612 top3 digital 2-channel timer with weekly program as you want it: on a PC and laptop, via app on a tablet or smartphone and directly on the device
- Benefit from the zero crossing circuit and even switch LED lamps with up to 600 watts of LED power absolutely safely
- Use the TR 612 top3 digital time switches with 56 storage spaces very flexibly for time-controlled switching of street ligthing, shop window or advertising lighting, for light control in and around public buildings and parking garages as well as for school bells and ventilation systems, pumps and fountains
- Protect your digital timers from manipulation: the safe transfer of the programs via Bluetooth OBELISK top3 Low Energy Dongle (sold seperately under Art.-No. 9070130) to the top3 device makes it possible
- Save your time programs directly from the app in the cloud, send programs by e-mail or transfer them directly from smartphone to smartphone - it couldn't be easier! transfer them directly from smartphone to smartphone - it couldn't be easier!
Details:
• Digital time switch with weekly program
• 2 channels
• Programming by app possible

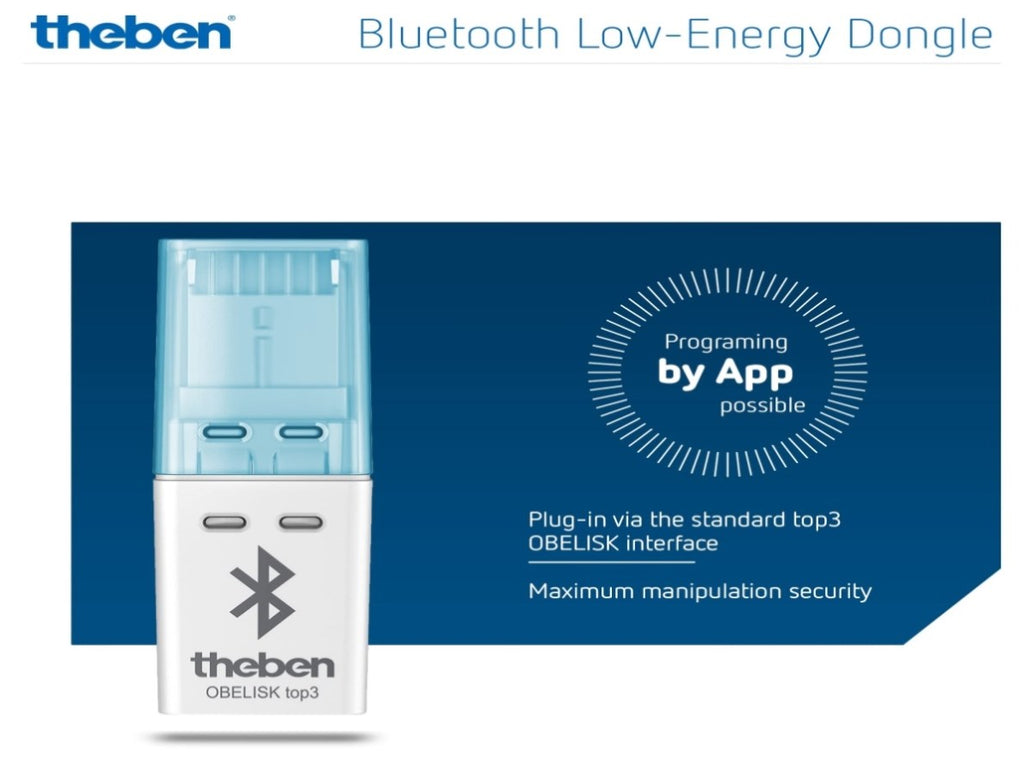

• Safe transfer via optional Bluetooth Low Energy OBELISK top3

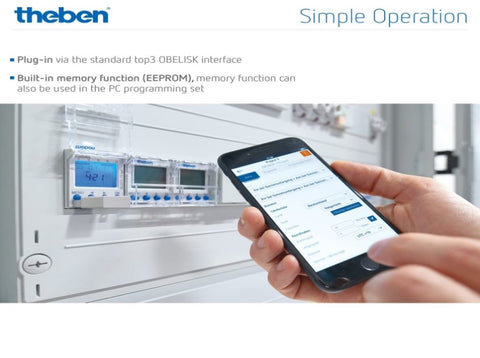

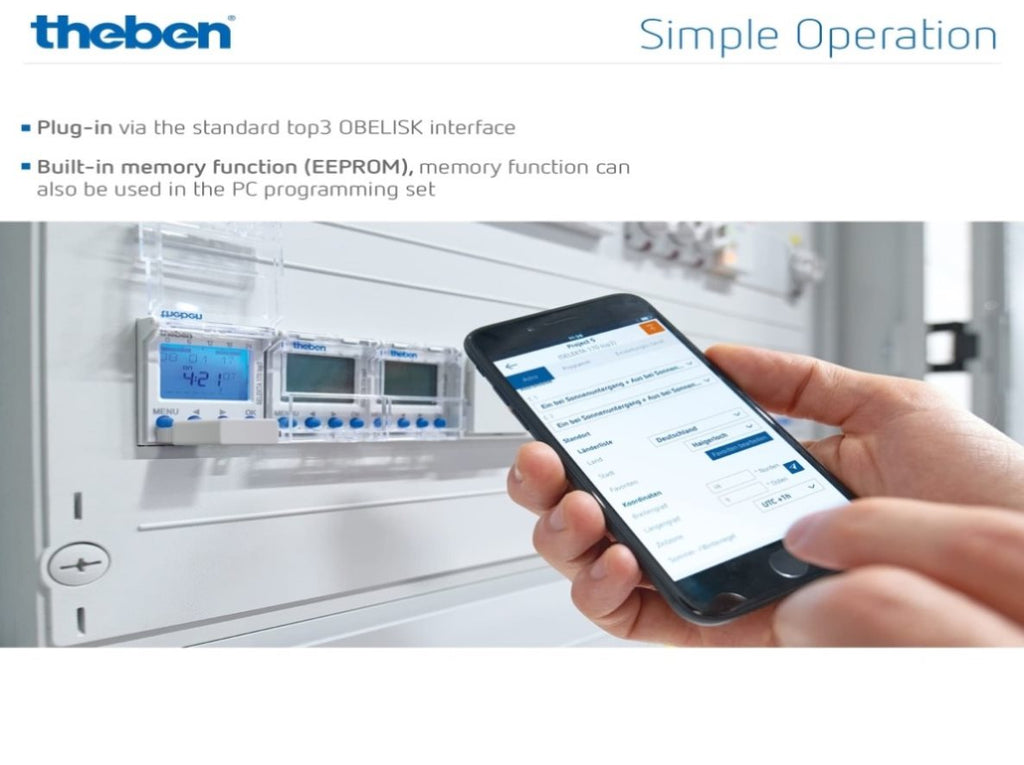

• Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
• 100 % compatible with top2
• DuoFix spring terminals
• For 2 conductors each
• Wire or strand (with or without wire end sleeve)
• Wire diameter: 0.5 - 2.5 mm²
• Button for releasing plug-in connection
• Text-oriented user guidance in display
• Preset date and time
• fully operable without mains connection
• 56 memory locations

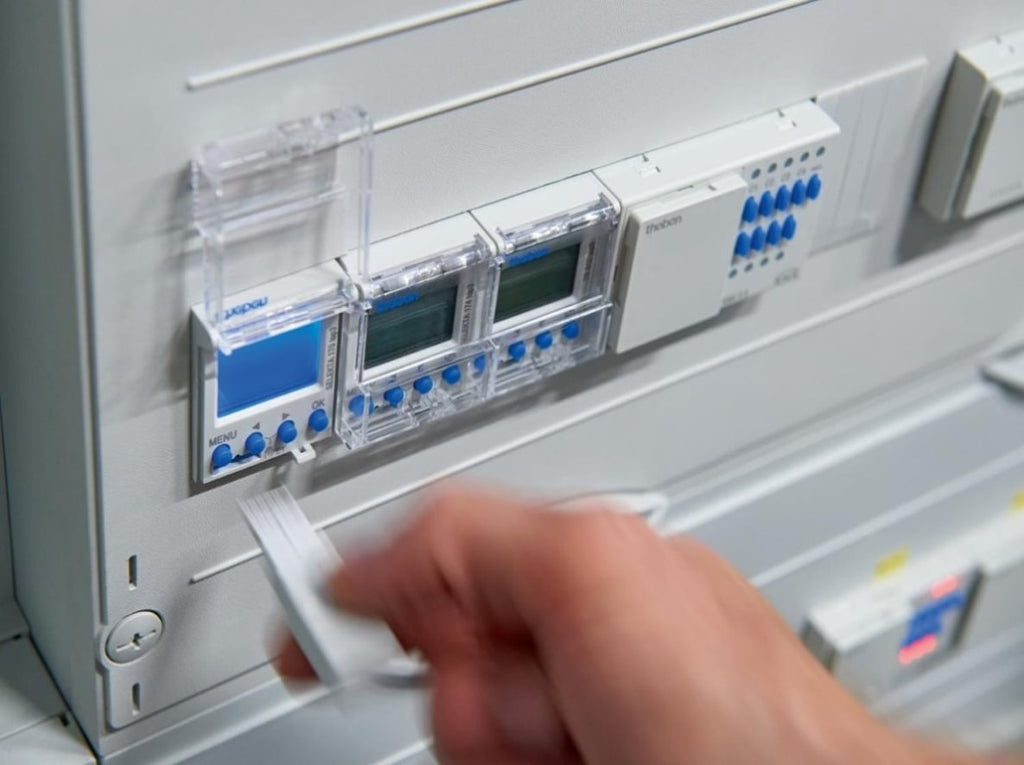

• Interface for OBELISK top2 memory card (PC programming)
• 2. insertable switching program
• Copying programs
• Storing programs
• 10 year power reserve (lithium battery)
• Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
• ON-OFF switching times
• Switching preselection
• Permanent switching ON/OFF
• Integrated operating hour counter
• Reset option
• Service function for monitoring maintenance intervals
• Holiday program
• Display back light (can be turned off)
• Permanent switching ON/OFF
• PIN coding
• Automatic summer/winter time changeover
• can be deactivated
• Date rule options are already stored for Europe, the USA and other countries
• own date rule options or changeover around set dates are available
