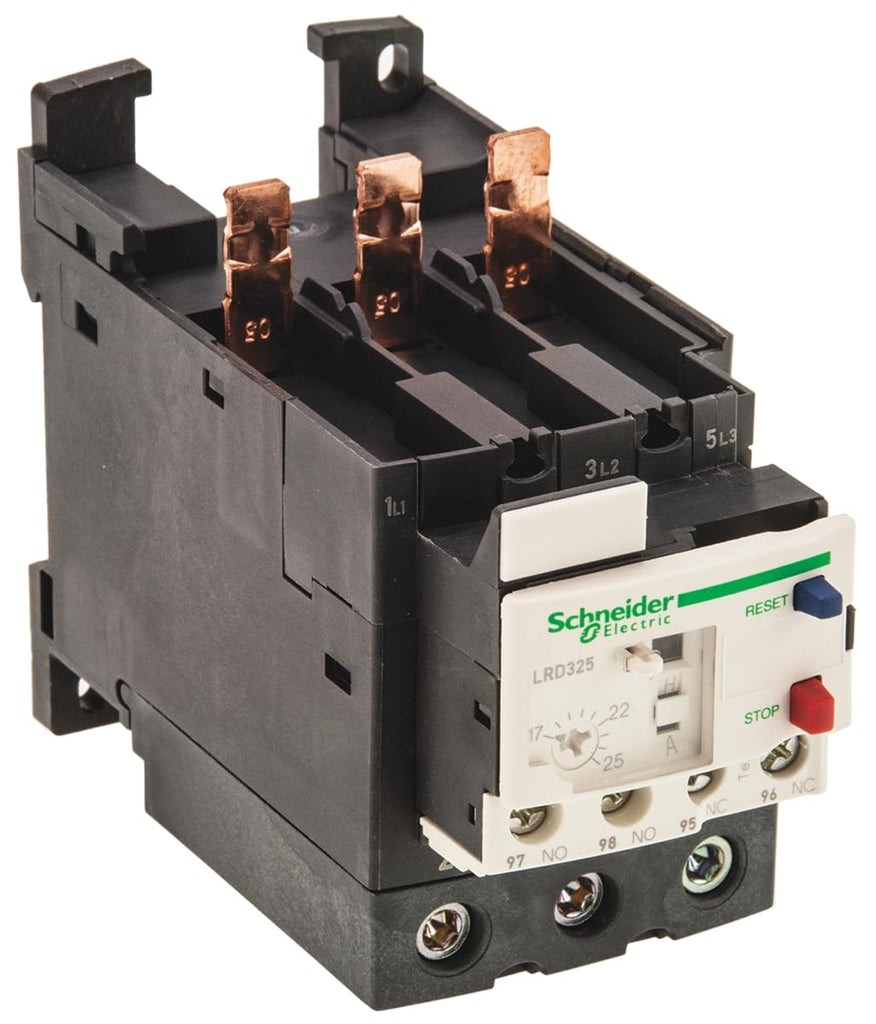

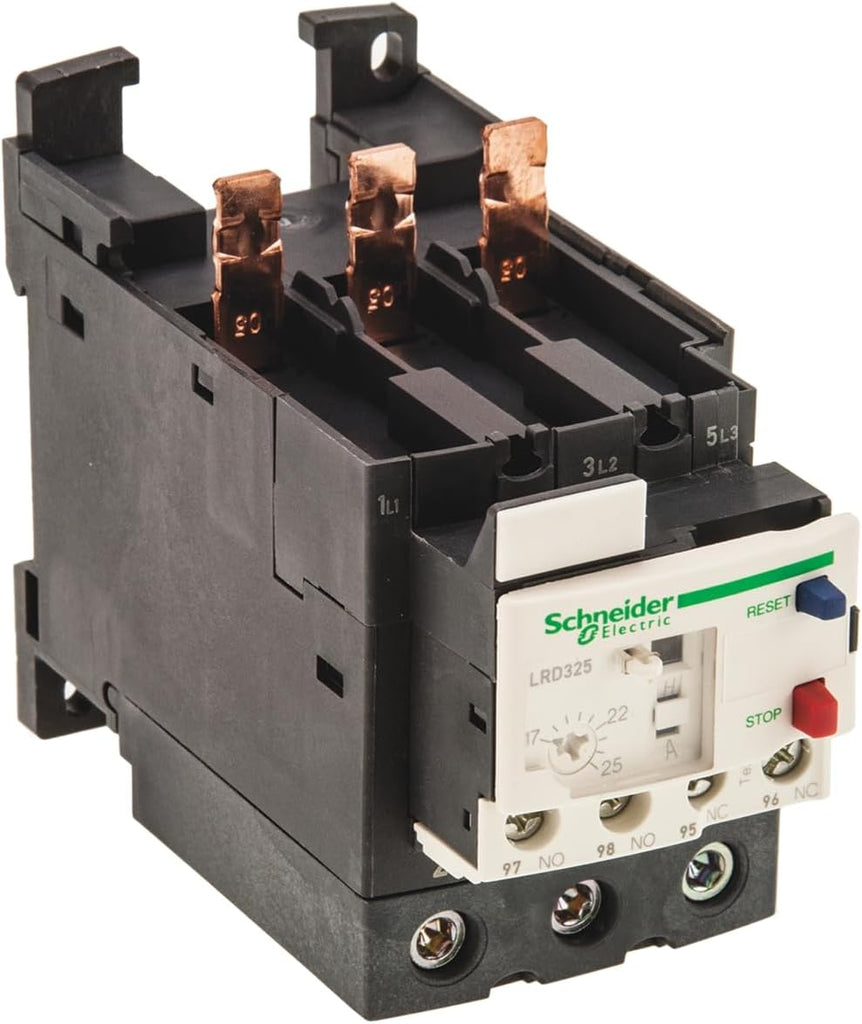

Schneider Electric TeSys LRD 17-25A Class 10A Thermal Overload Relay V1202-V1-SCDLRD32
Brand: Schneider Electric
Color: Black
Features:
- A differential device with phase failure and load unbalance detection
- It provides a thermal adjustment dial, a manual-automatic reset selector
- Connection by screw clamp terminals
- It connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A
PartNumber: LRD325
Details:
Schneider Electric TeSys LRD 17-25A Class 10A Thermal Overload Relays for protection of 3-phase motors 11kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A.
Model: LRD325
Item Condition: New
