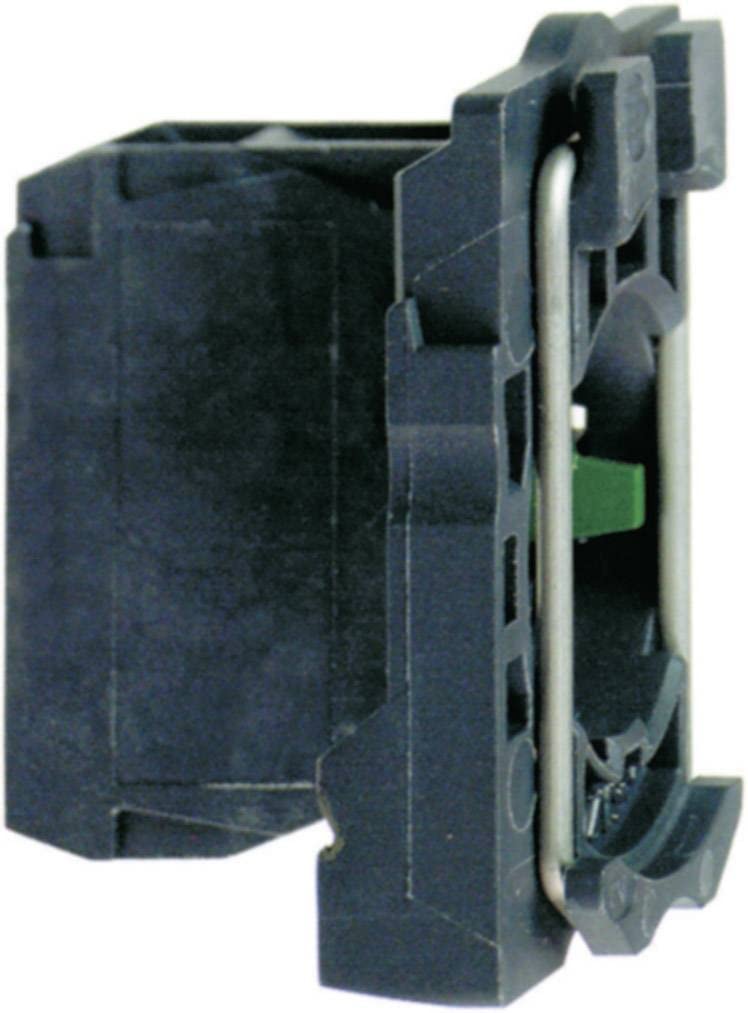

Schneider Electric Single Contact Block with Body Fixing Collar Screw Clamp Terminal 2NO V1202-V1-SCDZB5AZ103

Brand: Schneider Electric

Color: ‎Black

Features:

• Excellent mechanical connection with operator head
• A wide choice of contact blocks for general purposes or specific applications
• Moduler design supporting customization up to 5 light units
• Quick and easy assembly and disassembly
• Ensures everlasting reliability and enduring value

PartNumber: ‎ZB5AZ103

Details:

Schneider Electric Single Contact Block with Body Fixing Collar Screw Clamp Terminal 2NO allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits. The base unit to start assembling your plastic push-button or switch. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Specifications: Range of product: Harmony XB5, Product or component type: Complete body/contact assembly, Device short name: ZB5, Fixing collar material: Plastic, Head type: Standard, Contacts Type and composition: 2 NO, Contact operation: Slow-break, Contact block type: Single, connections - terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1, Terminals description ISO n°1: (13-14)NO, Device composition: Fixing collar Body, Contacts usage: Standard contacts, positive opening: Without, operating travel: 2.6 mm (NO changing electrical state), 4.3 mm (total travel), Mechanical durability: 10000000 cycles, tightening torque: 0.8…1.2 N.m conforming to EN 60947-1, shape of screw head: Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver, Contacts material: Silver alloy (Ag/Ni), short-circuit protection: 10 A cartridge fuse Type gG conforming to EN/IEC 60947-5-1, conventional free air thermal current: 10 A conforming to EN/IEC 60947-5-1, [Ui] rated insulation voltage: 600 V (pollution degree 3) conforming to EN 60947-1, [Uimp] rated impulse withstand voltage: 6 kV conforming to EN 60947-1, [Ie] rated operational current: 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1, electrical durability: 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, electrical reliability: Λ <10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, Λ <10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4, Device presentation: Basic sub-assemblies, Protective treatment: TH, Ambient air temperature for storage: -40…70 °C, Ambient air temperature for operation: -40…70 °C, IP degree of protection: IP20 conforming to IEC 60529, Standards: UL 508, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, JIS C8201-1, Product certifications: GL, LROS (Lloyds register of shipping), BV, UL, DNV, CSA, vibration resistance: 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6, shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, Warranty: 18 months.

Model: ‎ZB5AZ103

Item Condition: New
