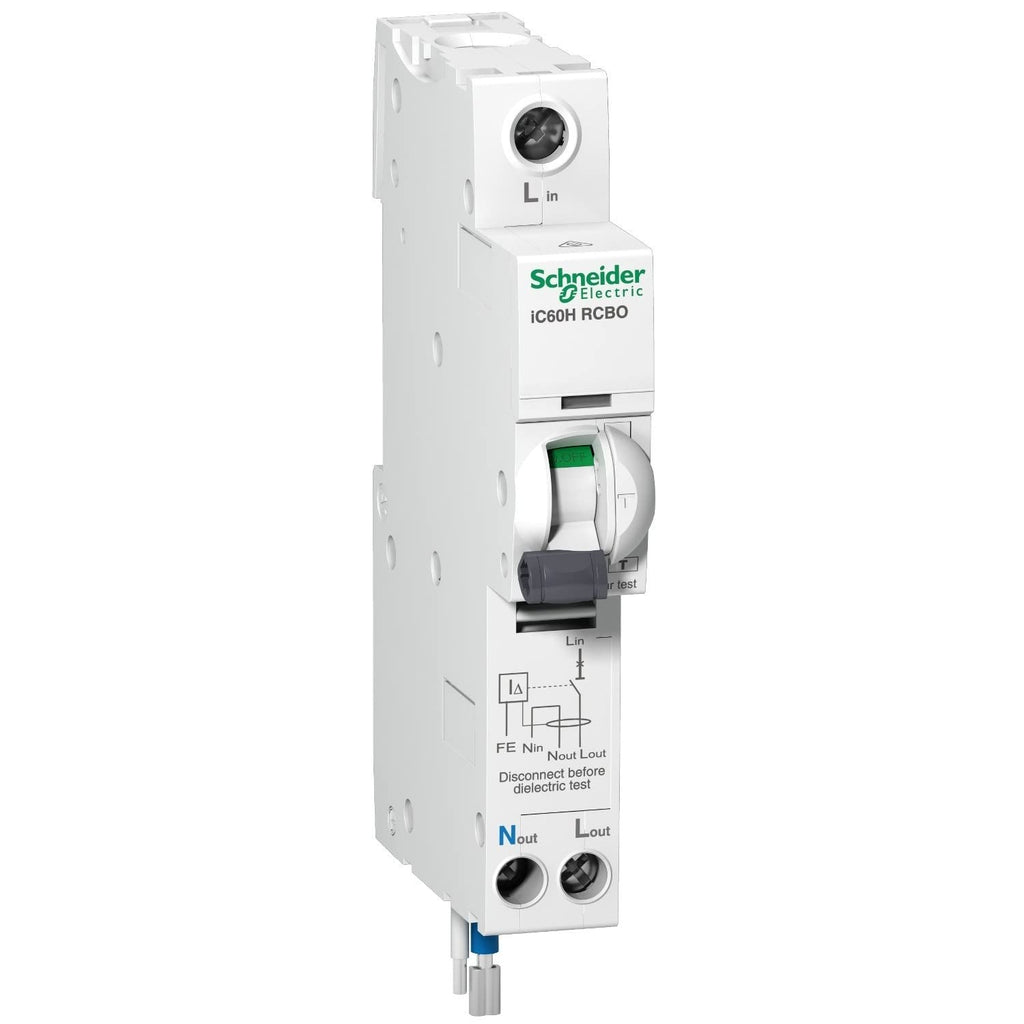

Schneider Electric IC60H 1PN 16A 30mA 230V Earth Leakage Circuit Breaker V1202-V1-SCDA9D11816
Brand: Schneider Electric
Color: White
Features:
- It is Din rail mountable
- It is a 1P+N circuit breaker with 1 protected pole
- The earth-leakage protection time delay is instantaneous
- Its unique visitrip indicator reduces intervention time by showing the faulty circuit
- The earth-leakage protection time delay is instantaneous
PartNumber: Y_927228
Details:
Schneider Electric A9D11816 IC60H RCBO 1P+N 16A 30MA 230V Earth Leakage Circuit Breaker is a 1P+N circuit breaker with 1 protected pole 16A in rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30MA. This product is compliant with BS EN 61009-1 and AS/NZS 61009.1 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white. The dimensions are 18 mm x 110 mm x 77.5 mm. The weight is 205 g.
Model: A9D11816
Item Condition: New
