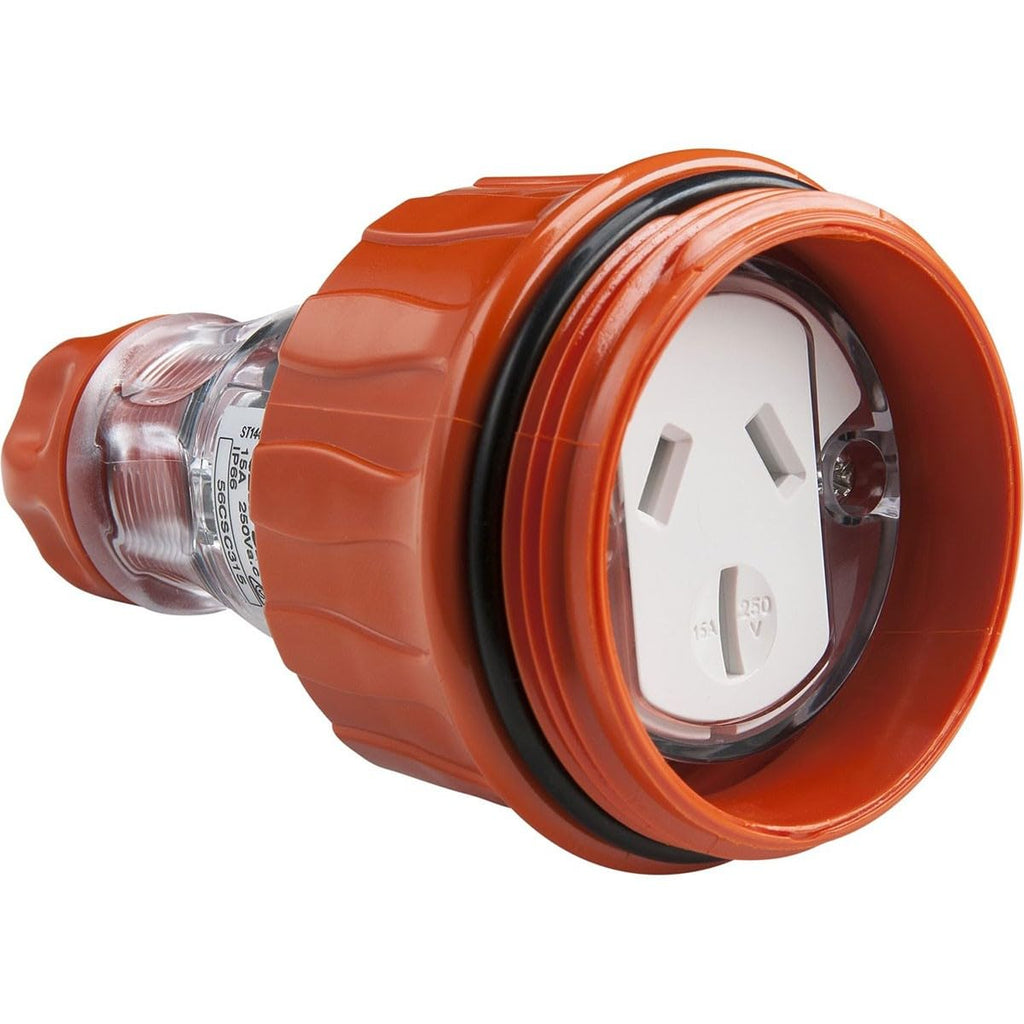

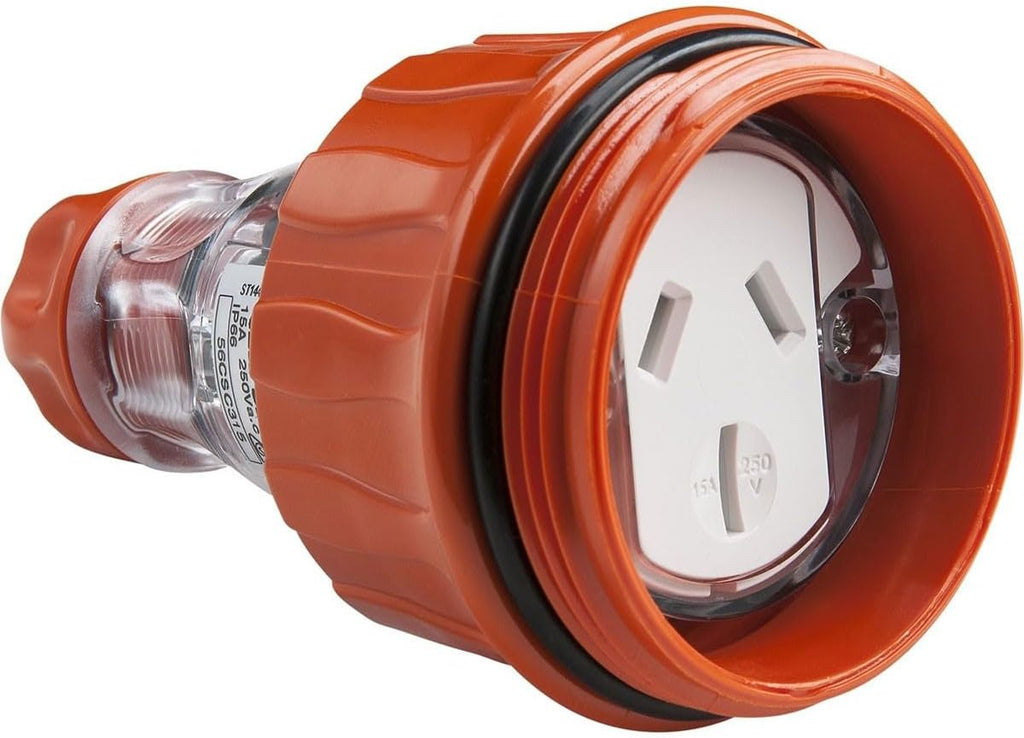

Schneider Electric Easy56 15A 250V Socket Connector, Orange/Clear V1202-V1-CLIEY56CSC315
Brand: Schneider Electric
Color: Orange/Clear
Features:
- Captive stainless steel combination head screws
- UV rated to protect against harsh and direct sunlight
- IP66 rated to protect against dusty and wet environments
- Suitable for commercial and industrial uses
- Made from polycarbonate material
PartNumber: EY56CSC315
Details:
Schneider Electric Easy56 15A 250V Socket Connector is made from polycarbonate material. Captive stainless-steel combination head screws to provide corrosion resistance and simplified installation. UV rated to protect against harsh and direct sunlight. IP66 rated to protect against dusty and wet environments. Suitable for commercial and industrial uses. Specifications: Plug, socket category: Low voltage, Poles description: 1P + N + E, Pin number: 3 pins, Shape of pin: Flat, Network type: AC, Outlet standard: Australian/New Zealand, Cable cross section: 1.5 mm², Wire stripping length: 12-34 mm, Cable outer diameter: 7.4-10.6 mm, Cable entry: Cable gland, Thread type: M20, colour: Plug: orange (RAL 2004), Body: clear.
Model: EY56CSC315
Item Condition: New
