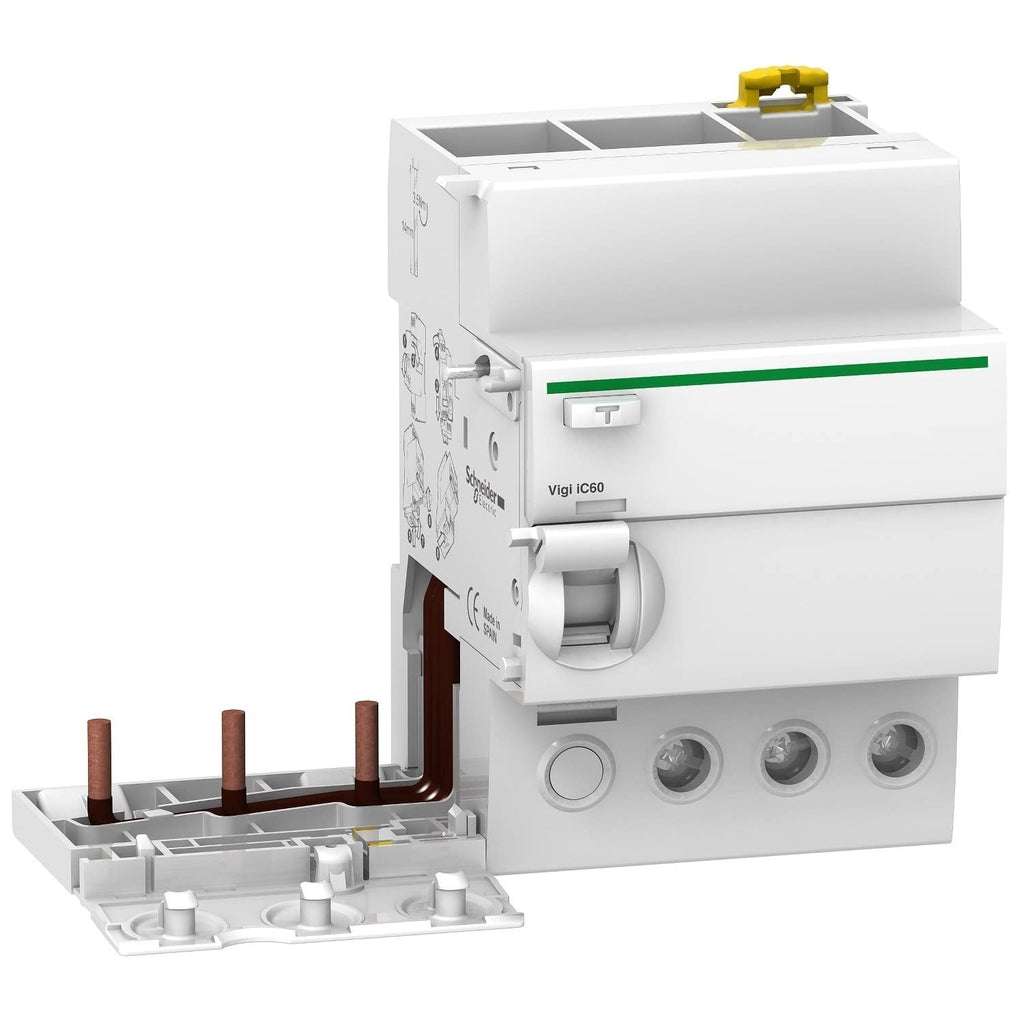

Schneider Electric Acti9 Vigi iC60 3P 30mA Earth Leakage Add-On Block V1202-V1-SCDA9V51363
Brand: Schneider Druckluft
Color: White
Features:
- The absolute safety for earth leakage protection in final distribution
- Greater continuity of service with VisiTrip
- Greater electrical immunity with Si type (super immune)
- Easy to install with robust terminal connections
- Greater electrical immunity with Si type (super immune)
PartNumber: A9V51363
Details:
Schneider Electric Acti9 Vigi iC60 3P 30mA Earth Leakage Add-On Block is a 3P, rated current is 63A, operating voltage is 400VAC to 415VAC according to IEC 61009-1. The earth leakage protection class is A type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face. It can be combined with iC60 or Acti9 Reflex iC60, to provide protection of persons and protection of installations. This product is compliant with IEC 61009-1 and EN 61009-1 standard. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature -25°C to +60°C. The storage temperature is -40°C to +85°C.
Model: A9V51363
Item Condition: New
