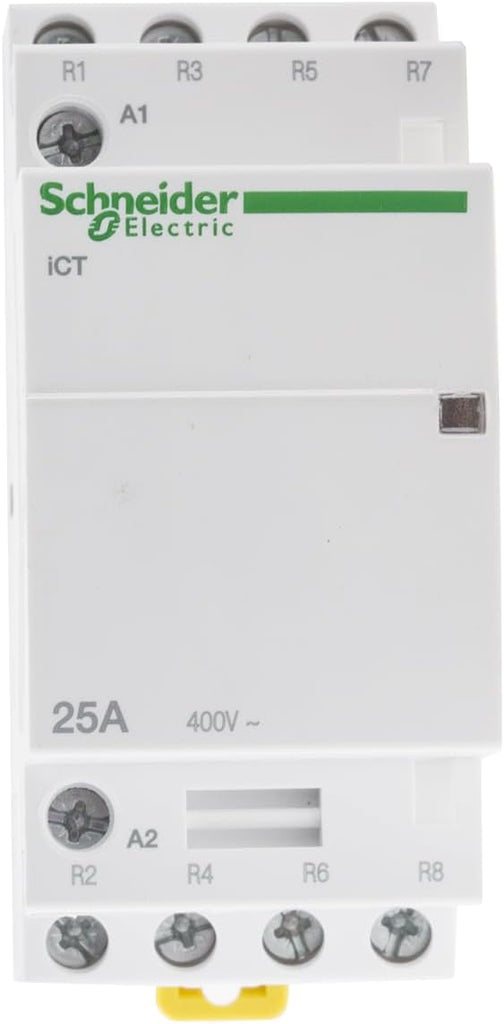

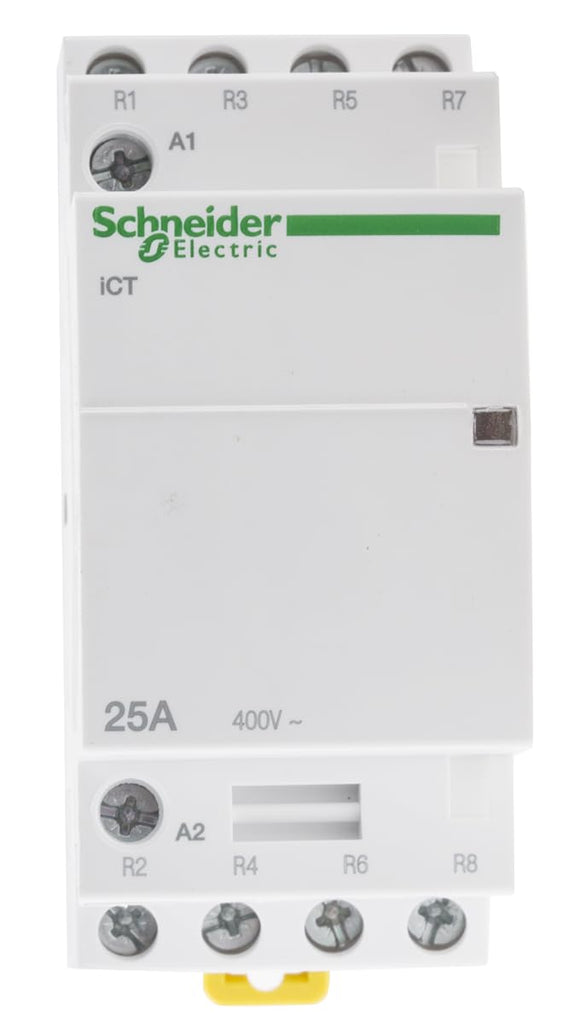

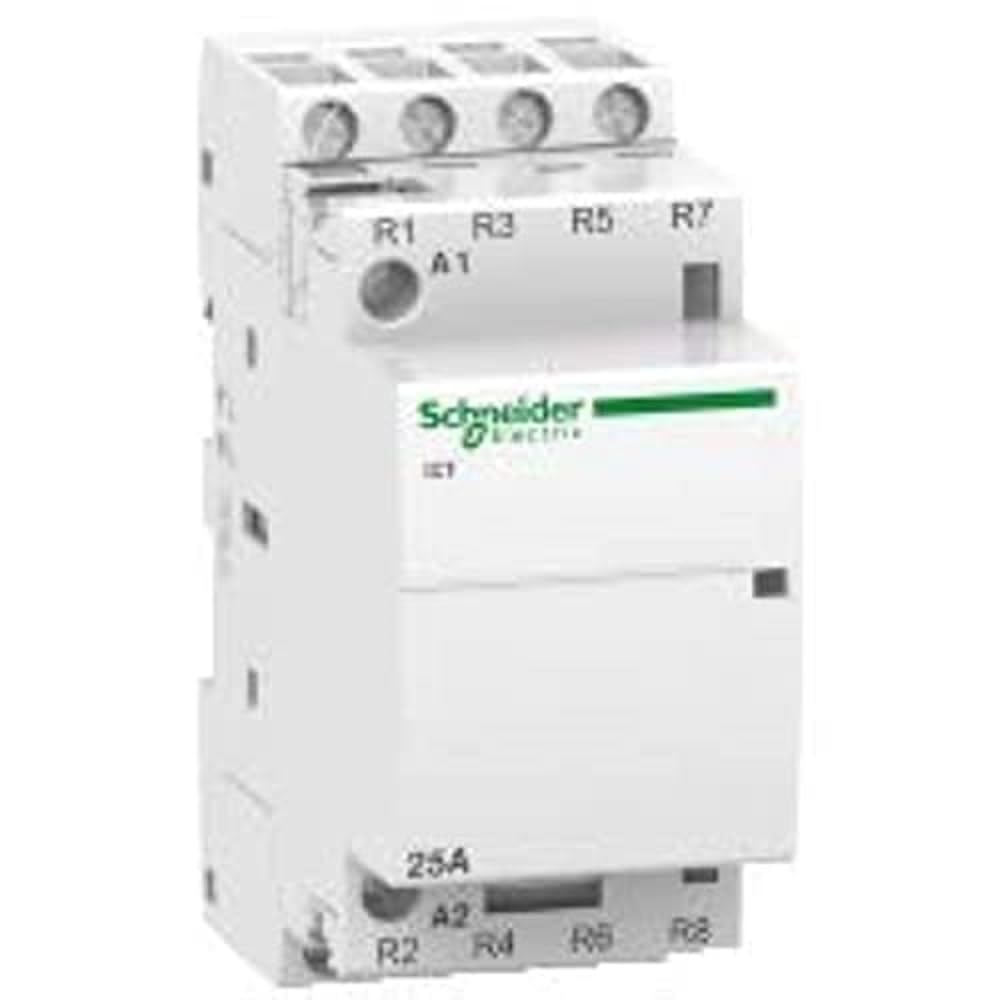

Schneider Electric Acti9 iCT 25A 4NC 220/240V 50Hz Modular Contactor V1202-V1-SCDA9C20837

Brand: Schneider Electric

Color: ‎White

Features:

• A 4P remote control device with 4 normally close contacts
• The In rated current is 25A for AC-7a and 8.5A for AC-7b
• The UE-rated operational voltage is 400VAC
• The Uc control voltage is 220VAC to 240VAC
• Compliant with IEC/EN 61095 standard

PartNumber: ‎A9C20837

Details:

Schneider Electric Acti9 iCT 25A 4NC 220/240V 50Hz Modular Contactor is a 4P remote control device with 4 normally close contacts. The In rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. It is compatible with all the Acti9 control auxiliaries, for lighting, heating and ventilation control applications. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. This product is compliant with IEC/EN 61095 standard. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Model: ‎A9C20837

Item Condition: New
